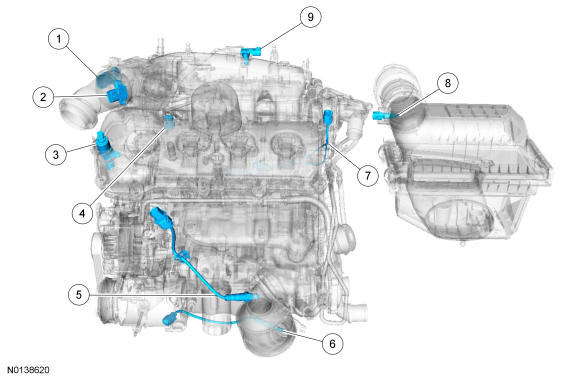

3.5L GTDI Engine Sensor Locations - LH

Courtesy of FORD MOTOR COMPANY

Item	Description	Comments
1	TP sensor	-
2	TCBP /CAC sensor	-
3	LH VCT oil control solenoid	-
4	FRP sensor	-
5	LH HO2S	-
6	LH CMS	-
7	KS	-
8	MAF sensor	-
9	MAP /IAT2 sensor	-
