Powertrain Control Module (PCM): Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

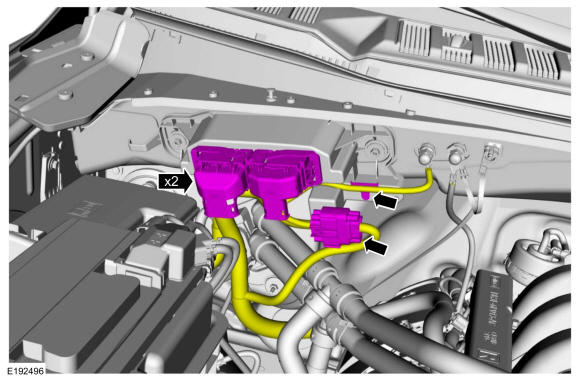

Disconnect the PCM electrical connectors, release the harness retainers to position aside wire harness.

GFD41207

Courtesy of FORD MOTOR COMPANY

2.

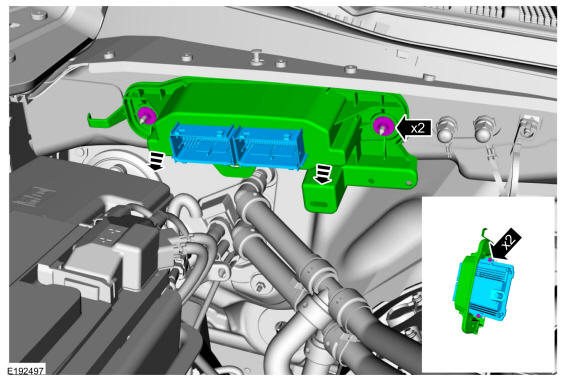

- Remove the 2 retainers and the PCM.
  Torque

  : 53 lb.in (6 Nm)
- Remove the retainers and remove the PCM from the mounting frame.
  Torque

  : 62 lb.in (7 Nm)

GFD41208

Courtesy of FORD MOTOR COMPANY
