Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the wheel and tire. REFER to: Wheel and Tire

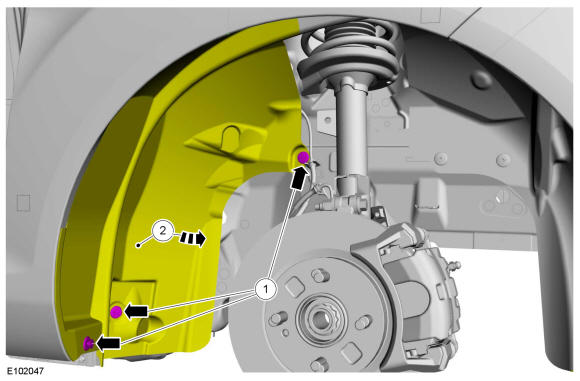

2.
- 1.

  Remove the retainers.
- 2.

  Position aside the fender splash shield.

GFD52389

Courtesy of FORD MOTOR COMPANY

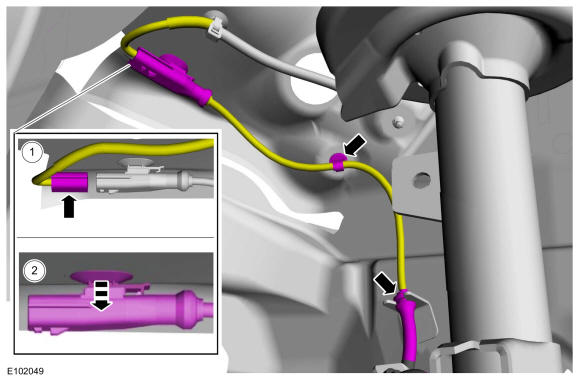

3.
- Disconnect the front wheel speed sensor electrical connector.
- Detach the wiring retainers.

GFD52390

Courtesy of FORD MOTOR COMPANY

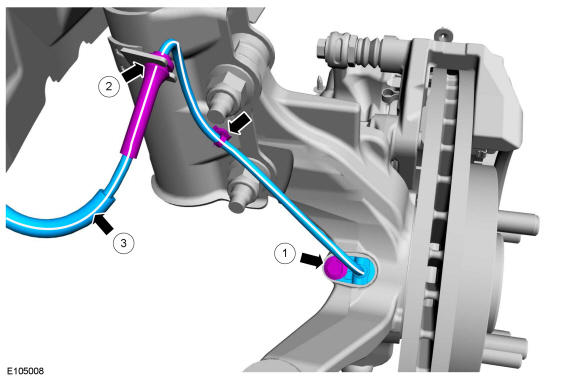

4.
- 1.

  NOTE: Make sure that the sensor housing is clean and free of foreign material.
Remove the bolt and detach the front wheel speed sensor from the wheel knuckle.

Torque

: 80 lb.in (9 Nm)

2.

NOTE: Note the position of the component before removal.

Detach the wiring retainers.

3.

NOTE: Make sure the alignment line is not twisted during installation.

Remove the front wheel speed sensor.

GFD52391

Courtesy of FORD MOTOR COMPANY
