Component Location Views

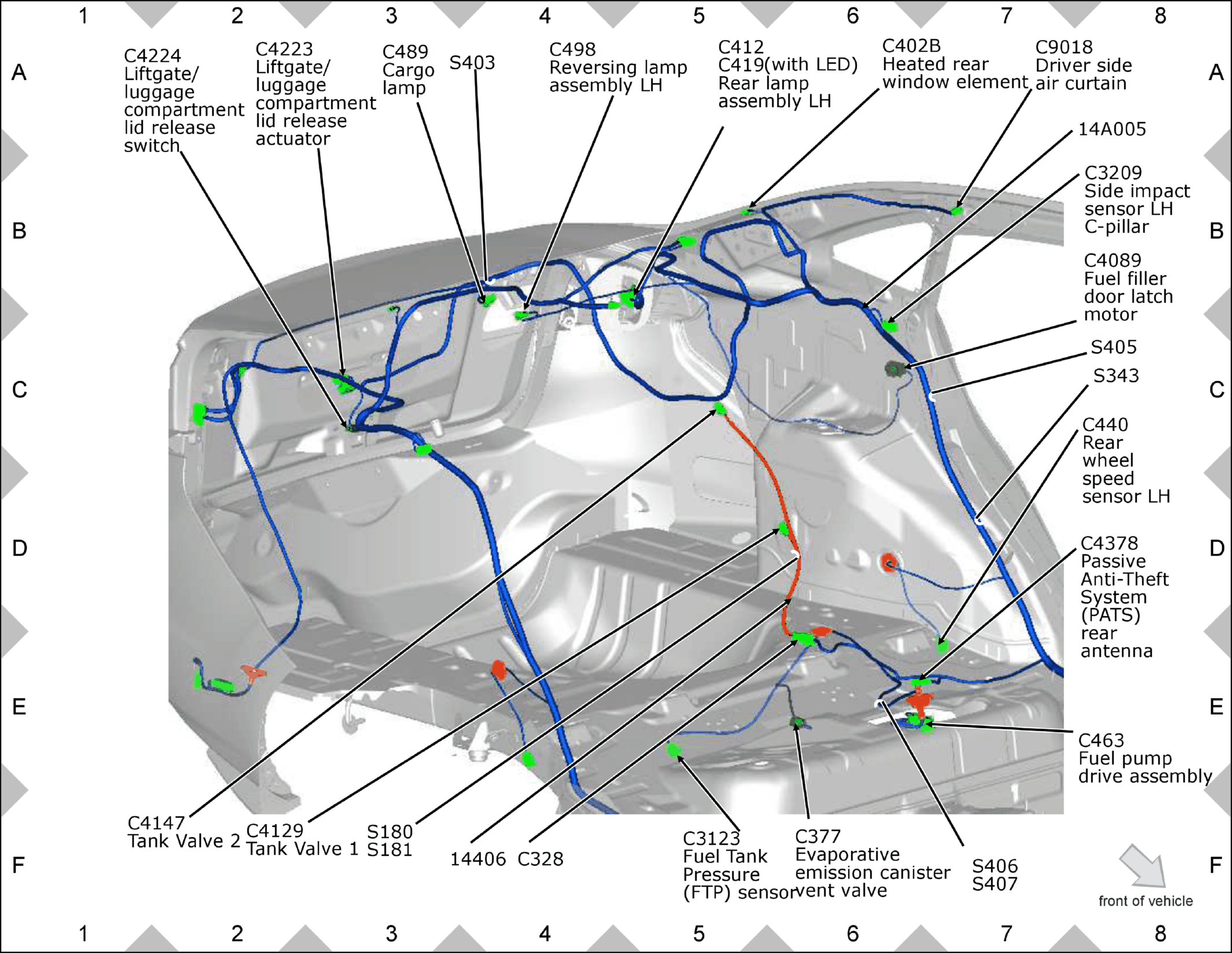

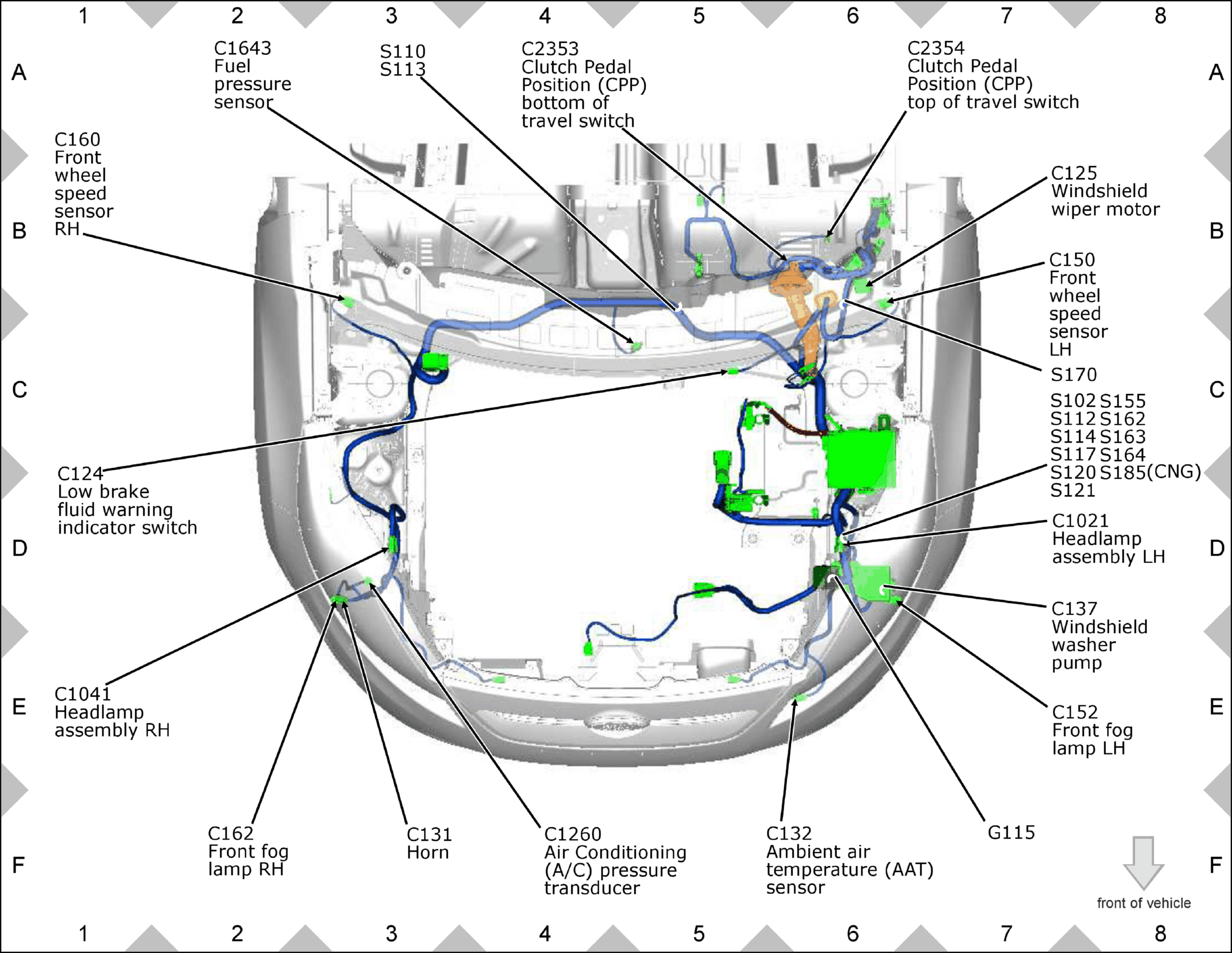

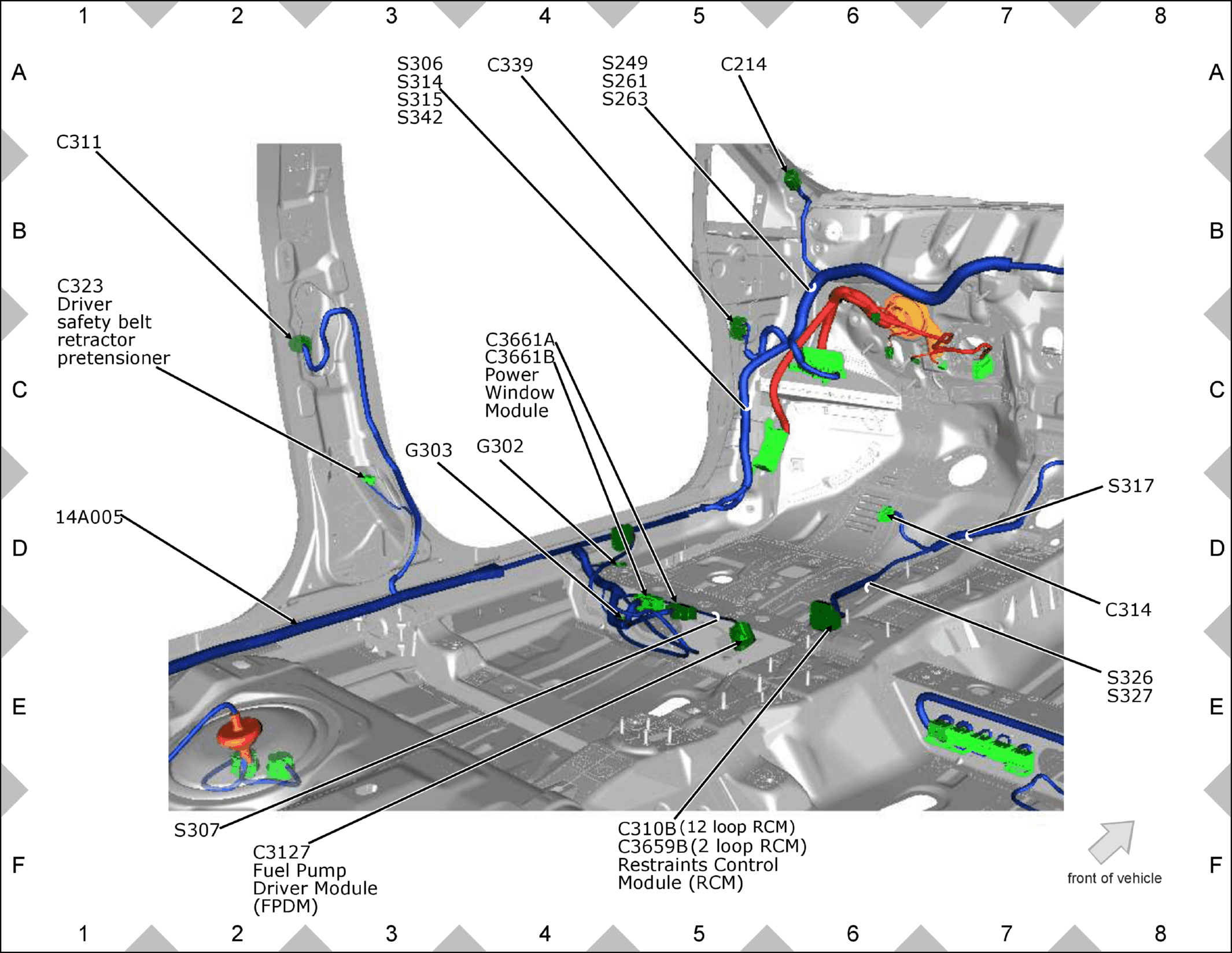

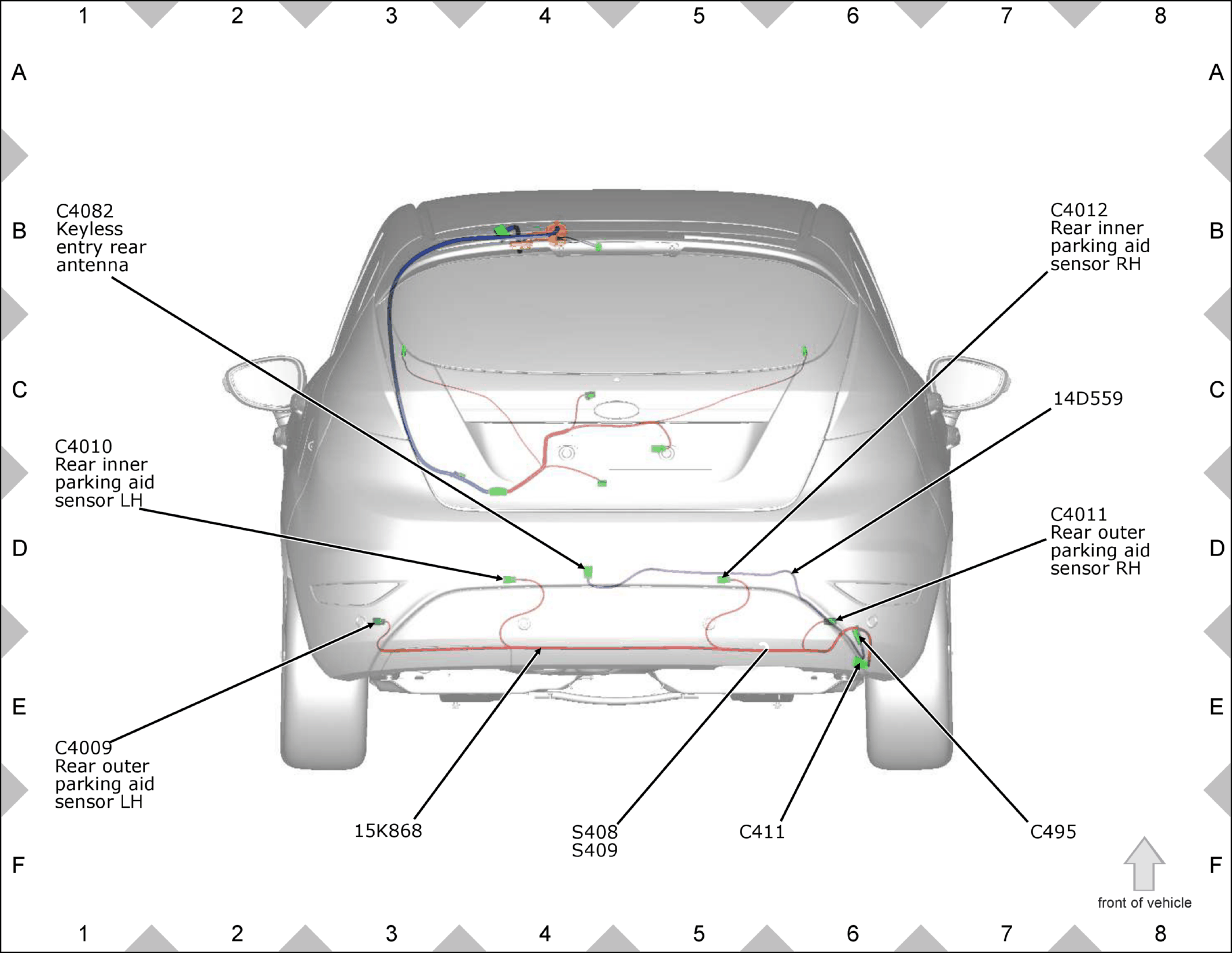

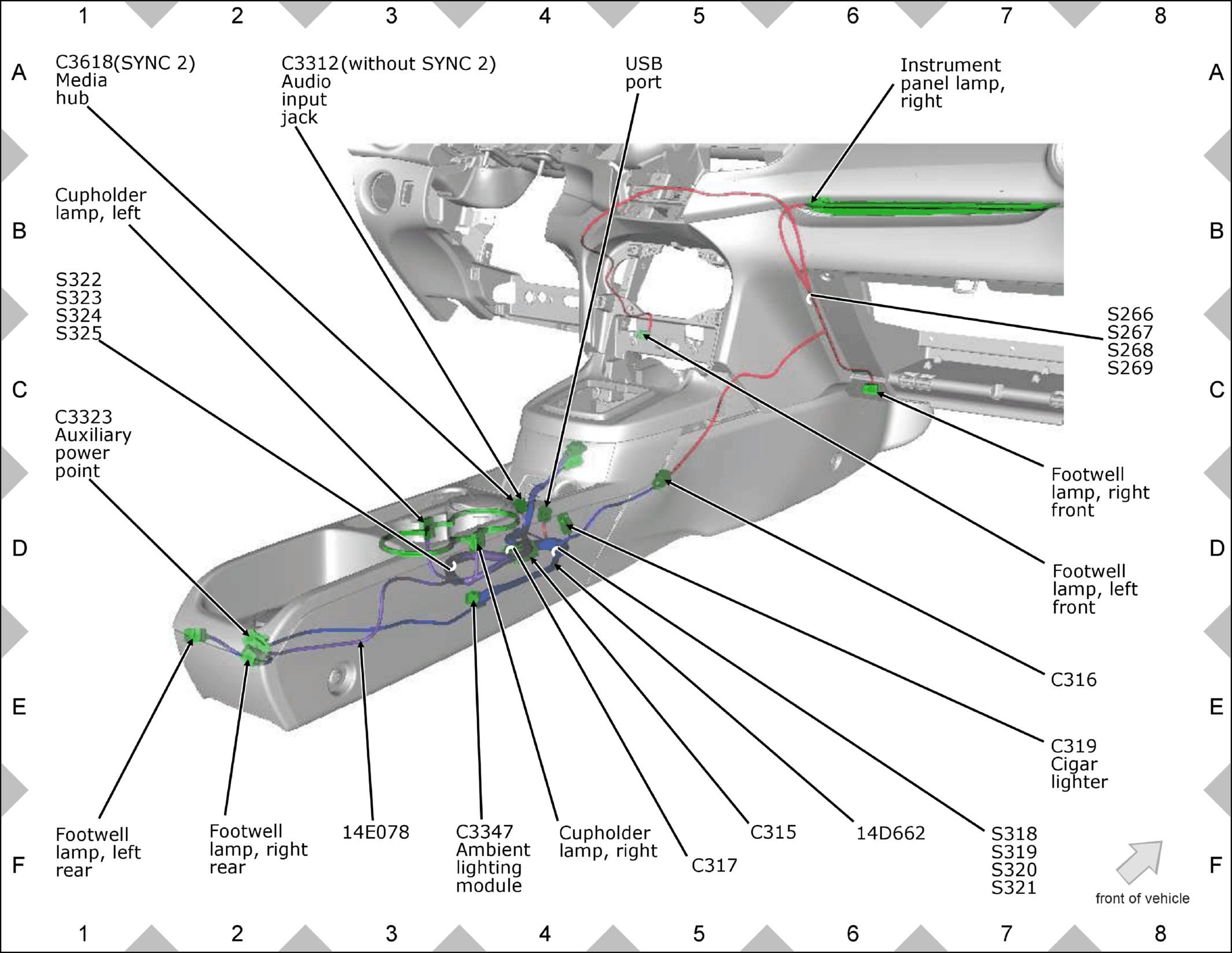

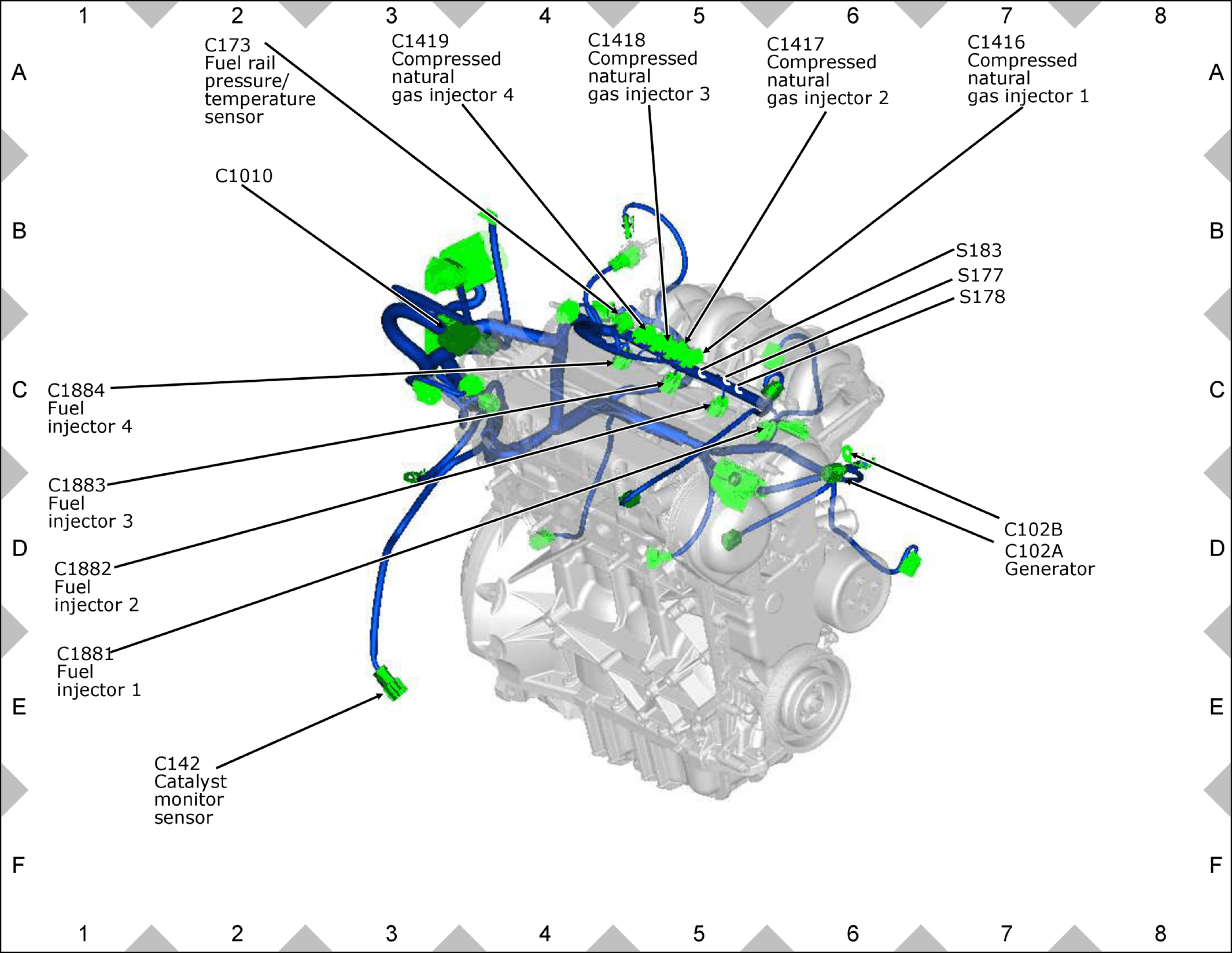

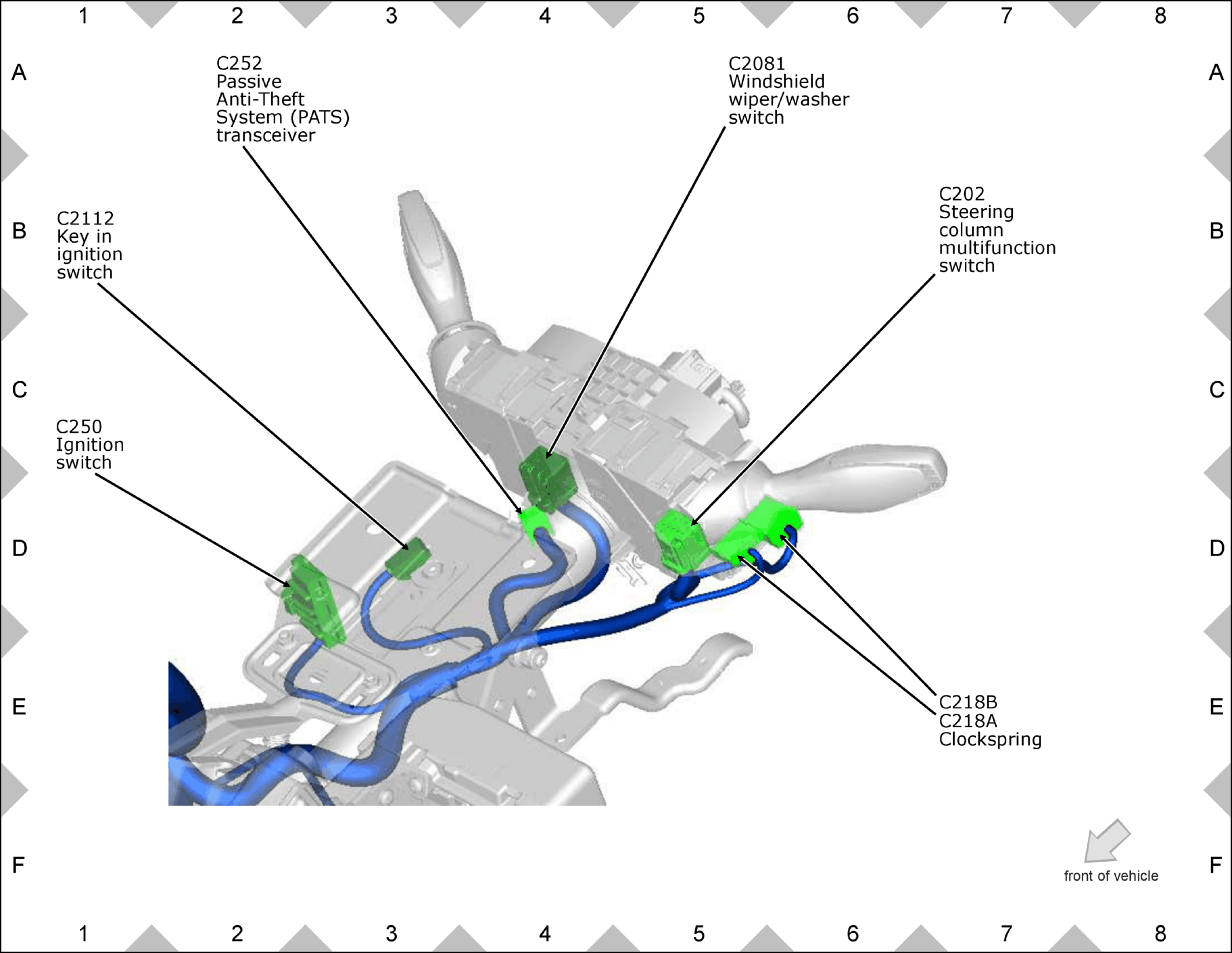

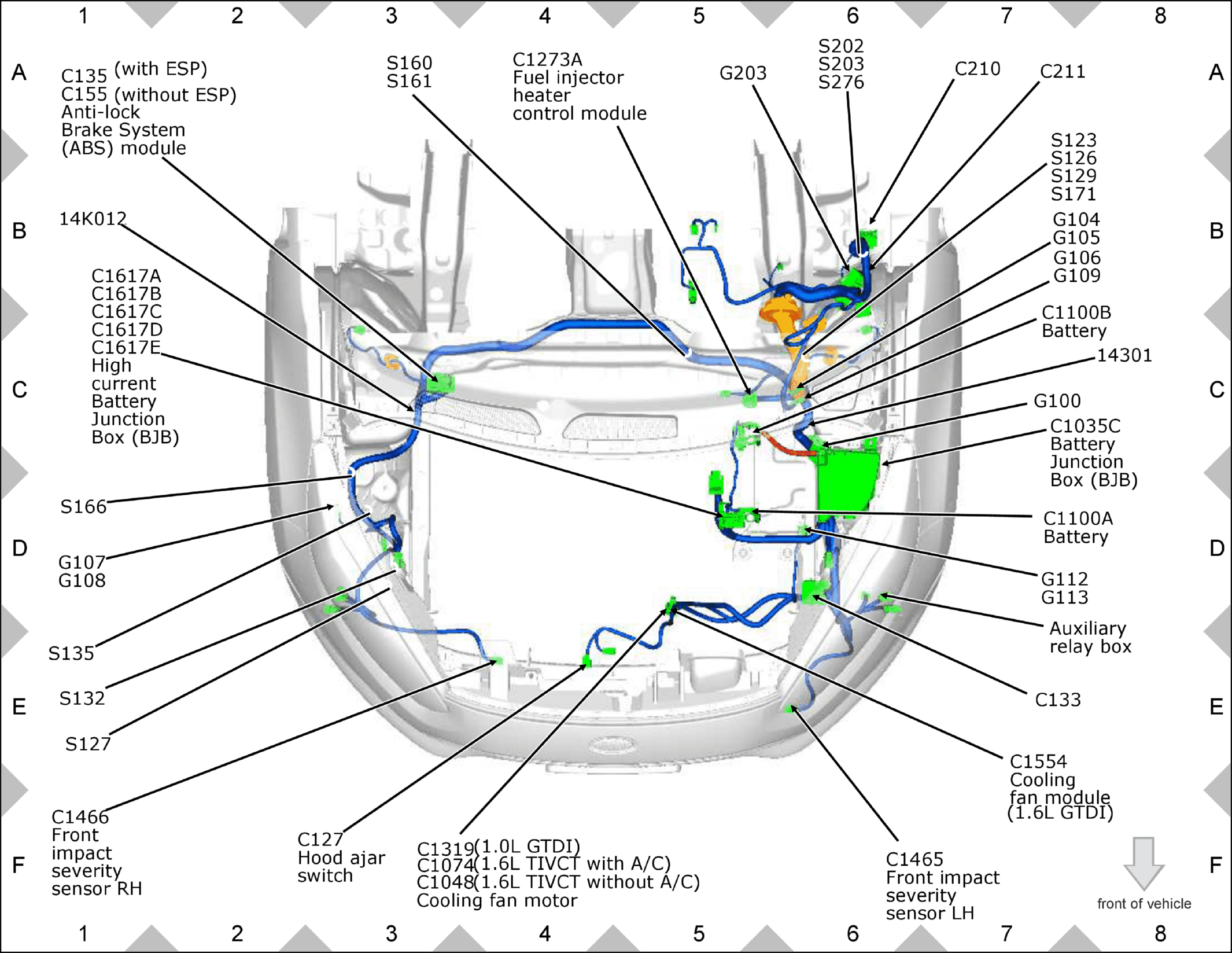

GFDW19923Courtesy of FORD MOTOR COMPANY
GFDW19924Courtesy of FORD MOTOR COMPANY

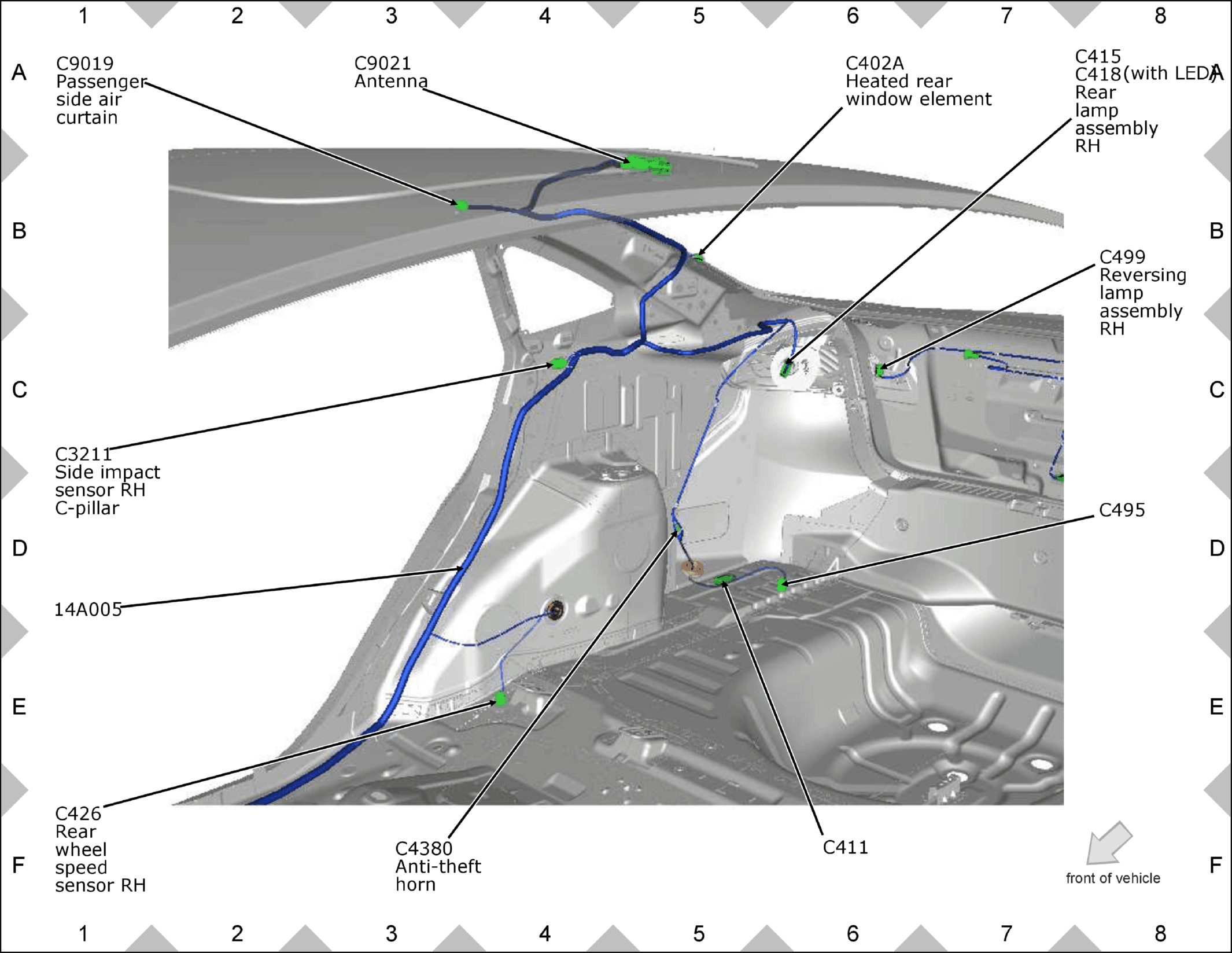

GFDW19925Courtesy of FORD MOTOR COMPANY

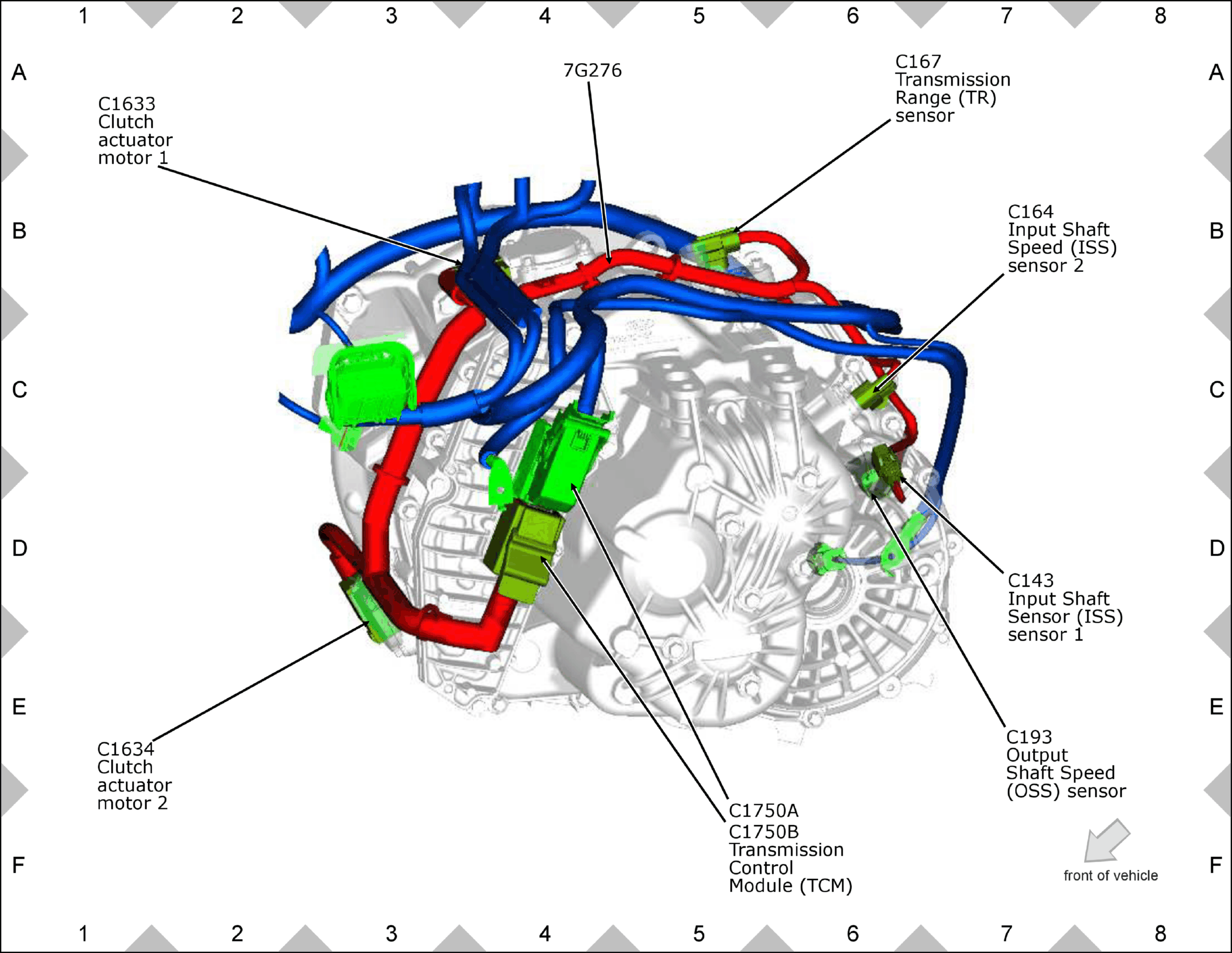

GFDW19926Courtesy of FORD MOTOR COMPANY

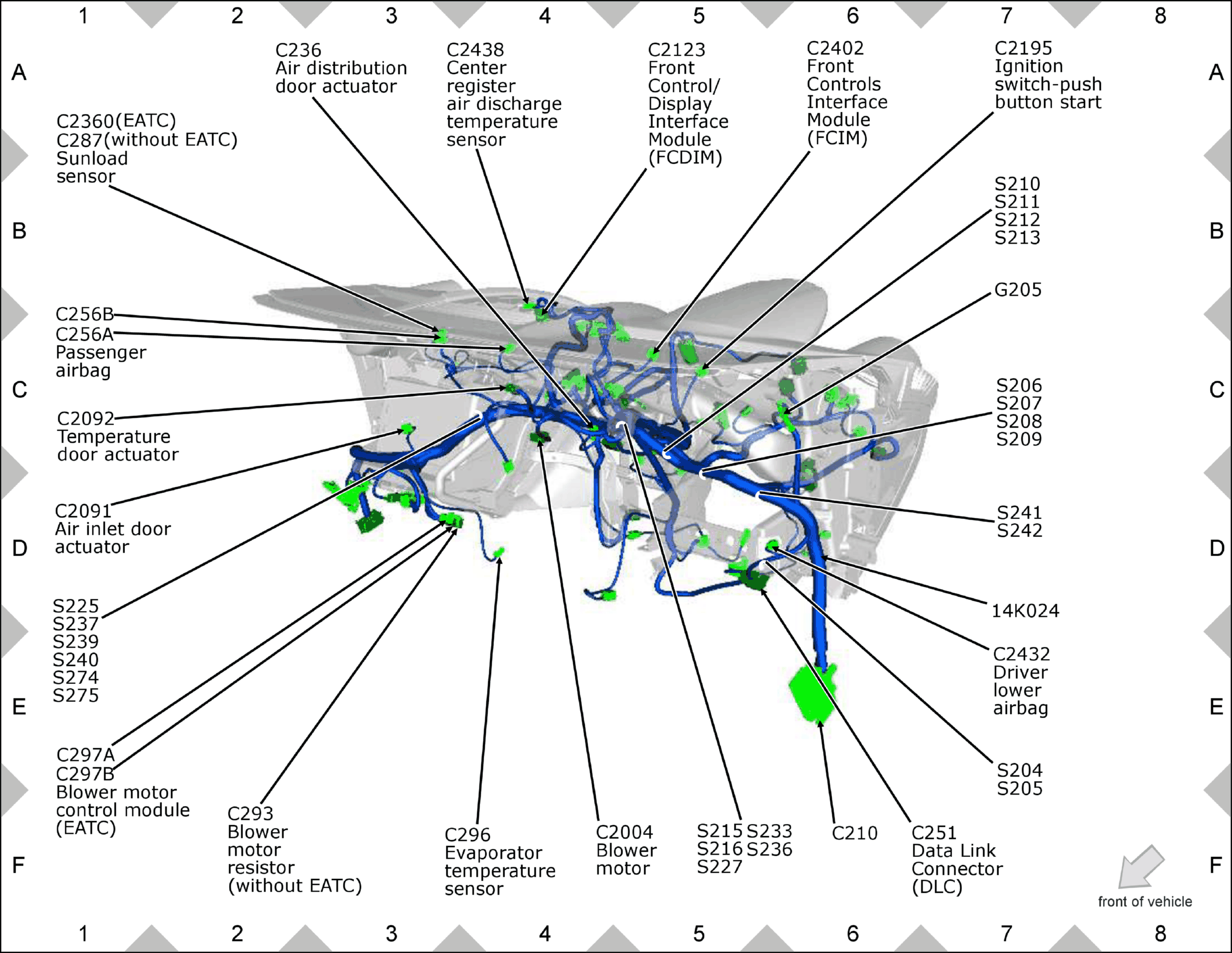

GFDW19927Courtesy of FORD MOTOR COMPANY

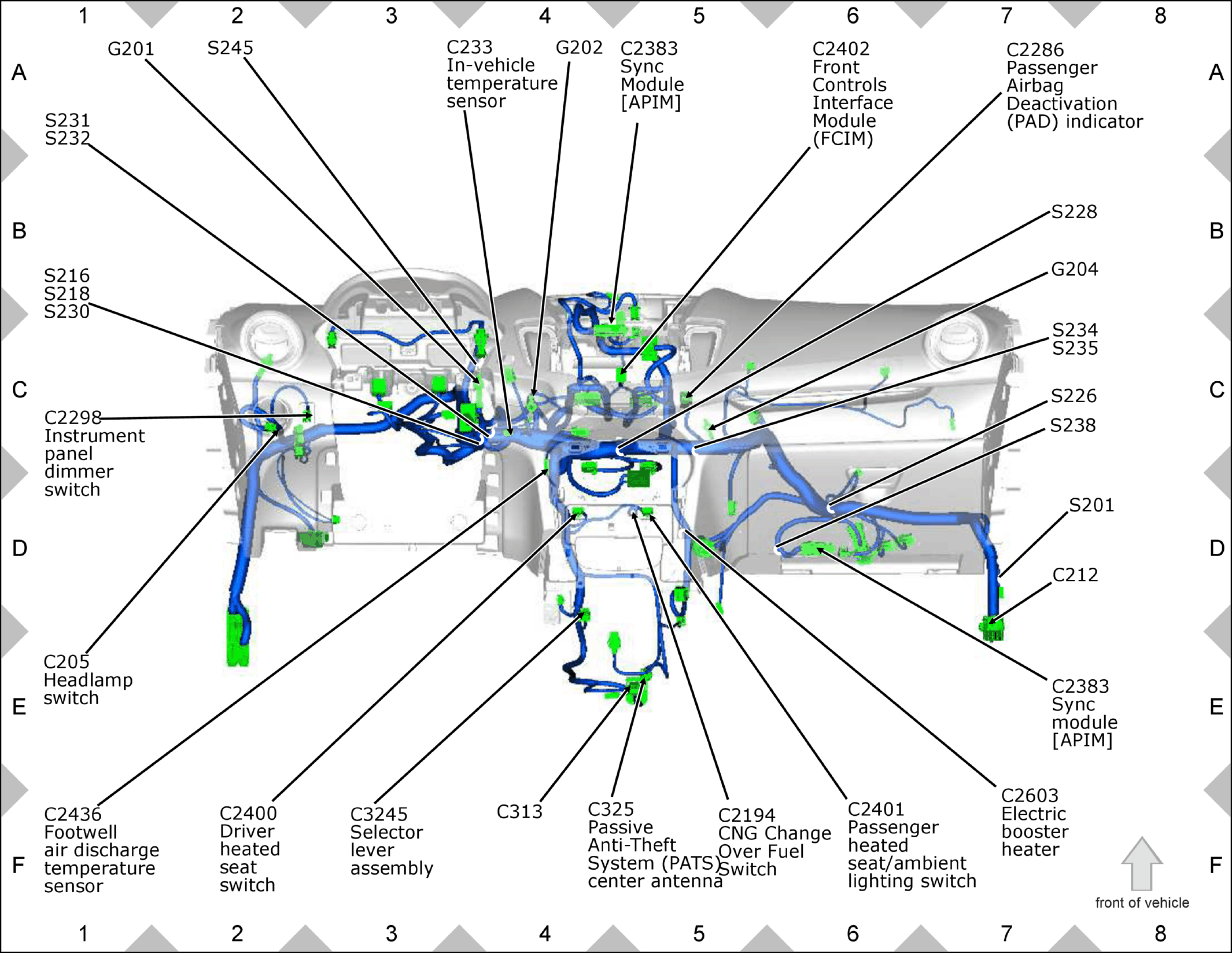

GFDW19928Courtesy of FORD MOTOR COMPANY

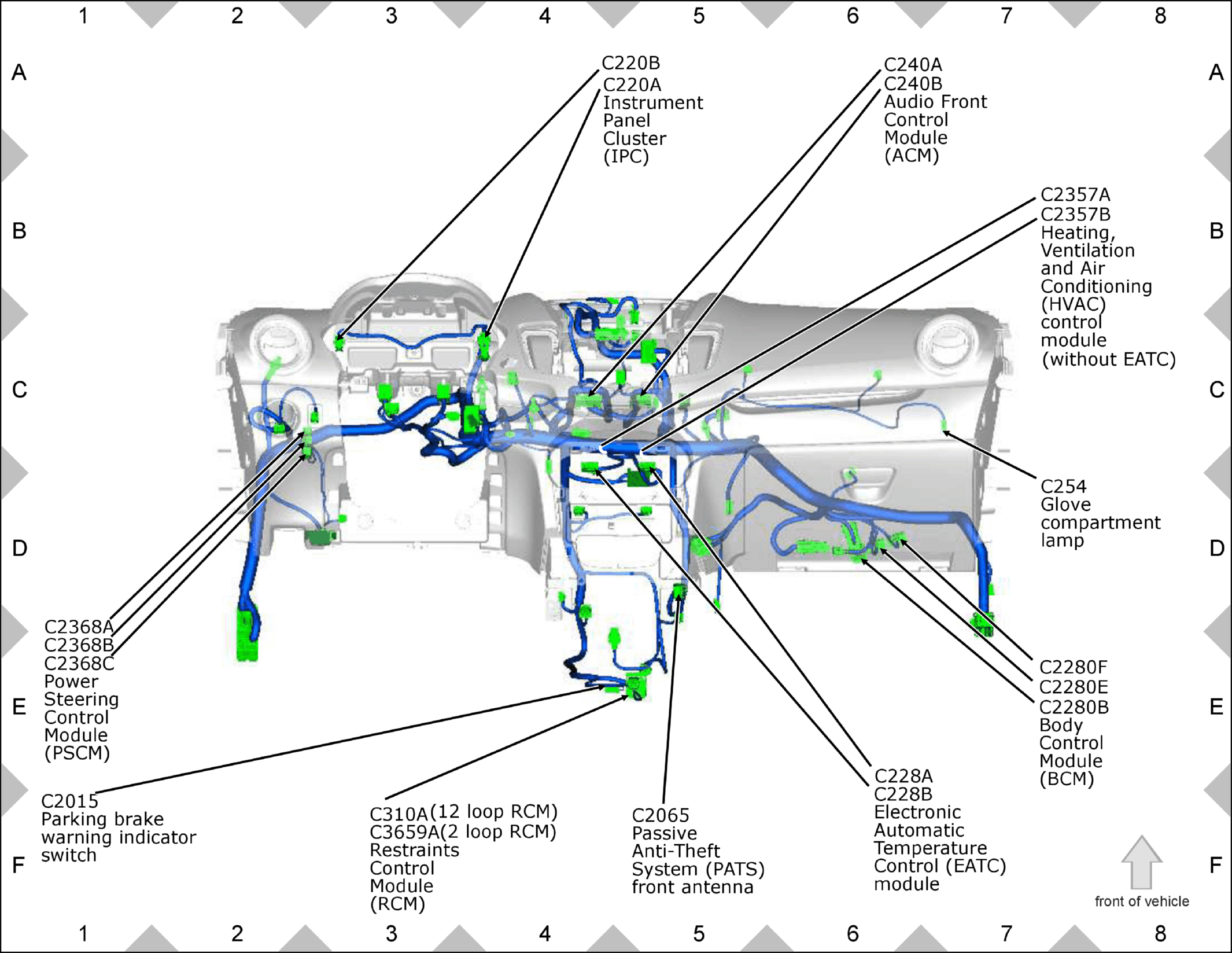

GFDW19929Courtesy of FORD MOTOR COMPANY
GFDW19930Courtesy of FORD MOTOR COMPANY

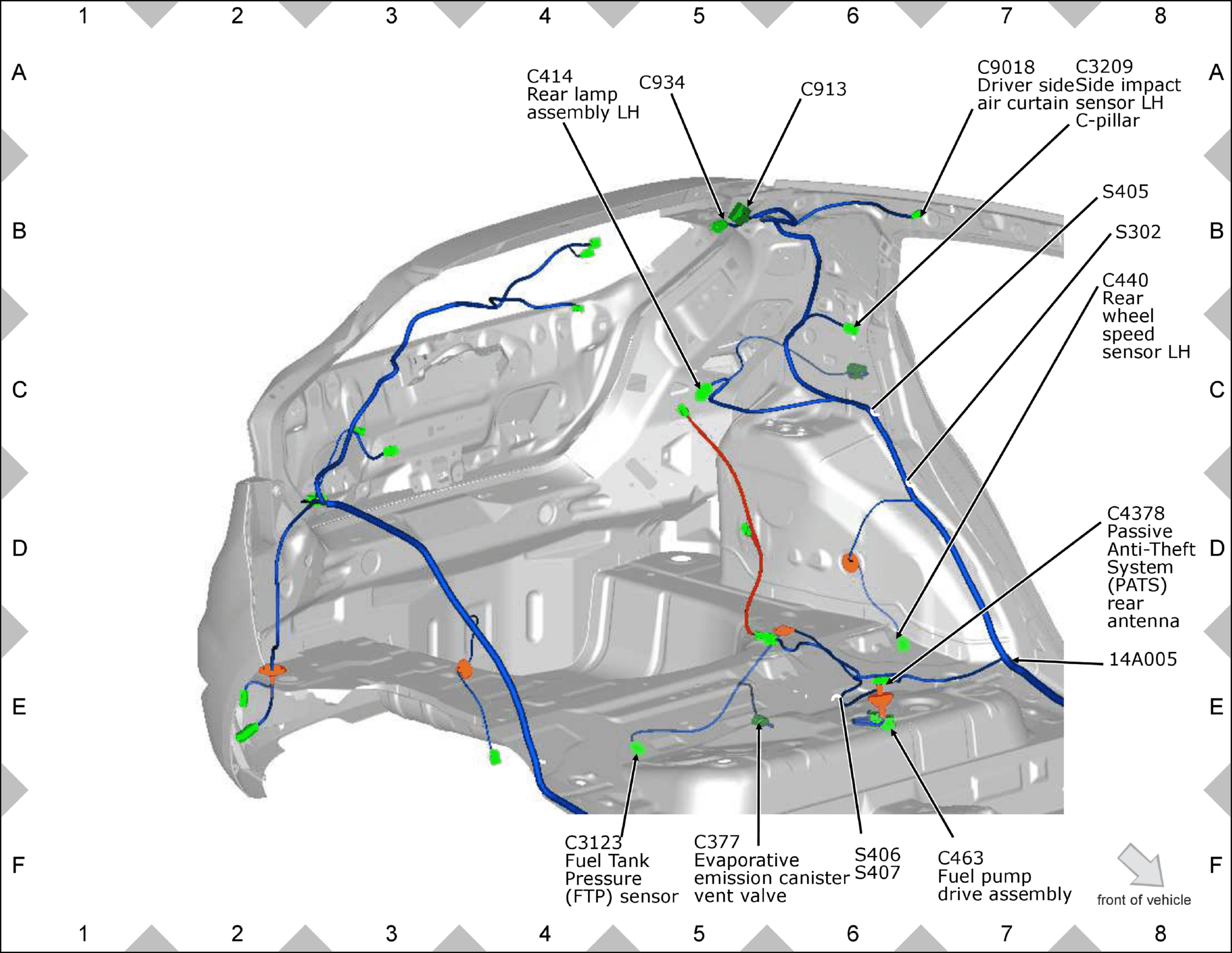

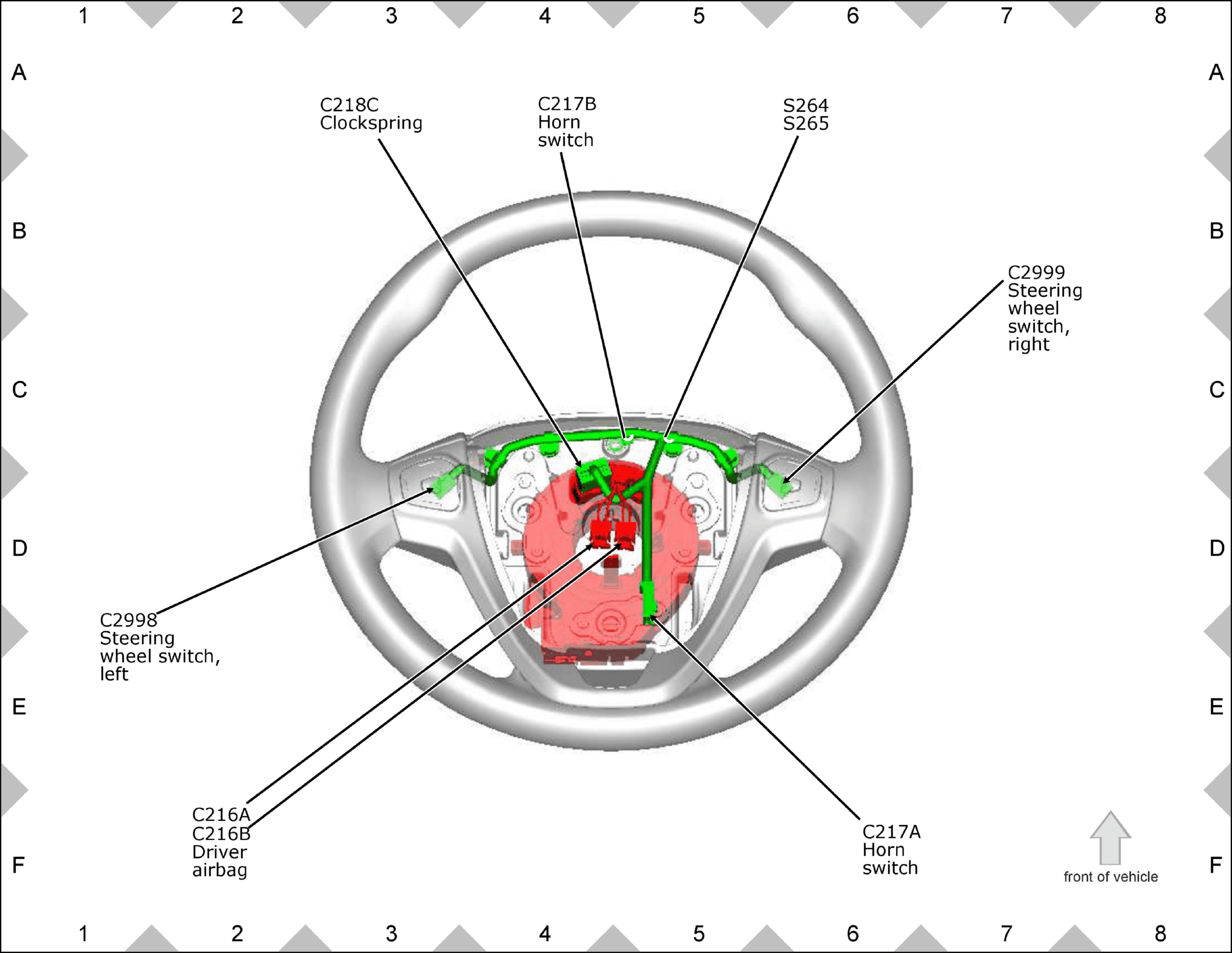

GFDW19931Courtesy of FORD MOTOR COMPANY
GFDW19932Courtesy of FORD MOTOR COMPANY
GFDW19933Courtesy of FORD MOTOR COMPANY

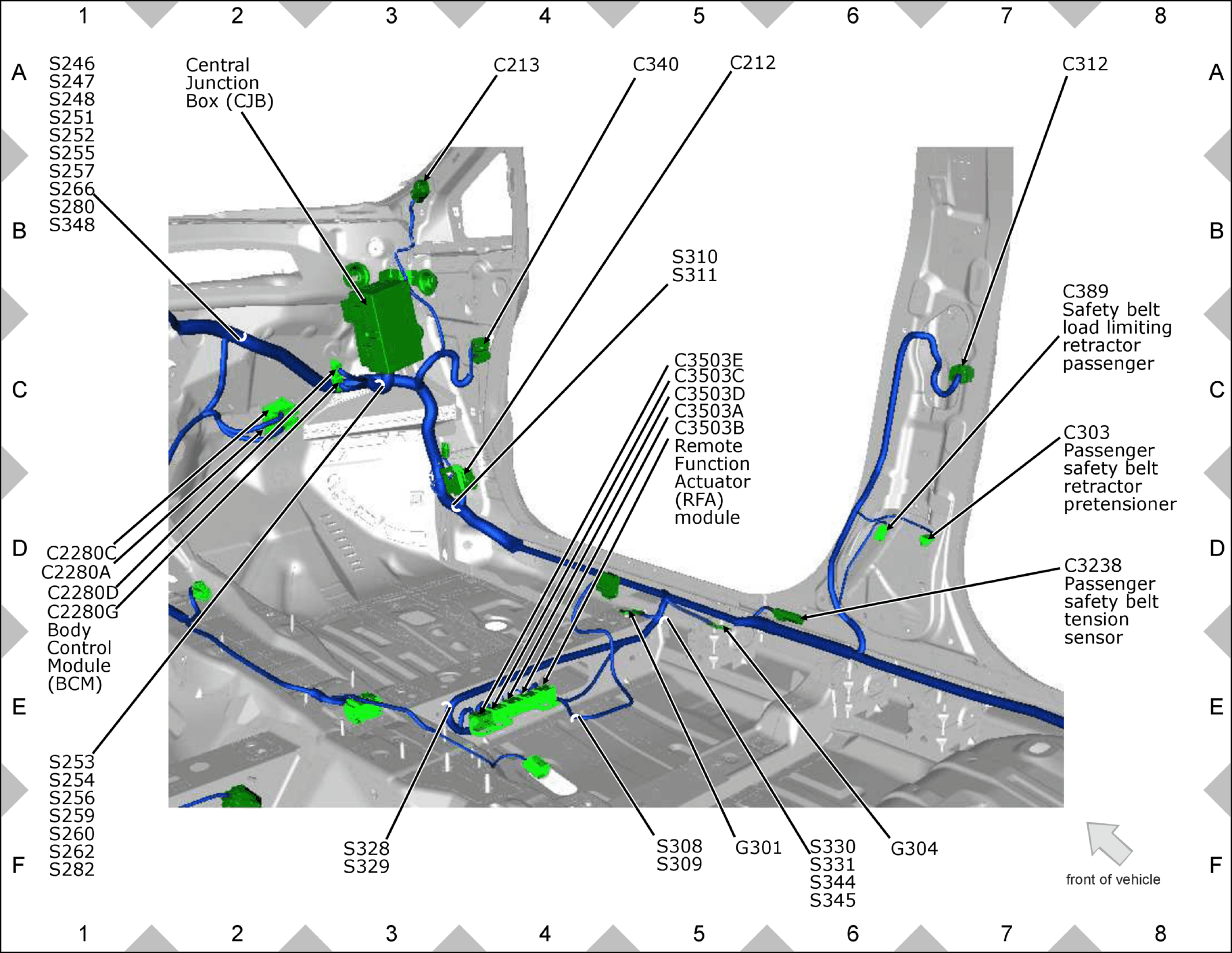

GFDW19934Courtesy of FORD MOTOR COMPANY

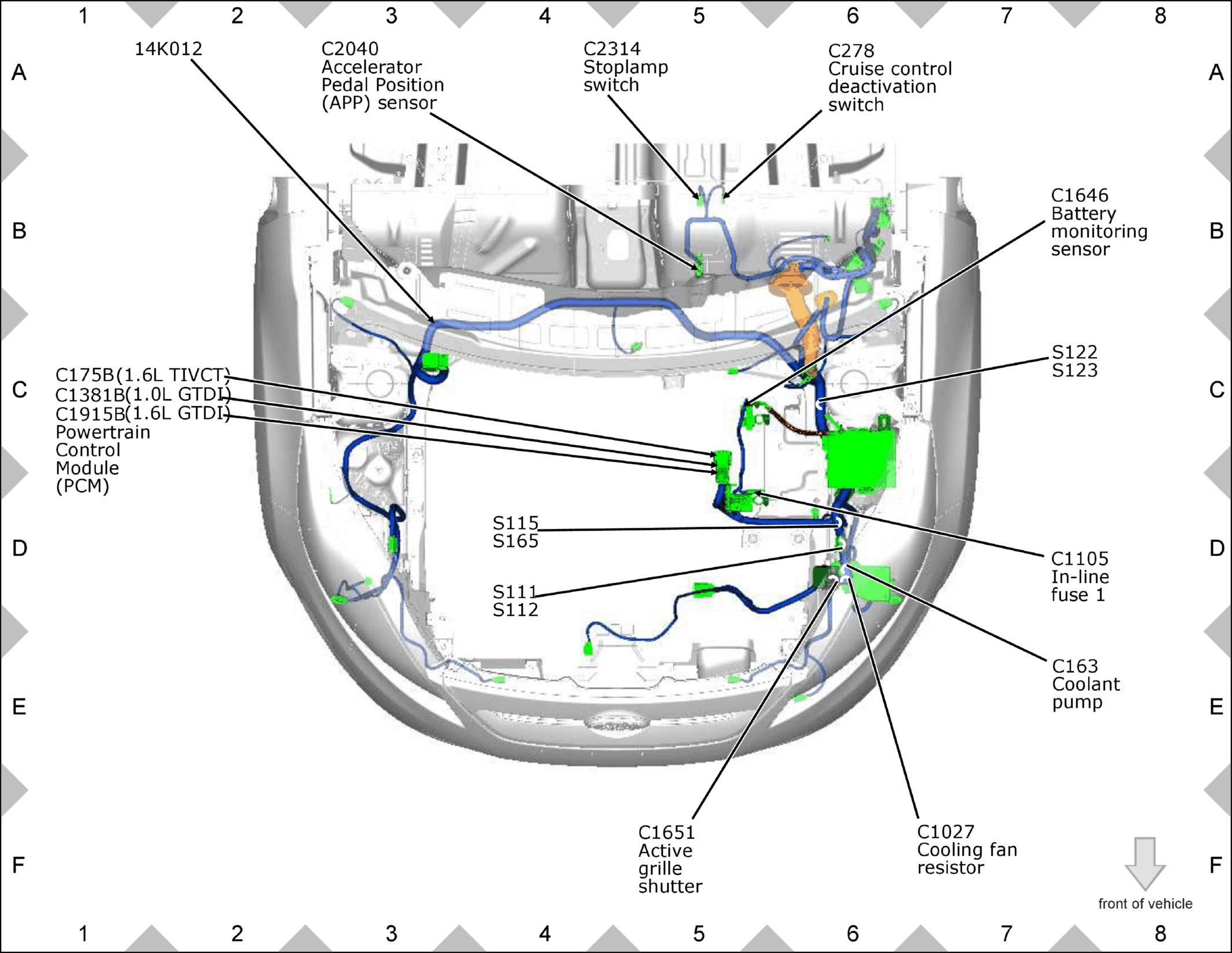

GFDW19935Courtesy of FORD MOTOR COMPANY
GFDW19936Courtesy of FORD MOTOR COMPANY
GFDW19937Courtesy of FORD MOTOR COMPANY
GFDW19938Courtesy of FORD MOTOR COMPANY

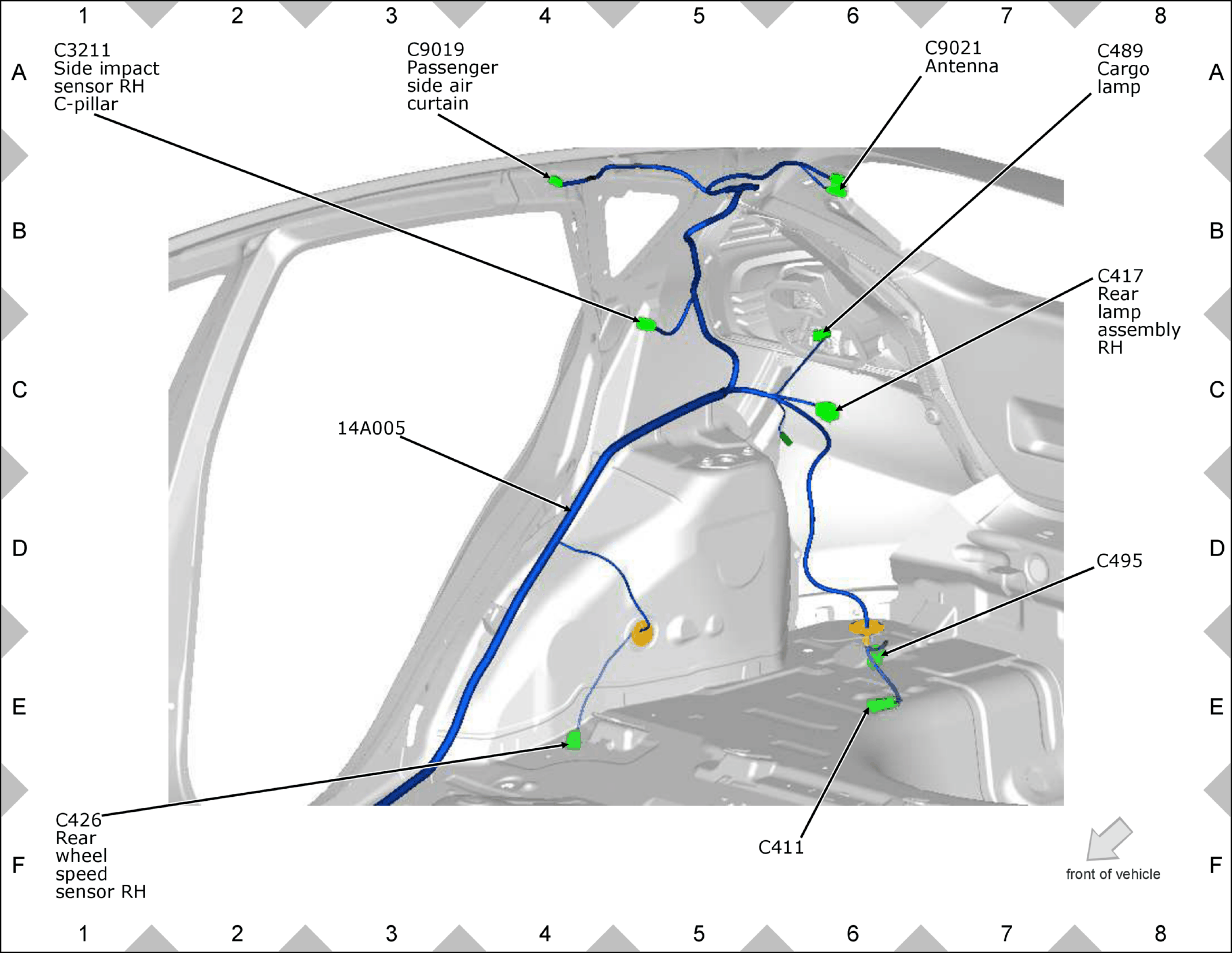

GFDW19939Courtesy of FORD MOTOR COMPANY
GFDW19940Courtesy of FORD MOTOR COMPANY

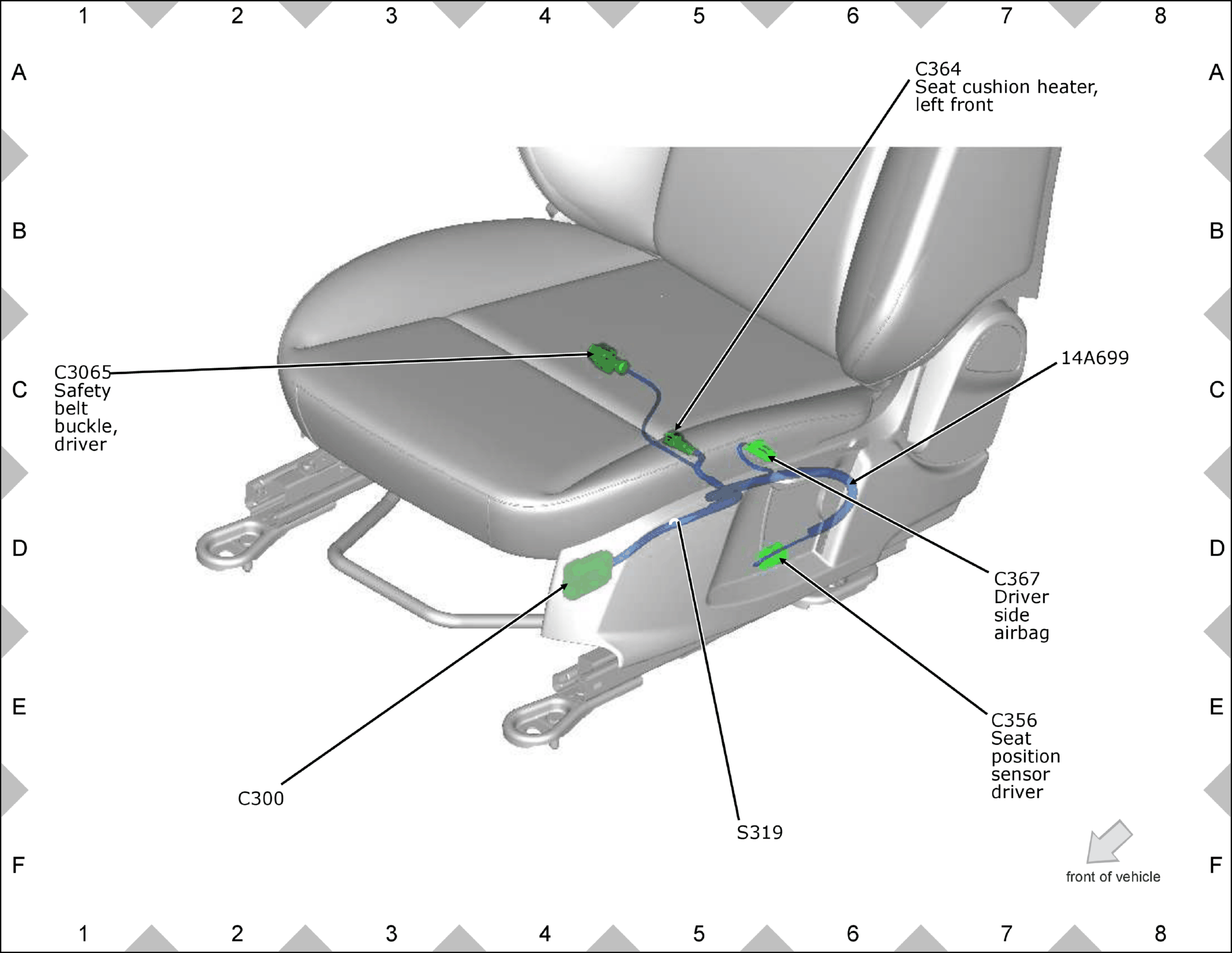

GFDW19941Courtesy of FORD MOTOR COMPANY

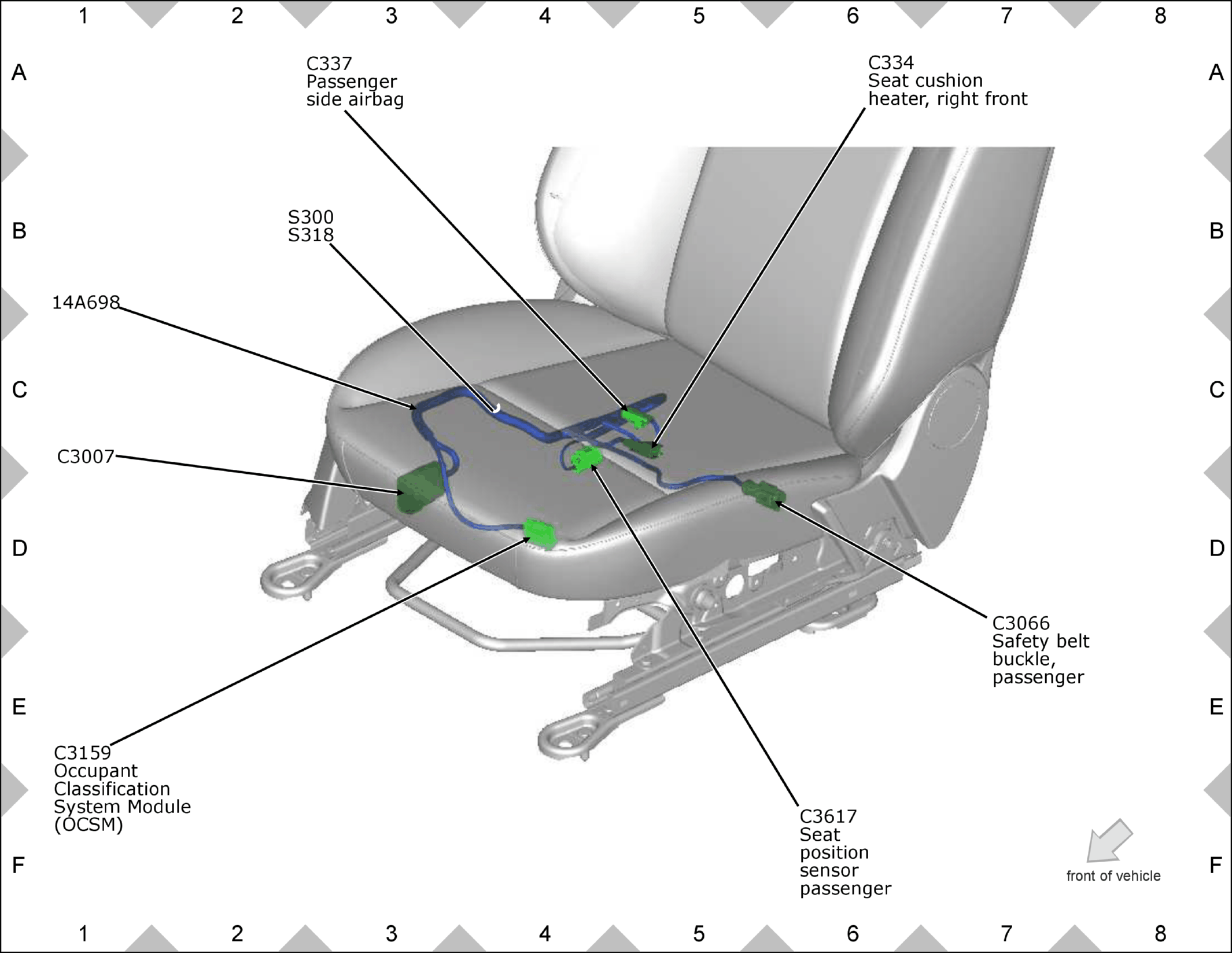

GFDW19942Courtesy of FORD MOTOR COMPANY

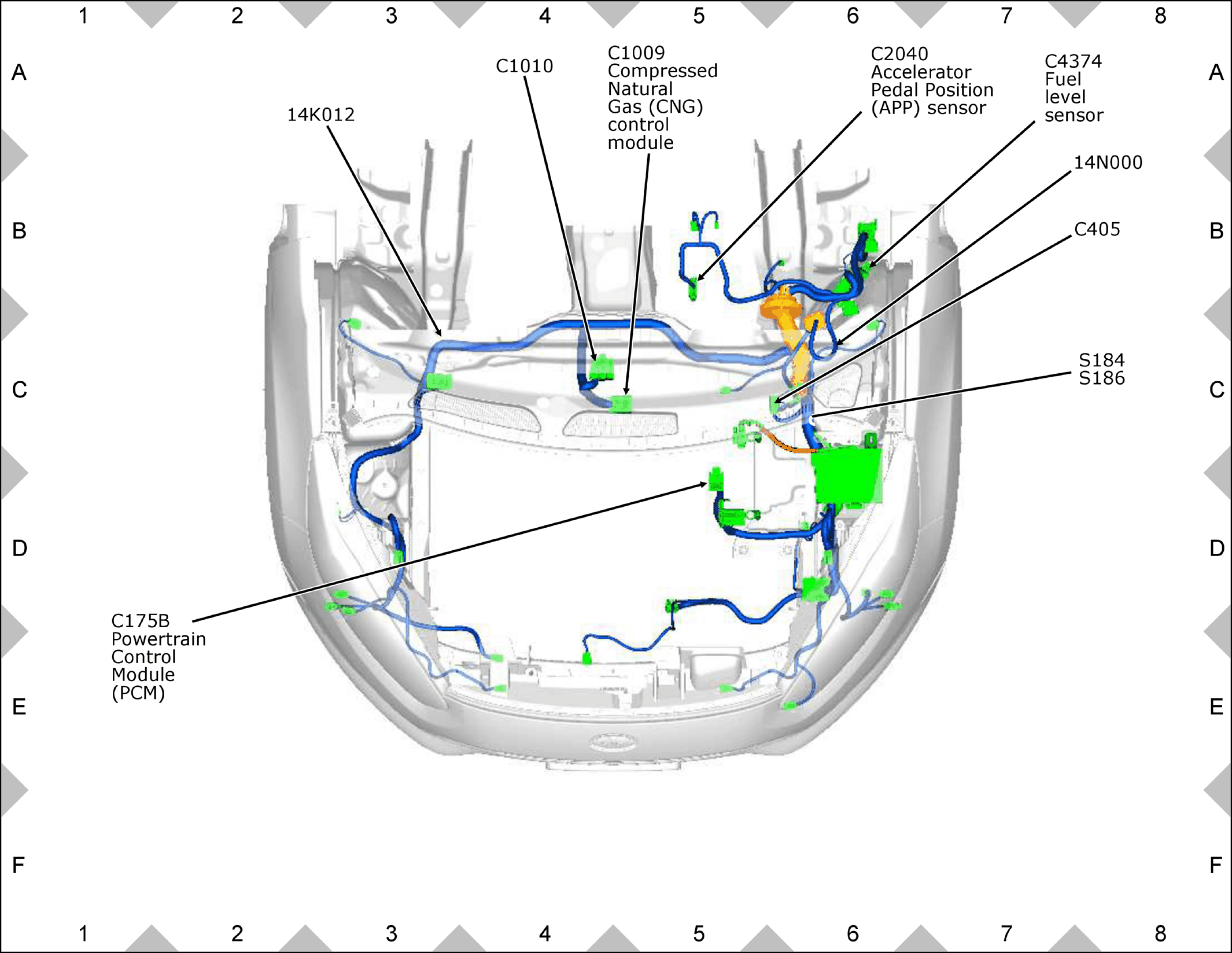

GFDW19943Courtesy of FORD MOTOR COMPANY

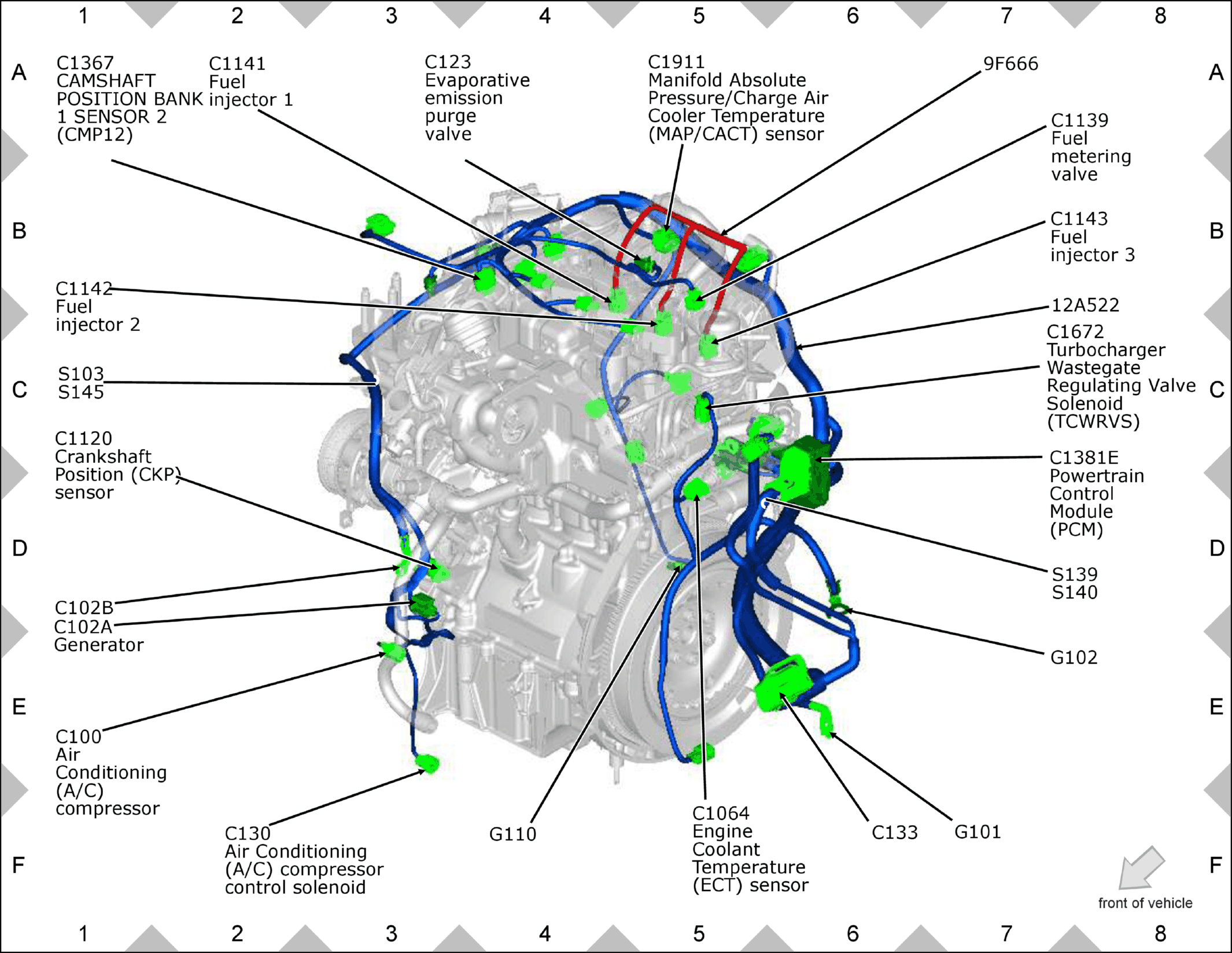

GFDW19944Courtesy of FORD MOTOR COMPANY

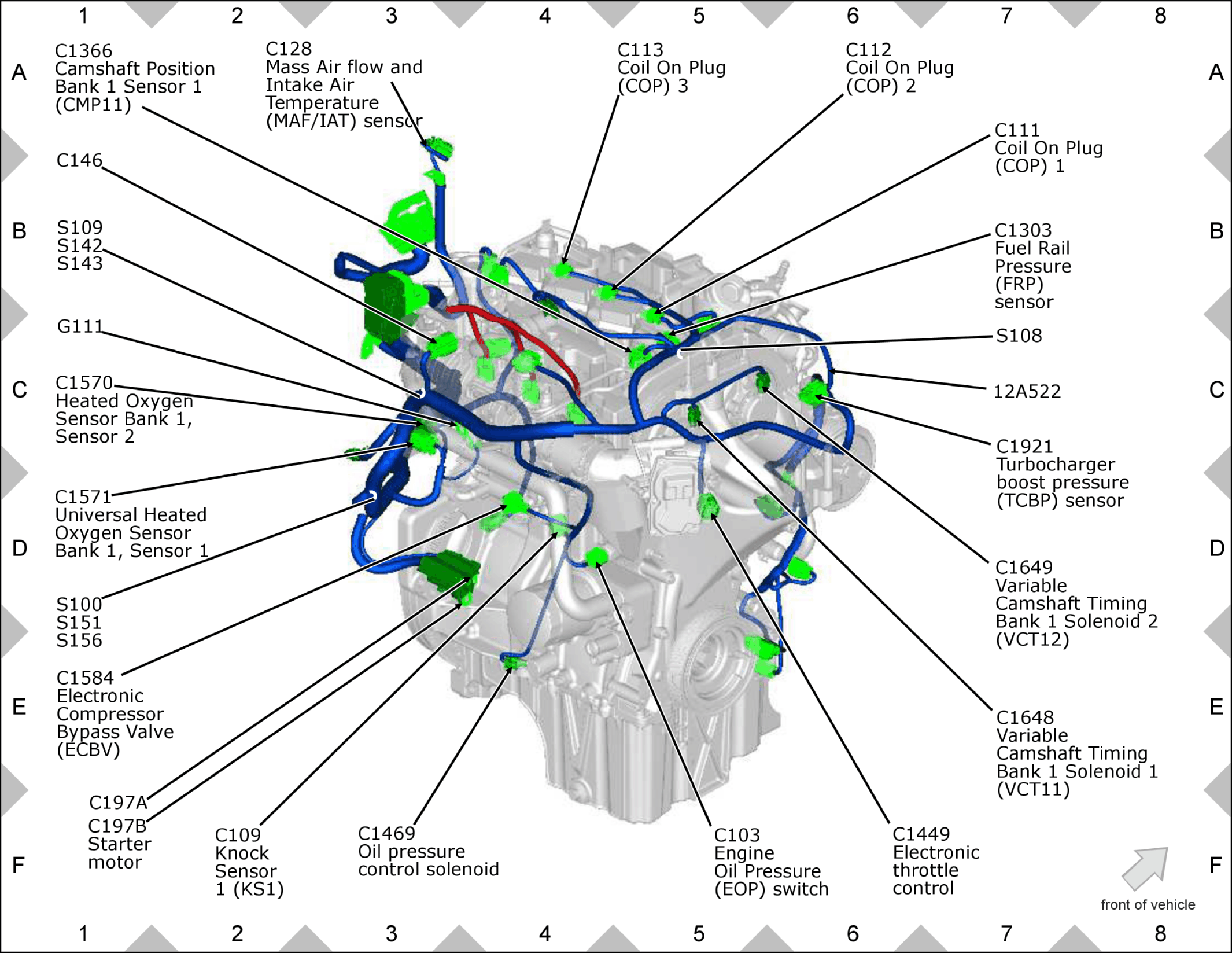

GFDW19945Courtesy of FORD MOTOR COMPANY

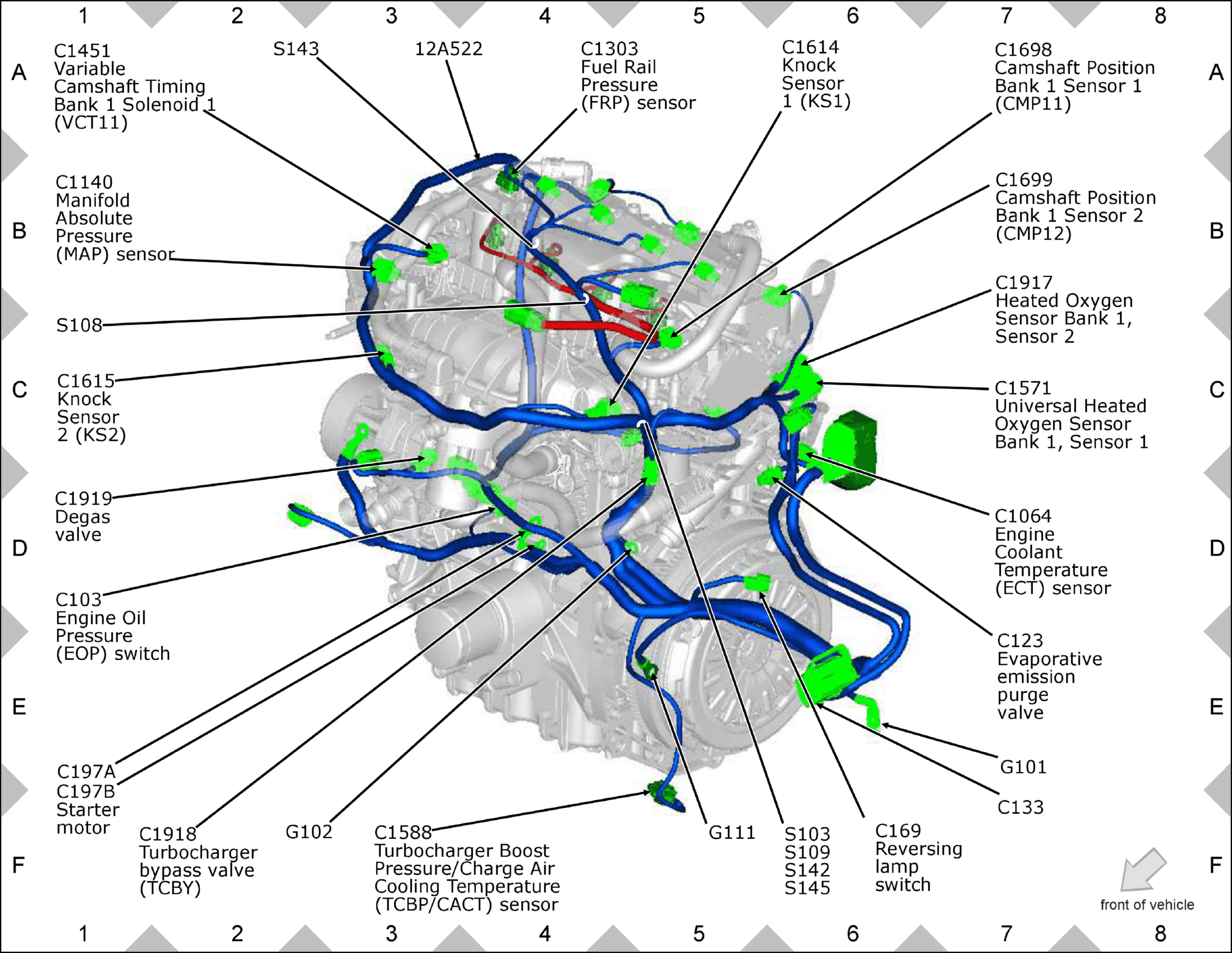

GFDW19946Courtesy of FORD MOTOR COMPANY

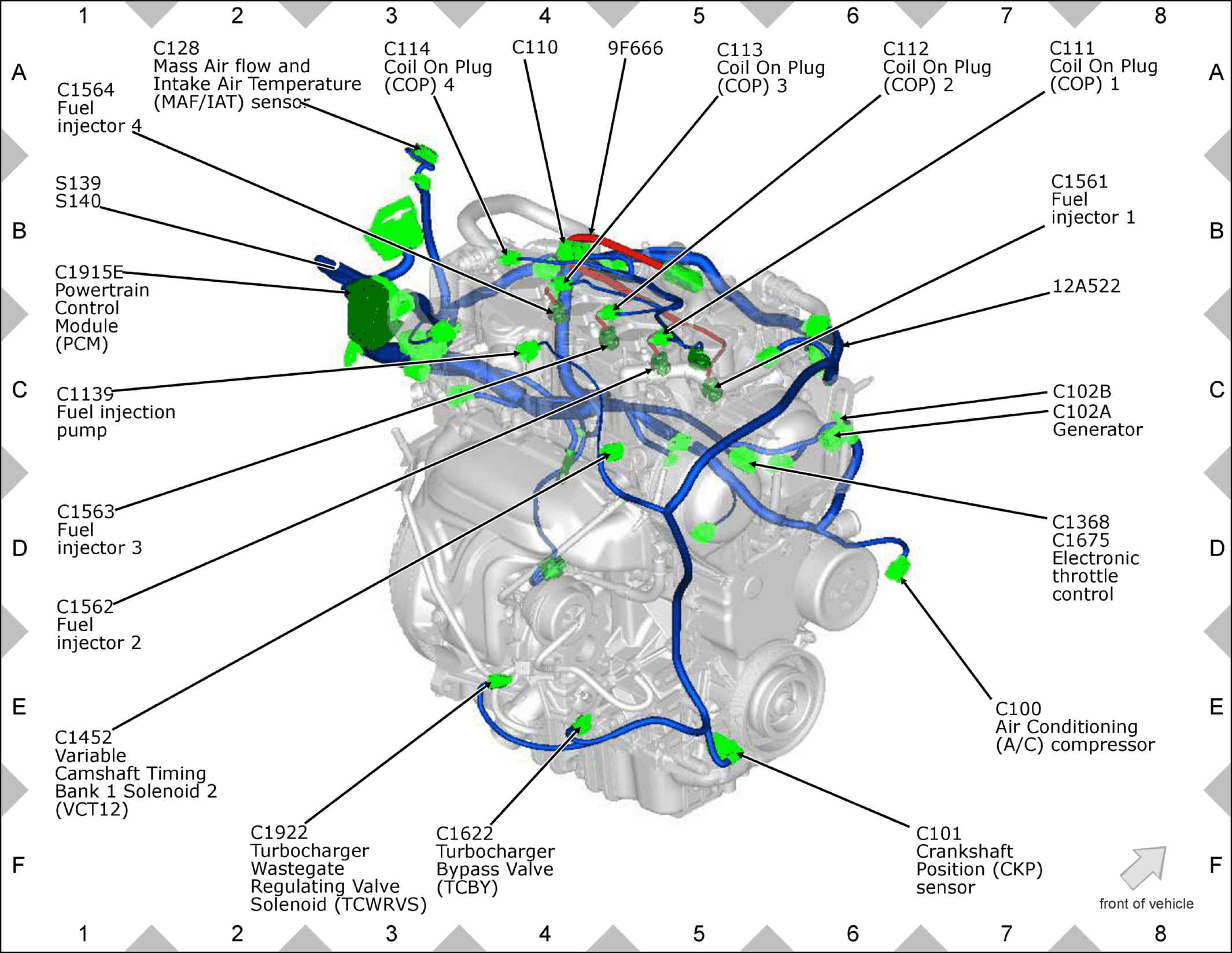

GFDW19947Courtesy of FORD MOTOR COMPANY

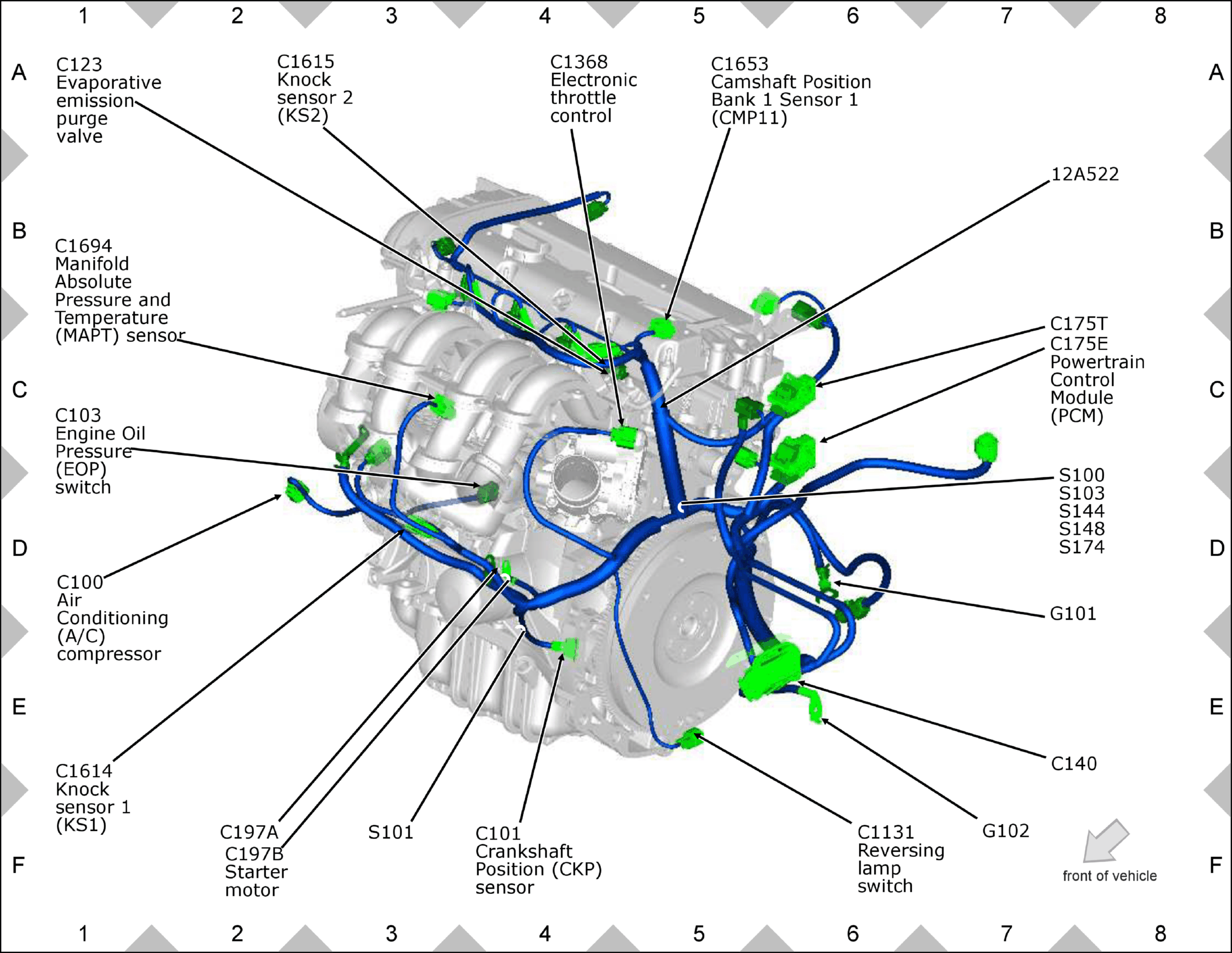

GFDW19948Courtesy of FORD MOTOR COMPANY

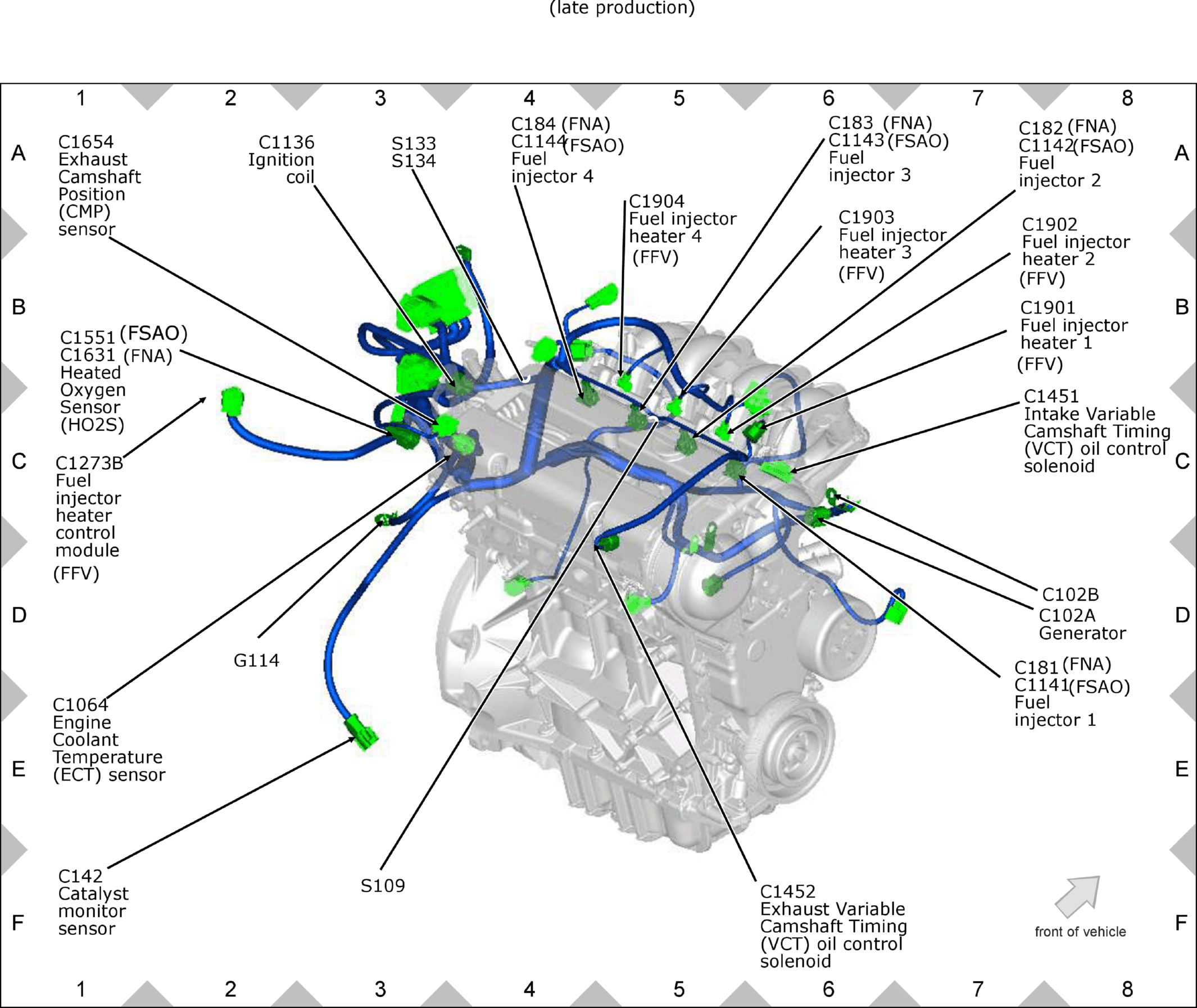

GFDW19949Courtesy of FORD MOTOR COMPANY
