Ignition Switch-Push Button Start

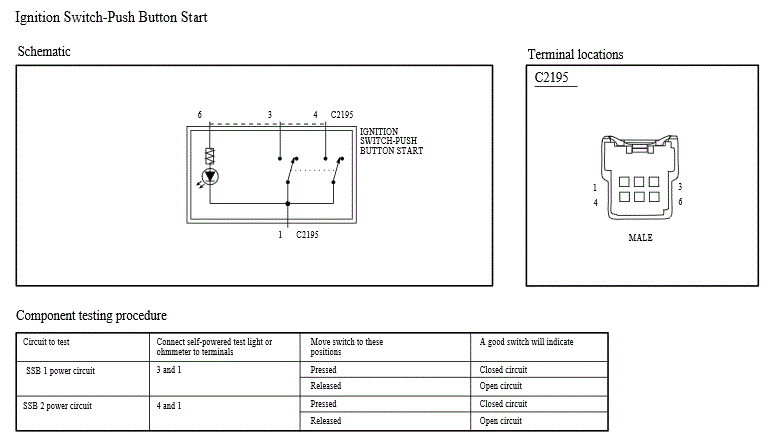

Fig 1: Ignition Switch-Push Button Start
GFDW19904Courtesy of FORD MOTOR COMPANY
