Instrument Panel Dimmer Switch

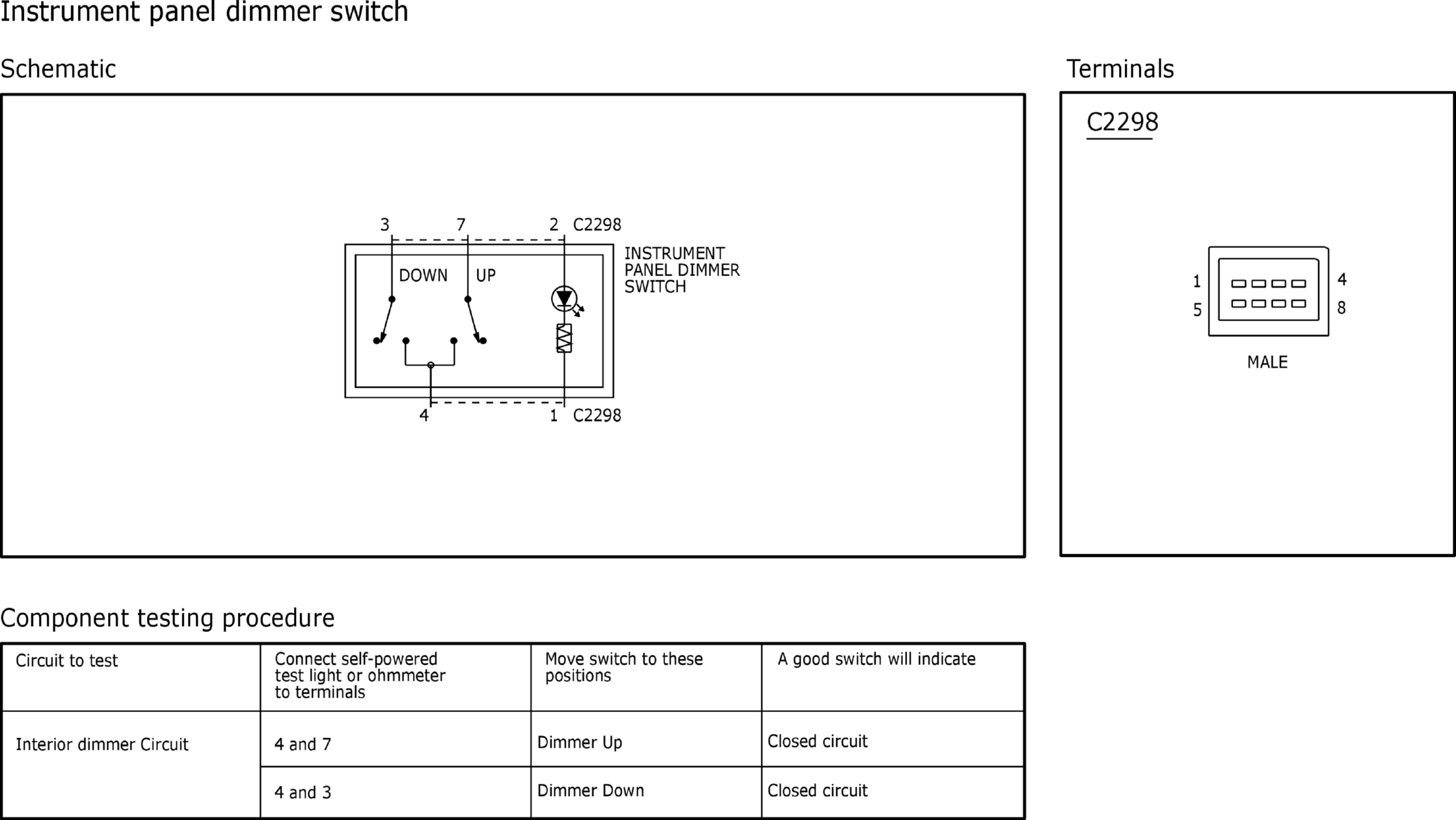

Fig 1: Instrument Panel Dimmer Switch
GFDW19902Courtesy of FORD MOTOR COMPANY
