Component Testing: Relays

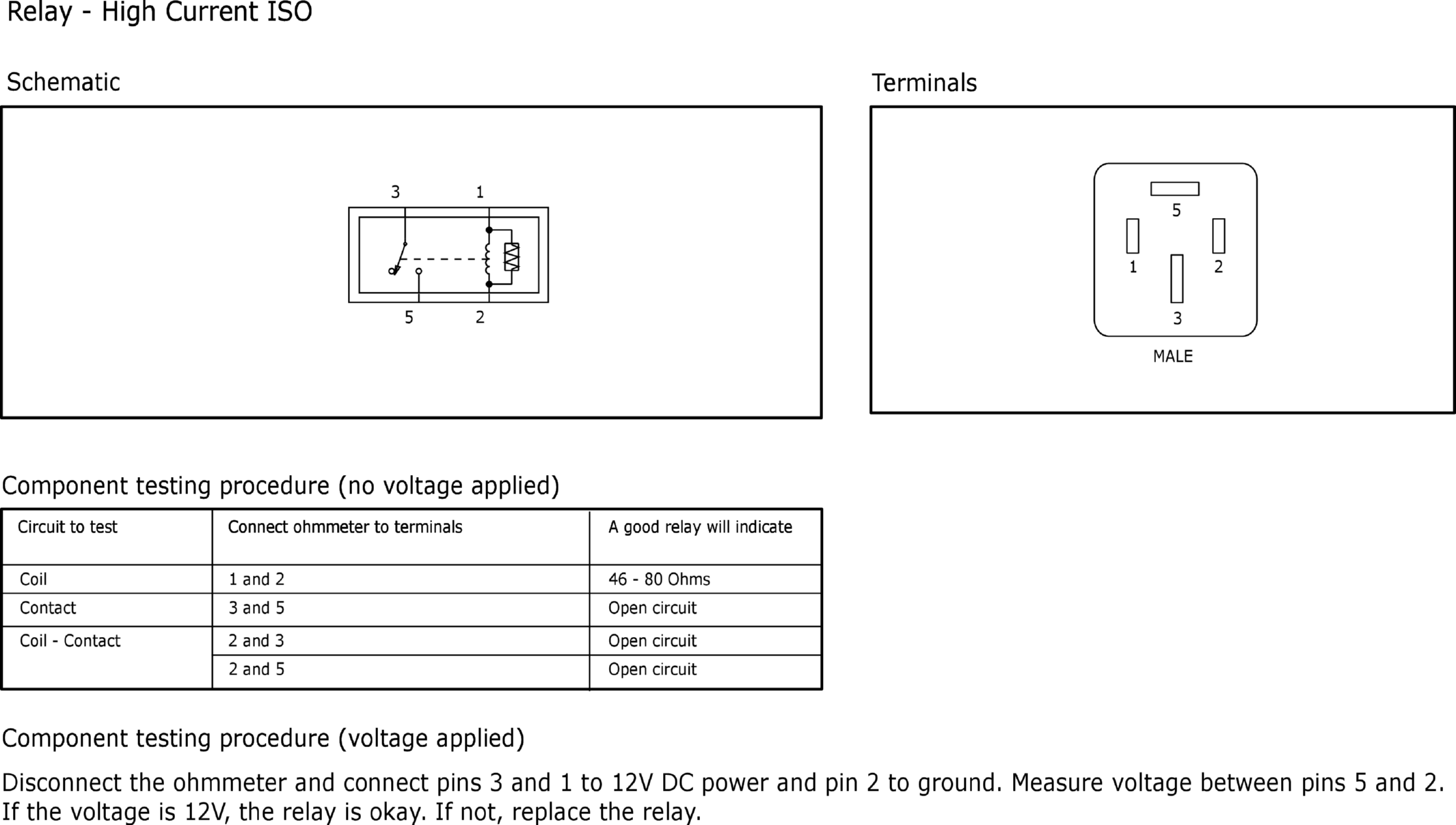

Fig 1: Relay - High Current ISO
GFDW19900Courtesy of FORD MOTOR COMPANY

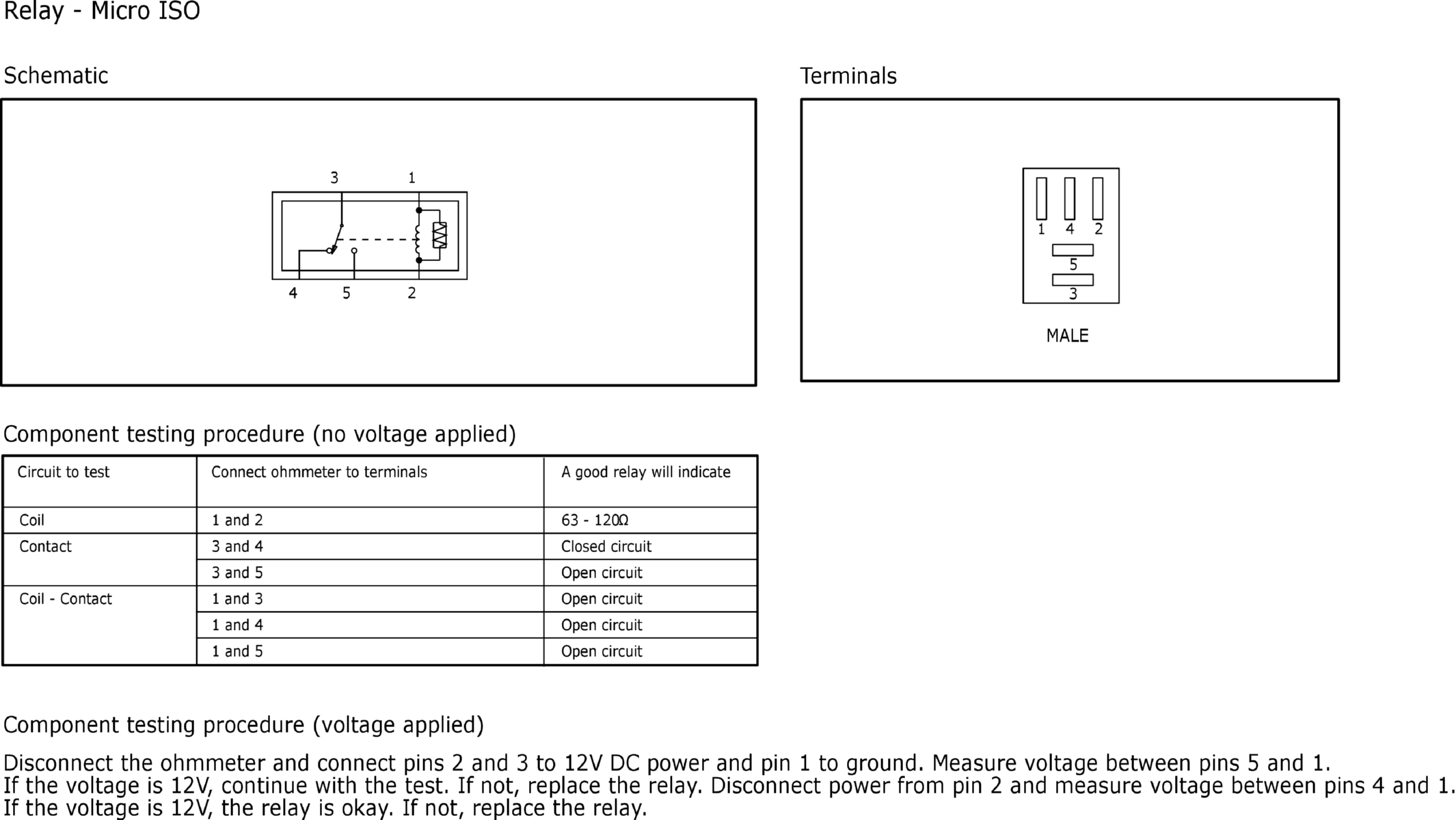

Fig 2: Relay - Micro ISO
GFDW19901Courtesy of FORD MOTOR COMPANY
