Block Heater: Notes
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
NOTE:

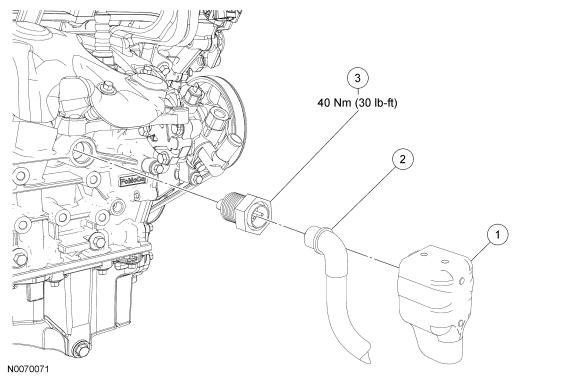

3.5L Ti-VCT shown, 3.5L GTDI similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 030104 | Block heater cover |
| 2 | 6B018 | Block heater electrical connector |
| 3 | 6A051 | Block heater |
