WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

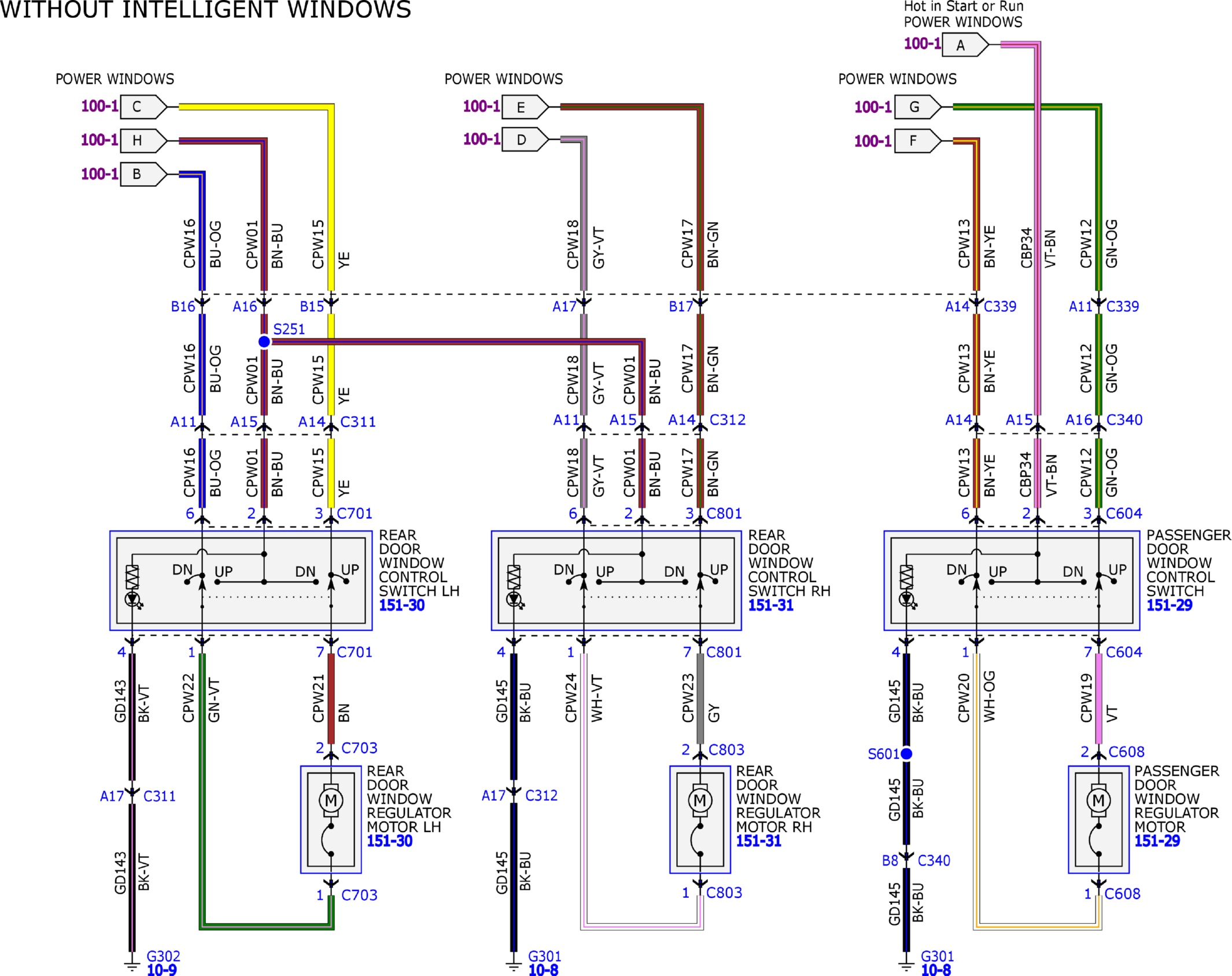

Fig 1: Power Windows System Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR COMPANY

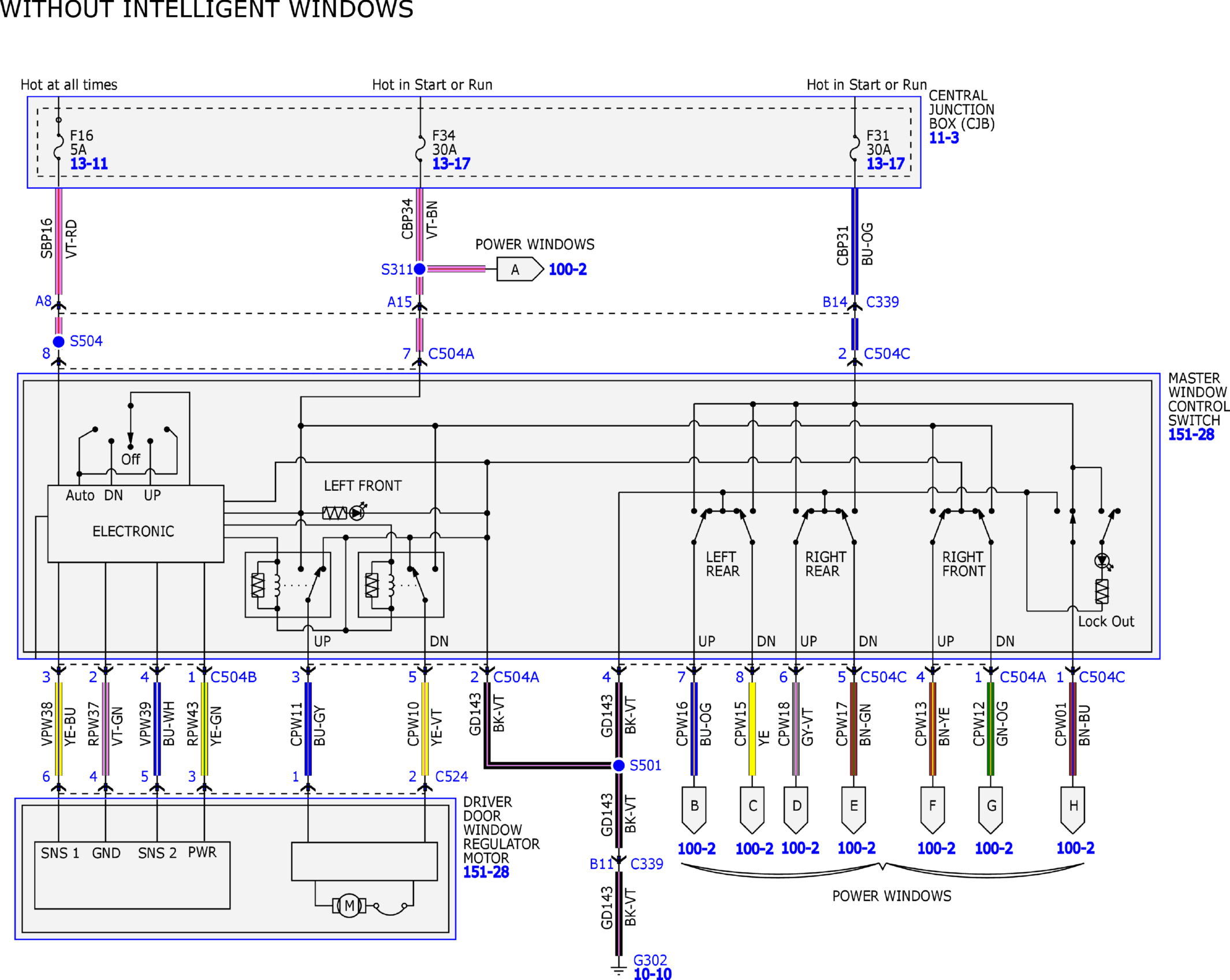

Fig 2: Power Windows System Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR COMPANY

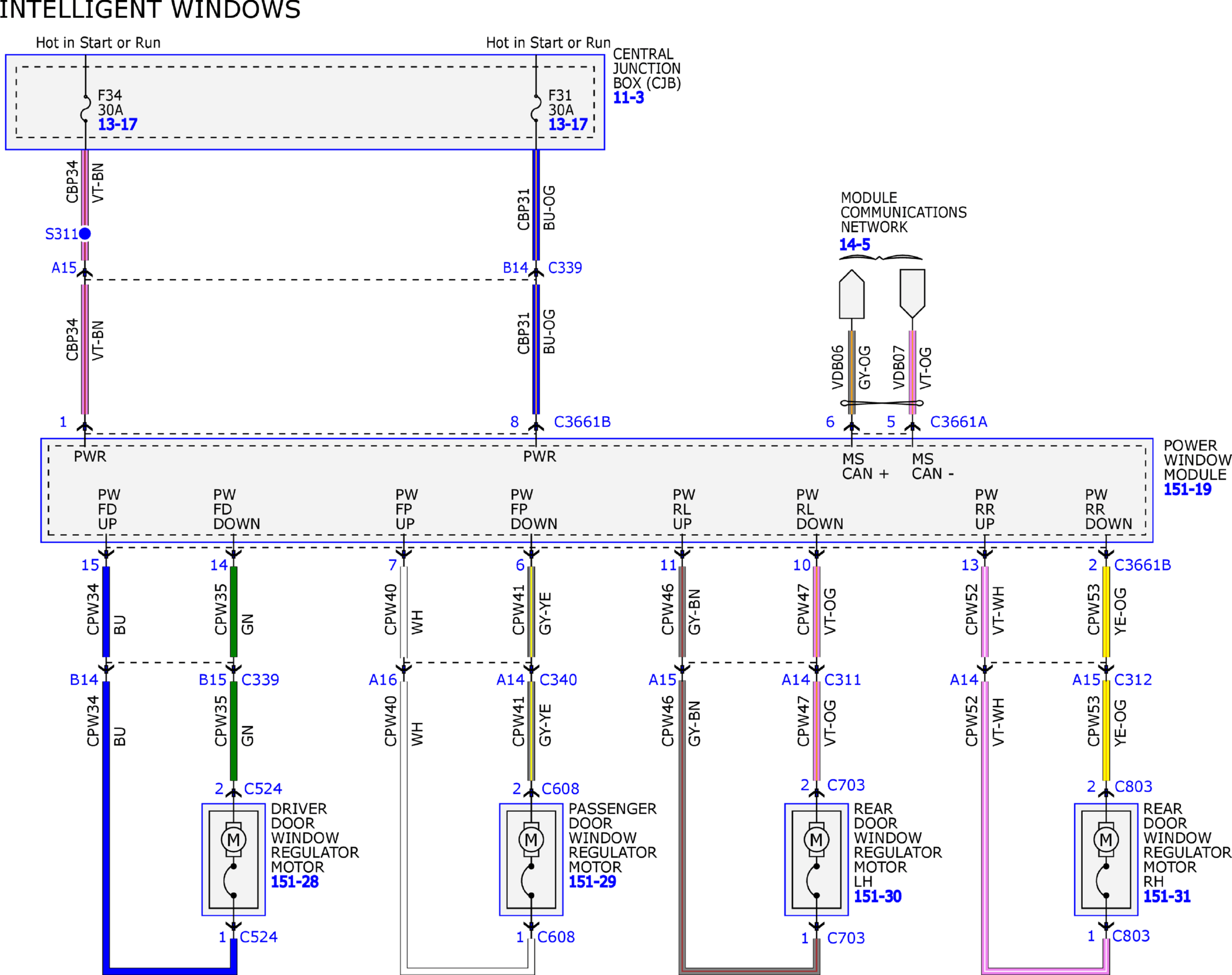

Fig 3: Power Windows System Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR COMPANY

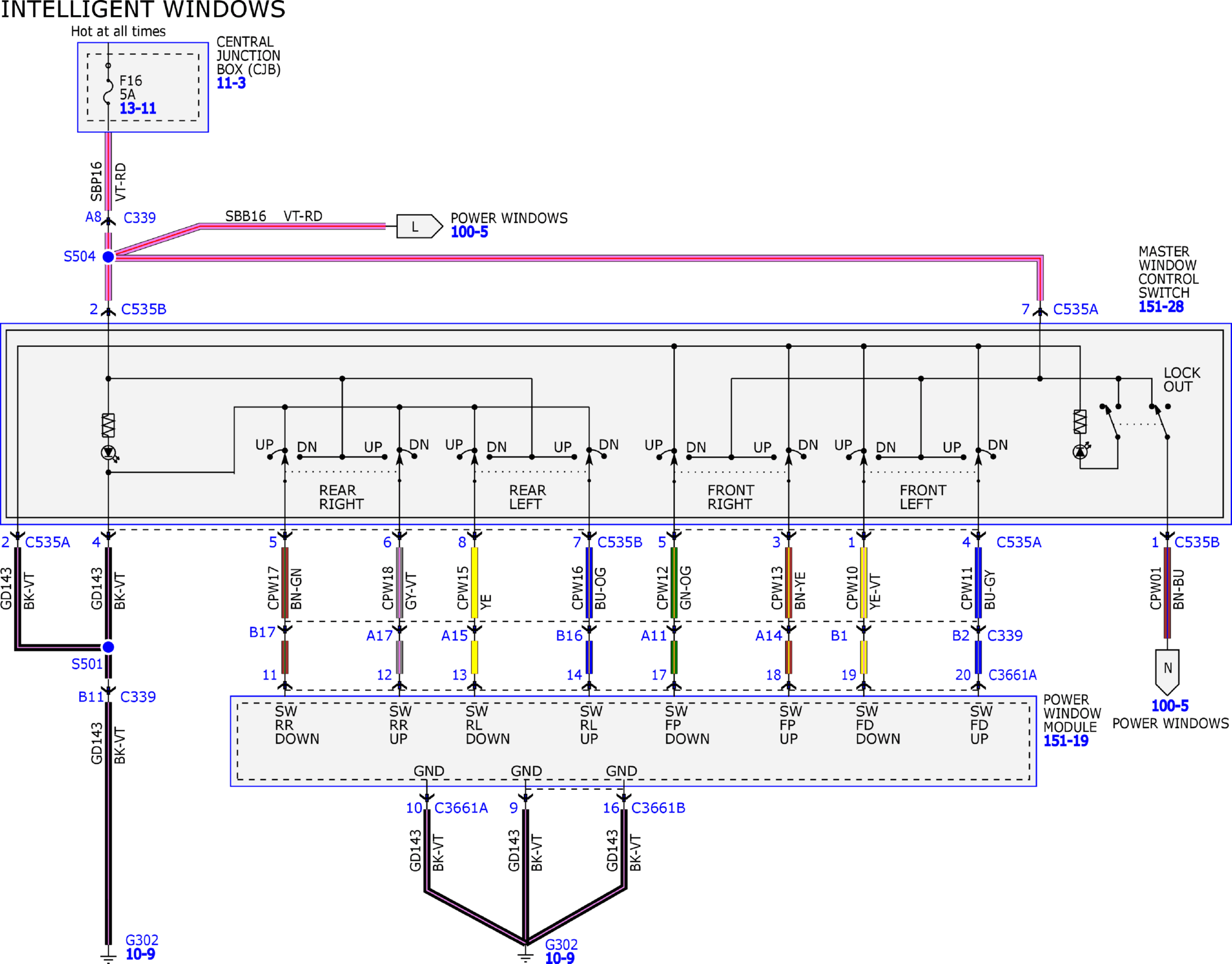

Fig 4: Power Windows System Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR COMPANY

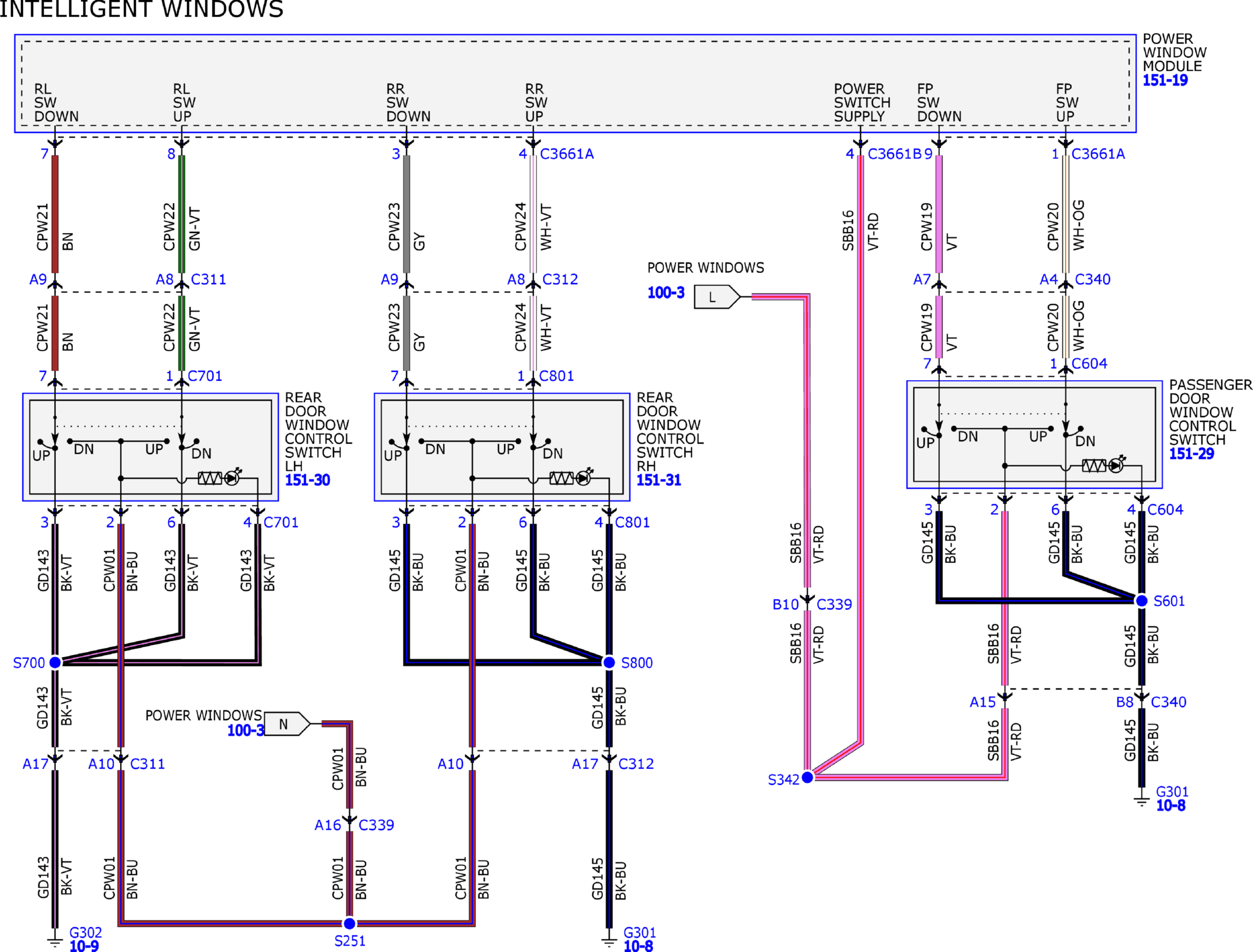

Fig 5: Power Windows System Wiring Diagram (5 Of 5)
