Starting System

WARNING: This page is about a different car, the 2015 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

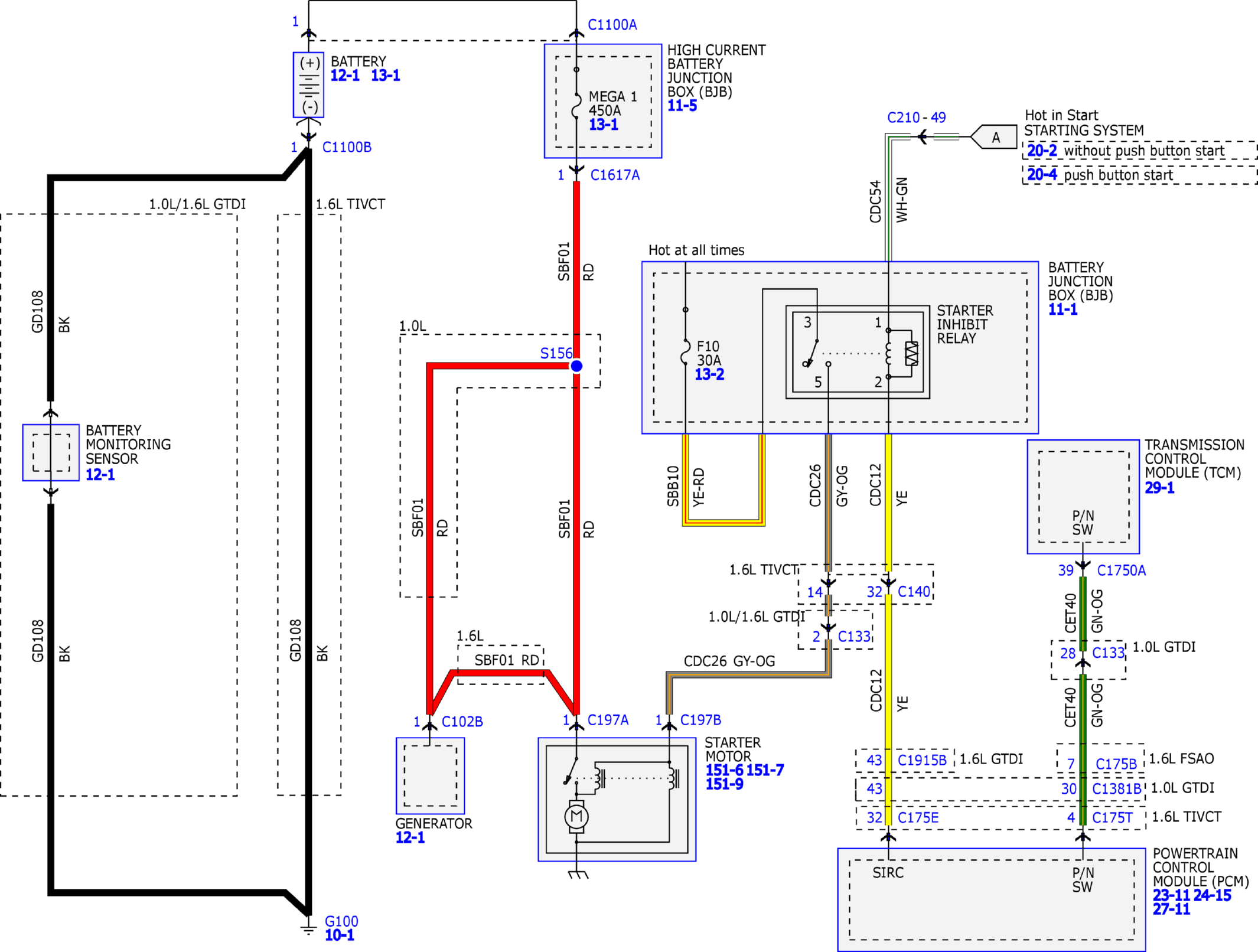

Fig 1: Starting System Wiring Diagram (1 Of 5)

GFDW19868

Courtesy of FORD MOTOR COMPANY

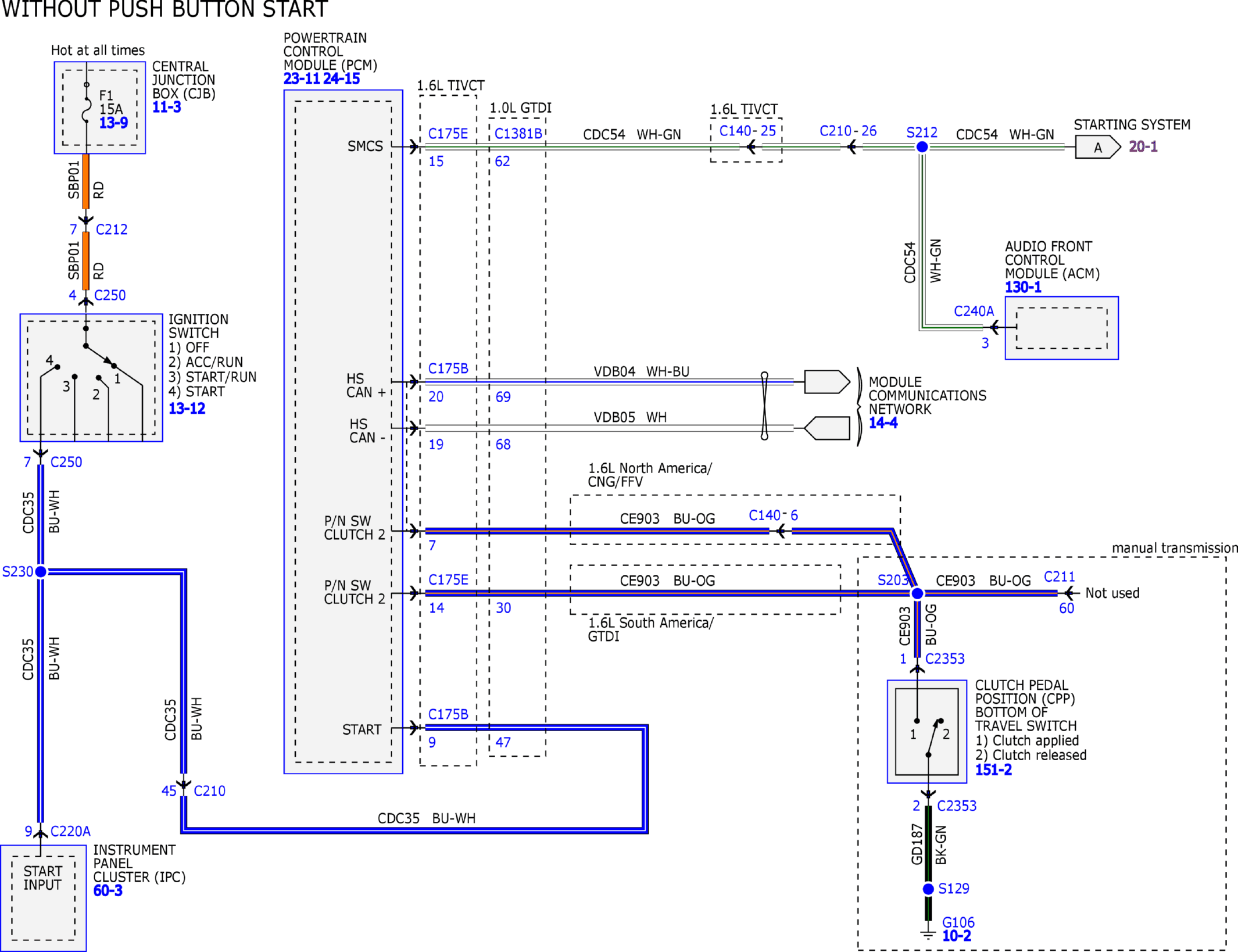

Fig 2: Starting System Wiring Diagram (2 Of 5)

GFDW19869

Courtesy of FORD MOTOR COMPANY

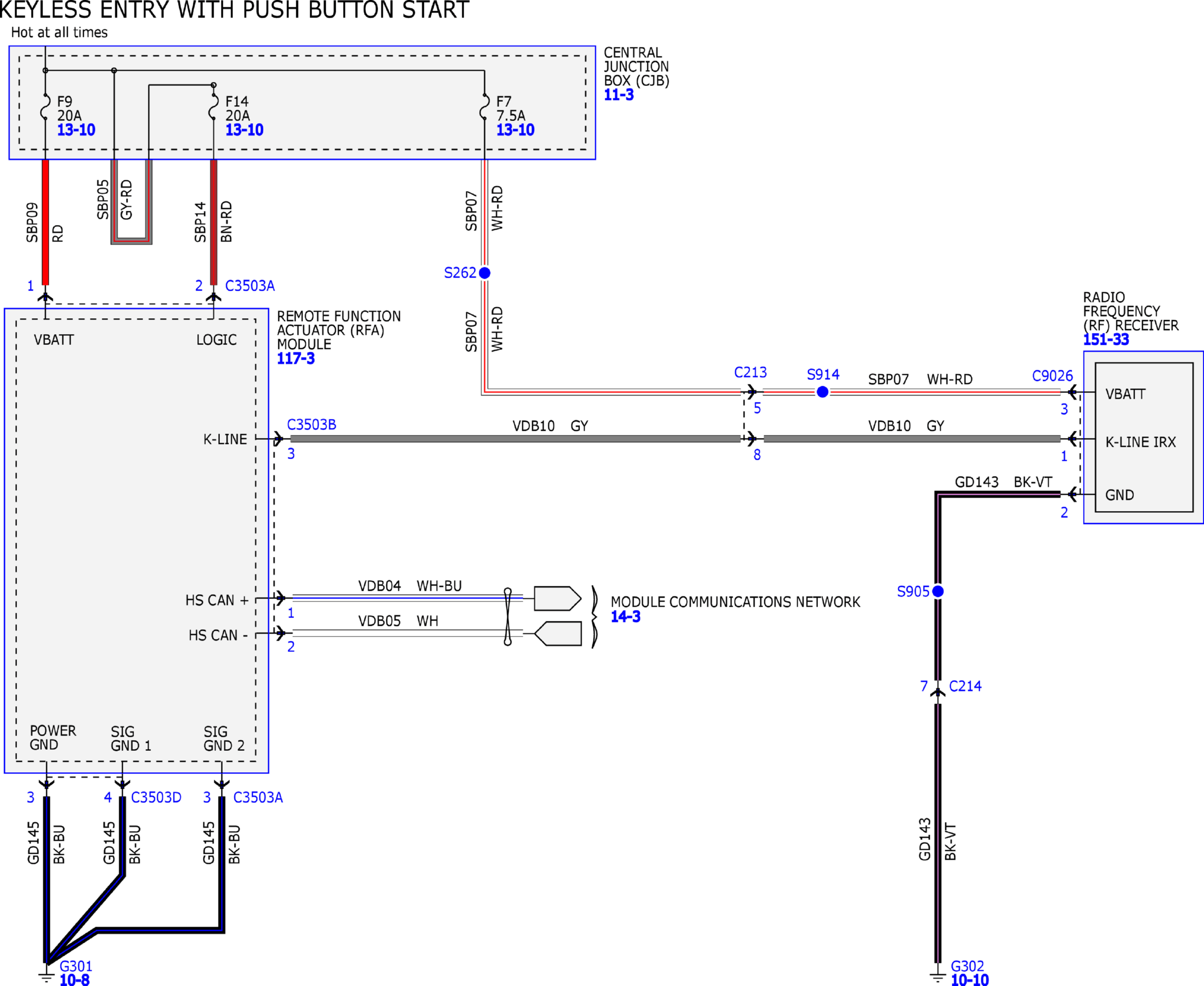

Fig 3: Starting System Wiring Diagram (3 Of 5)

GFDW19870

Courtesy of FORD MOTOR COMPANY

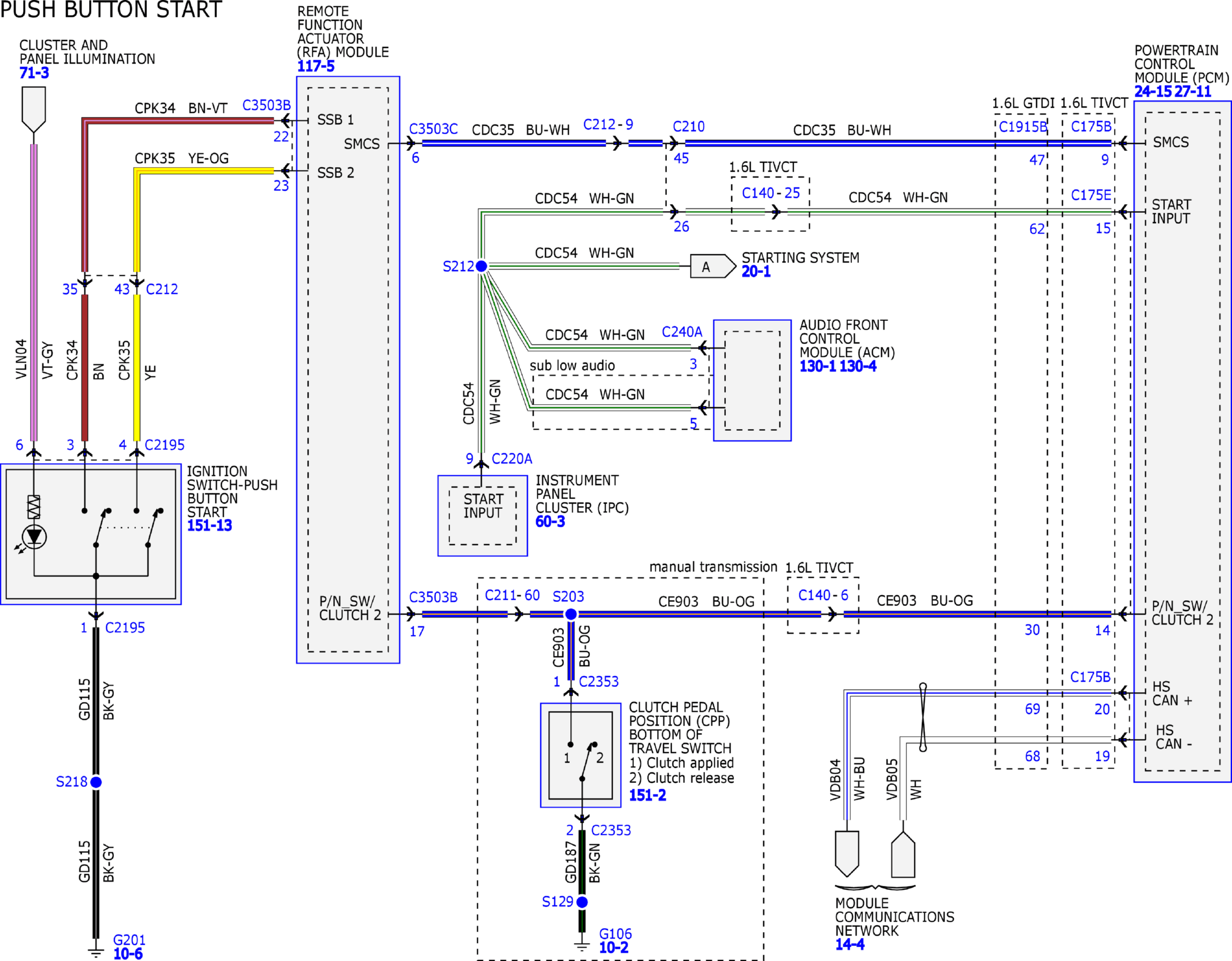

Fig 4: Starting System Wiring Diagram (4 Of 5)

GFDW19871

Courtesy of FORD MOTOR COMPANY

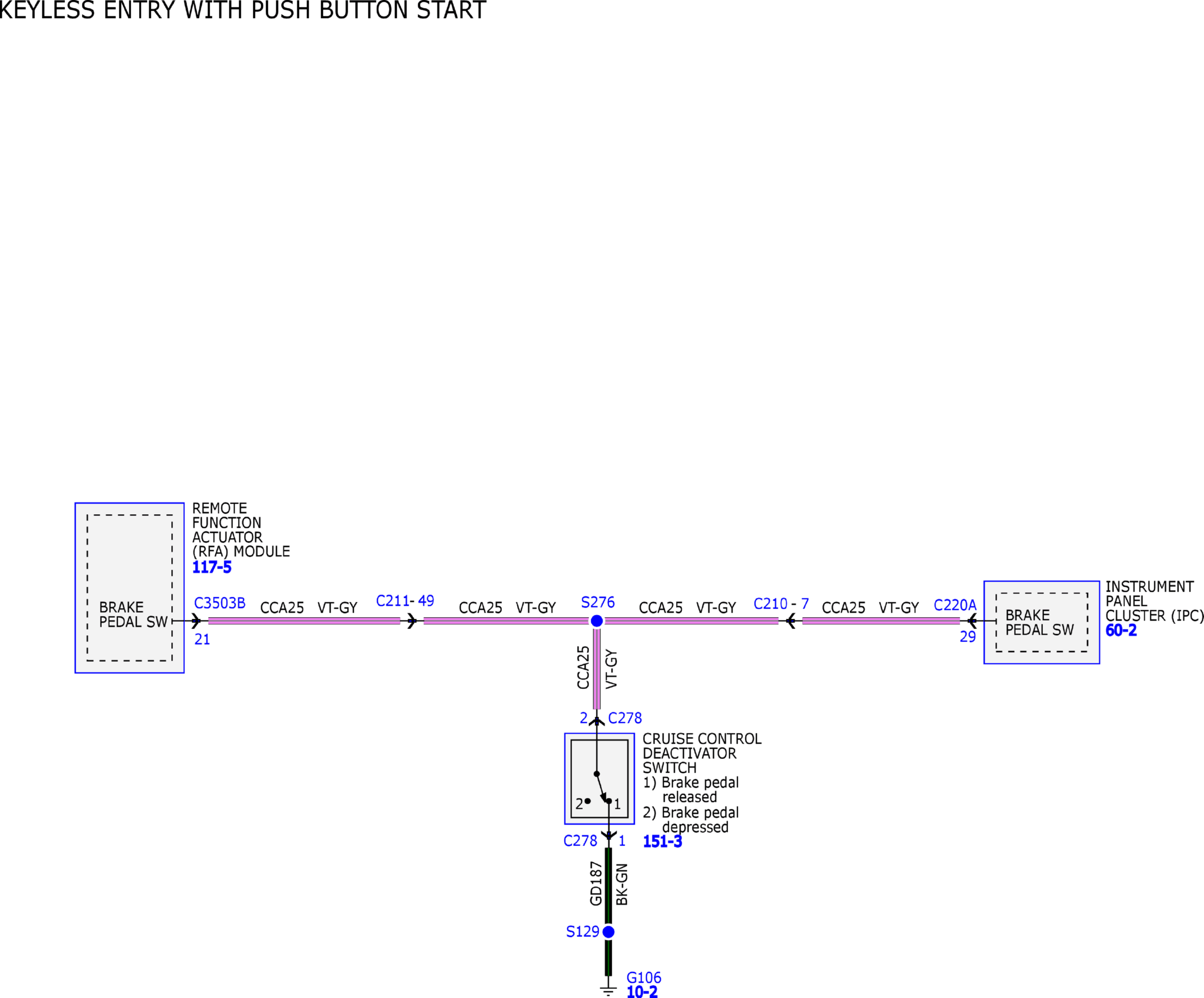

Fig 5: Starting System Wiring Diagram (5 Of 5)

GFDW19872

Courtesy of FORD MOTOR COMPANY
