OEM Ground Distribution: Grounds

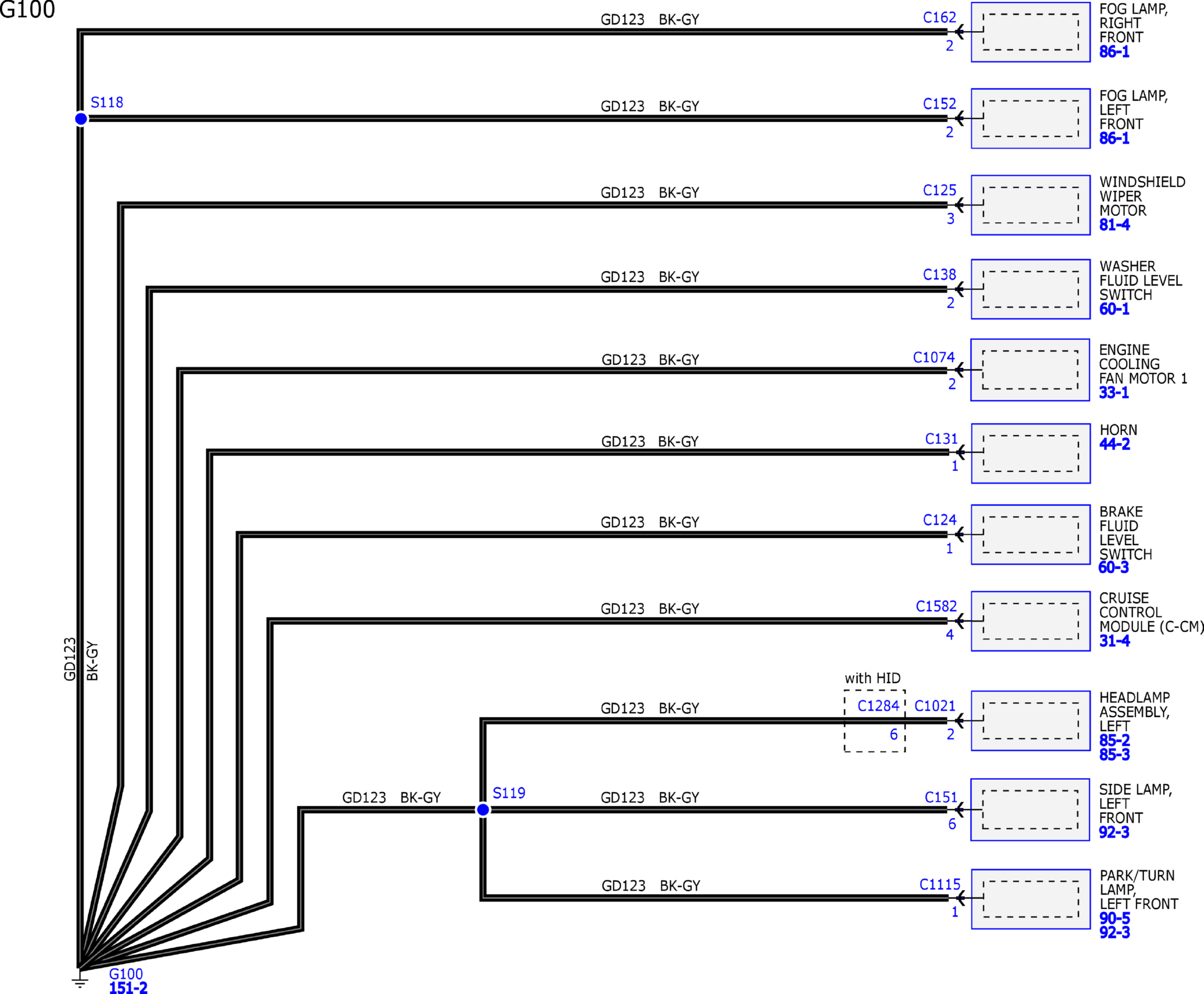

GFDW21075Courtesy of FORD MOTOR COMPANY

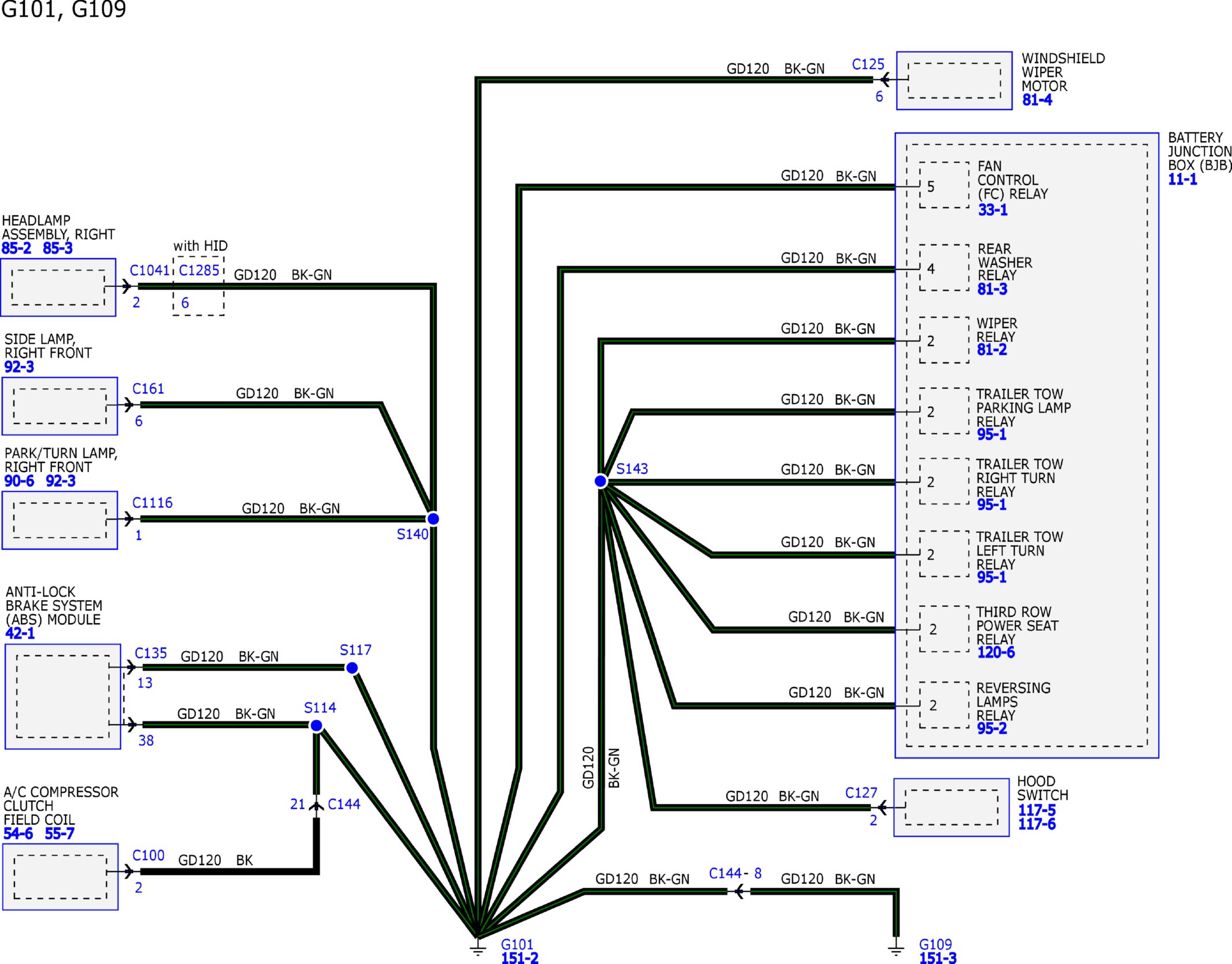

GFDW21076Courtesy of FORD MOTOR COMPANY

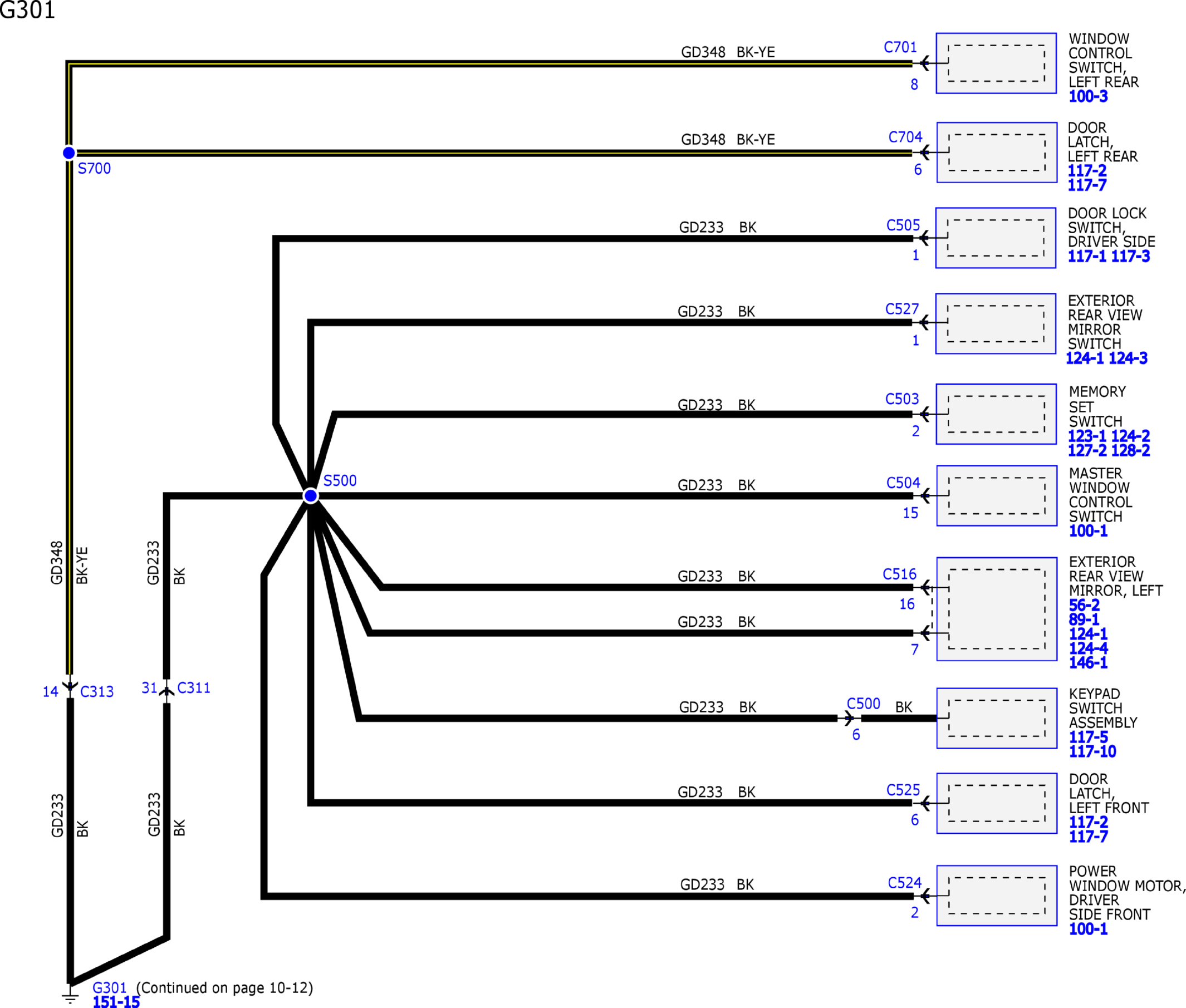

GFDW21077Courtesy of FORD MOTOR COMPANY

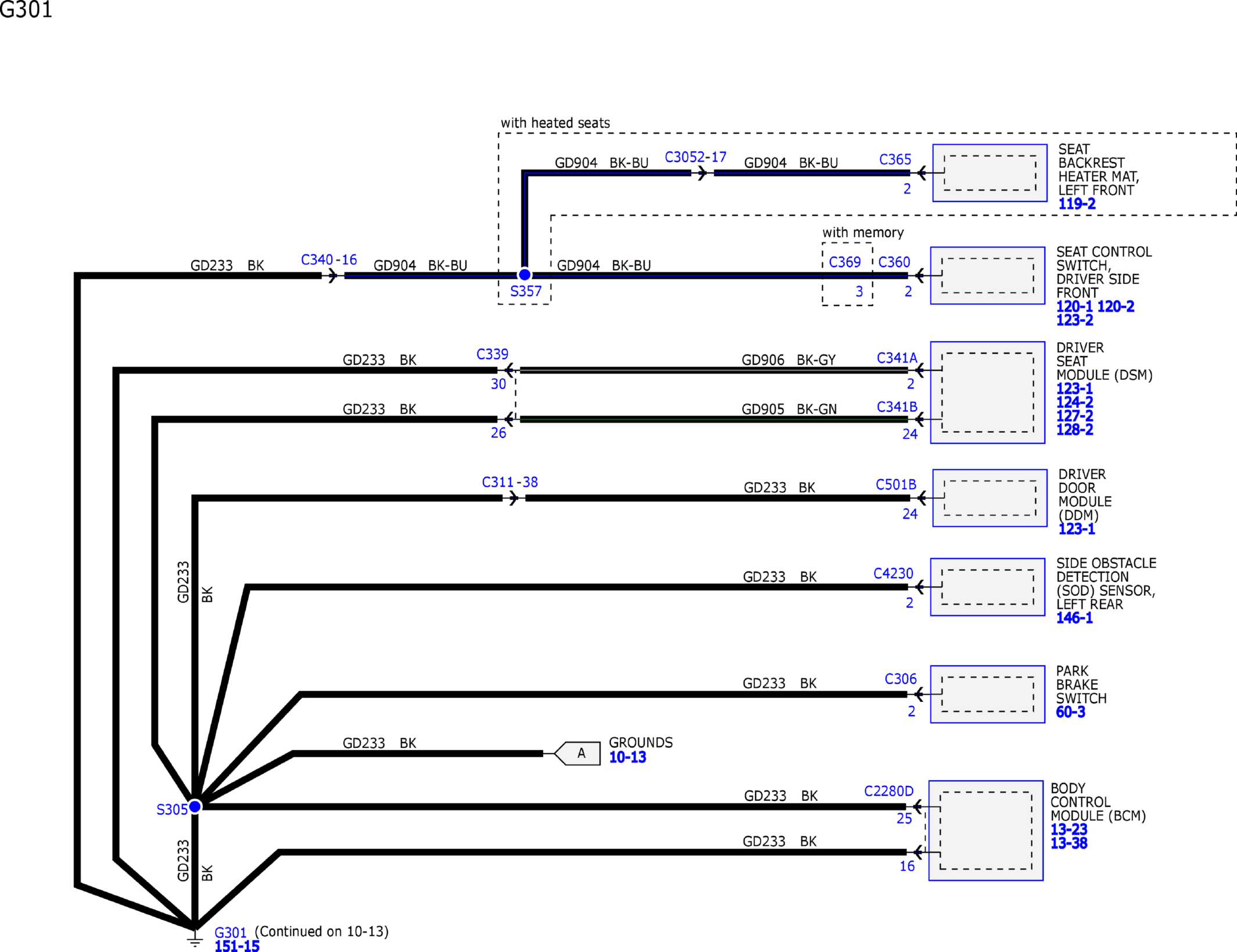

GFDW21078Courtesy of FORD MOTOR COMPANY

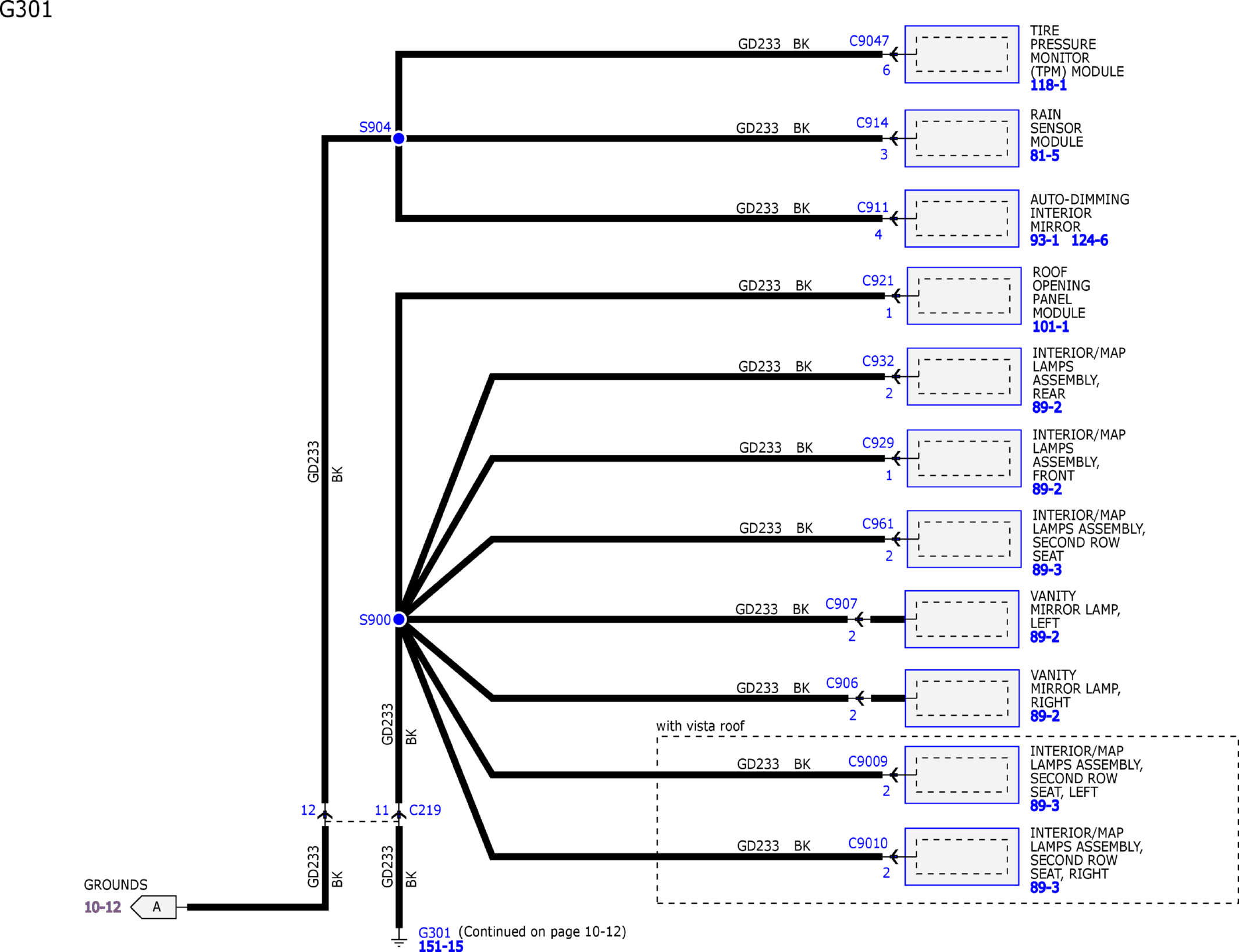

GFDW21079Courtesy of FORD MOTOR COMPANY

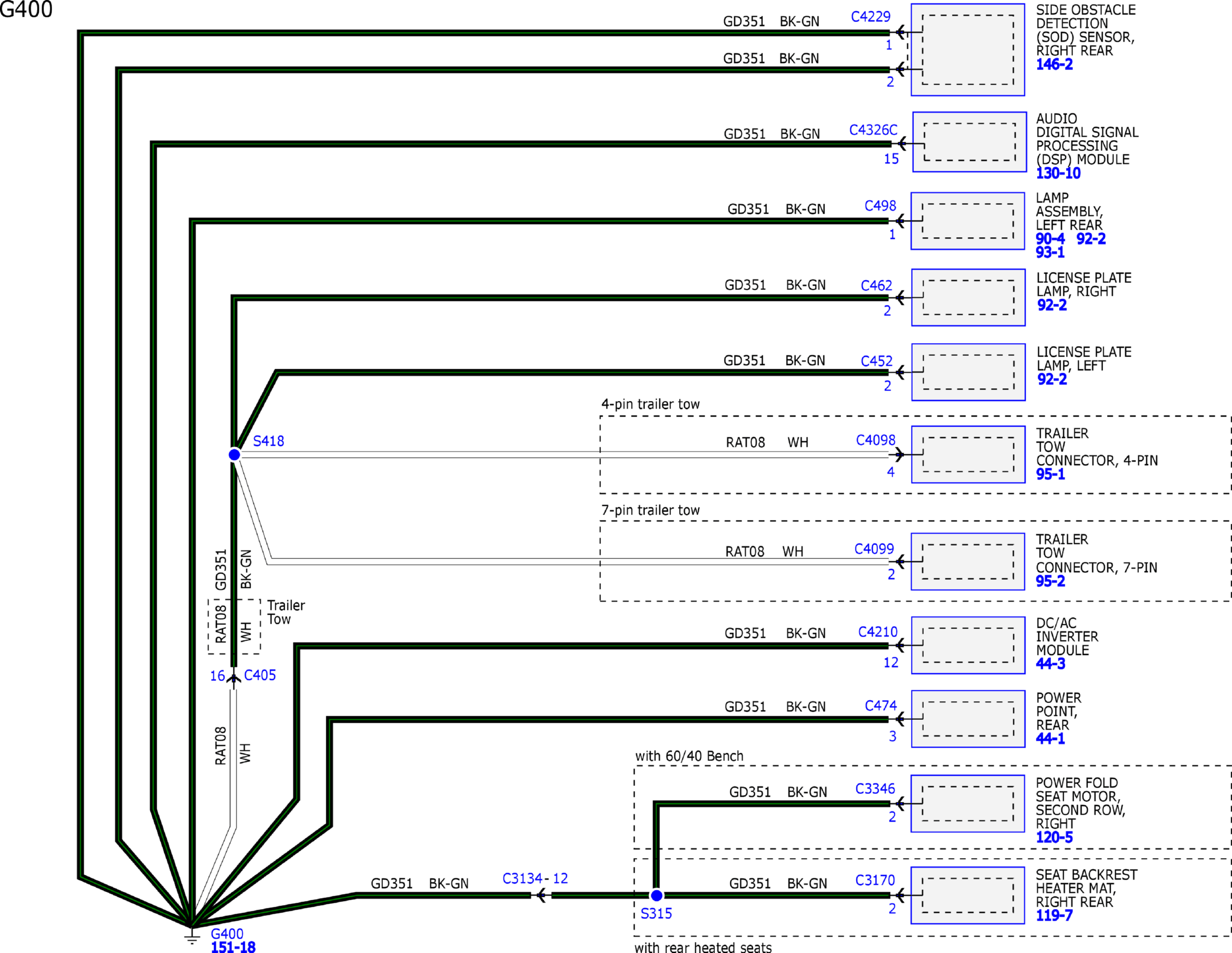

GFDW21080Courtesy of FORD MOTOR COMPANY

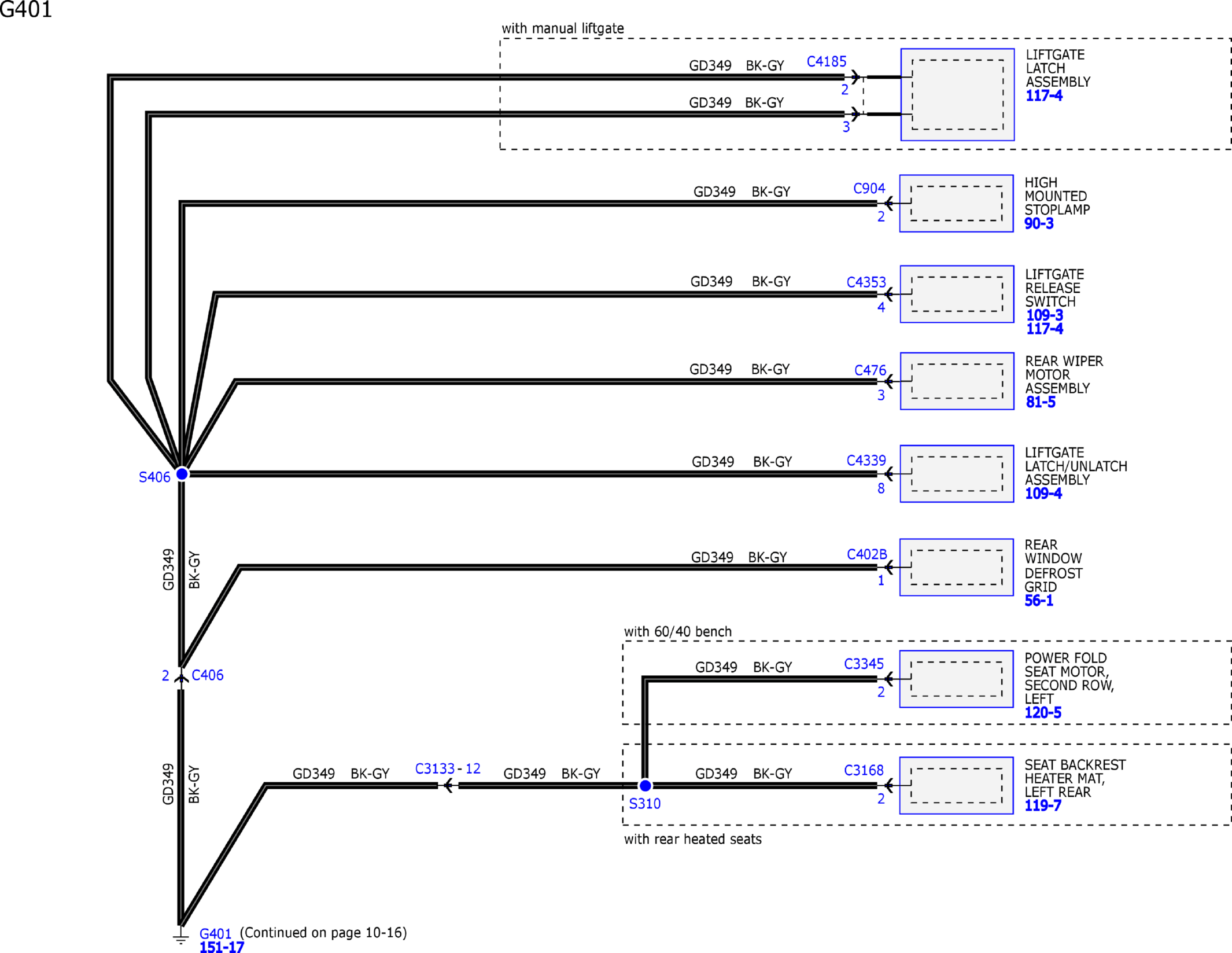

GFDW21081Courtesy of FORD MOTOR COMPANY

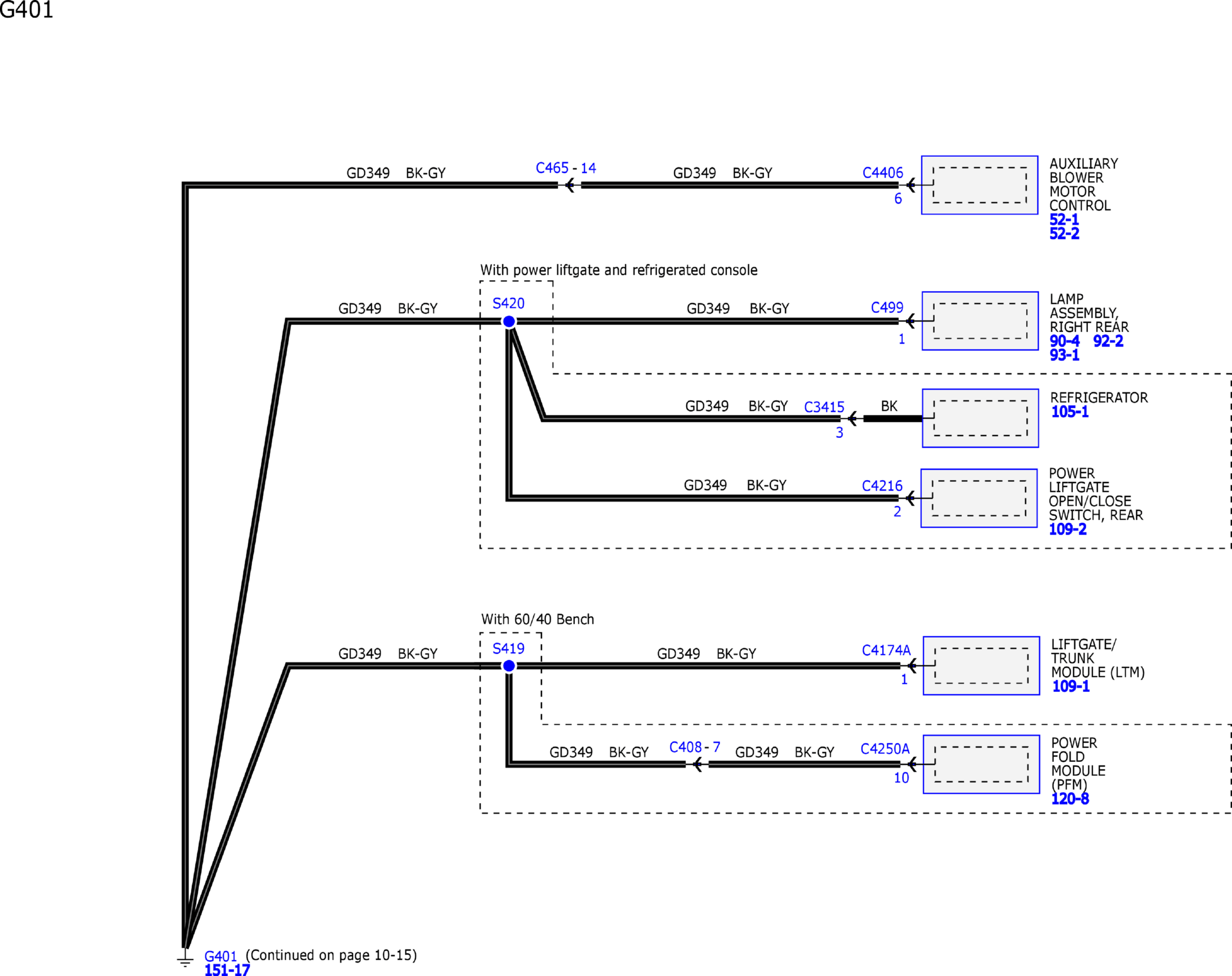

GFDW21082Courtesy of FORD MOTOR COMPANY

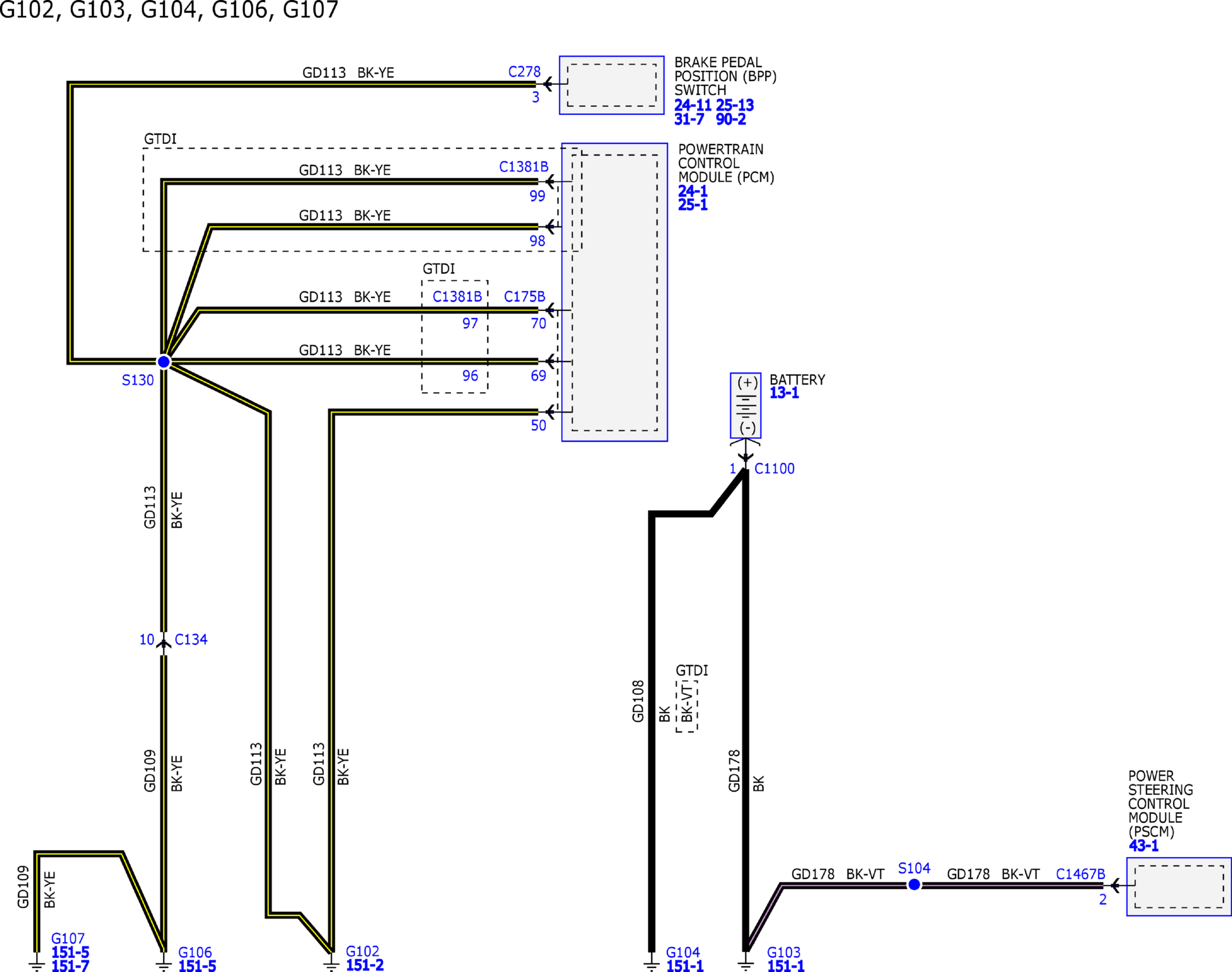

GFDW21083Courtesy of FORD MOTOR COMPANY

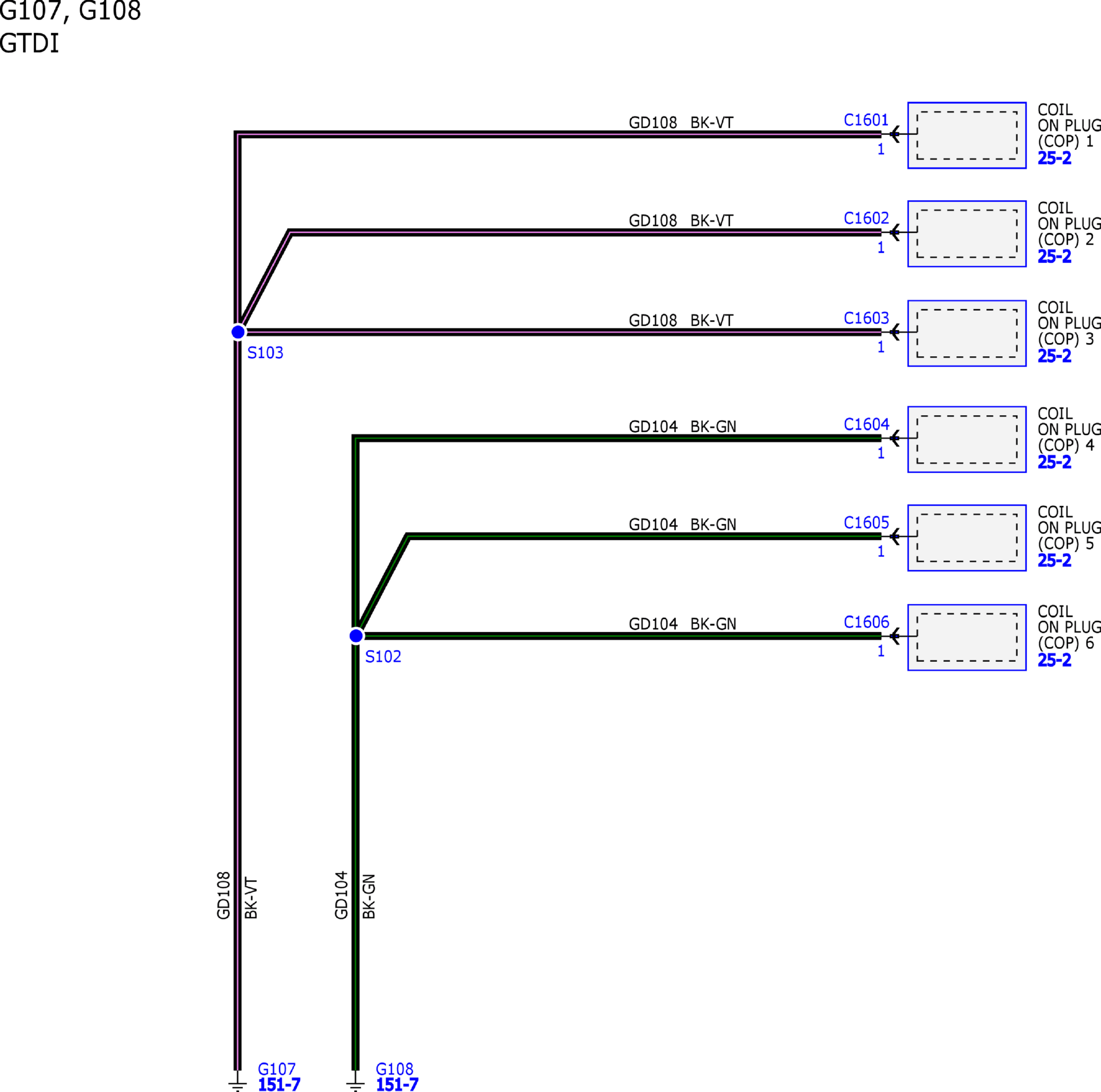

GFDW21084Courtesy of FORD MOTOR COMPANY

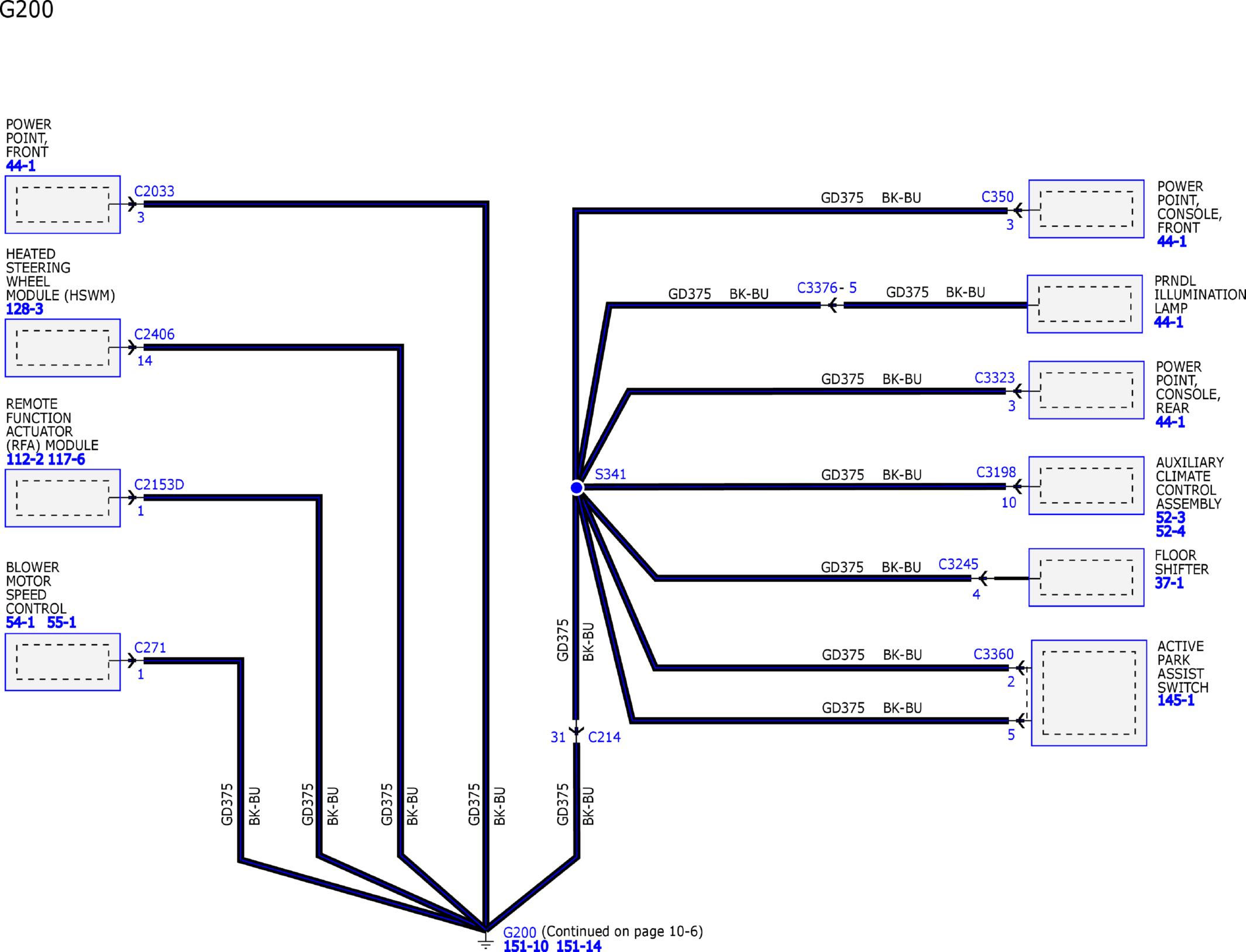

GFDW21085Courtesy of FORD MOTOR COMPANY

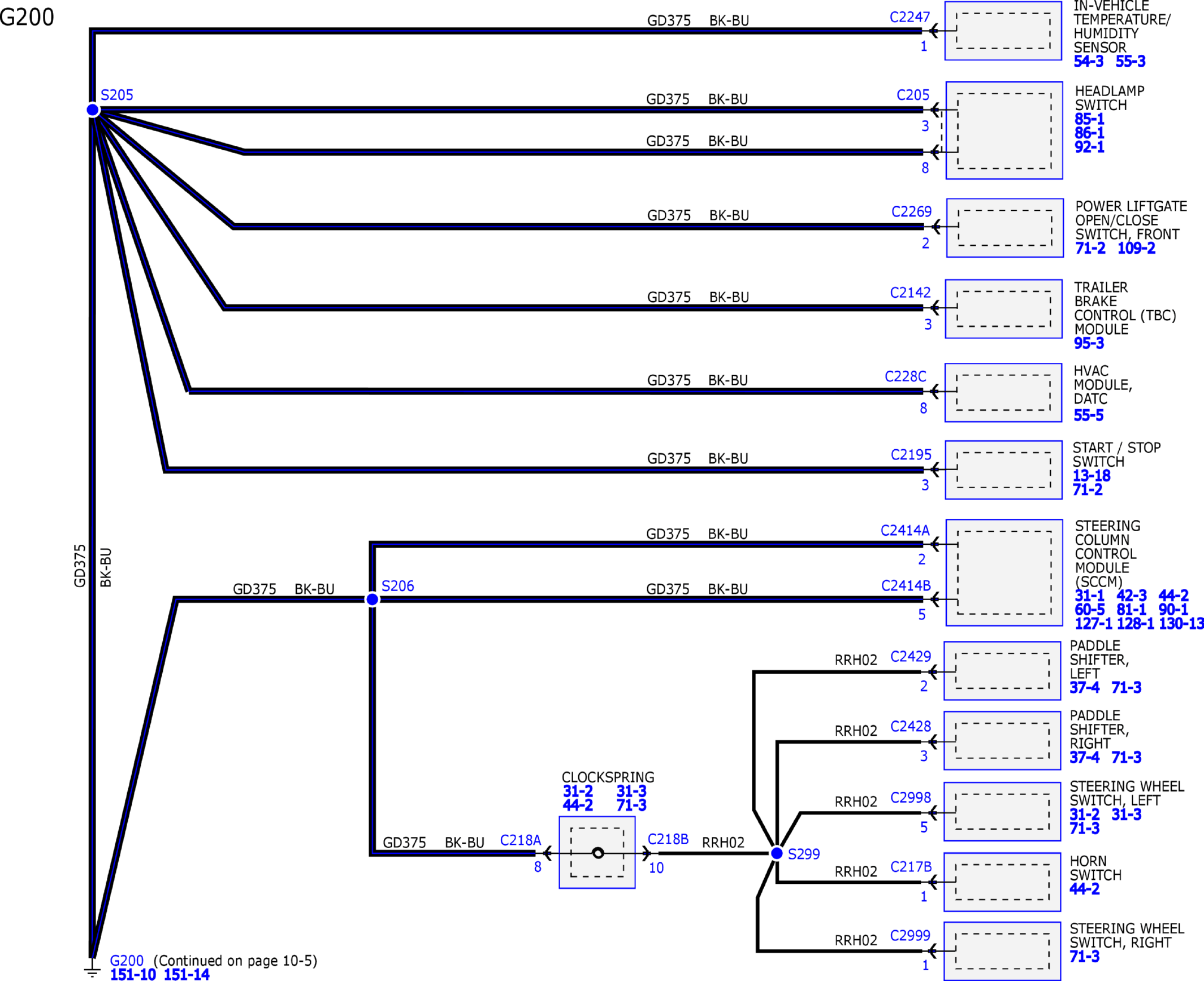

GFDW21086Courtesy of FORD MOTOR COMPANY

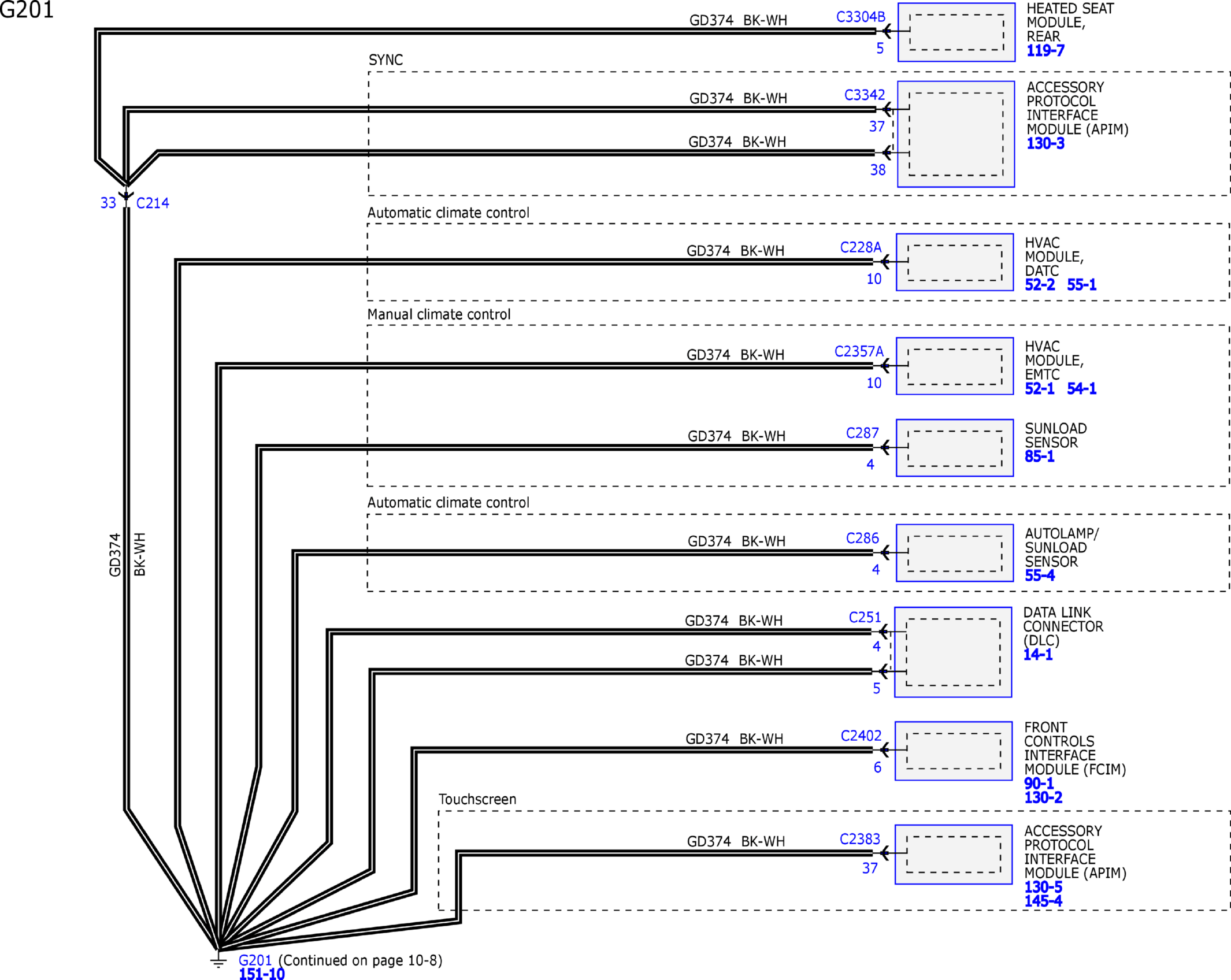

GFDW21087Courtesy of FORD MOTOR COMPANY

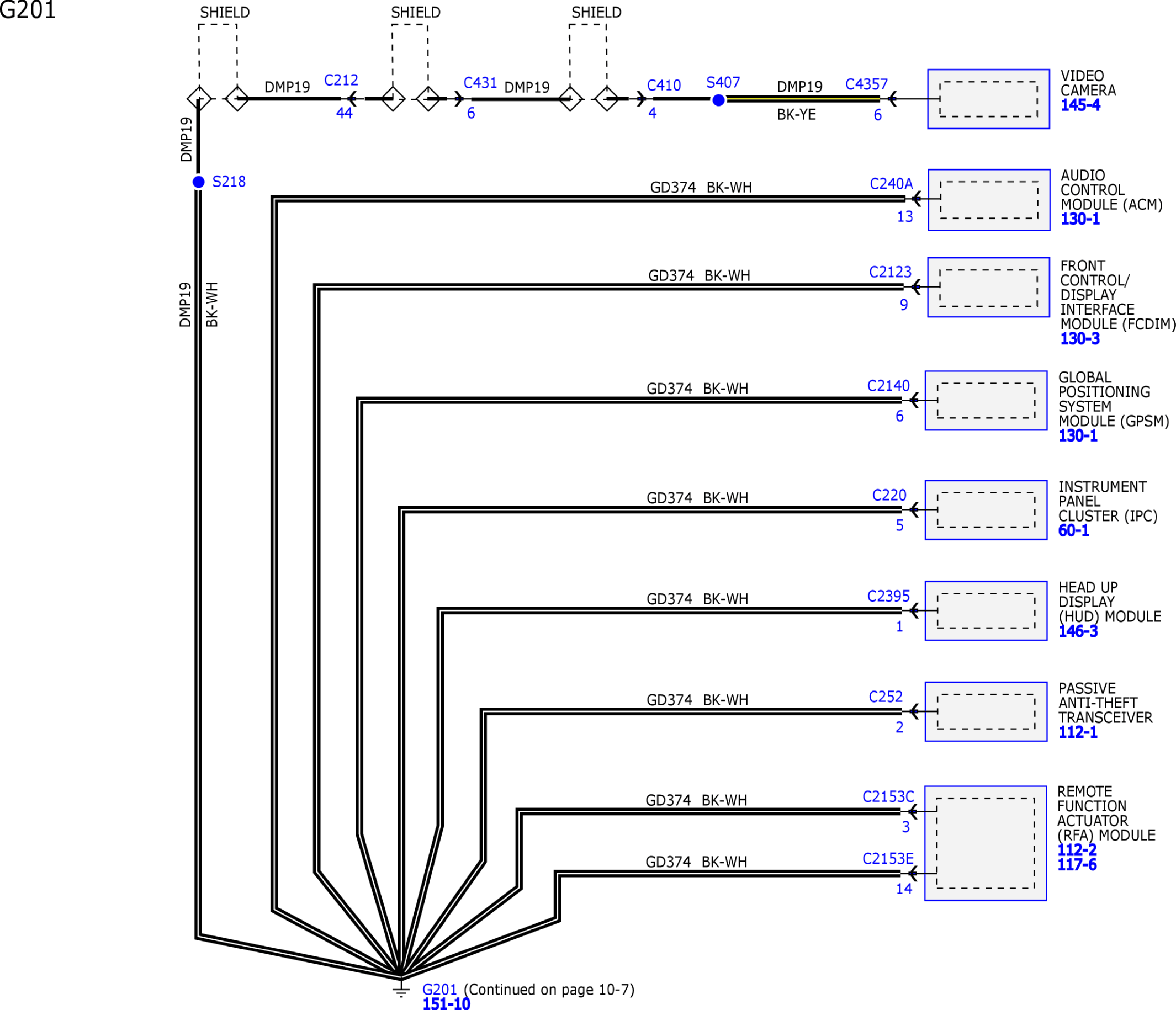

GFDW21088Courtesy of FORD MOTOR COMPANY

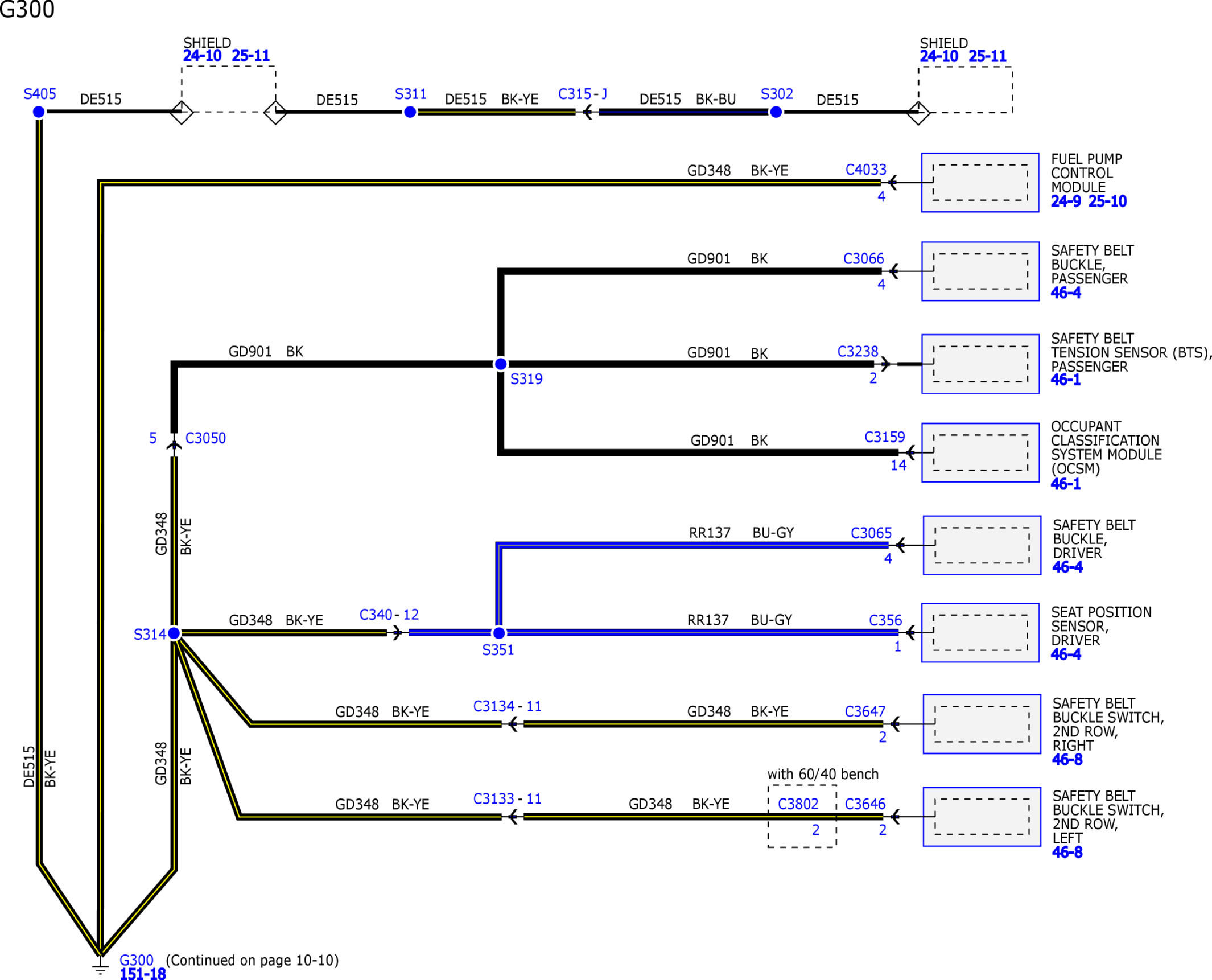

GFDW21089Courtesy of FORD MOTOR COMPANY

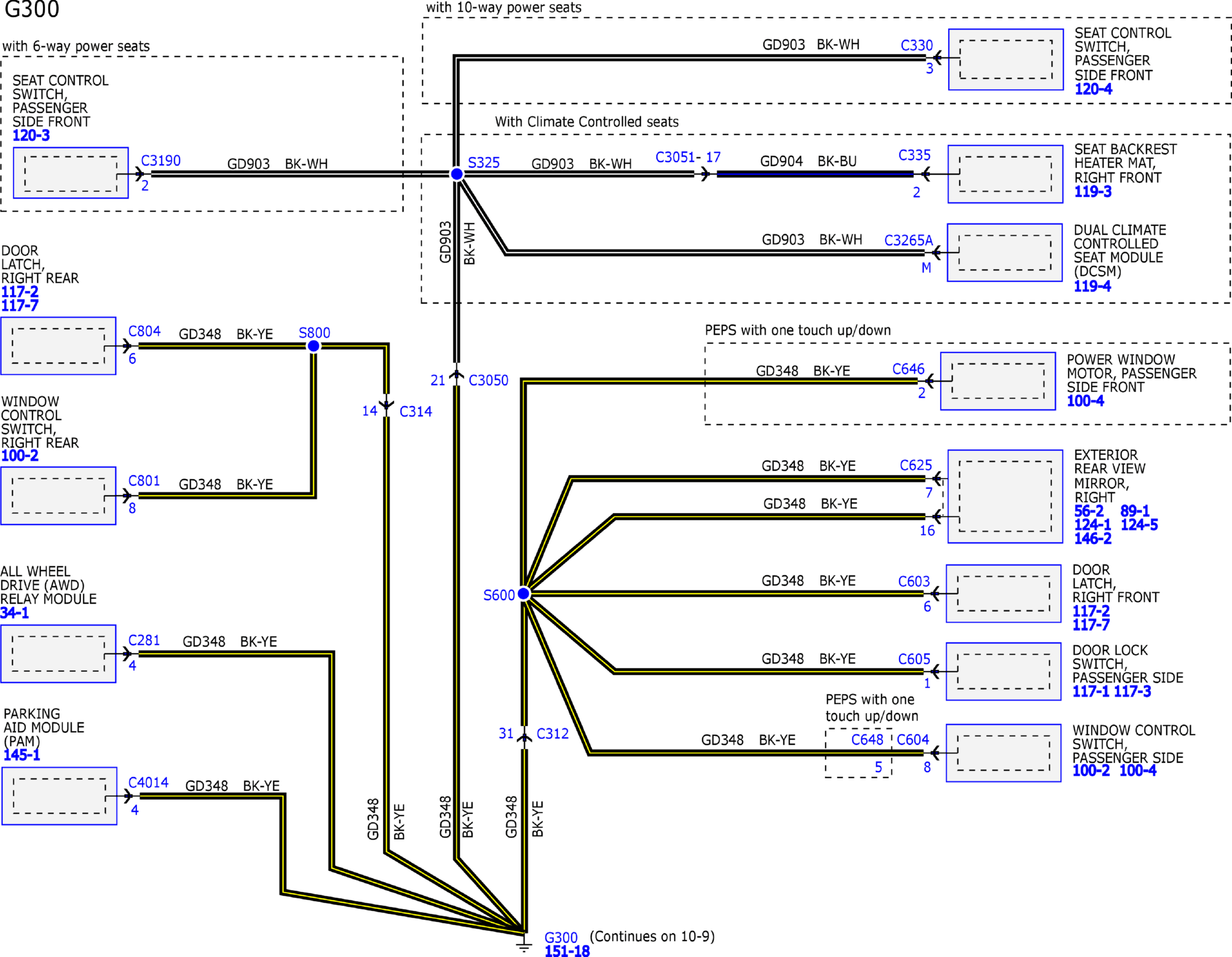

GFDW21090Courtesy of FORD MOTOR COMPANY
