Home › Ford › 2015 › Flex SEL, AWD › Repair and Diagnosis (Single Page) › Quick Lookups › Wiring Diagrams › OEM Wiring Diagrams Component Testing › Component Testing › Master Window Control Switch

Master Window Control Switch

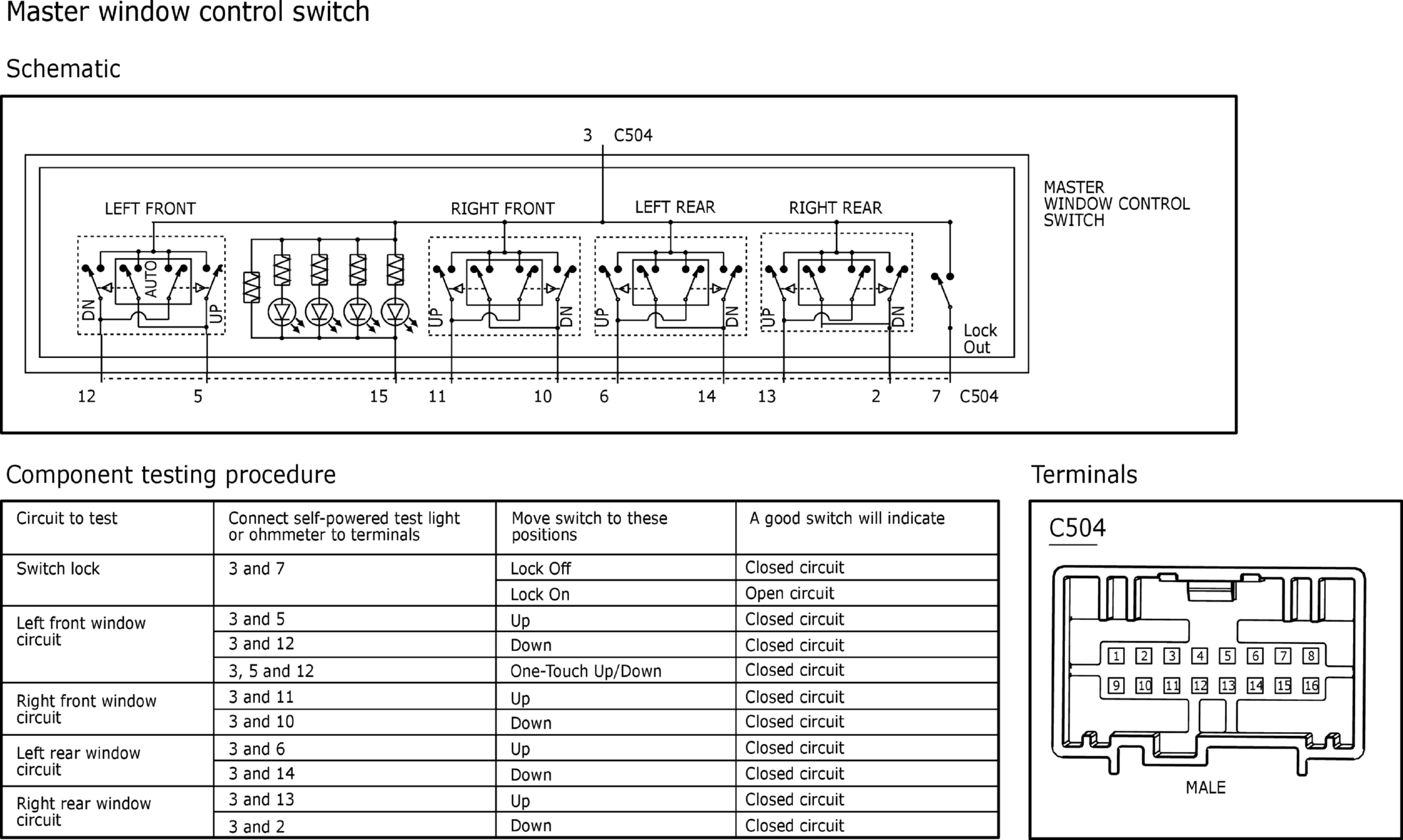

Fig 1: Master Window Control Switch
GFDW21343Courtesy of FORD MOTOR COMPANY
