Connector Repair Procedures

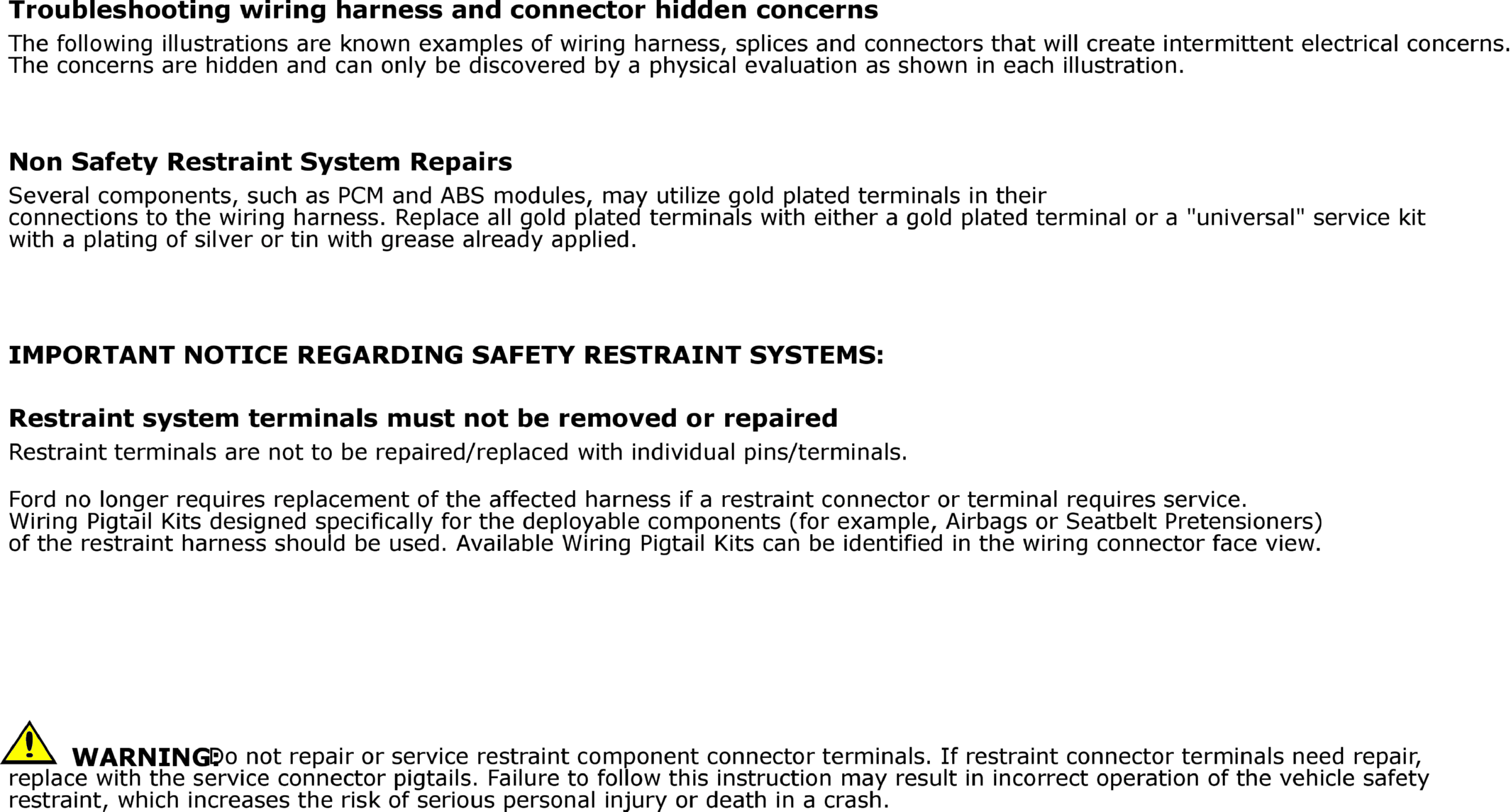

GFDW21056Courtesy of FORD MOTOR COMPANY

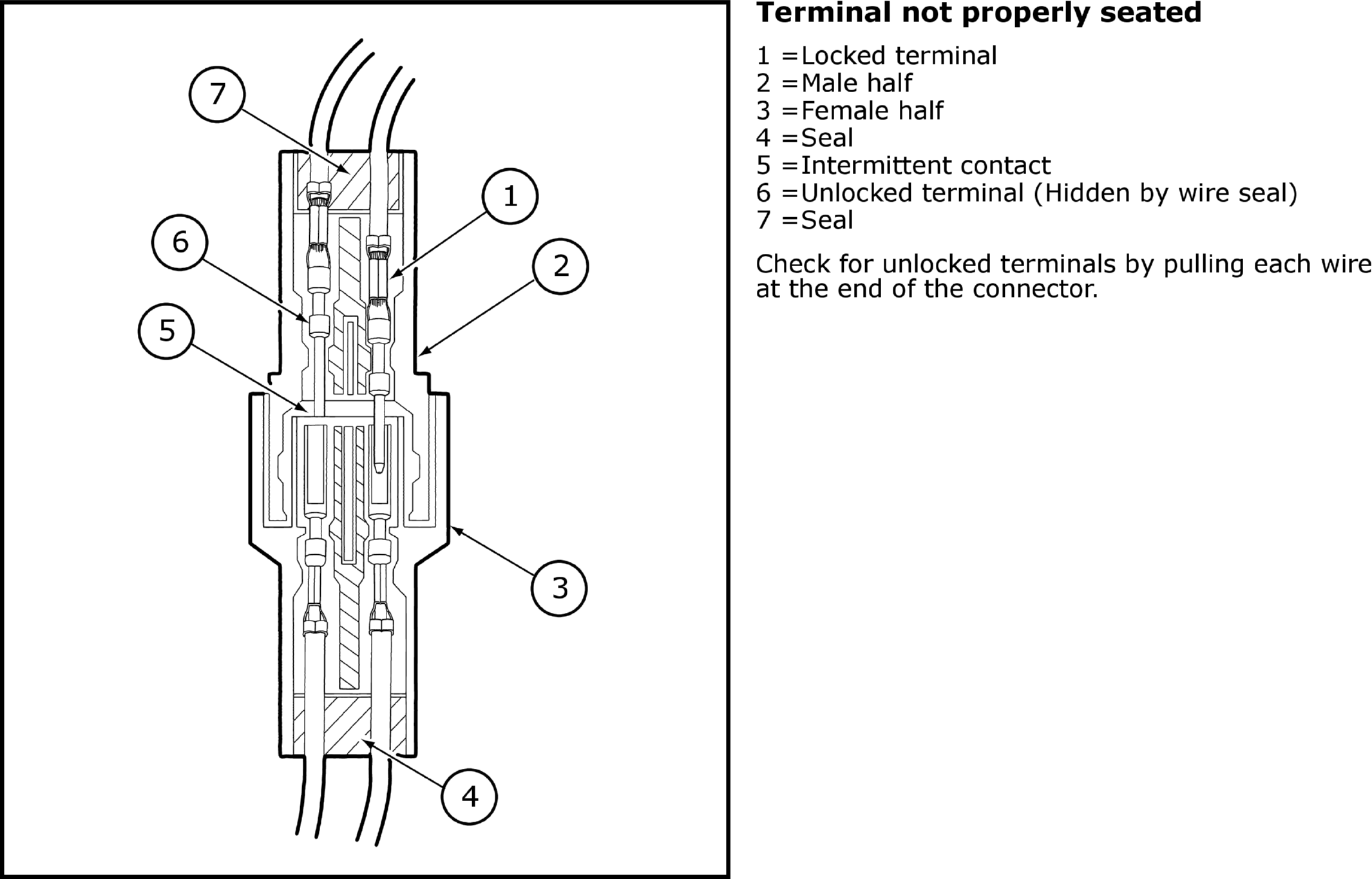

GFDW21057Courtesy of FORD MOTOR COMPANY

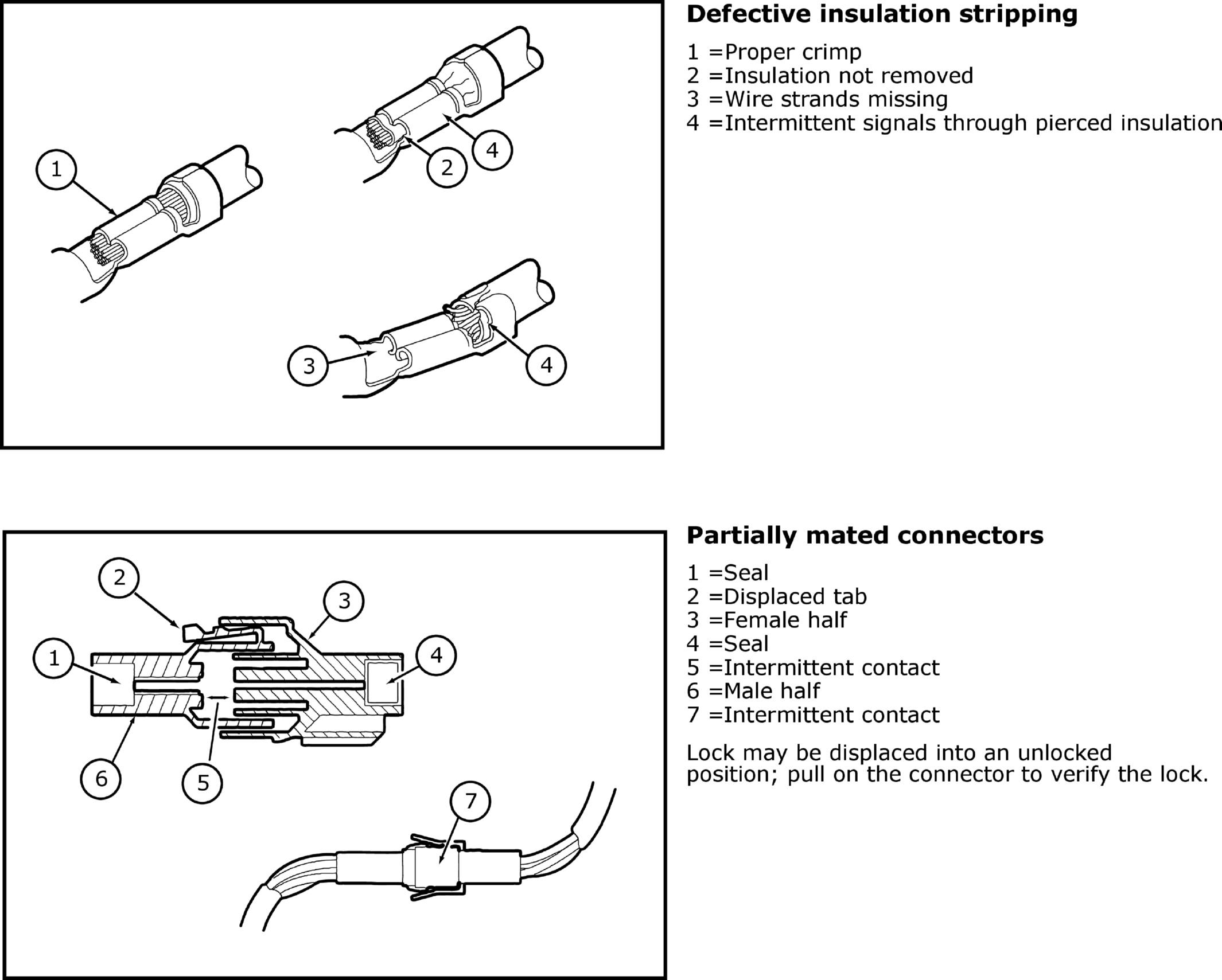

GFDW21058Courtesy of FORD MOTOR COMPANY

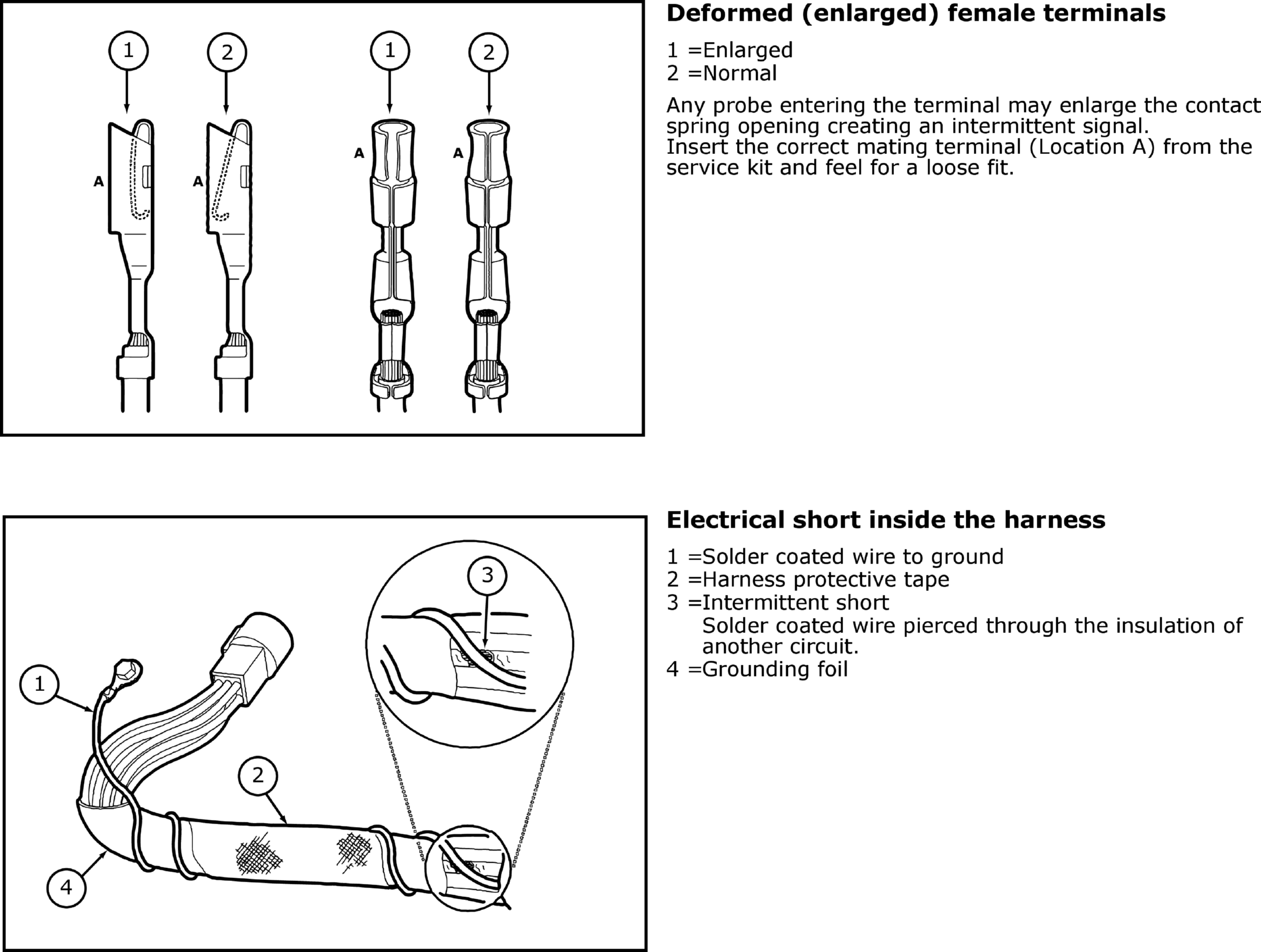

GFDW21059Courtesy of FORD MOTOR COMPANY

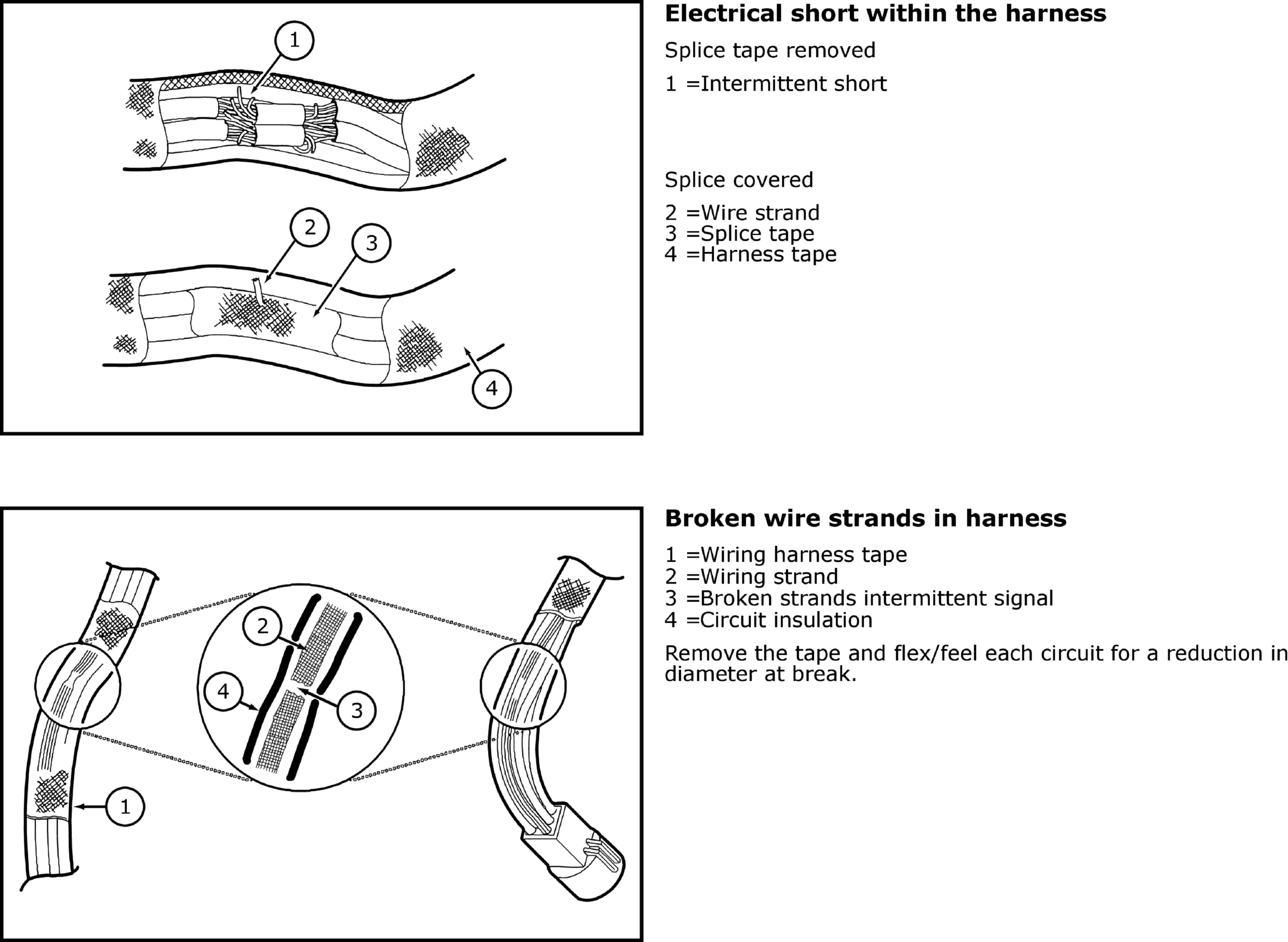

GFDW21060Courtesy of FORD MOTOR COMPANY

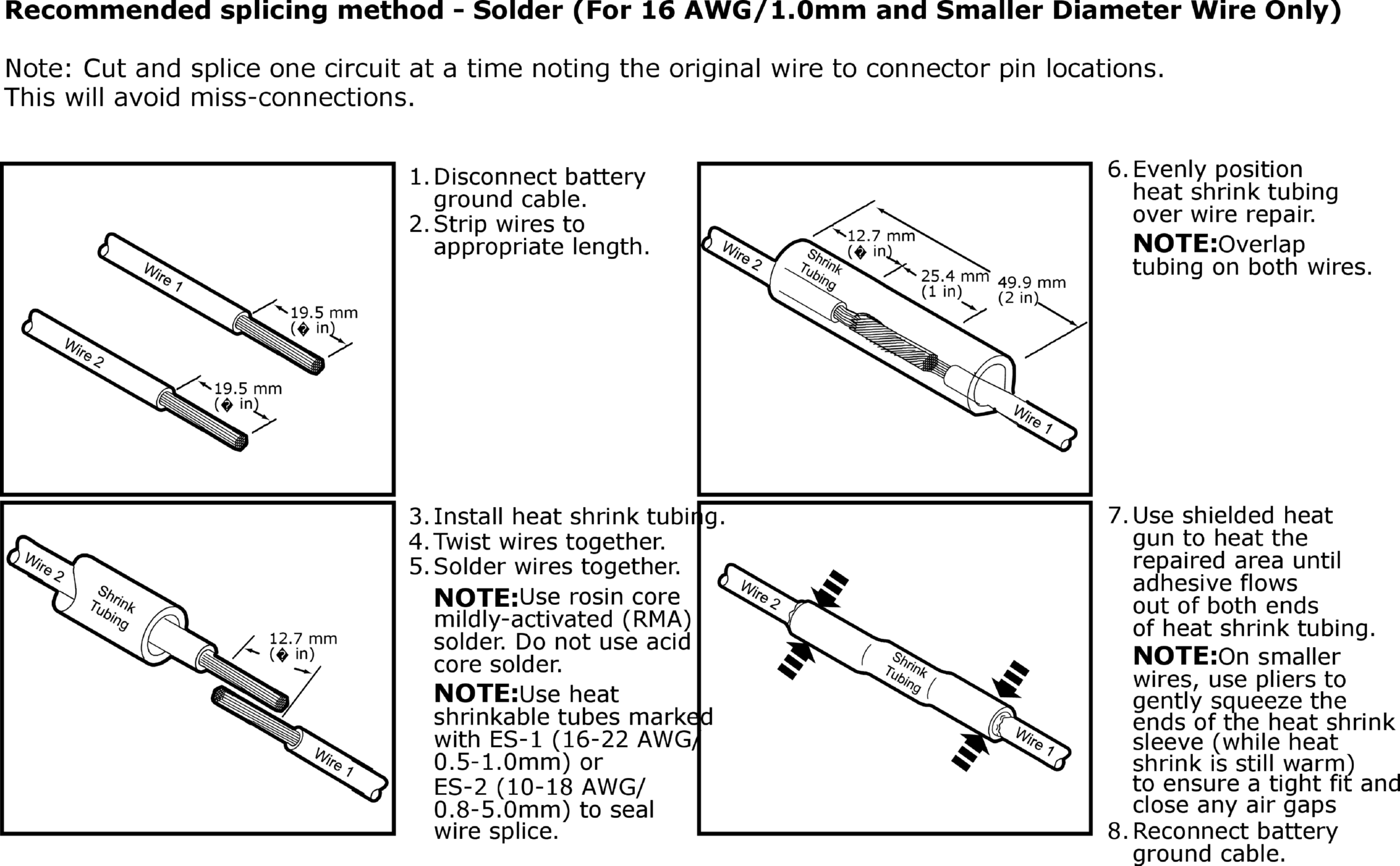

GFDW21061Courtesy of FORD MOTOR COMPANY

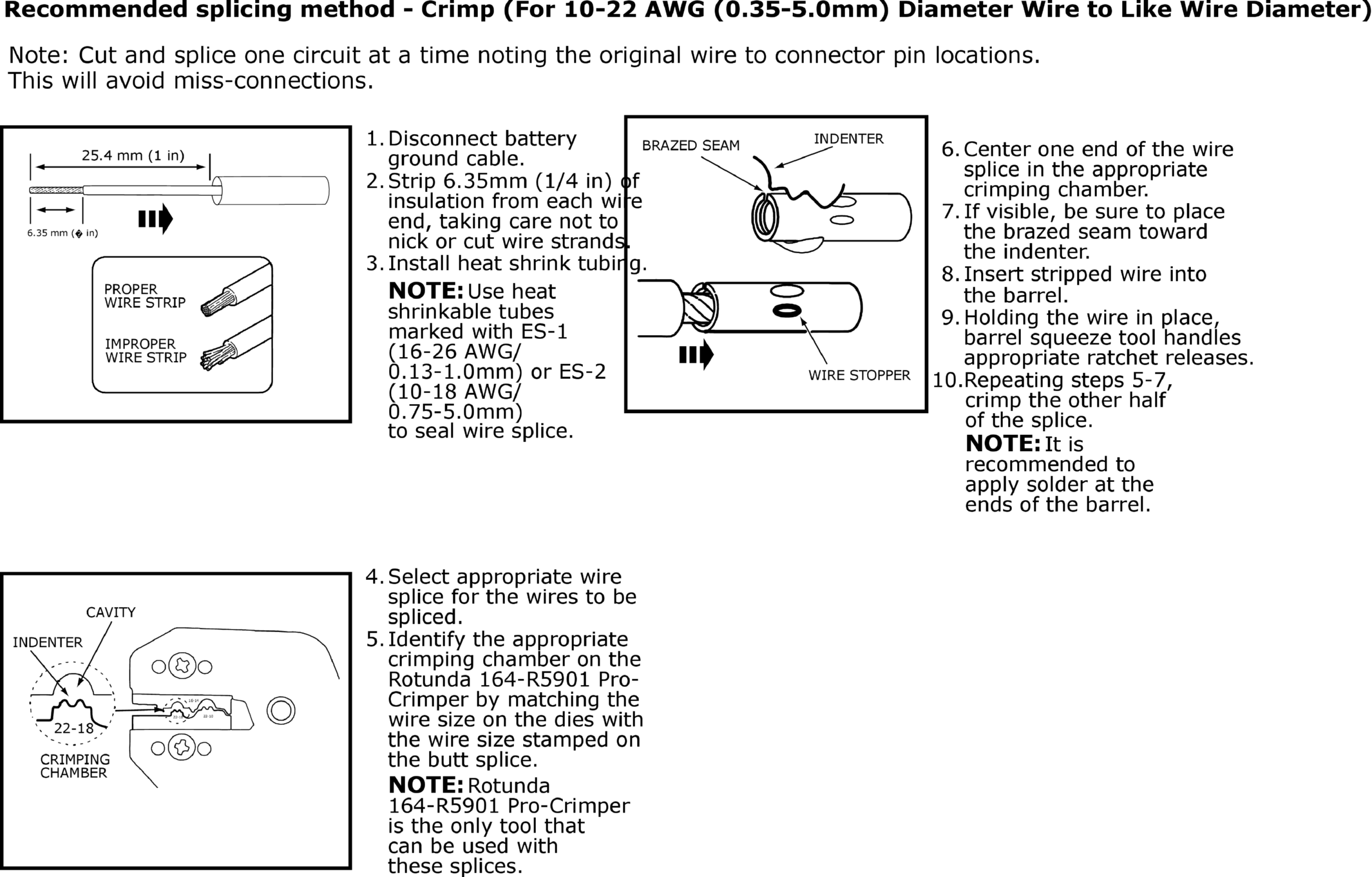

GFDW21062Courtesy of FORD MOTOR COMPANY

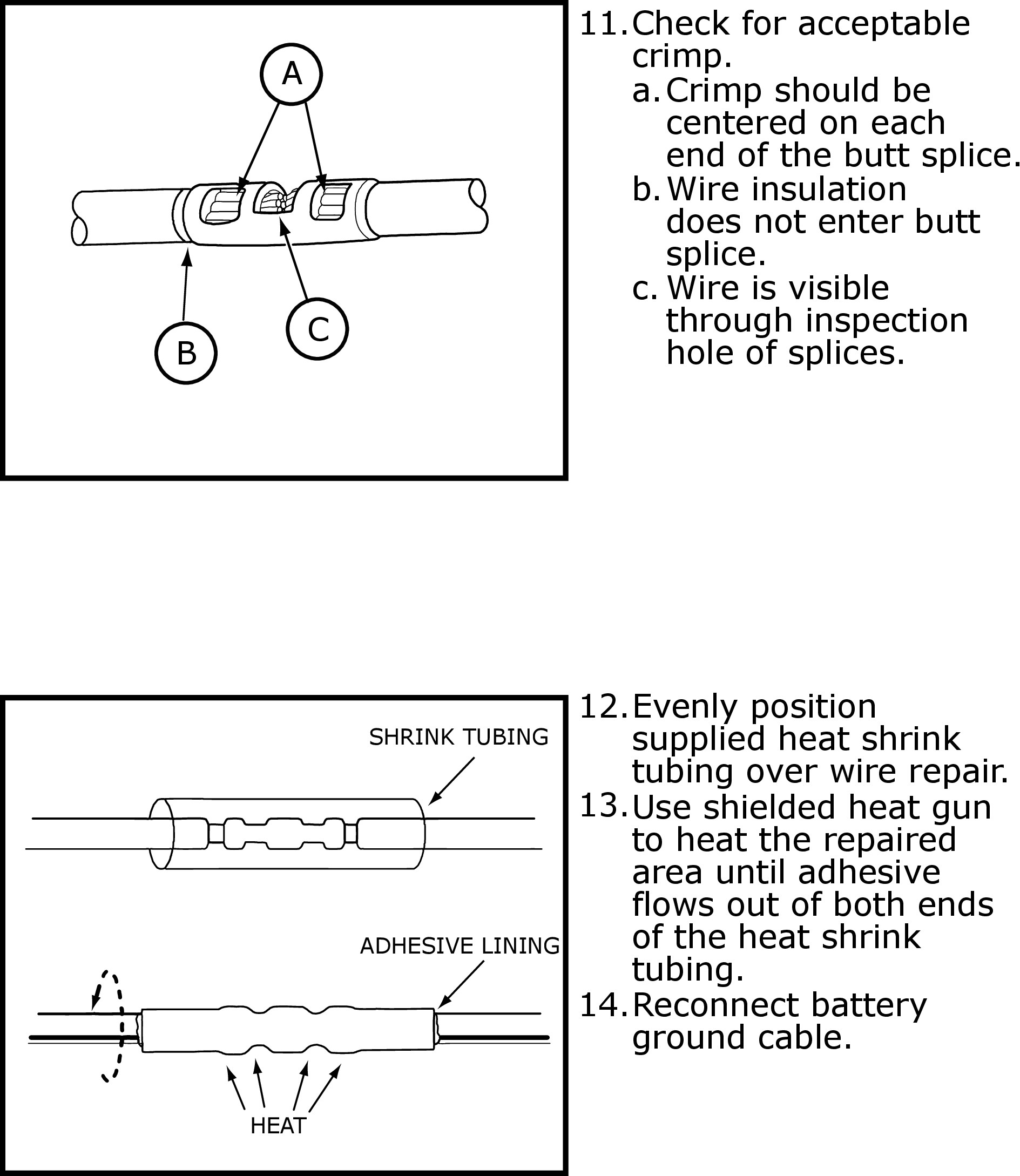

GFDW21063Courtesy of FORD MOTOR COMPANY

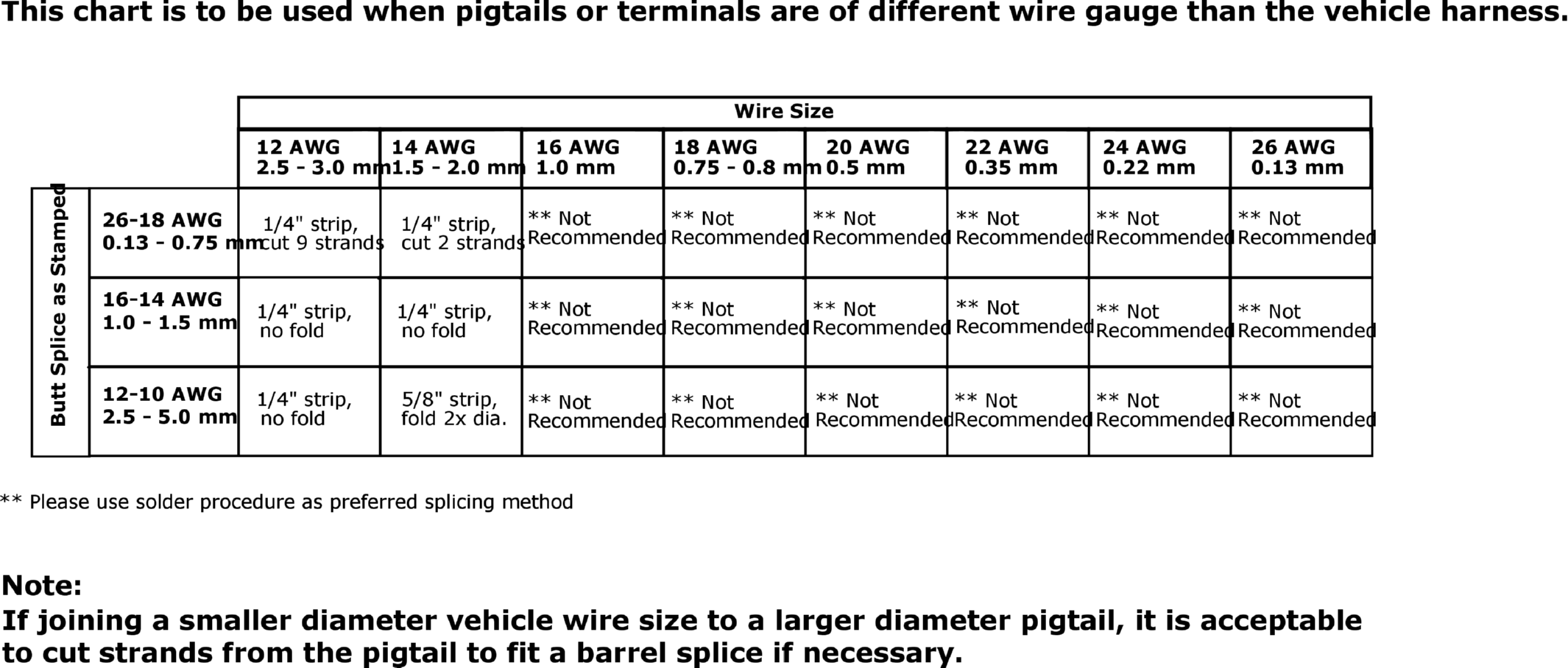

GFDW21064Courtesy of FORD MOTOR COMPANY
