Ignition Coil-On-Plug: Installation
- 1.

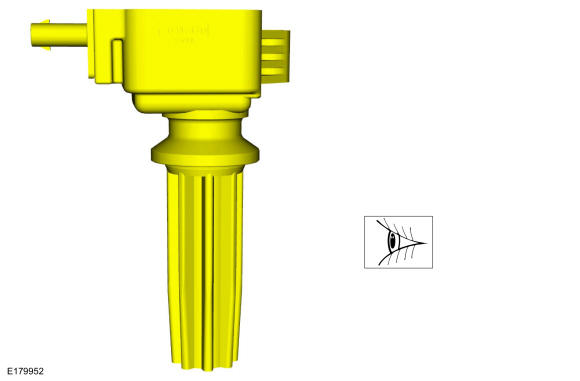

Inspect the ignition coil-on-plug assembly for cracks, rips, or tears. Replace any damaged coil-on-plug assemblies.
- 2.
- 1.

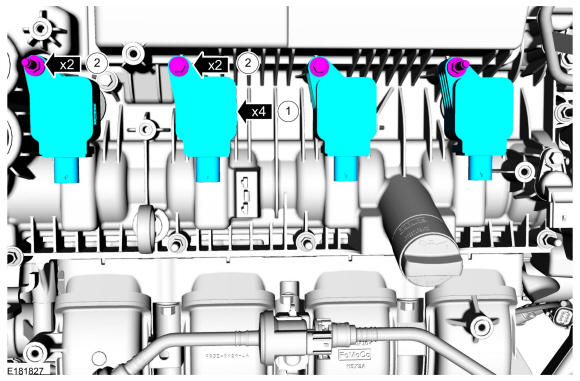

Install the ignition coil-on-plugs.
- 2.
Install the ignition coil-on-plug mounting bolts.Torque
: 89 lb.in (10 Nm)
- 1.
- 3.
- 1.

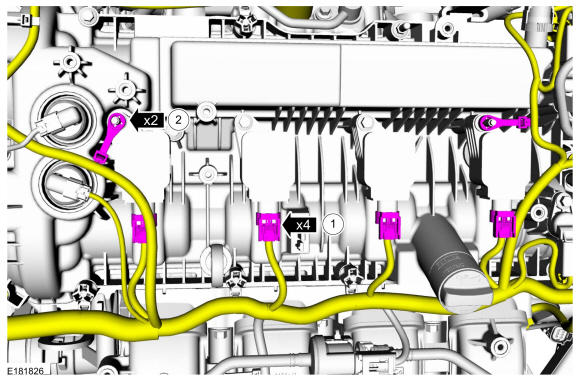

Connect the ignition coil-on-plug the electrical connectors and press the locking tab.
- 2.
Connect the wiring harness retainers.
- 1.
NOTE:
If equipped with a sliding cover over the locking tab, then slide the cover back to gain access to the tab.
- 4.

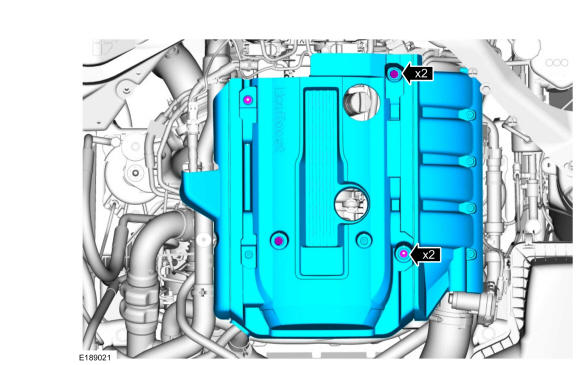

Install the engine appearance cover, then install and tighten the engine appearance cover retaining nuts and bolts.Torque
: 80 lb.in (9 Nm)
