Selector Lever Cable: Removal

  1. 1.

    With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

  1. 2.

    Position the selector lever in DRIVE.
GFD12069Courtesy of FORD MOTOR COMPANY

  1. 3.

    Disconnect the selector lever cable from the selector lever and remove the selector lever cable retainer bolt.
GFD12078Courtesy of FORD MOTOR COMPANY

  1. 4.

    Disconnect the selector lever cable from the selector lever assembly.
GFD12079Courtesy of FORD MOTOR COMPANY

  1. 5.

    Disconnect the selector lever cable retainer from the transmission.
GFD12087Courtesy of FORD MOTOR COMPANY

  1. 6.

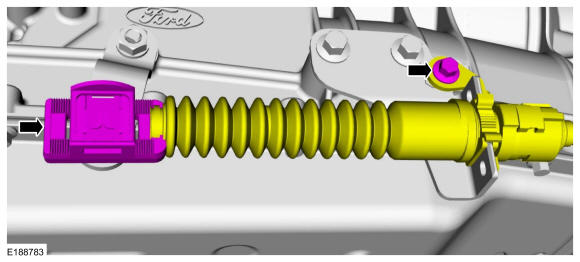

    Disconnect the selector lever cable from the manual lever and remove the selector lever cable bolt.
GFD12088Courtesy of FORD MOTOR COMPANY

  1. 7.

    Disconnect the selector cable retainer and remove the selector lever cable.
GFD12089Courtesy of FORD MOTOR COMPANY
