Connector Repair Procedures

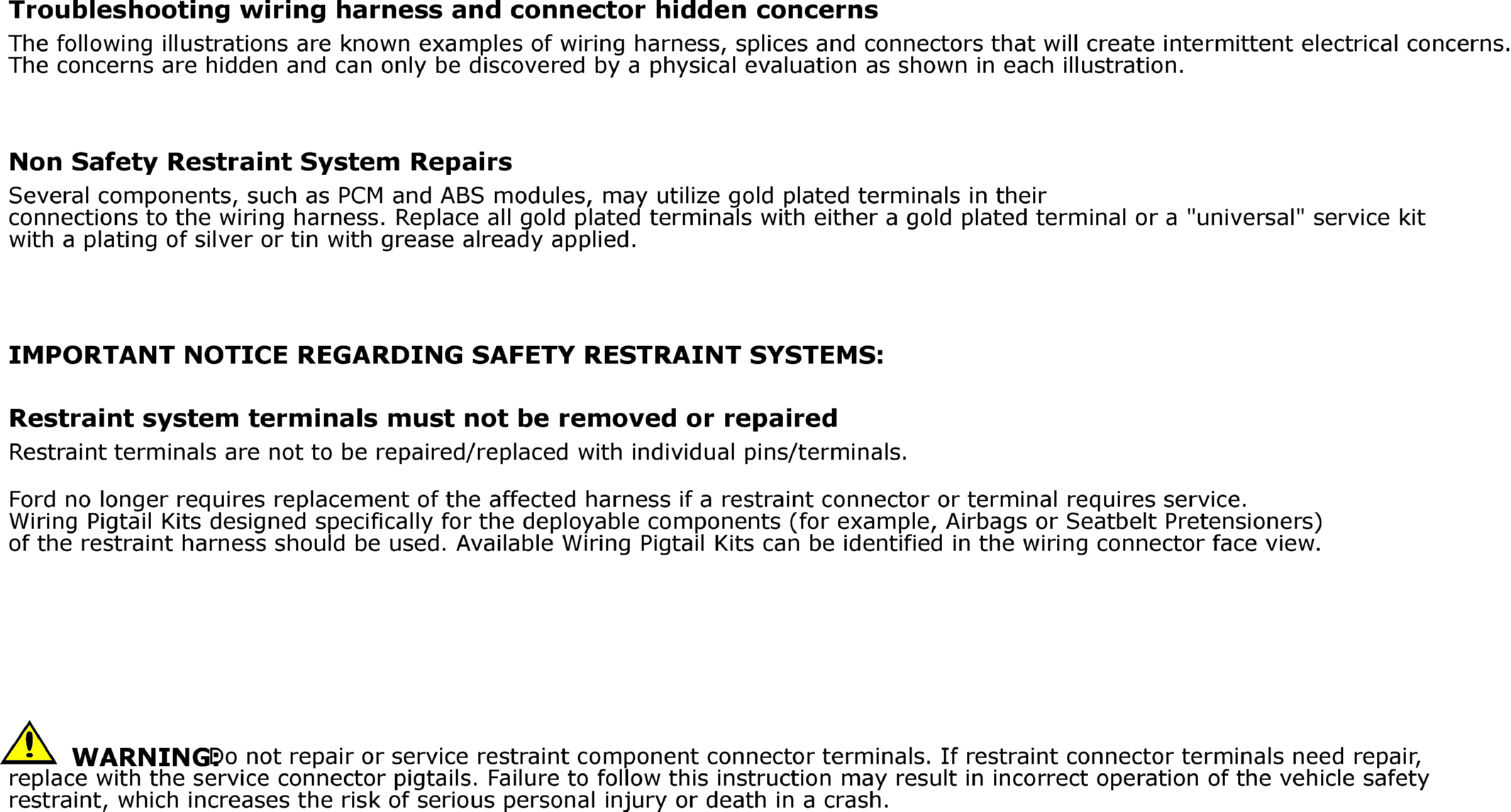

GFDW43630Courtesy of FORD MOTOR COMPANY

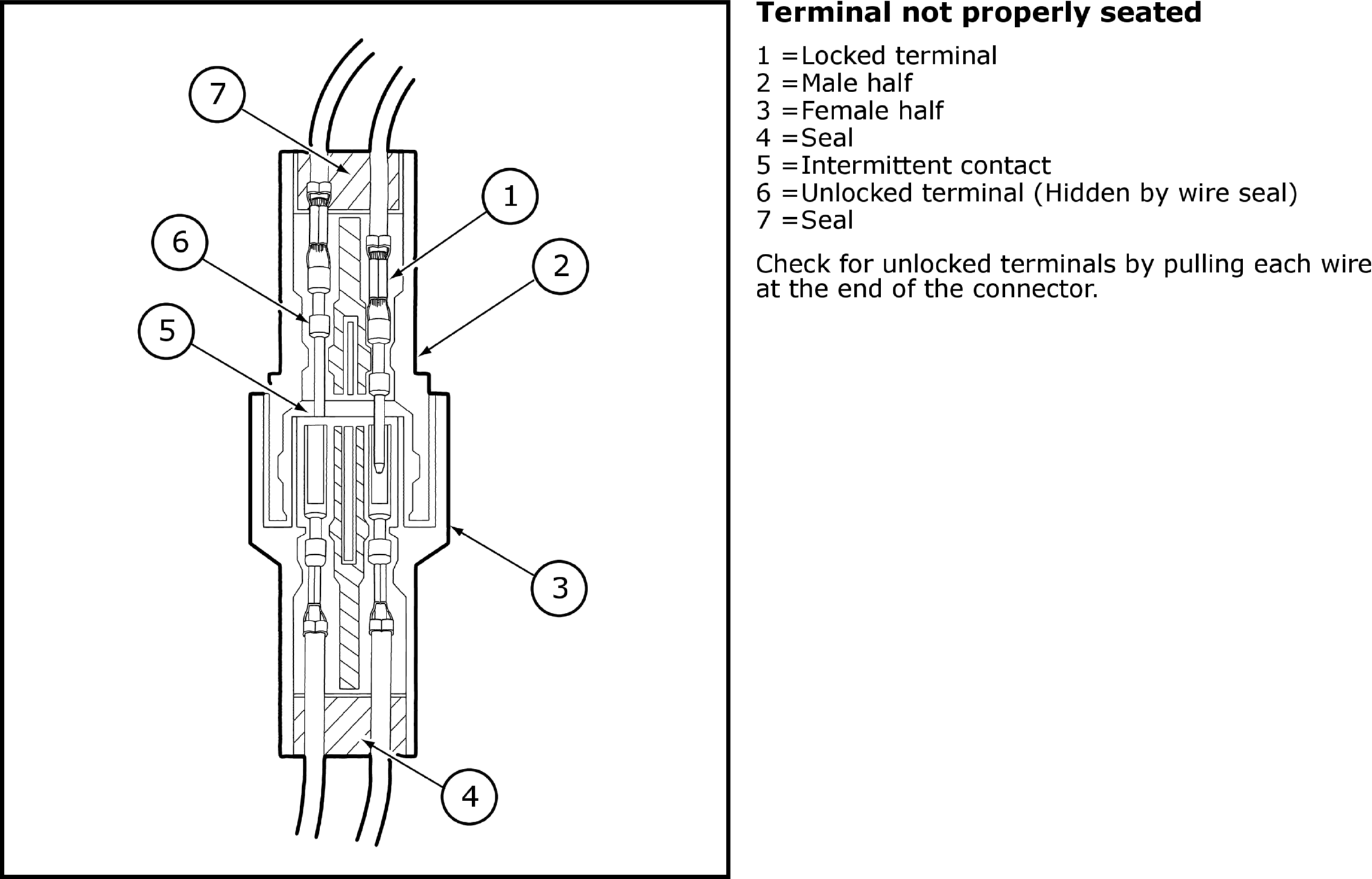

GFDW43631Courtesy of FORD MOTOR COMPANY

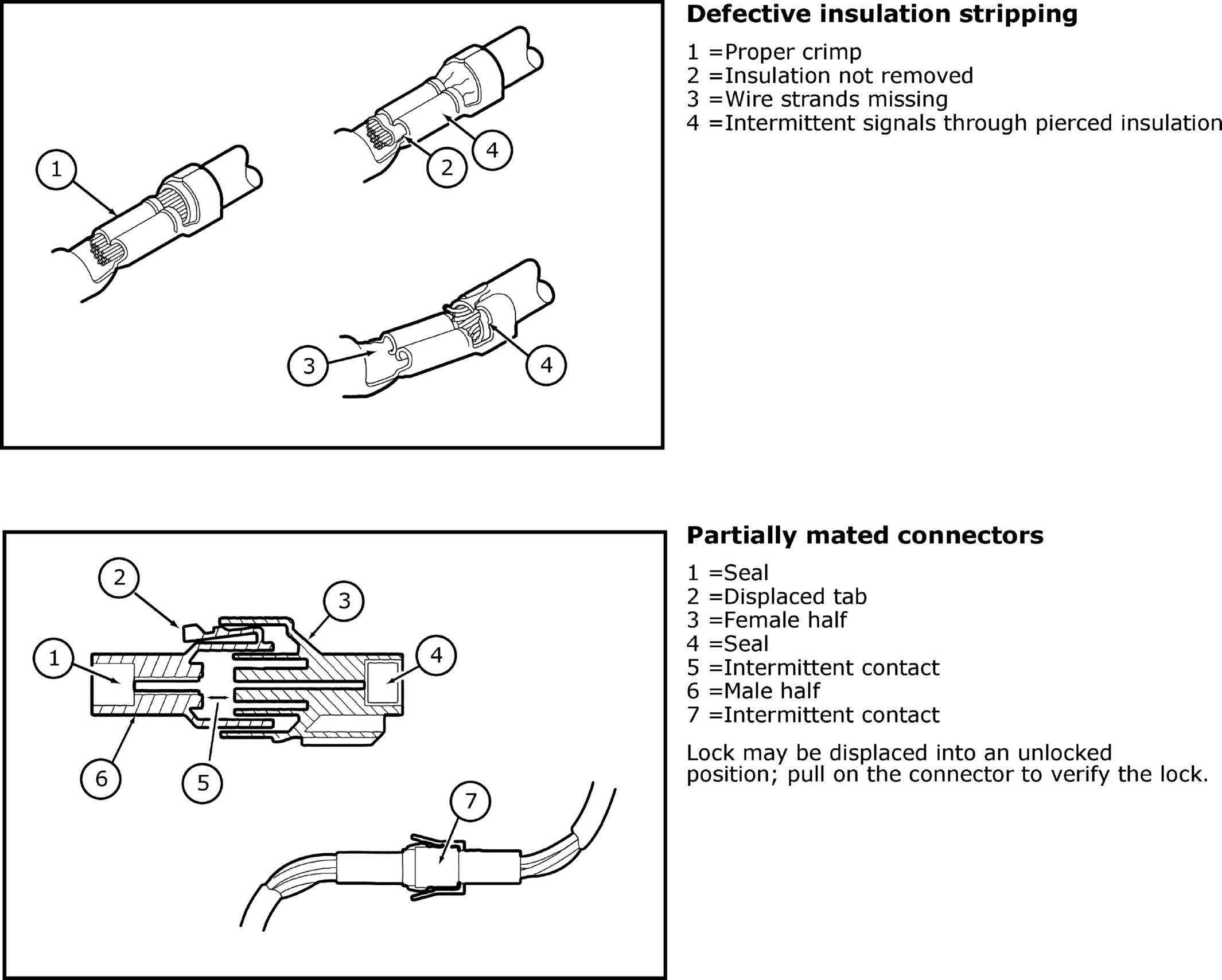

GFDW43632Courtesy of FORD MOTOR COMPANY

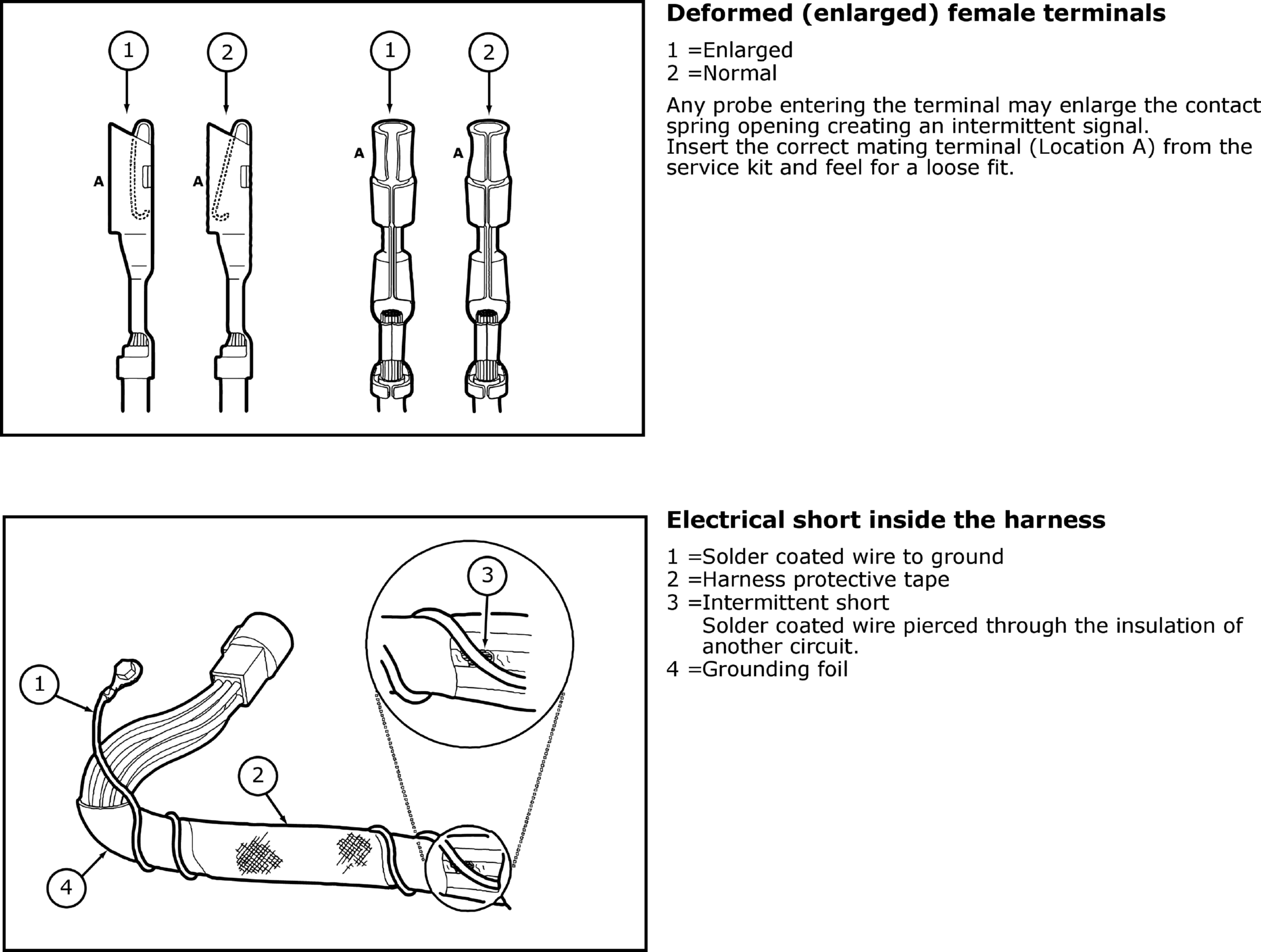

GFDW43633Courtesy of FORD MOTOR COMPANY

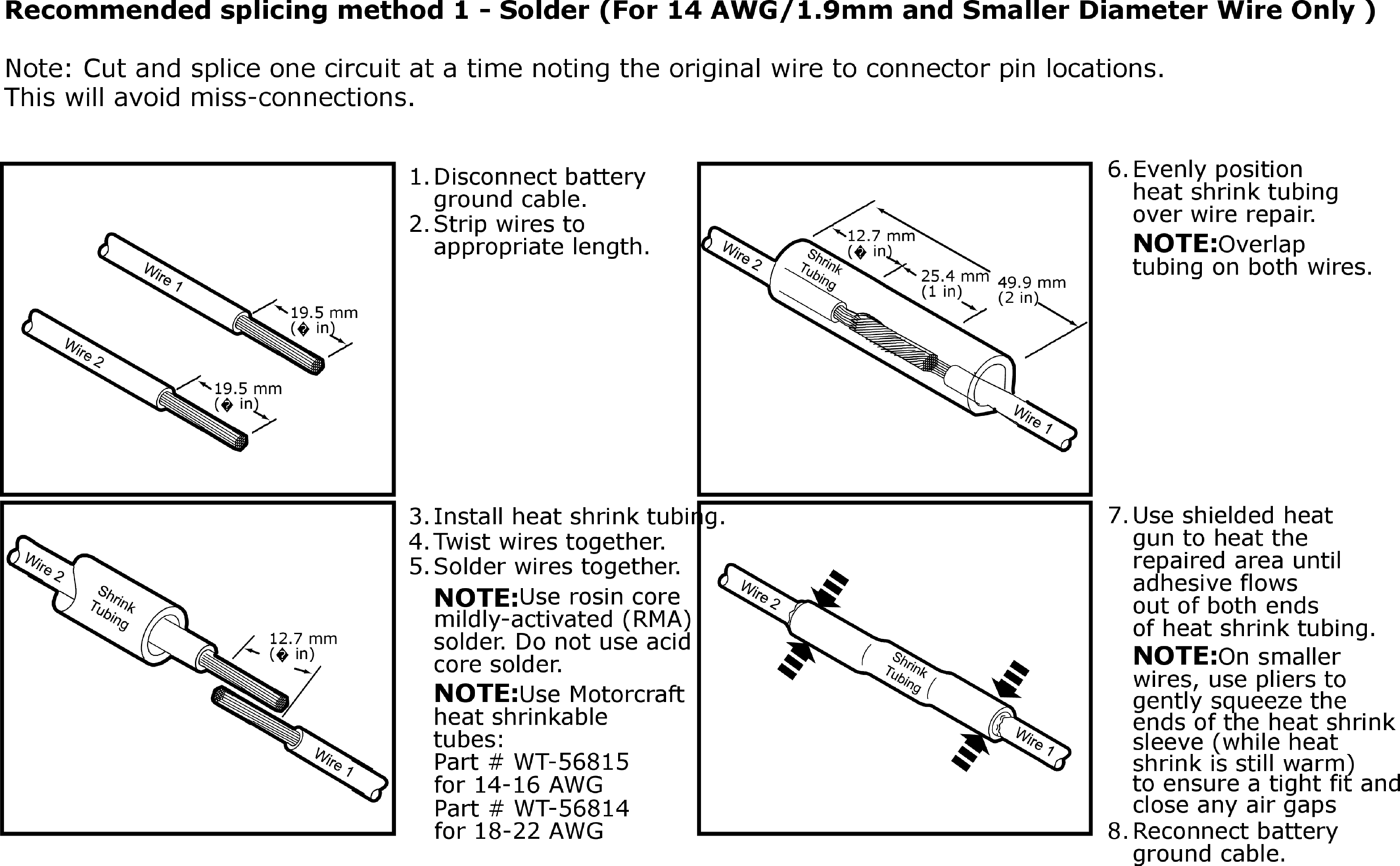

GFDW43634Courtesy of FORD MOTOR COMPANY

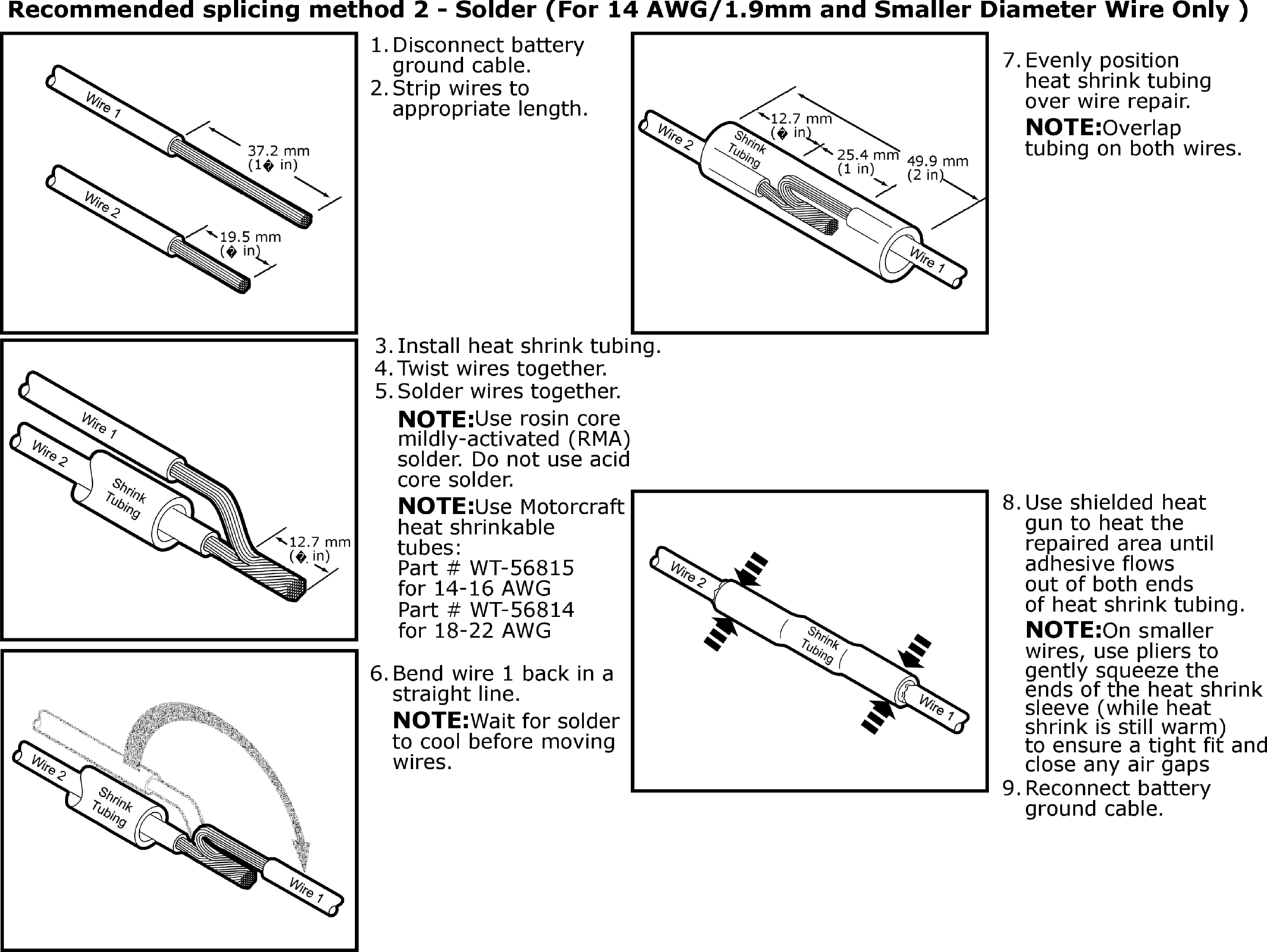

GFDW43635Courtesy of FORD MOTOR COMPANY

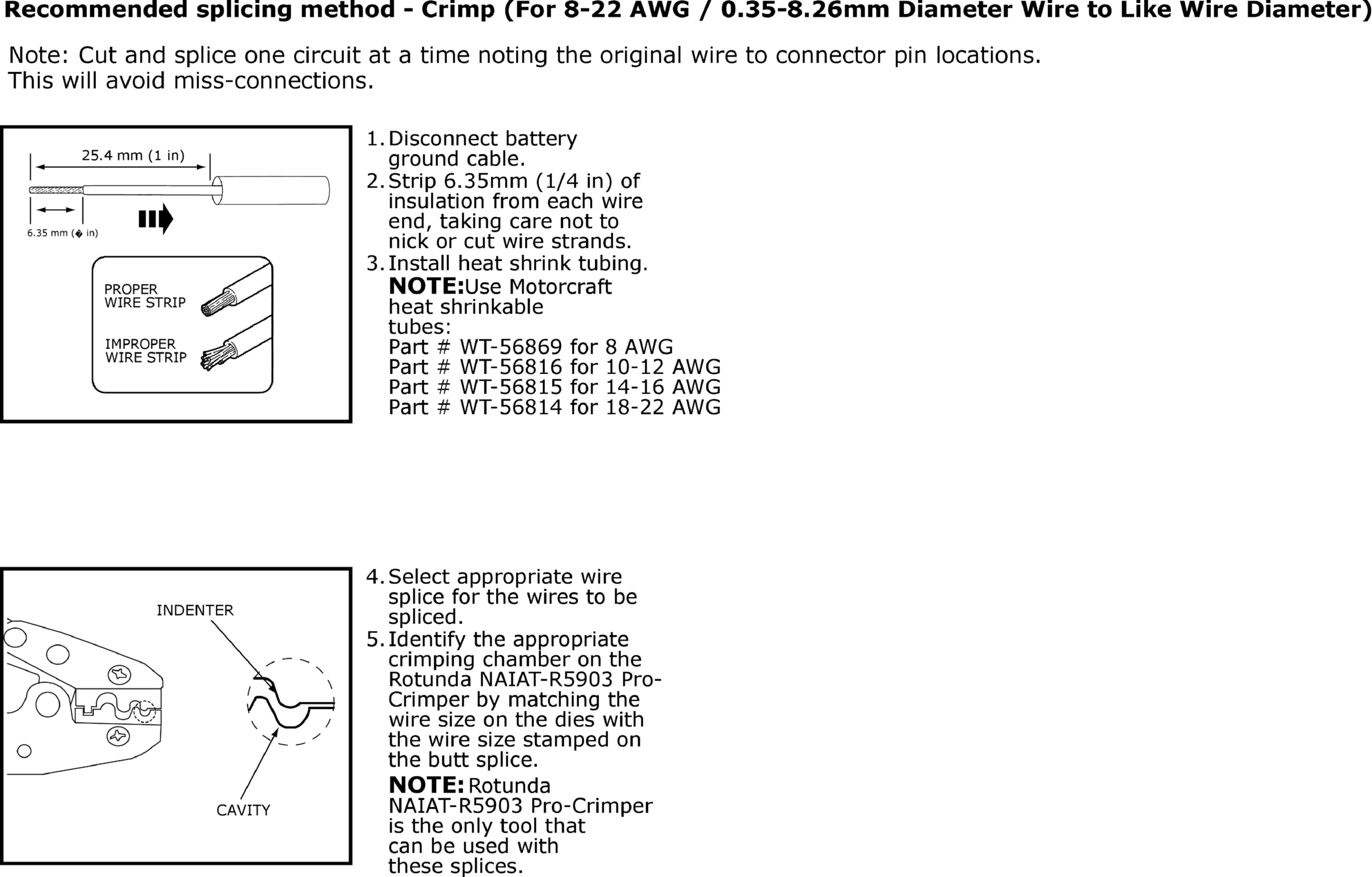

GFDW43636Courtesy of FORD MOTOR COMPANY

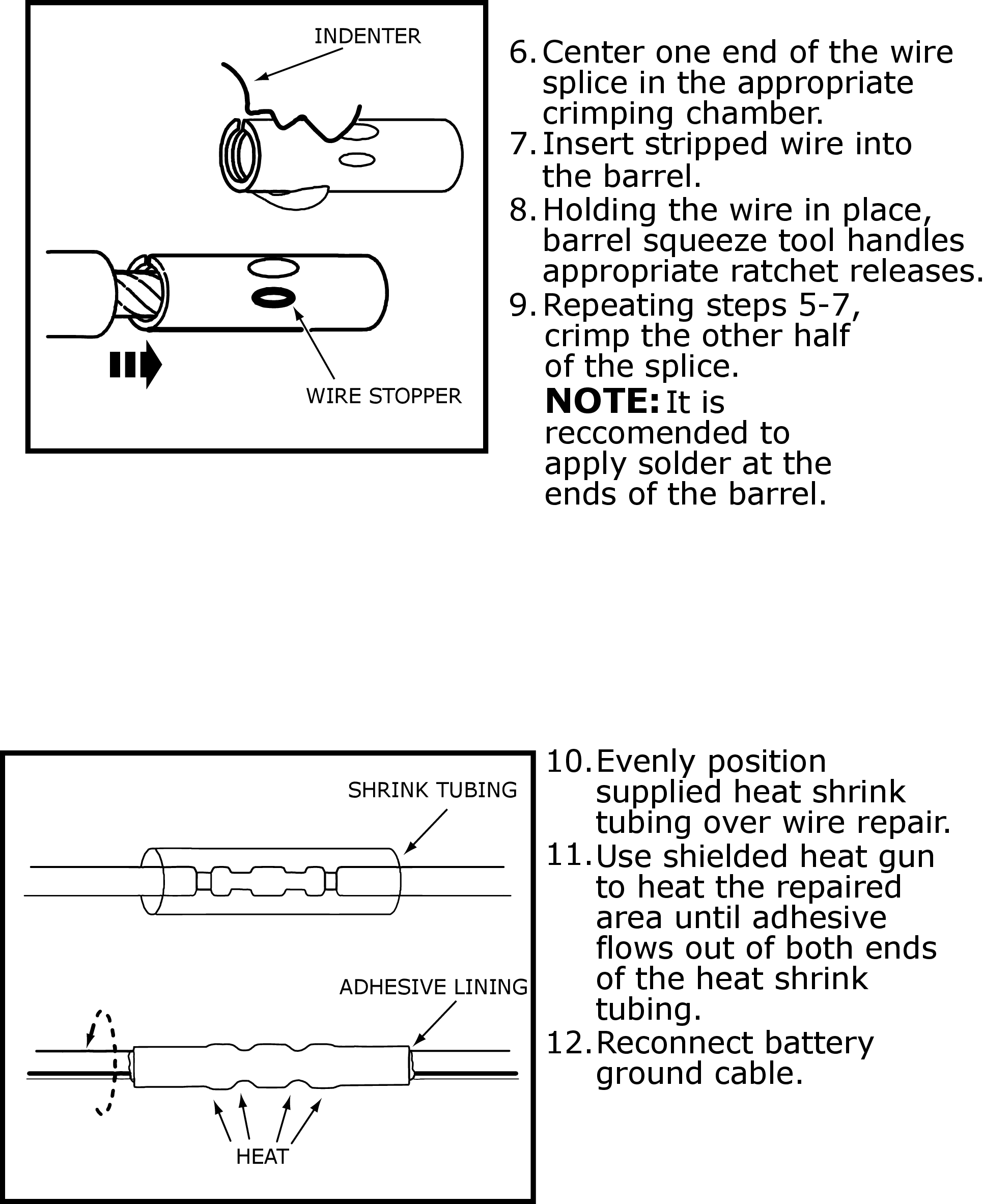

GFDW43637Courtesy of FORD MOTOR COMPANY

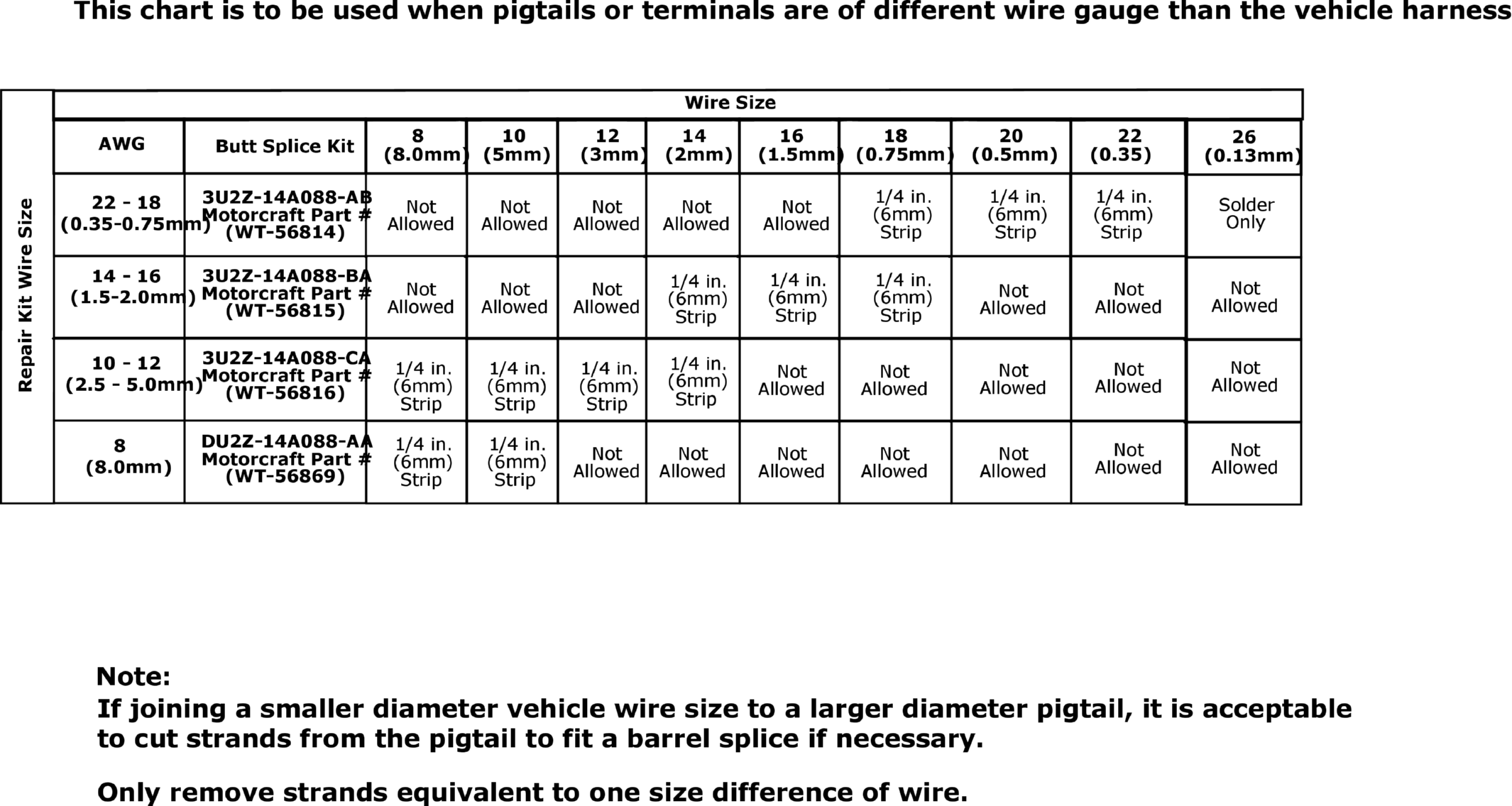

GFDW43638Courtesy of FORD MOTOR COMPANY
