Head Restraint Guide Sleeve Front: Removal

Vehicles without police package

1. 1.

   Push both of the head restraint guide sleeve release buttons and remove the head restraint.

Vehicles with police package

1. 2.

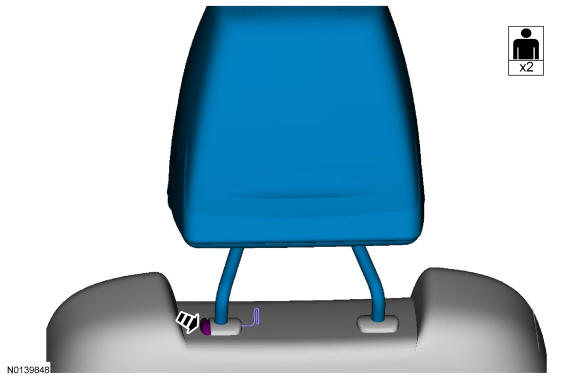

   Insert the straightened end of a paper clip into the inboard guide sleeve hole while pressing the guide sleeve release button and remove the head restraint. General Equipment: Paper Clip.

Courtesy of FORD MOTOR COMPANY

All vehicles

1. 3.

   Obtain a flat-head screwdriver with a tip width of 4 mm (0.16 in) - 7 mm (0.28 in) and a thickness of approximately 1 mm (0.04 in).

1. 4.

   Push the backrest cover and foam pad down and insert the screwdriver between the head restraint guide sleeve neck and backrest trim cover and foam pad, at the middle of the head restraint guide sleeve release button.

Courtesy of FORD MOTOR COMPANY

1. 5.

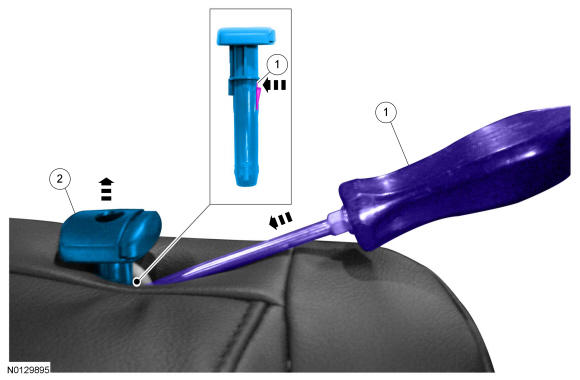

   Remove the head restraint guide sleeve in the following sequence:

   1. 1.

      Using the screwdriver, press the head restraint guide sleeve retaining tab inward approximately 5 mm (0.2 in).

   1. 2.

      While pressing the head restraint guide sleeve retaining tab inward, pull upward on the head restraint guide sleeve and remove it from the backrest frame crossmember.

Courtesy of FORD MOTOR COMPANY

1. 6.

   Discard the head restraint guide sleeve.
