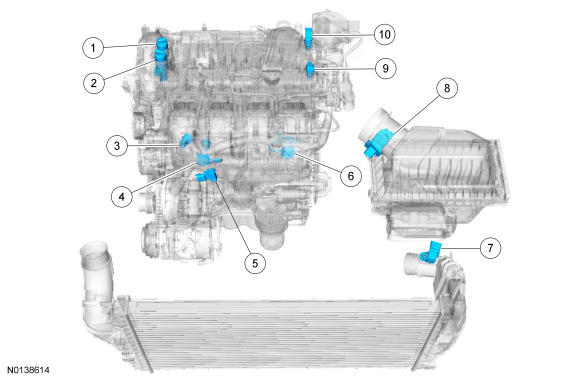

Front Engine Sensor Locations - 2.0L GTDI

Courtesy of FORD MOTOR COMPANY

Item	Description	Comments
1	Exhaust VCT oil control solenoid	-
2	Intake VCT oil control solenoid	-
3	FRP sensor	-
4	Front KS	-
5	MAP sensor	-
6	Rear KS	-
7	TCBP /CACT sensor	-
8	MAF sensor	-
9	Intake CMP sensor	-
10	Exhaust CMP sensor	-
