Disassembly And Assembly Of Subassemblies: Piston: Notes
WARNING: This page is about a different variant/trim than selected.
Material
| Item | Specification |
| Motorcraft ® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft ® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) | WSS-M2C946-A |

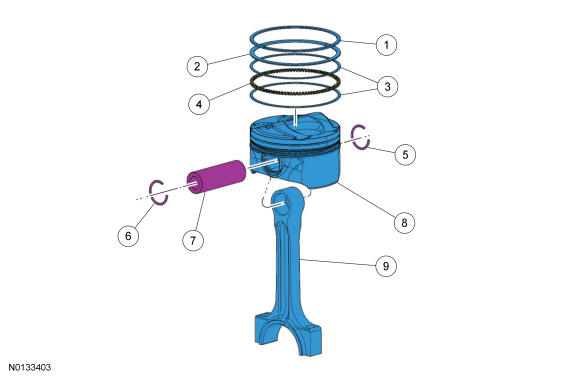

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Piston compression upper ring (part of 6148) |
| 2 | - | Piston compression lower ring (part of 6148) |
| 3 | - | Piston oil control segment ring (part of 6148) (2 required) |
| 4 | - | Piston oil control spacer (part of 6148) |
| 5 | 6140 | Piston pin retainer |
| 6 | 6140 | Piston pin retainer |
| 7 | 6135 | Piston pin |
| 8 | 6110 | Piston |
| 9 | 6200 | Connecting rod |
