Instrument Panel Dimmer Switch

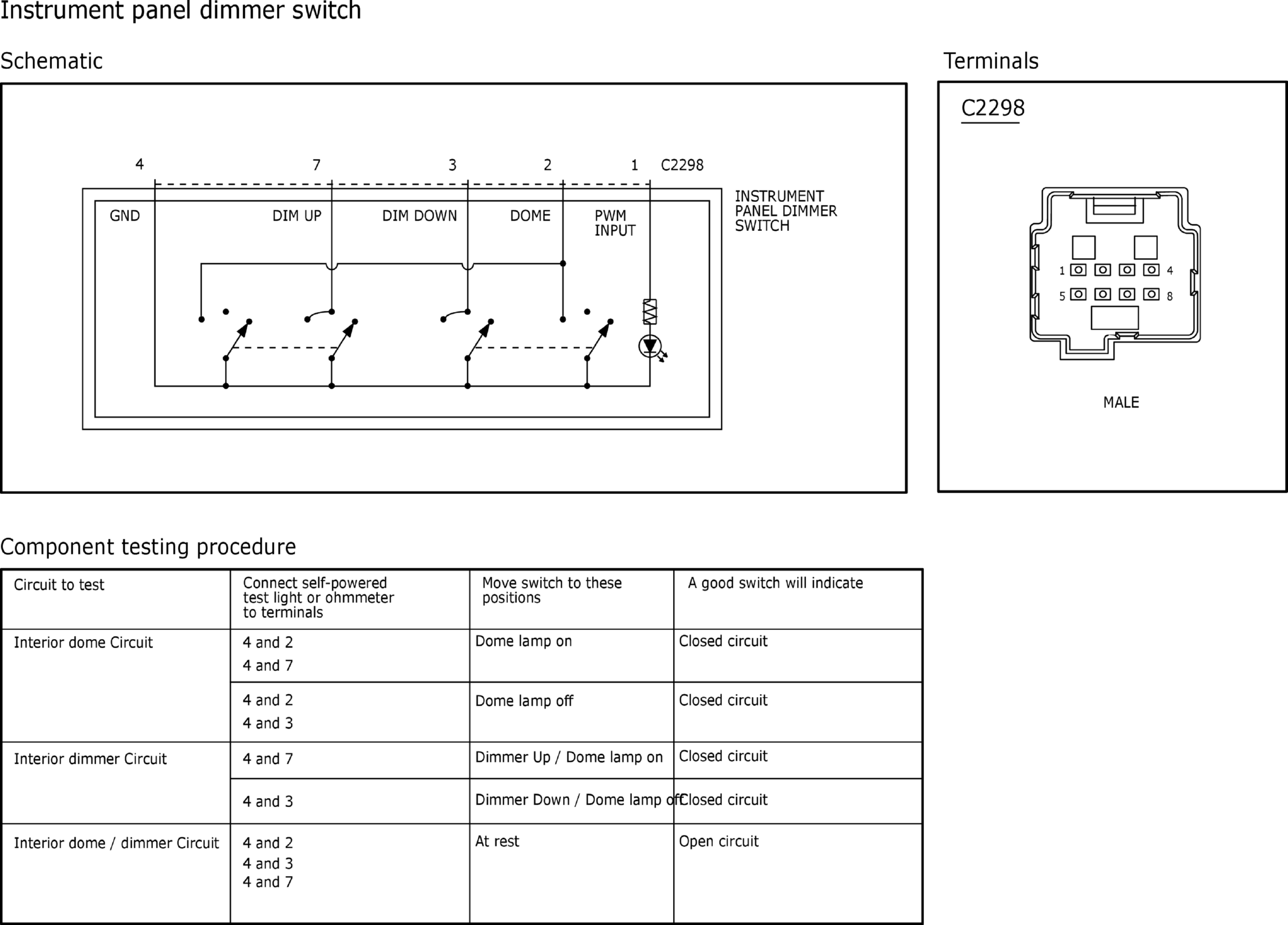

Fig 1: Instrument Panel Dimmer Switch
GFDW33055Courtesy of FORD MOTOR COMPANY
