Component Testing: Relays

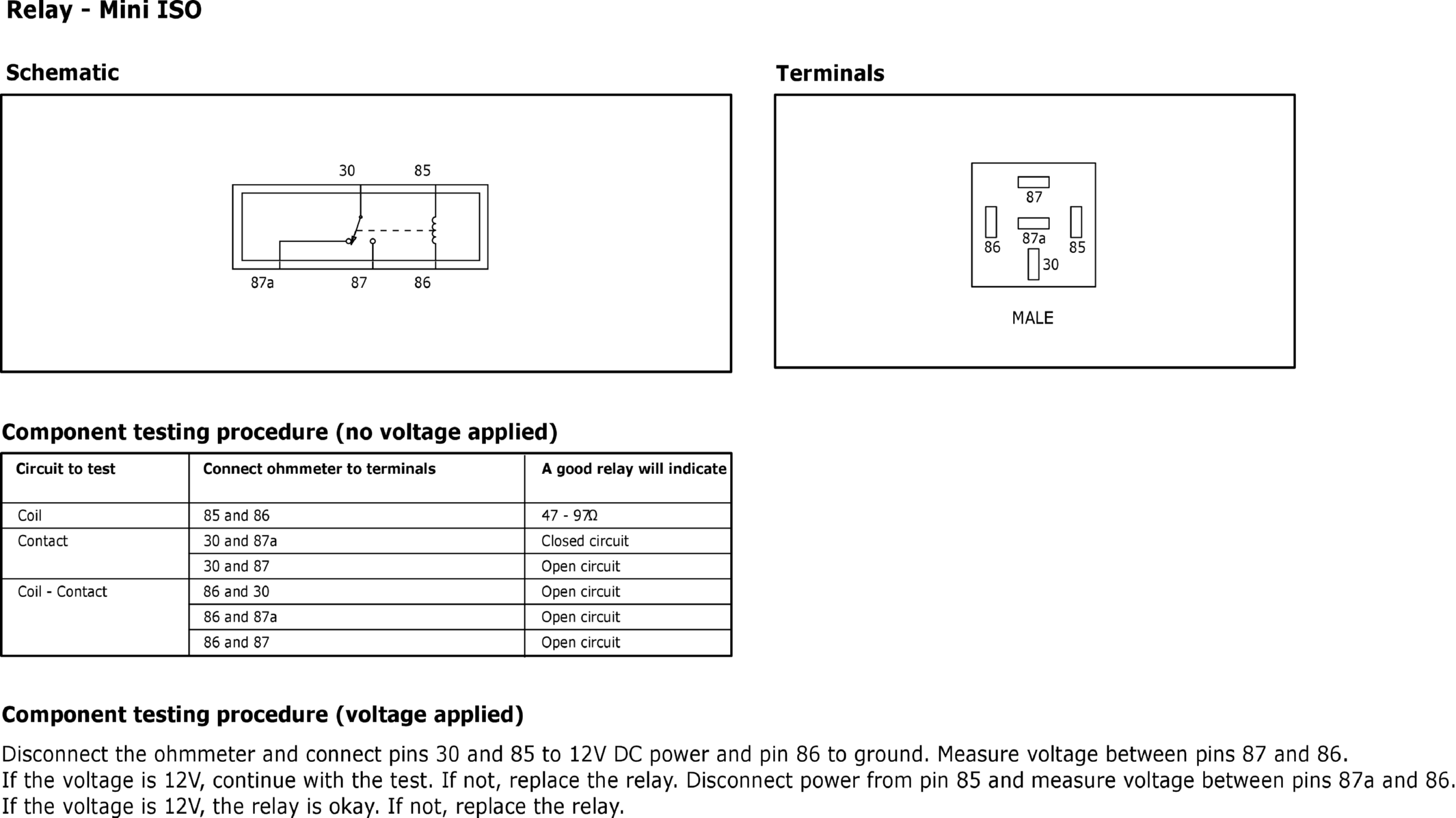

Fig 1: Relay - Mini ISO
GFDW33057Courtesy of FORD MOTOR COMPANY

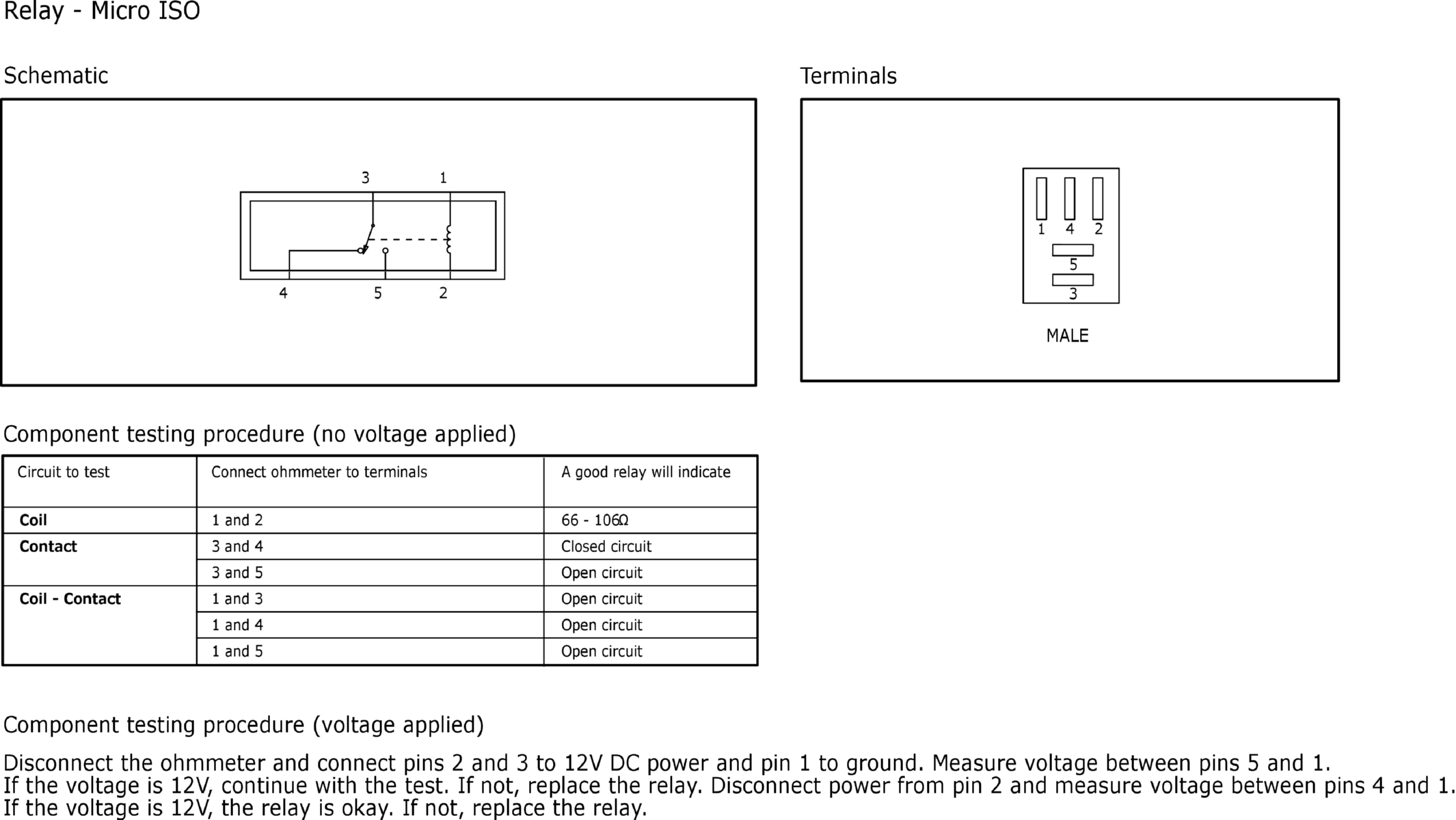

Fig 2: Relay - Micro ISO
GFDW33059Courtesy of FORD MOTOR COMPANY

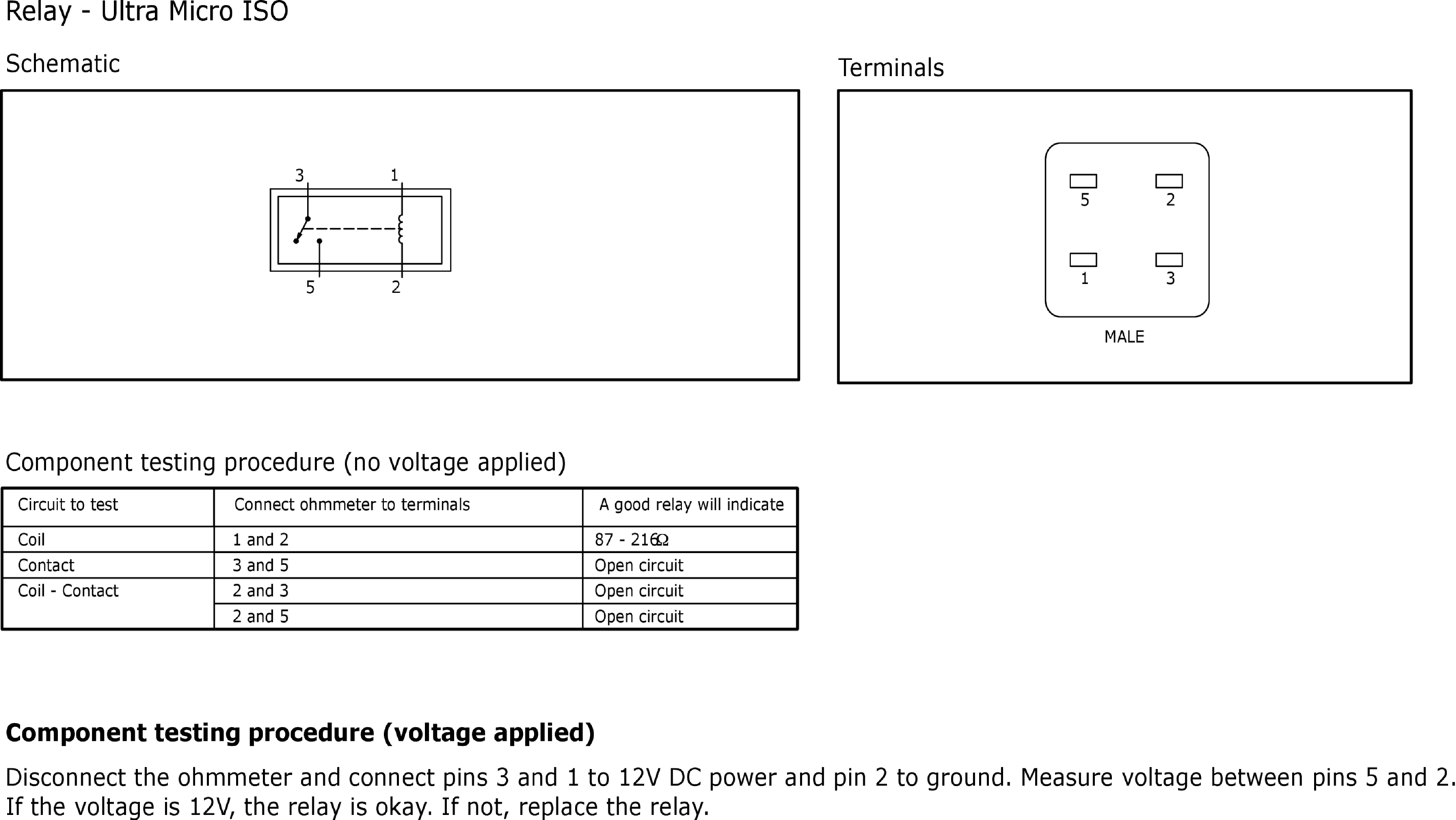

Fig 3: Relay - Ultra Micro ISO
GFDW33060Courtesy of FORD MOTOR COMPANY
