Roof Opening Panel Control Switch

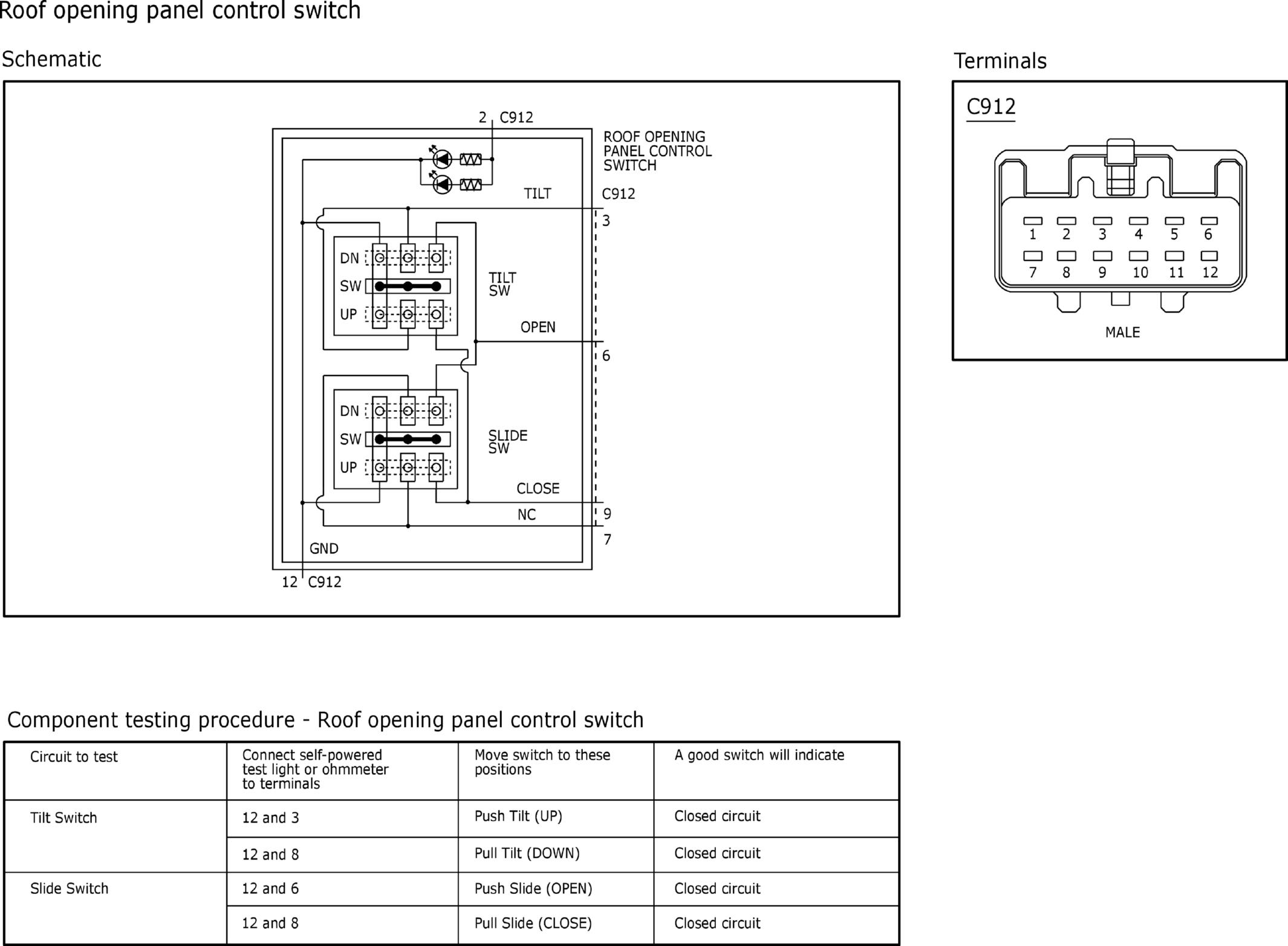

Fig 1: Roof Opening Panel Control Switch
GFDW33065Courtesy of FORD MOTOR COMPANY
