Seat Control Switch, Driver Side (6-Way)

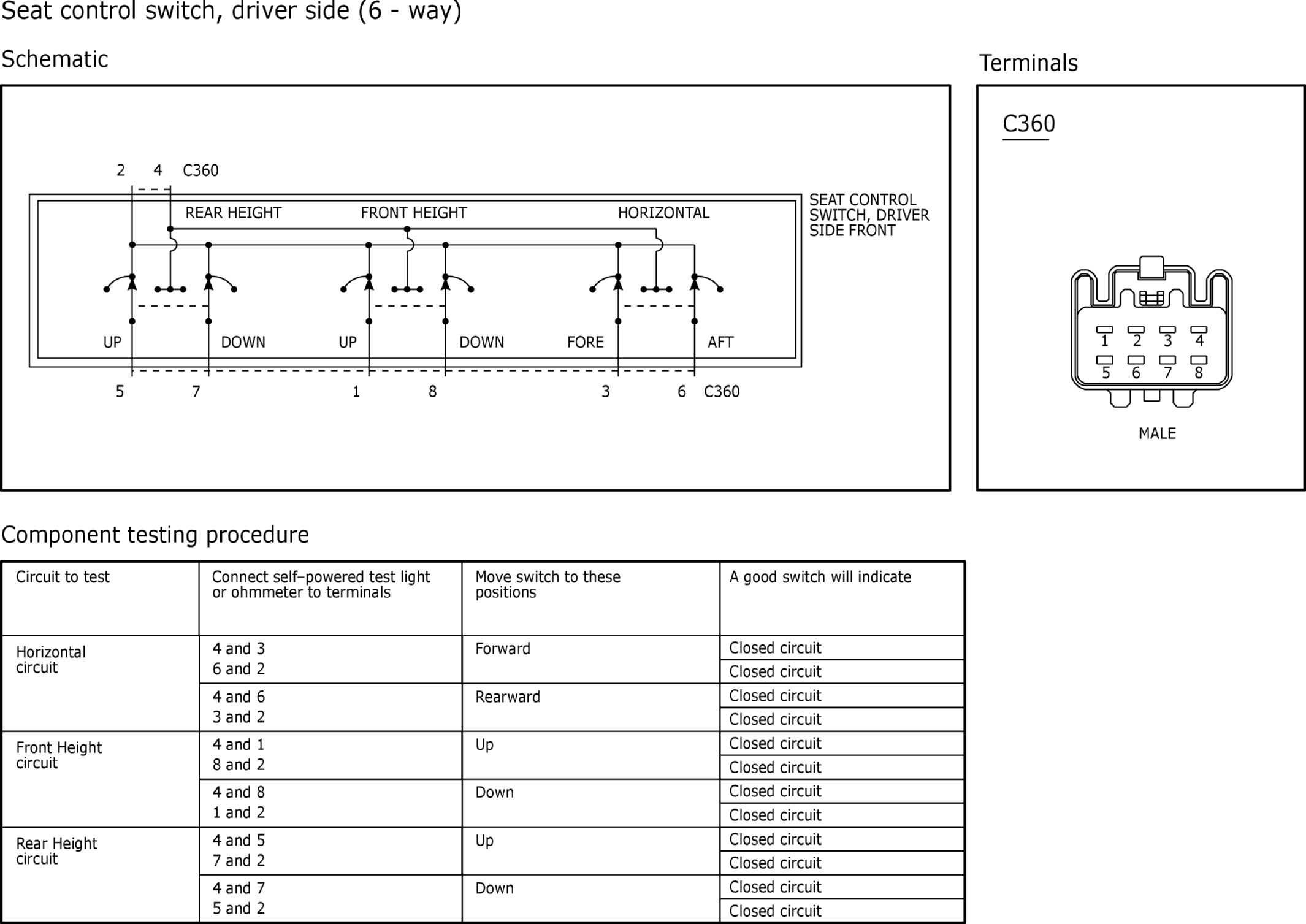

Fig 1: Seat Control Switch, Driver Side (6-Way)
GFDW33066Courtesy of FORD MOTOR COMPANY
