Driver Seat Track: Installation

  1. 1.

    To install, reverse the removal procedure.

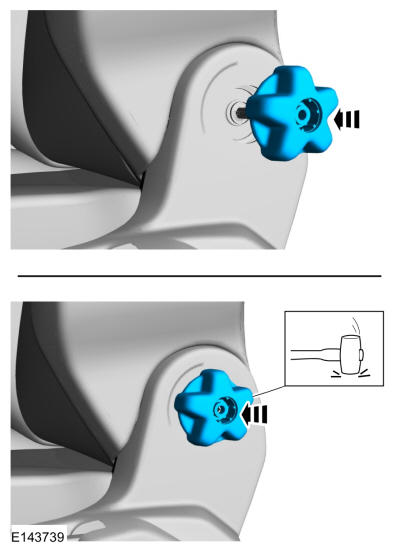

  1. 2.

    Using rubber mallet, install the recliner handle knob.

    Use the General Equipment: Rubber Mallet

GFD47074Courtesy of FORD MOTOR COMPANY

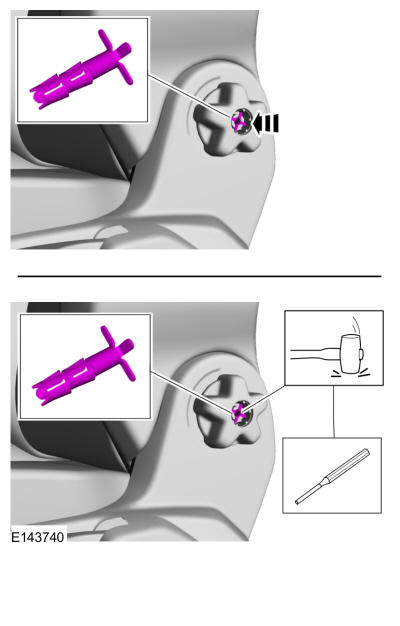

  1. 3.

    Using rubber mallet, install the retaining clip.

    Use the General Equipment: Punch.

    Use the General Equipment: Rubber Mallet

GFD47075Courtesy of FORD MOTOR COMPANY

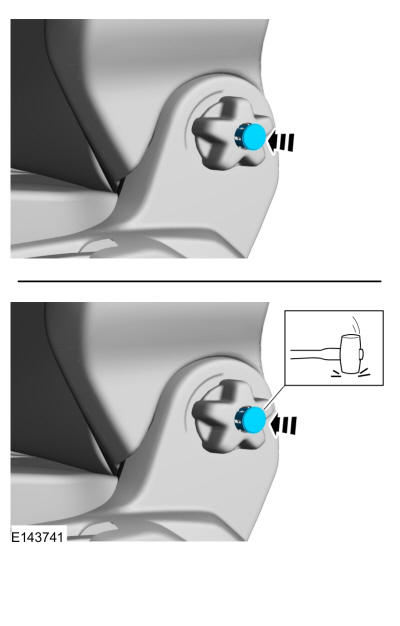

  1. 4.

    Using rubber mallet, install the lumbar handle knob cap.

    Use the General Equipment: Rubber Mallet

GFD47076Courtesy of FORD MOTOR COMPANY
