Front Head Restraint Guide Sleeve: Removal

  1. 1.

    Release the locking tabs and remove the head restraint.
GFD47080Courtesy of FORD MOTOR COMPANY

  1. 2.

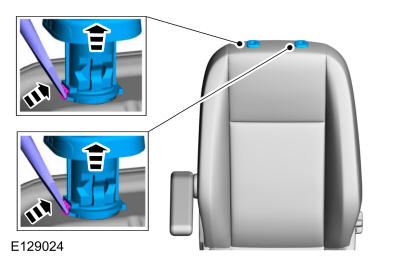

    Using flat headed screw driver, release the locking tabs and remove the headrest restraint guide sleeves.
GFD47081Courtesy of FORD MOTOR COMPANY
