Front Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

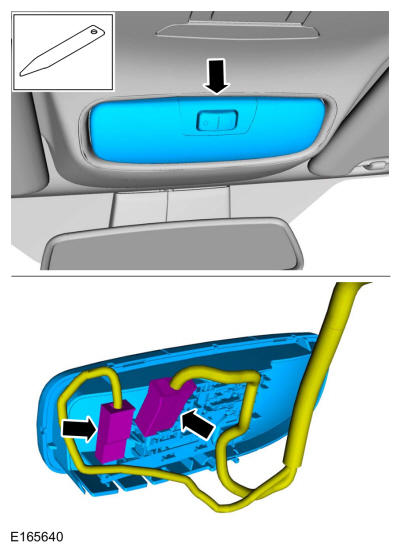

Remove the dome lamp and disconnect the electrical connectors.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

3.

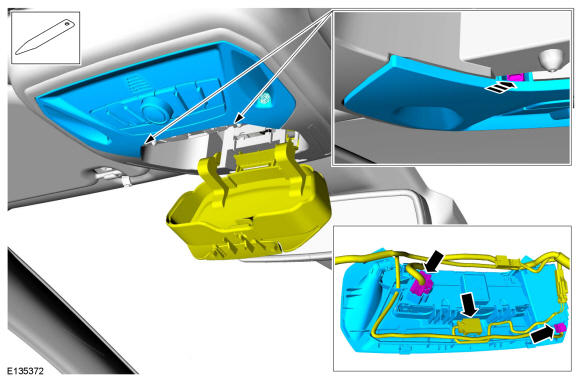

- Disengage the retaining tabs and remove the roof bezel cover.
- Disconnect the roof bezel cover electrical connectors.

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  NOTE: Note the position of the component before removal.
Remove the retainers and the LH side sun visor.

Courtesy of FORD MOTOR COMPANY

5.
- 1.

  NOTE: Note the position of the component before removal.

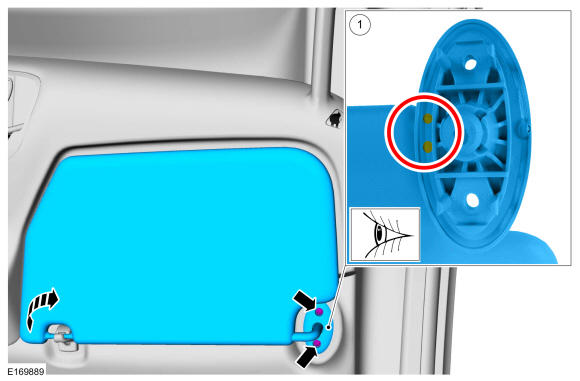

Remove the retainers and the RH side sun visor.

Courtesy of FORD MOTOR COMPANY

6.

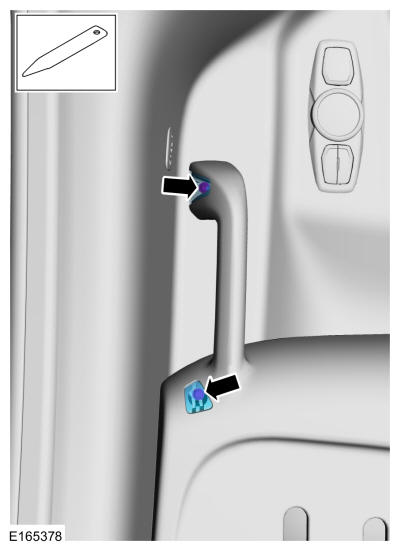

On both sides, remove the grab handle covers and retainers.
Use the General Equipment: Interior Trim Remover

Courtesy of FORD MOTOR COMPANY

7.

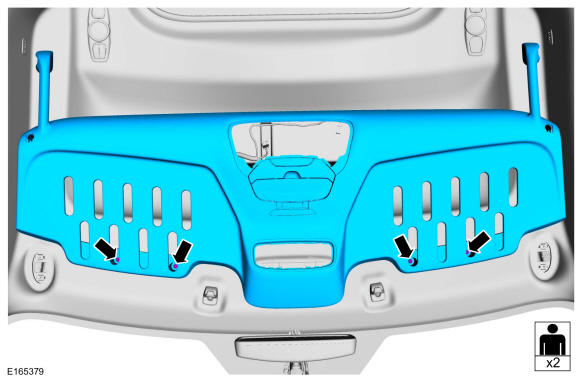

Remove the retainers and the front seat overhead storage compartment assembly.

Courtesy of FORD MOTOR COMPANY
