Instrument Panel: Installation

1.

To install, reverse the removal procedure.

2.

NOTE: Make sure that the tolerance absorbers turn without resistance.

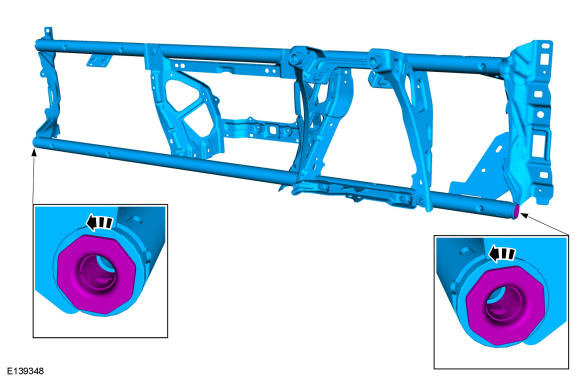

NOTE: In-vehicle cross beam shown below without instrument panel for clarity.

Turn on both sides the tolerance absorber to the stop and turn back a half turn.

GFD47244

Courtesy of FORD MOTOR COMPANY

3.

Check on both sides that the tolerance absorber contacts the A-pillar.

GFD47245

Courtesy of FORD MOTOR COMPANY

4.

Fill and bleed the cooling system. Refer to filling and bleeding without a vacuum cooling system filler. Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (2.5L) Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING (1.6L)
