Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

1.

Recover the refrigerant. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging

1.6 EcoBoost

2.

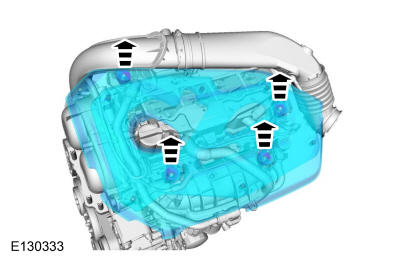

Remove the engine cover.

Courtesy of FORD MOTOR COMPANY

All vehicles

3.

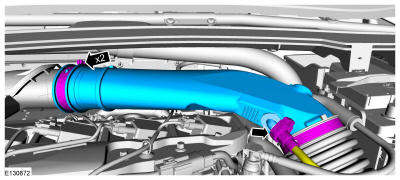

Disconnect the hose, remove the clamps and the air intake tube.

Courtesy of FORD MOTOR COMPANY

4.

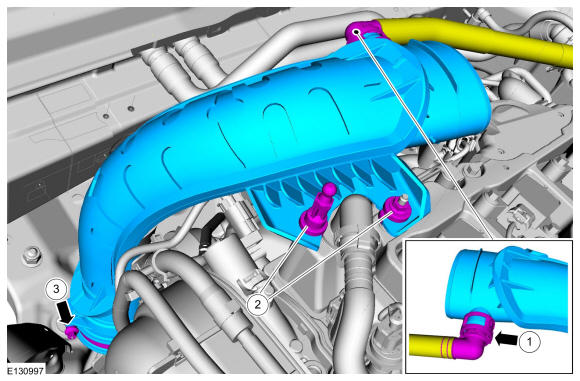

- 1.

  Disconnect the hose.
  Torque

  : 89 lb.in (10 Nm)
- 2.

  Remove the fasteners.
  Torque

  : 35 lb.in (4 Nm)
- 3.

  Remove the clamp and the air intake tube.

Courtesy of FORD MOTOR COMPANY

5.

Remove the cowl panel. Refer to: Cowl Panel

6.

NOTE: Make sure that all openings are sealed.

NOTE: When releasing the cooling system pressure, cover the coolant expansion tank cap with a thick cloth.

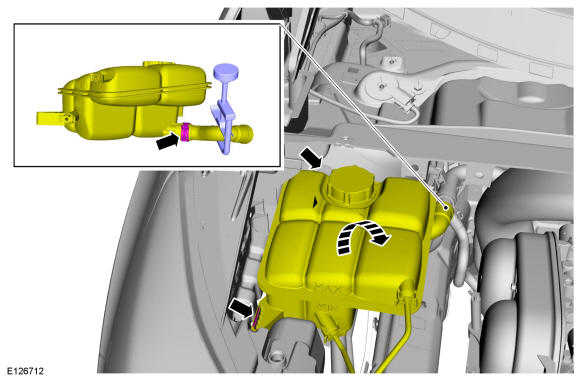

Pinch off the hose and position aside. Use the General Equipment: Hose Clamp(s).

Use the General Equipment: Hose Clamp Remover/Installer

Courtesy of FORD MOTOR COMPANY

7.

Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview

8.

Remove the bolts and the shield.

Courtesy of FORD MOTOR COMPANY

Vehicles with Auxiliary Climate Control

9.

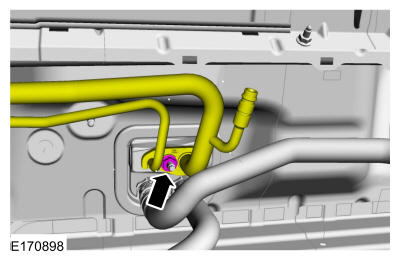

NOTE: Make sure that all openings are sealed.

Remove the nut.

Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

10.

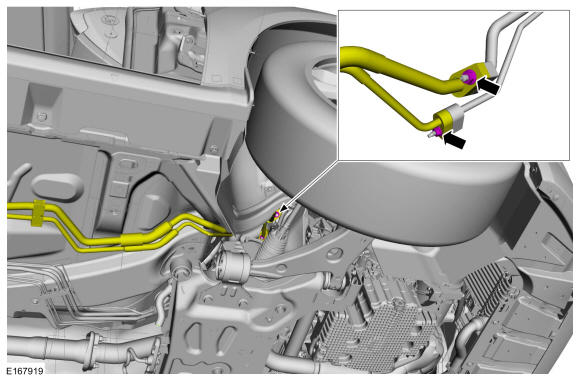

NOTE: Make sure that all openings are sealed.

NOTE: Discard the O-ring seals and gaskets.

Remove the nuts.

Torque

: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

All vehicles

11.

NOTE: Make sure that all openings are sealed.

NOTE: Discard the O-ring seals and gaskets.

Remove the flange nut.

Torque

: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

12.

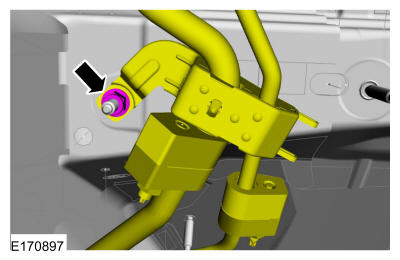

NOTE: Make sure that all openings are sealed.

NOTE: Discard the O-ring seals and gaskets.
- 1.

  Remove the nut and disconnect the fitting.
  Torque

  : 133 lb.in (15 Nm)
- 2.

  Remove the bolts and position aside the A/C thermostatic expansion valve manifold and tube assembly.
  Torque

  : 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

2.5L

13.

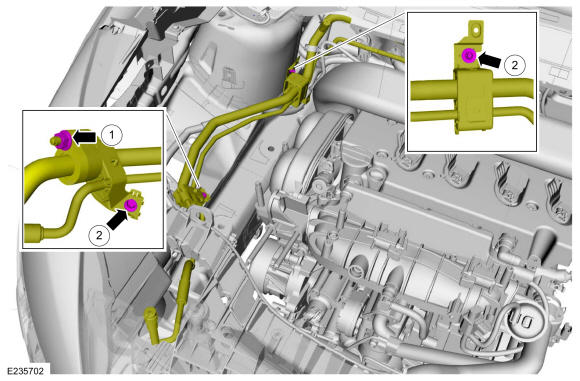

NOTE: Make sure that all openings are sealed.

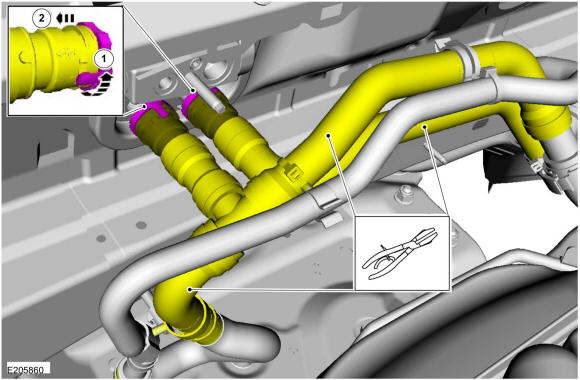

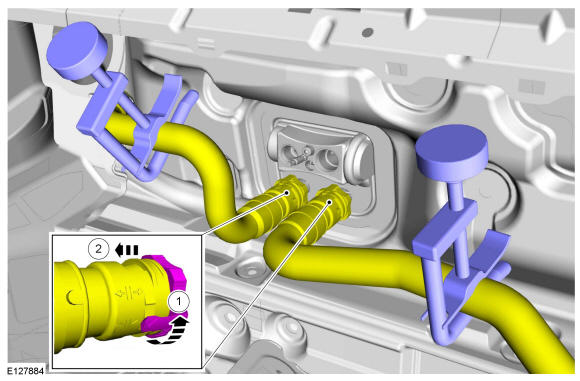

Pinch off and disconnect the heater hoses.

Courtesy of FORD MOTOR COMPANY

1.6L

14.

NOTE: Make sure that all openings are sealed.

Pinch off and disconnect the heater hoses.

Courtesy of FORD MOTOR COMPANY

All vehicles

15.

Remove both front doors. Refer to: Front Door

16.

Remove the driver side front seat. Refer to: FRONT SEAT

17.

Remove the floor console. Refer to: Floor Console - Vehicles With: Single Passenger Seat

18.

Remove the selector lever boot.
- Disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

19.

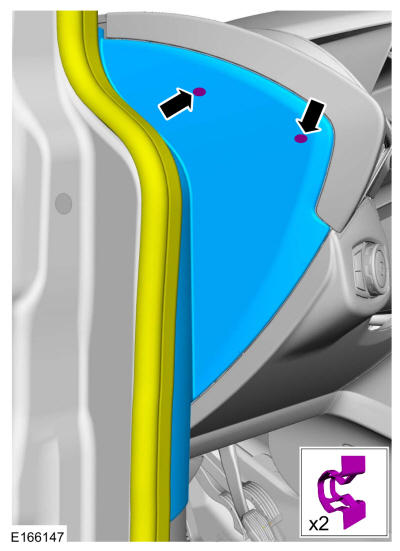

Remove the screws and push pins, release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

20.

Position aside the weather strip and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

21.

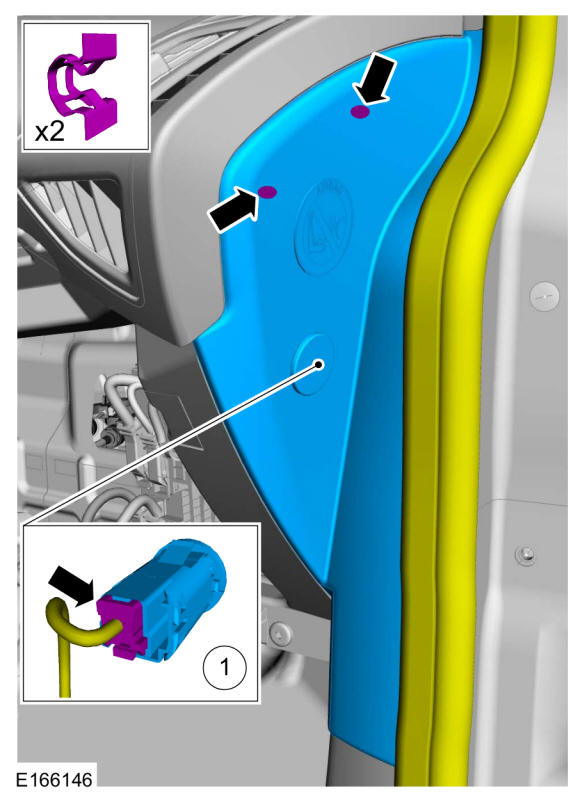

Remove the screws and push pins, release the clips and remove the trim panel.

Courtesy of FORD MOTOR COMPANY

22.

Release the harness push pin and position the harness aside.

Courtesy of FORD MOTOR COMPANY

23.

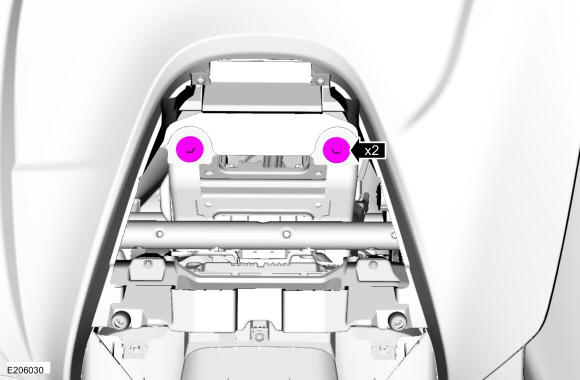

Remove the push pins and bolts.
Torque

: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

24.

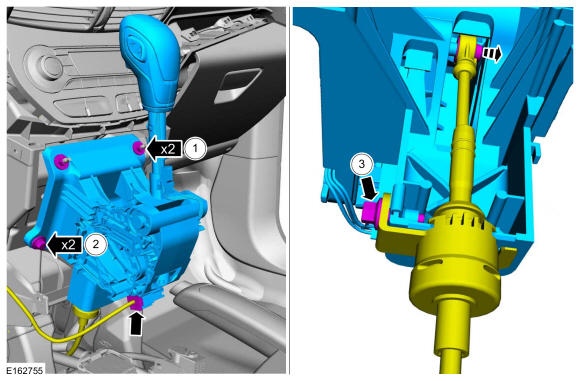

- 1.

  Remove the selector lever nuts.
  Torque

  : 89 lb.in (10 Nm)
- 2.

  Remove the selector lever bolts.
  Torque

  : 80 lb.in (9 Nm)
- 3.

  Remove the selector lever cable retainer bolt.
  Torque

  : 62 lb.in (7 Nm)
- 4.

  Disconnect the electrical connector and remove the selector lever assembly.

Courtesy of FORD MOTOR COMPANY

25.
- 1.

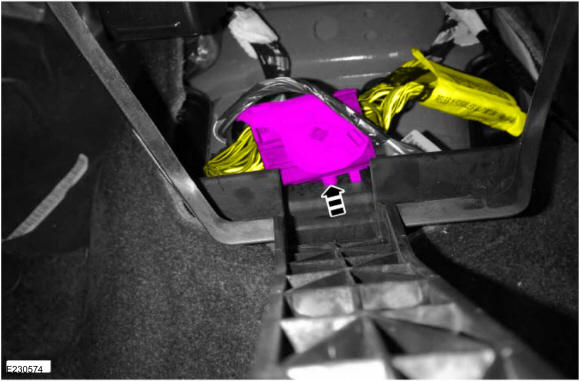

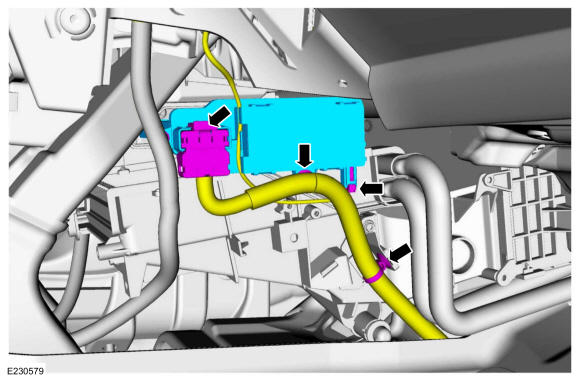

  Detach 1 wire harness and 3 electrical connector pin type retainers.
- 2.

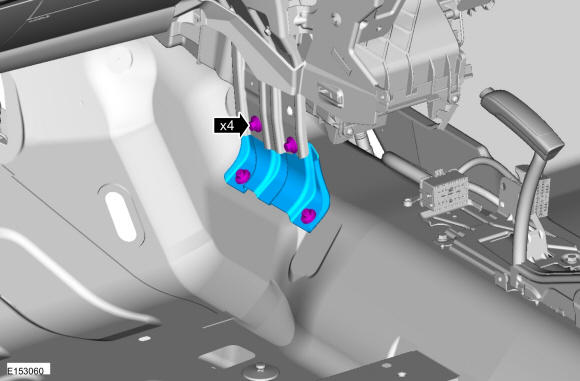

  Remove the console bracket bolts.
- 3.

  NOTE: Follow the unique instructions or graphic for this step in installation.

  NOTE: The RCM shield is held to the RCM with adhesive tape.
Remove the RCM shield and bracket.

Courtesy of FORD MOTOR COMPANY

26.

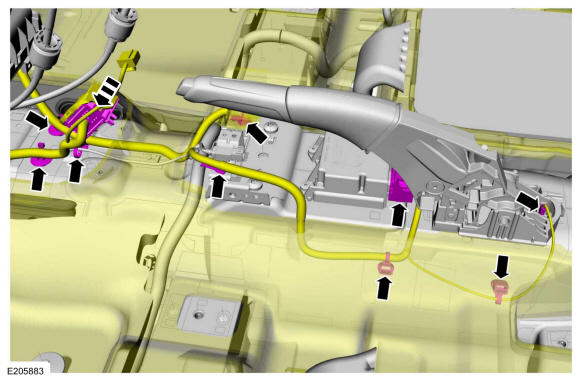

- Position the carpet aside.
- Disconnect the electrical connectors.
- Release the harness push pin retainers and position the harness aside.

Courtesy of FORD MOTOR COMPANY

27.

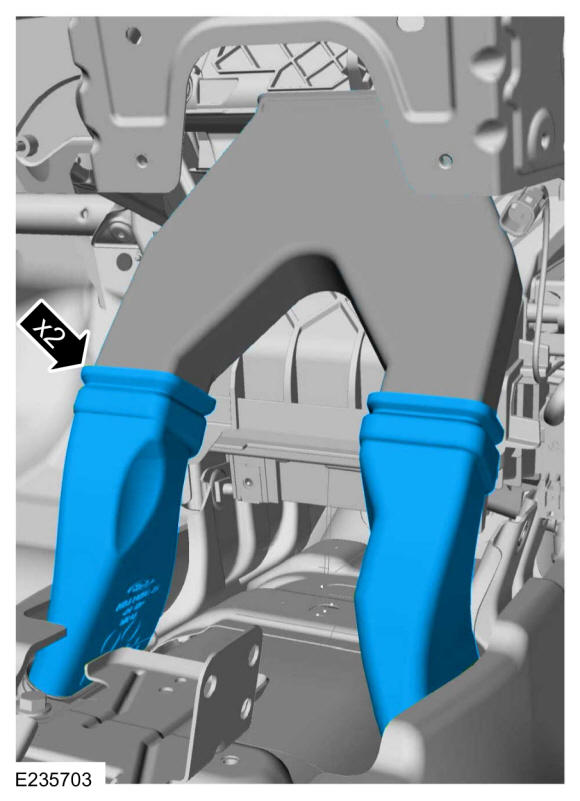

Remove the lower HVAC ducts.

Courtesy of FORD MOTOR COMPANY

28.

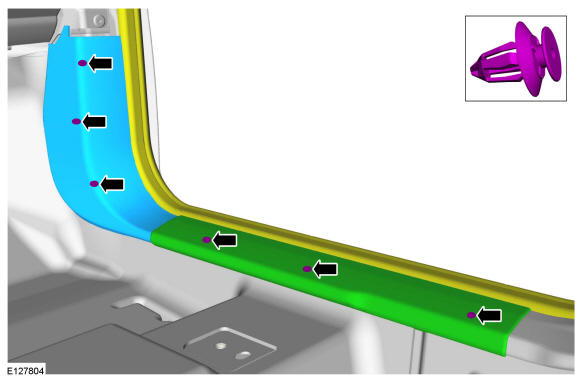

Remove the RH lower cowl trim panel.
- Position aside the weather strip
- Remove the RH scuff plate.

Courtesy of FORD MOTOR COMPANY

29.

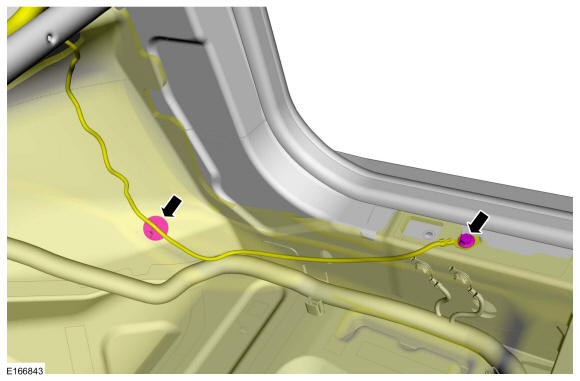

Position the carpet back.
- Remove the ground strap bolt.
- Release the push pin retainer

Courtesy of FORD MOTOR COMPANY

30.

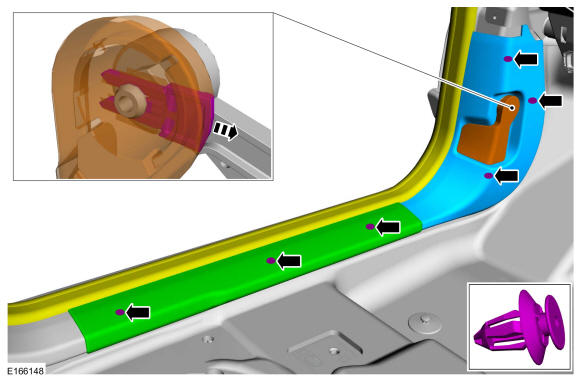

Remove the hood release hand and the LH lower cowl trim panel.
- Position aside the weather strip.
- Remove the LH scuff plate.

Courtesy of FORD MOTOR COMPANY

31.

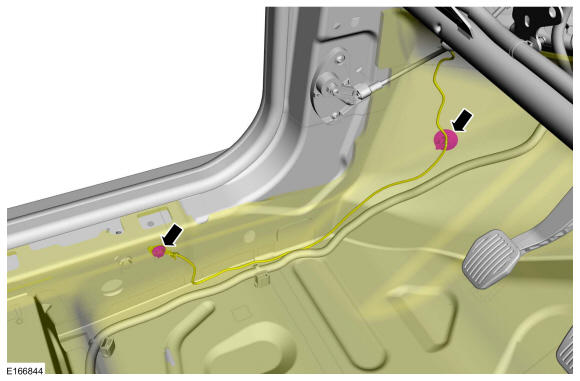

Position the carpet back.
- Remove the ground strap bolt.
- Release the push pin retainer.

Courtesy of FORD MOTOR COMPANY

32.

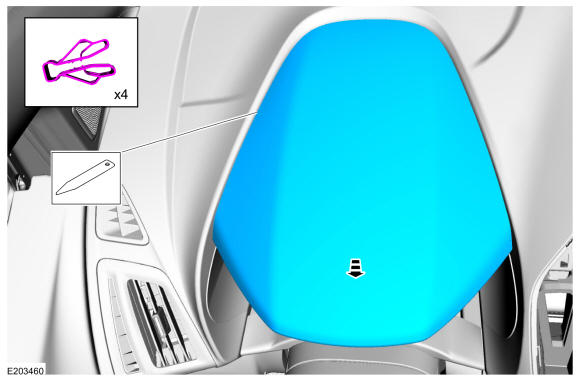

Remove the IPC upper trim panel.

Courtesy of FORD MOTOR COMPANY

33.

Remove the bolts.
Torque

: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

34.

On both sides. Refer to: A-PILLAR TRIM PANEL

35.

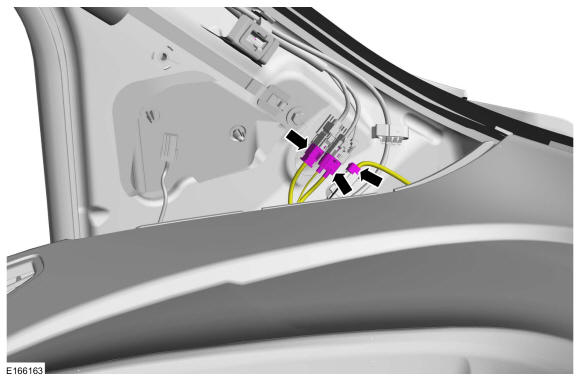

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

36.

Remove the retainers and the insulation panel.

Courtesy of FORD MOTOR COMPANY

37.

Remove the glove compartment hinge pins and the glove compartment.

Courtesy of FORD MOTOR COMPANY

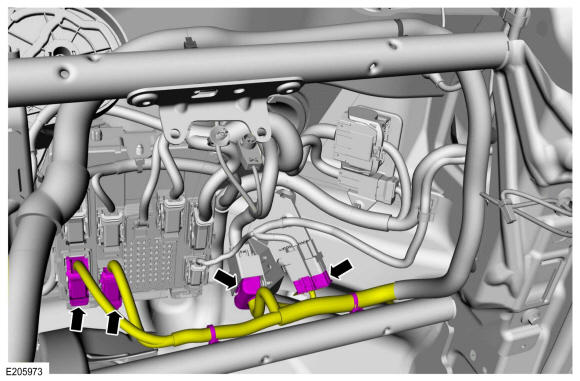

38.

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

39.

Position aside the weather strip and remove the trim panel.
- If equipped, disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

40.

WARNING: Make sure that a new bolt is installed.

NOTE: Make sure that the steering wheel is not rotated while the clockspring is locked in position.

NOTE: Make sure that the road wheels are in the straight ahead position.

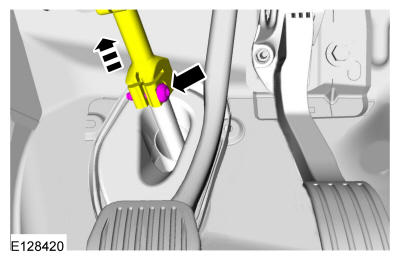

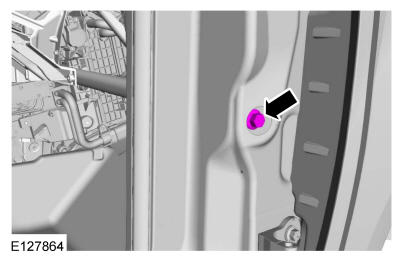

Remove the bolt.

Torque

: 21 lb.ft (28 Nm)

Courtesy of FORD MOTOR COMPANY

41.

Release the push pin retainers and disconnect the electrical connector.

Courtesy of FORD MOTOR COMPANY

42.

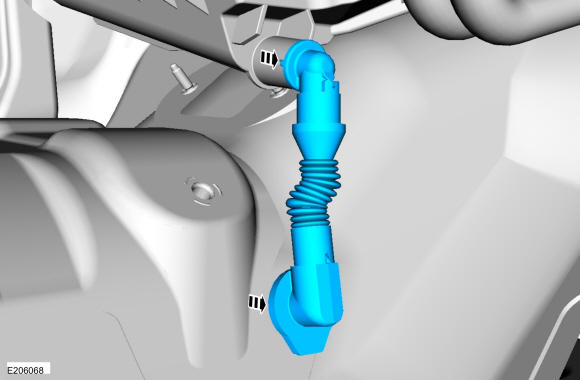

Remove the HVAC drain tube.

Courtesy of FORD MOTOR COMPANY

43.

Remove the bolts and the bracket.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

44.

NOTE: LH side shown below, RH side similar.

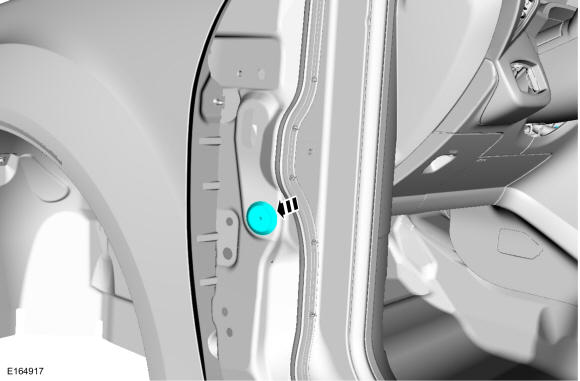

Remove the in-vehicle cross beam to cowl bolt cover.

Courtesy of FORD MOTOR COMPANY

45.

NOTE: RH side shown below, LH side similar.

Remove the in-vehicle cross beam to cowl bolts.

Torque

: 22 lb.ft (30 Nm)

Courtesy of FORD MOTOR COMPANY

46.

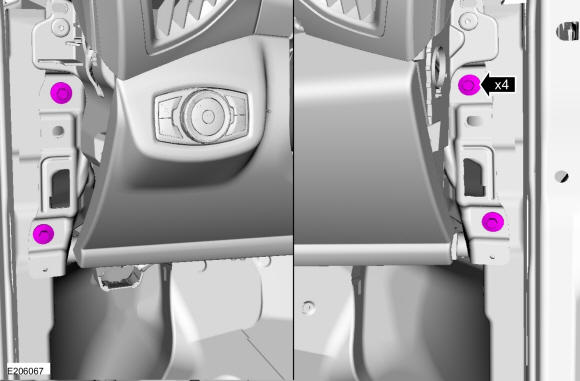

Remove the instrument panel bolts.
Torque

: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

47.

NOTE: To avoid damaging the instrument panel, an assistant is required when carrying out this step.

NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.

NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.

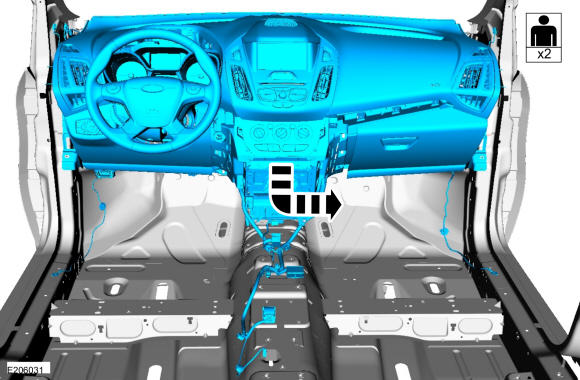

Rotate the instrument panel face down and remove through the RH front door opening.
