Removal And Installation: Horn: Removal

NOTE: Removal steps in this procedure may contain installation details.

1. 1.

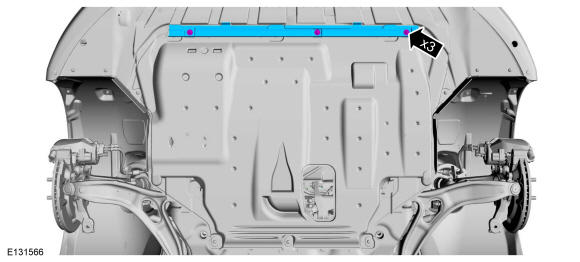

   If equipped. Remove the screws and the deflector shield.

Courtesy of FORD MOTOR COMPANY

1. 2.

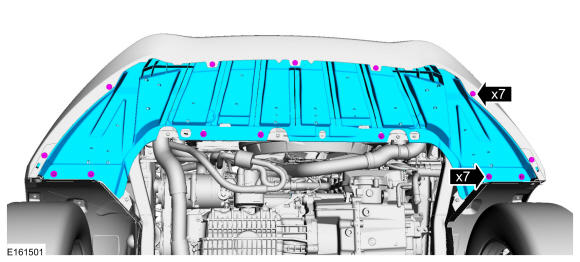

   If equipped. Remove the screws and the engine undershield.

Courtesy of FORD MOTOR COMPANY

1. 3.

   Remove the screws, the pin-type retainers and the radiator deflector.

Courtesy of FORD MOTOR COMPANY

1. 4.



   1. 1.

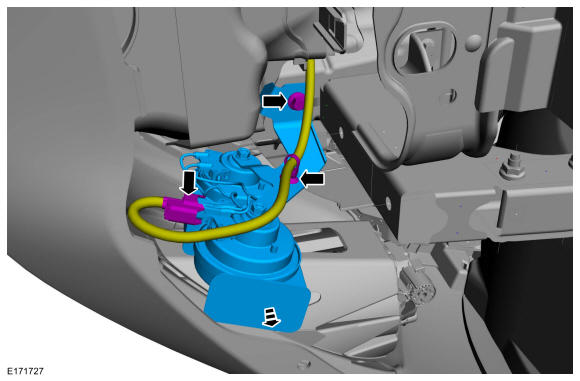

      Disconnect the electrical connector.

   1. 2.

      Remove the pin-type retainer.

   1. 3.

      Remove the bolt and the horn.

      Torque

      : 16 lb.ft (22 Nm)

Courtesy of FORD MOTOR COMPANY
