Component Testing: Relays

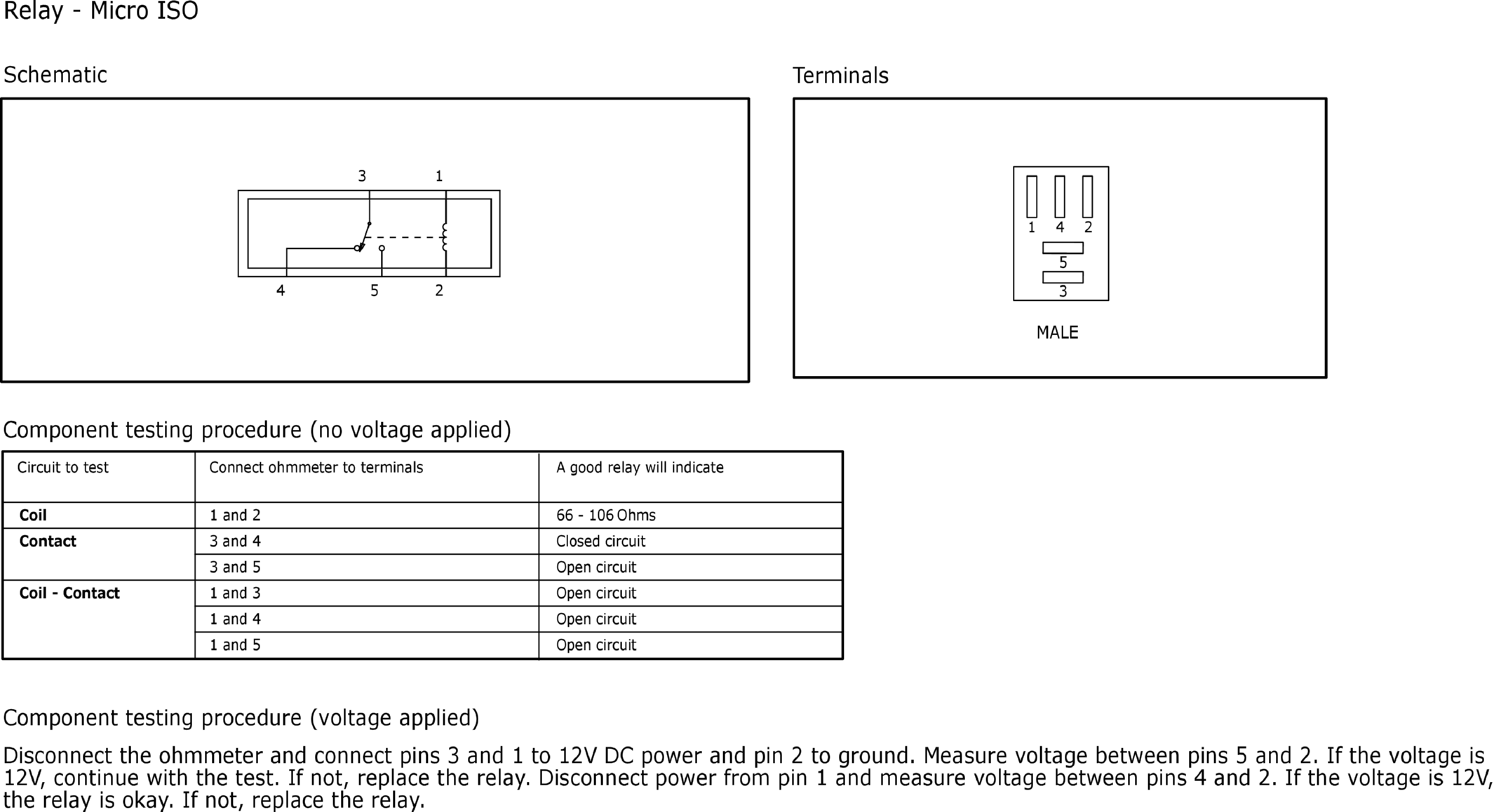

Fig 1: Relay - Micro ISO
GFDW17261Courtesy of FORD MOTOR COMPANY

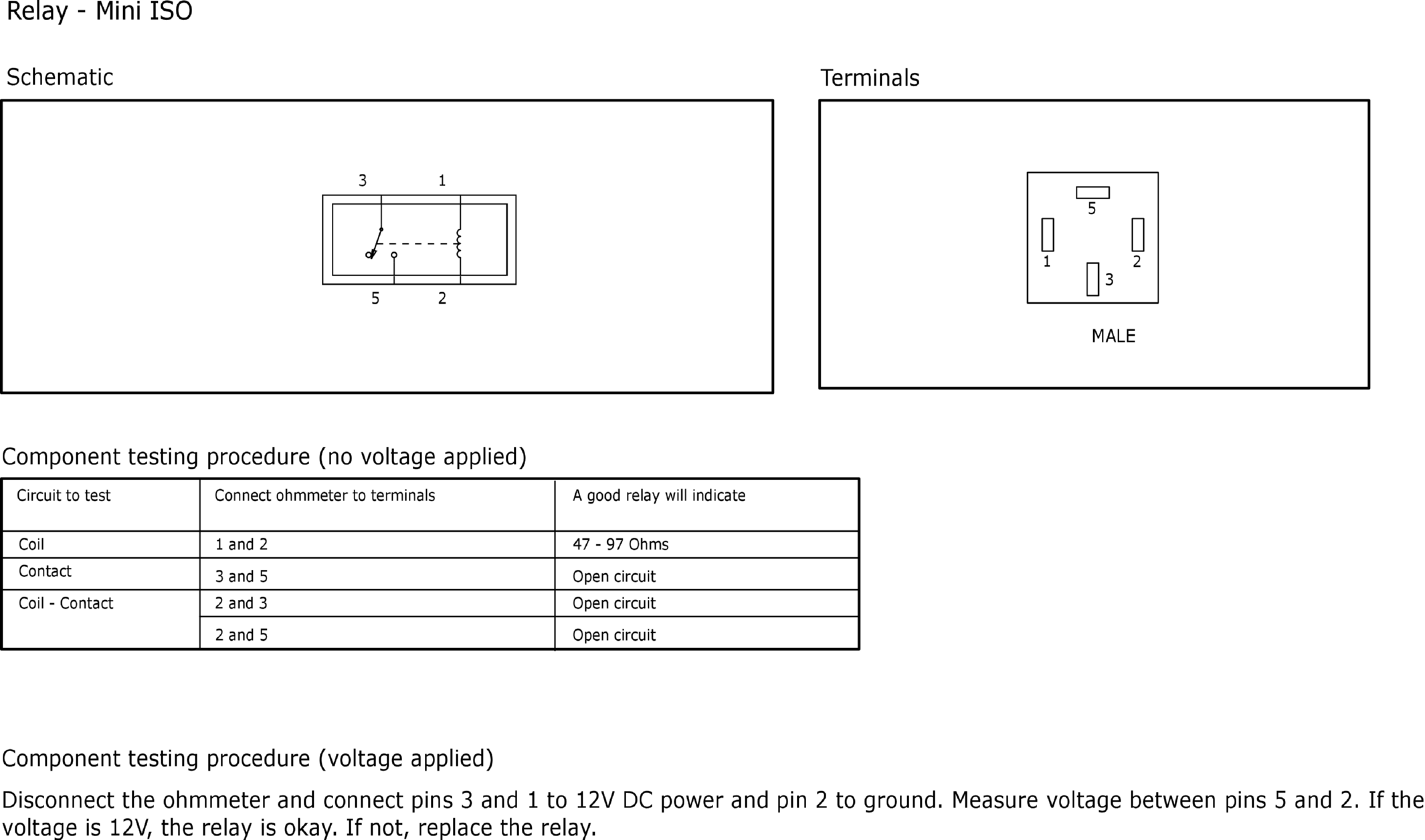

Fig 2: Relay - Mini ISO
GFDW17262Courtesy of FORD MOTOR COMPANY

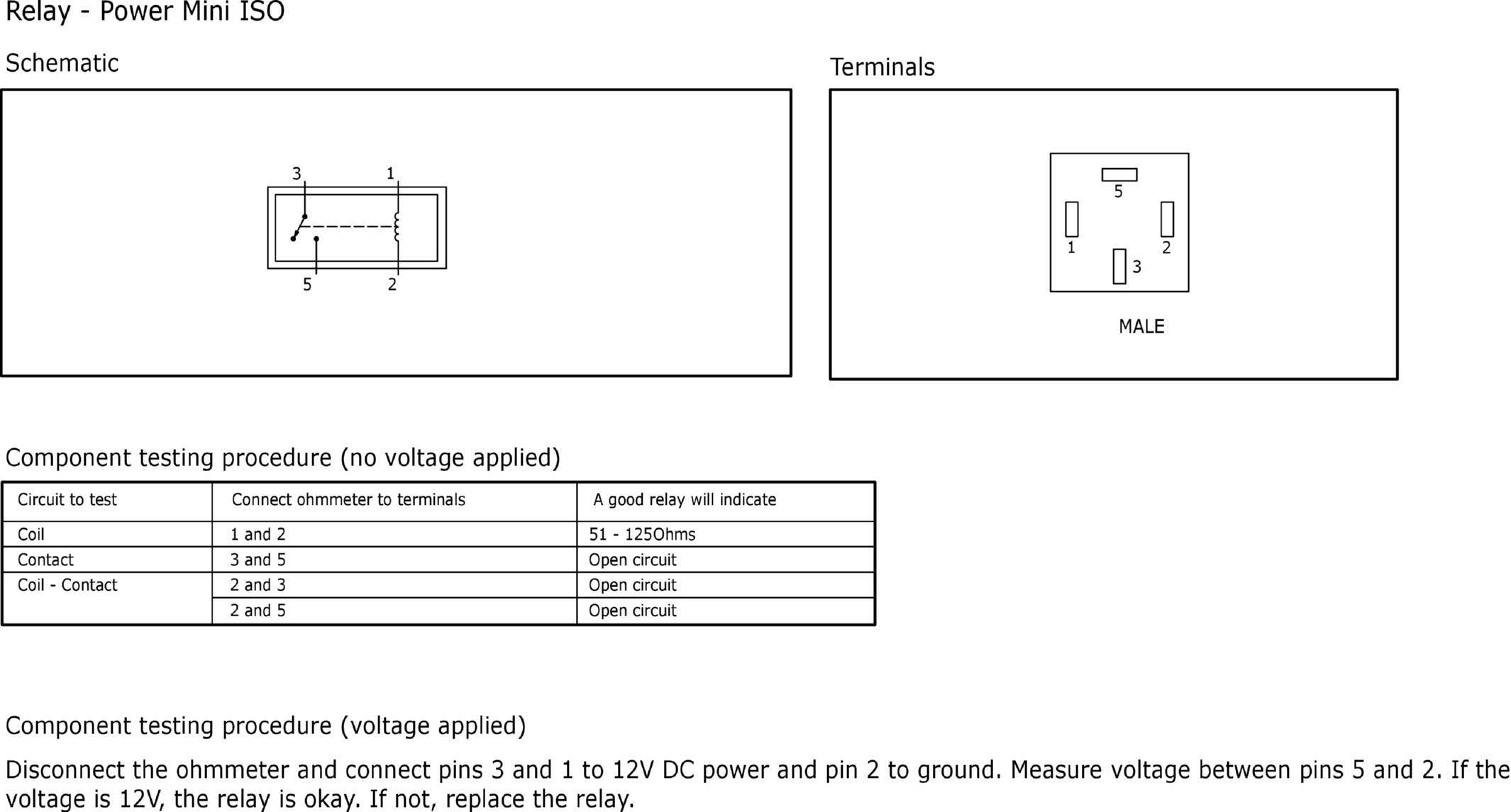

Fig 3: Relay - Power Mini ISO
GFDW17263Courtesy of FORD MOTOR COMPANY
