Climate Control Assembly: Removal

1.

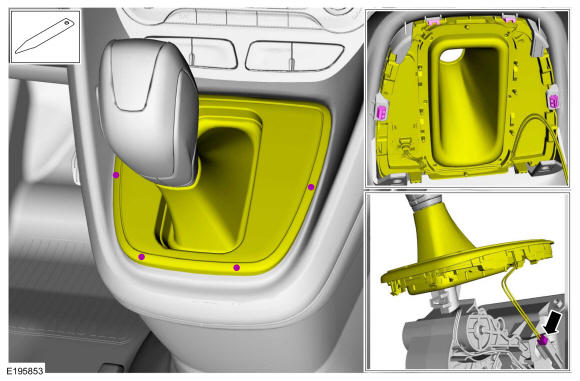

Release the clips and position the selector lever bezel aside.
- Disconnect the electrical connector.
  Use the General Equipment: Interior Trim Remover

GFD46472

Courtesy of FORD MOTOR COMPANY

2.

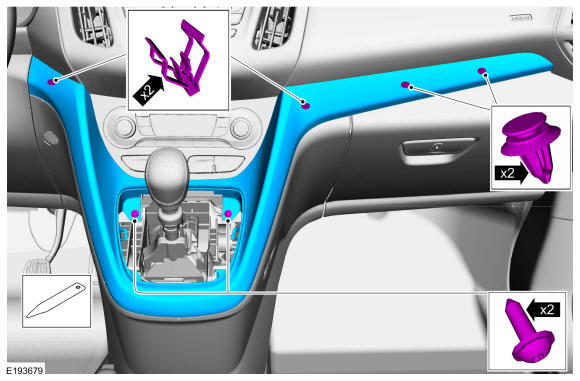

Remove the retainers, release the clips and remove the floor console upper trim panel.
Use the General Equipment: Interior Trim Remover

GFD46473

Courtesy of FORD MOTOR COMPANY

3.

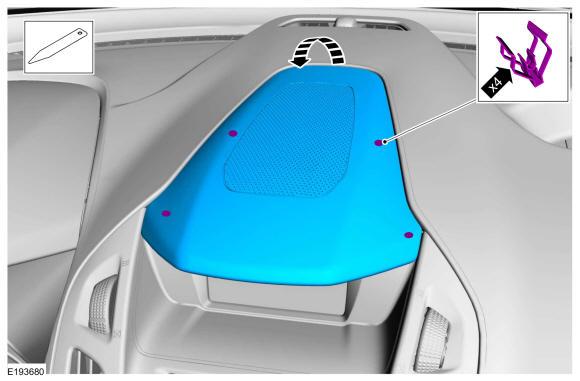

Release the clips and remove the instrument panel center upper trim panel.
Use the General Equipment: Interior Trim Remover

GFD46474

Courtesy of FORD MOTOR COMPANY

4.

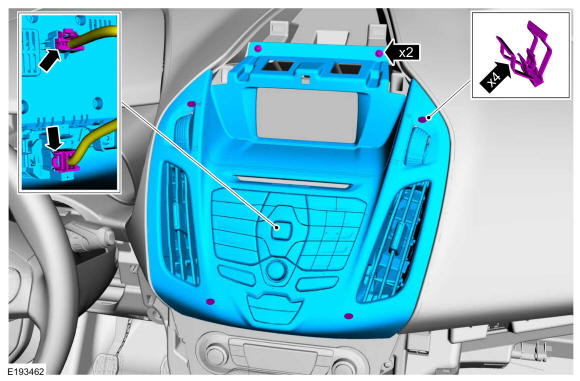

Remove the retainers, release the clips and remove the FCIM.
- Disconnect the electrical connectors.

GFD46475

Courtesy of FORD MOTOR COMPANY

5.

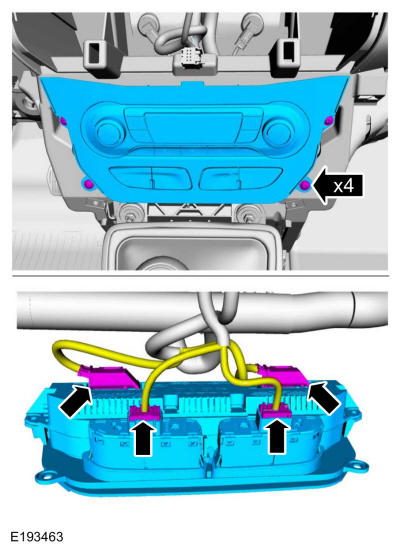

Remove the retainers and the climate control assembly.
- Disconnect the electrical connectors.

GFD46476

Courtesy of FORD MOTOR COMPANY

6.

NOTE: This step is only necessary when installing a new component.

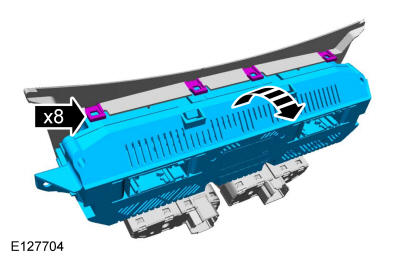

Release the retaining clips and remove the HVAC control module.

GFD46477

Courtesy of FORD MOTOR COMPANY
