OEM Electrical Wiring Diagram Introduction: Introduction

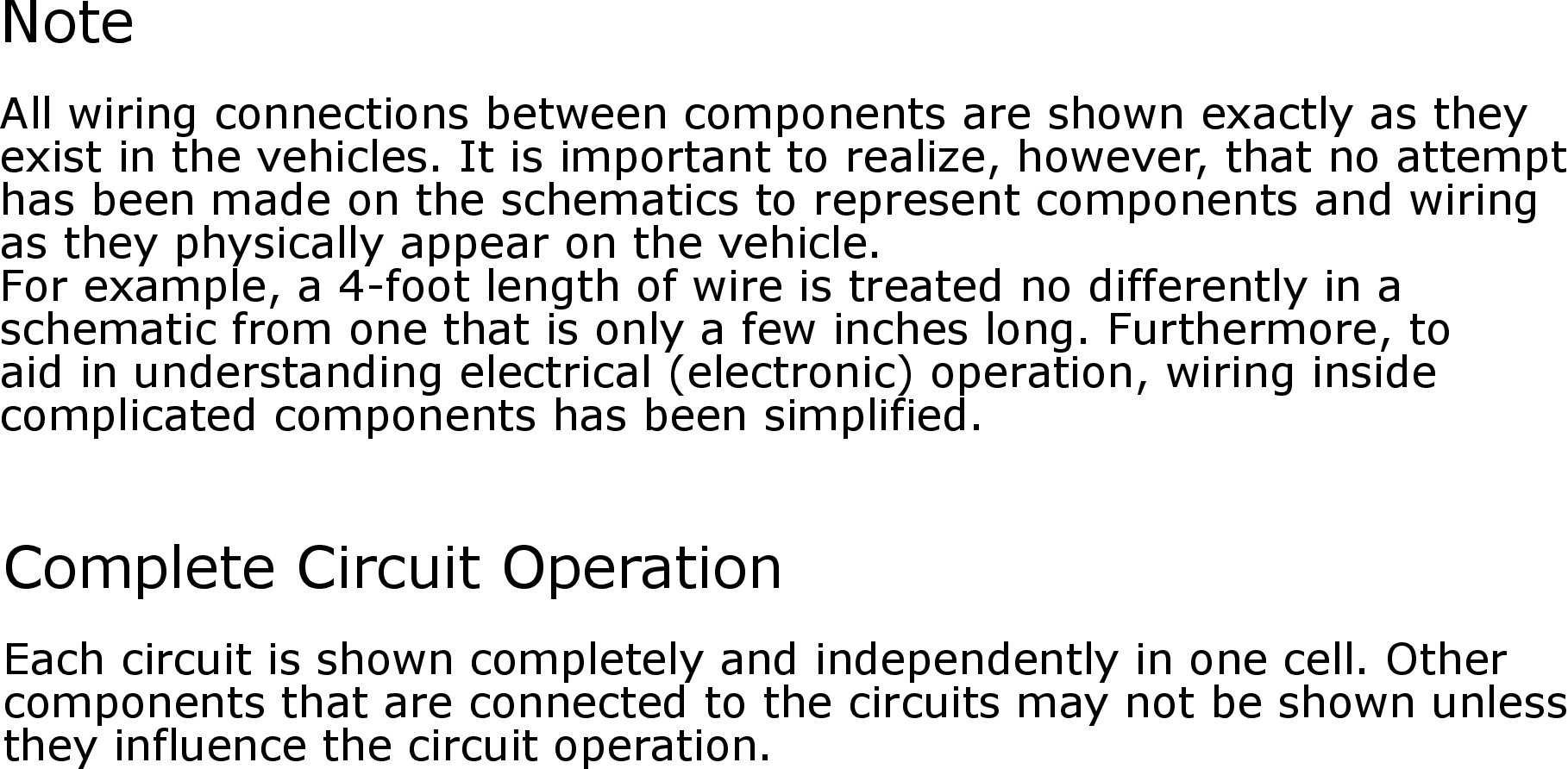

GFDW16956Courtesy of FORD MOTOR COMPANY

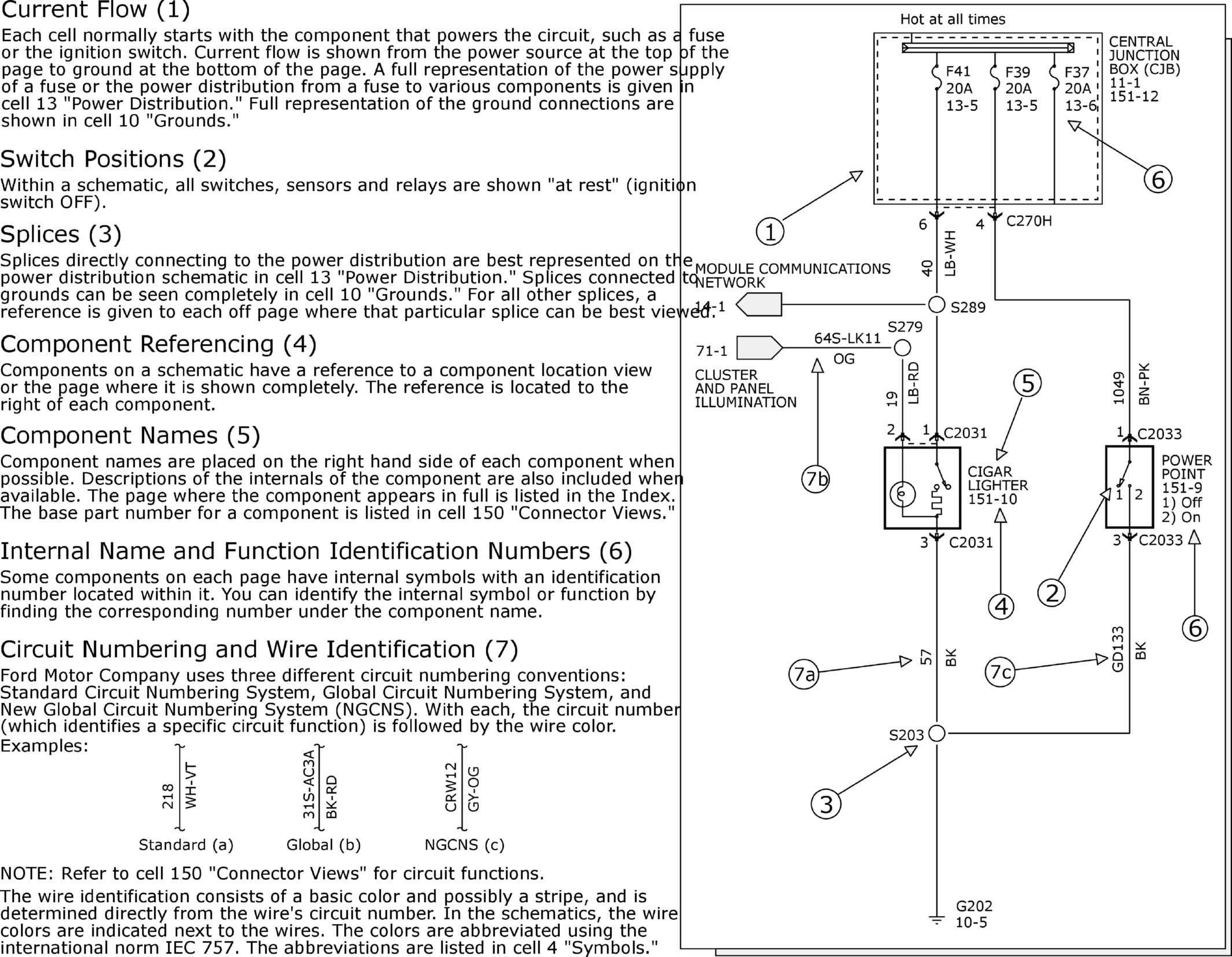

GFDW16957Courtesy of FORD MOTOR COMPANY

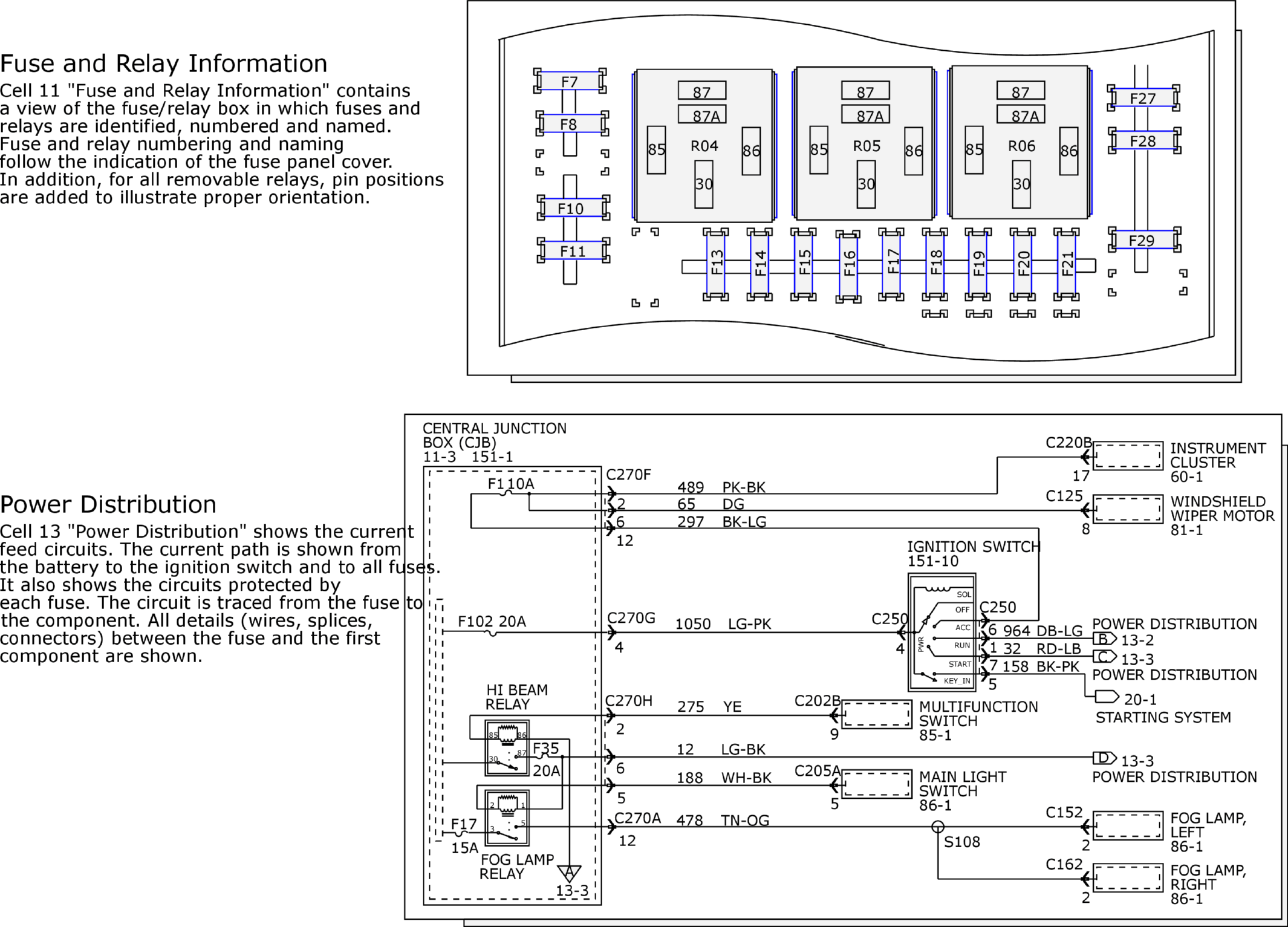

GFDW16958Courtesy of FORD MOTOR COMPANY

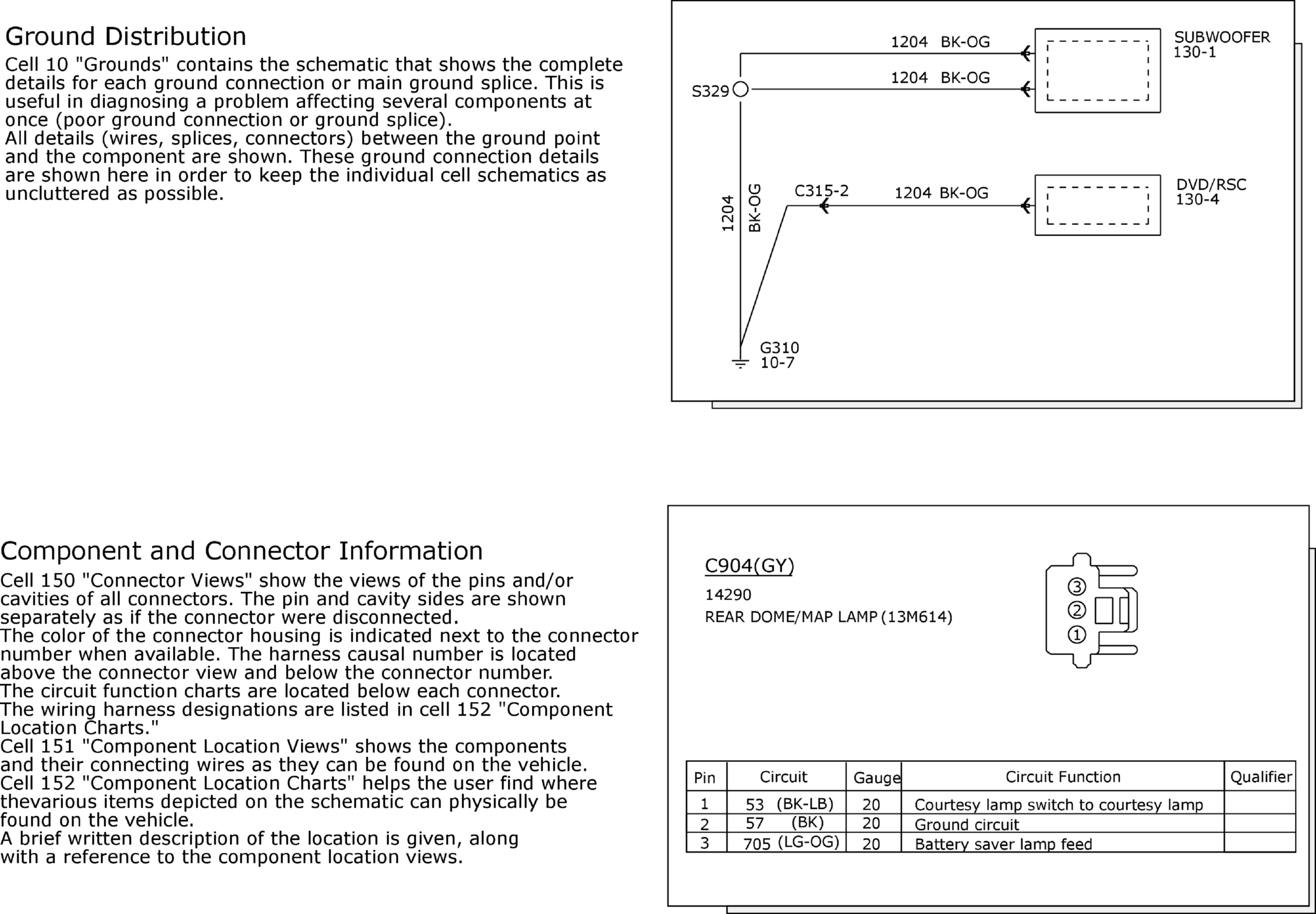

GFDW16959Courtesy of FORD MOTOR COMPANY

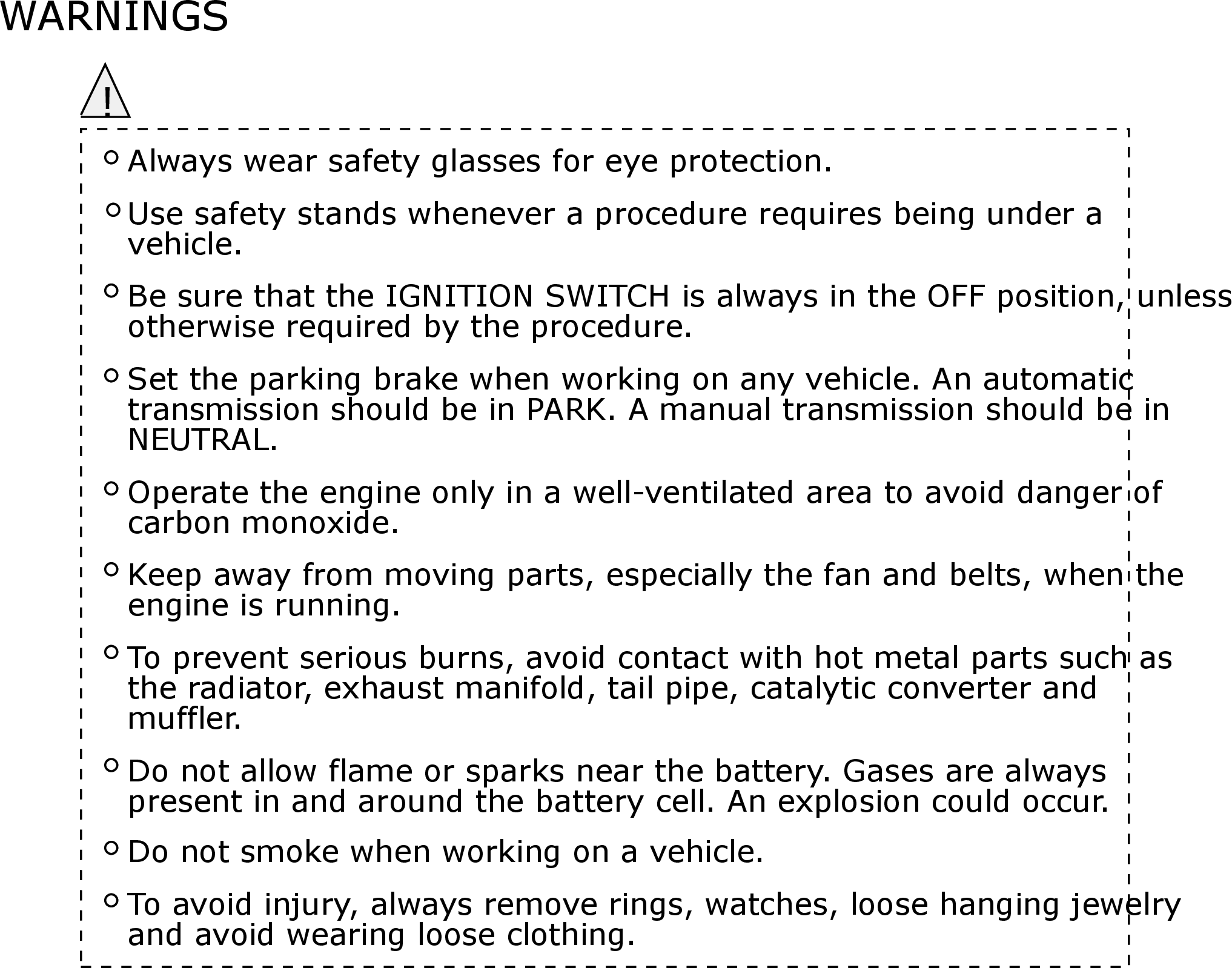

GFDW16960Courtesy of FORD MOTOR COMPANY
