Driver Coor Window Control Switch - Without Door Modules 2 Way

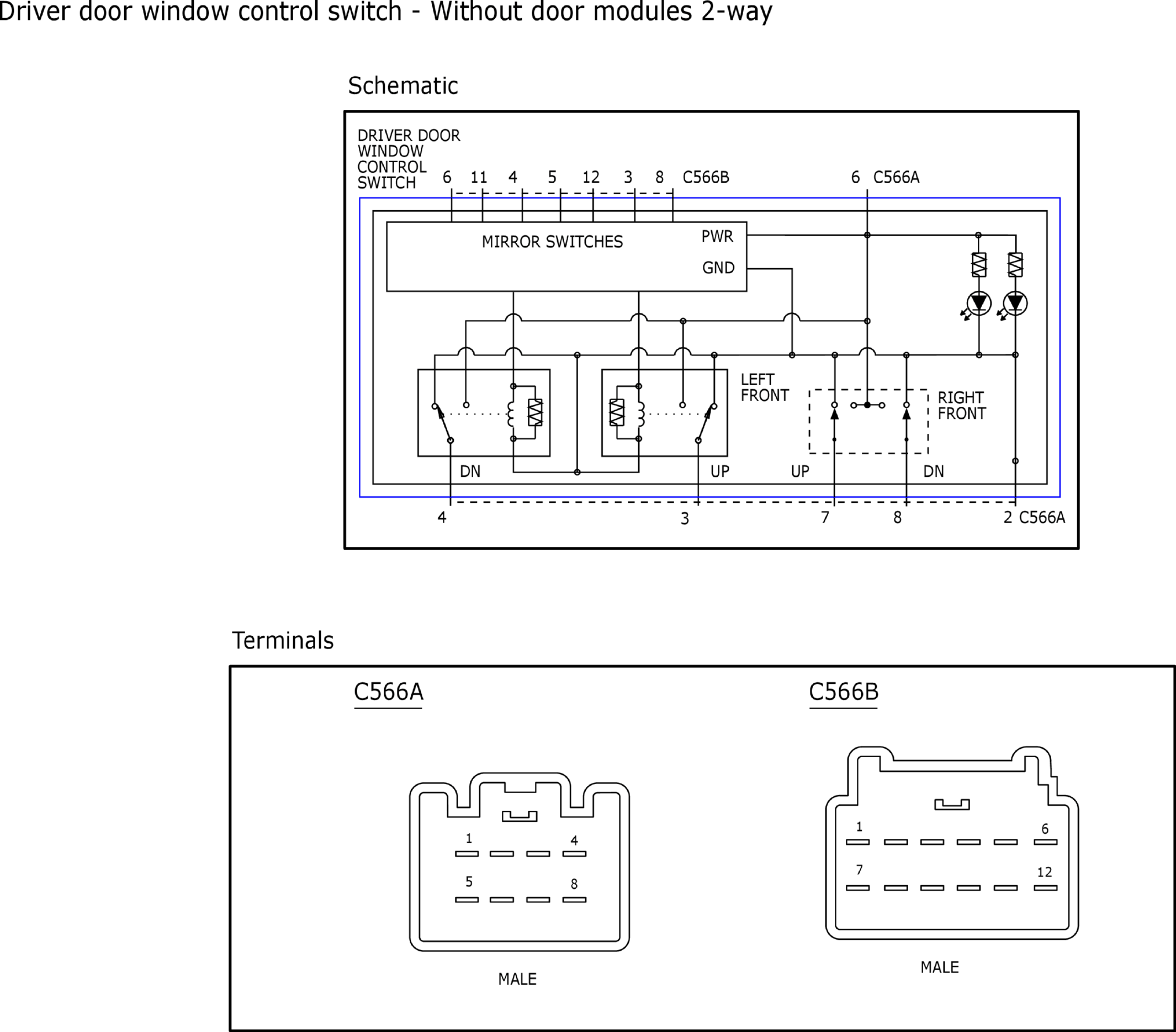

Fig 1: Driver Coor Window Control Switch - Without Door Modules 2 Way (1 Of 2)
GFDW17264Courtesy of FORD MOTOR COMPANY
Fig 2: Driver Coor Window Control Switch - Without Door Modules 2 Way (2 Of 2)
GFDW17265Courtesy of FORD MOTOR COMPANY
