Charging System

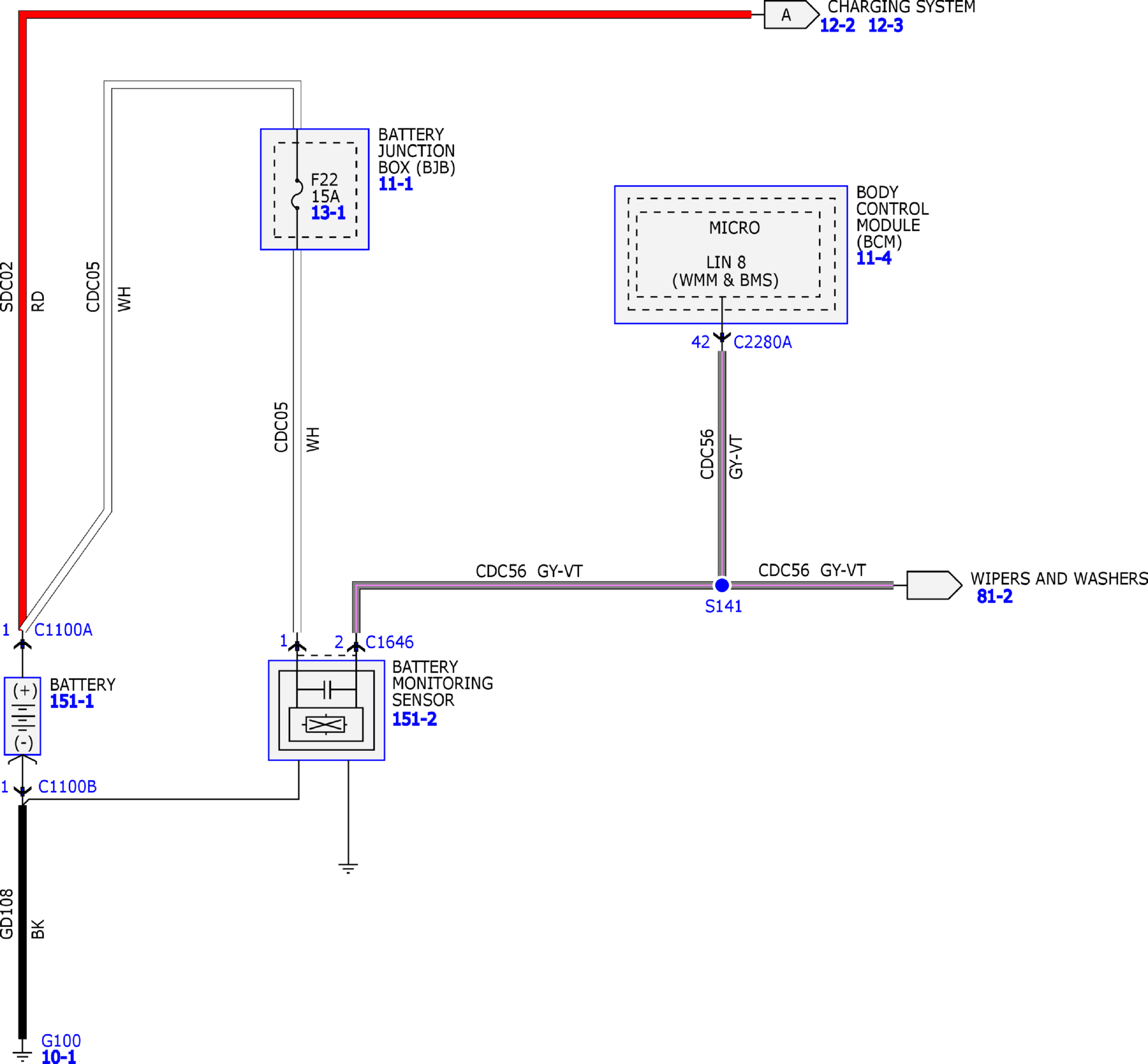

Fig 1: Charging System Wiring Diagrams (1 Of 3)
GFDW17020Courtesy of FORD MOTOR COMPANY

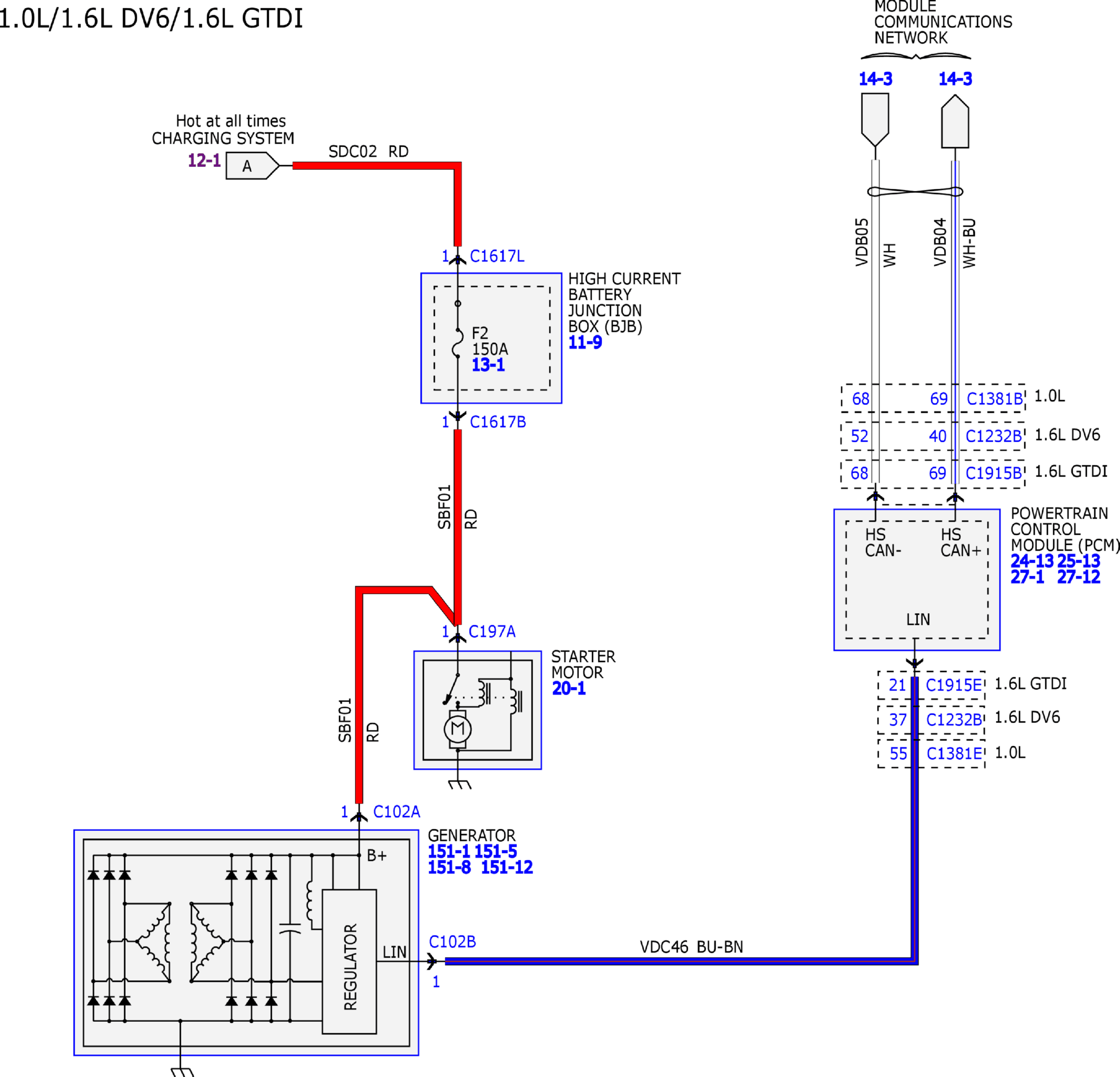

Fig 2: Charging System Wiring Diagrams (2 Of 3)
GFDW17021Courtesy of FORD MOTOR COMPANY

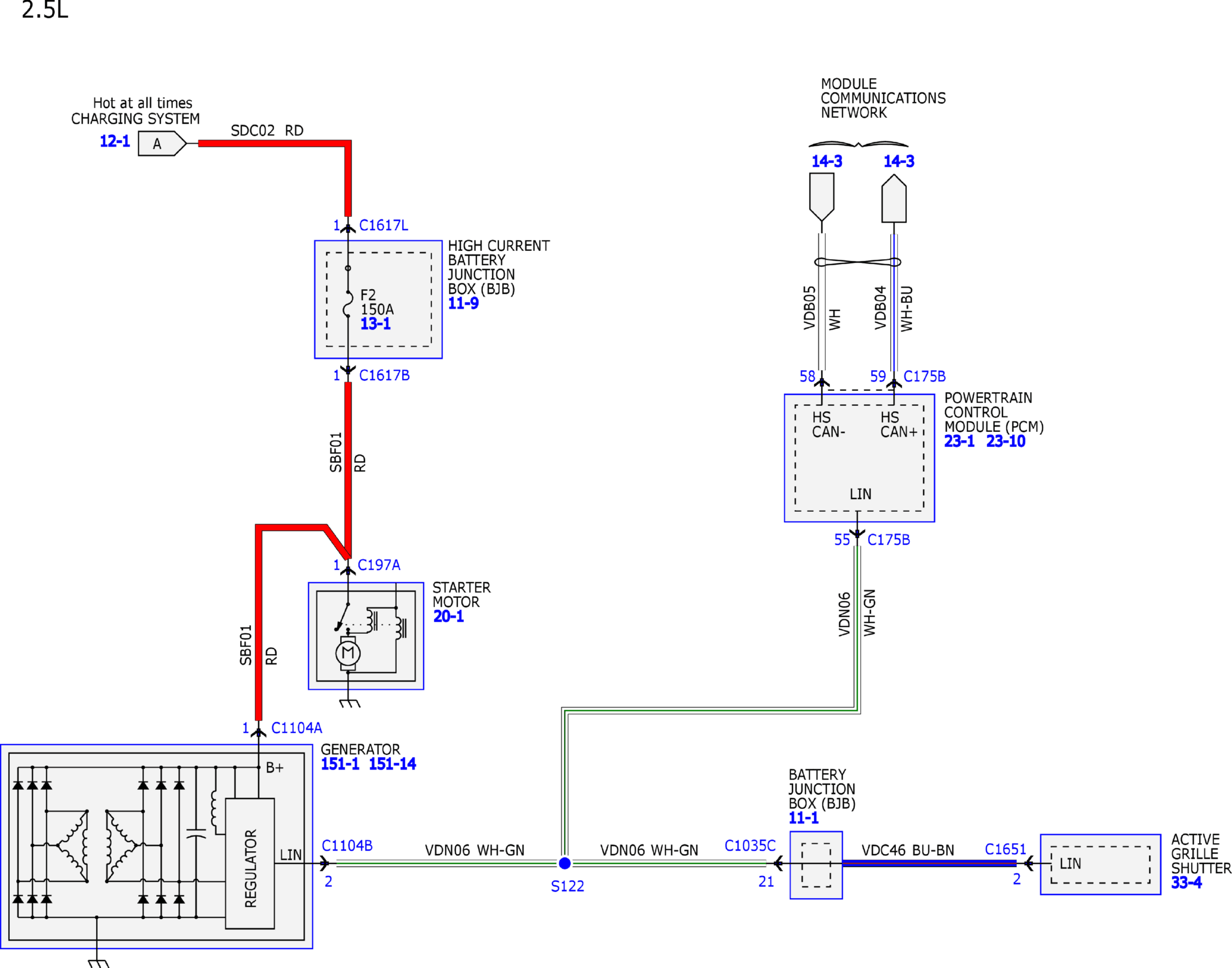

Fig 3: Charging System Wiring Diagrams (3 Of 3)
GFDW17022Courtesy of FORD MOTOR COMPANY
