Heated Window System
Heated Window System

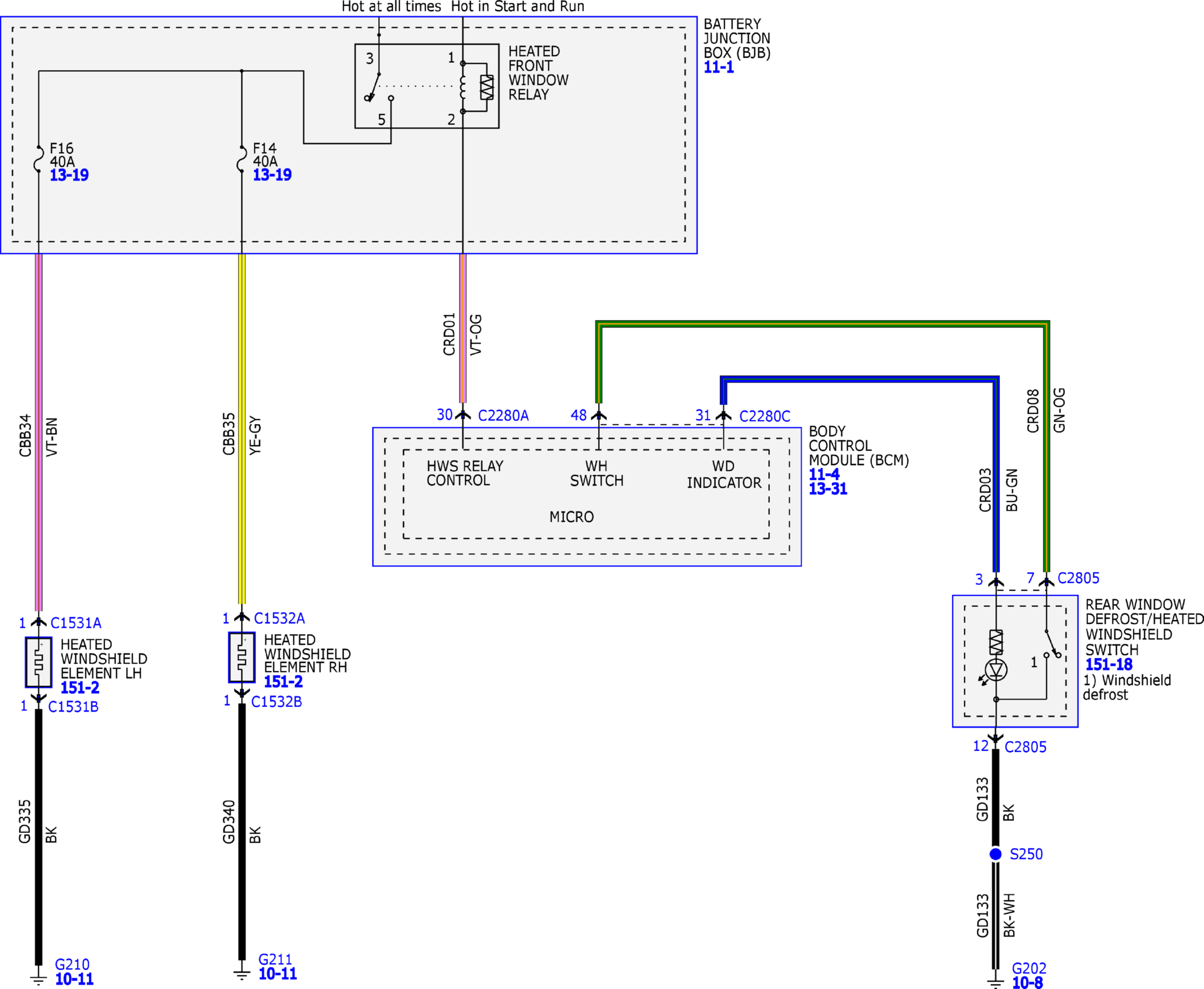

Fig 1: Heated Window System Wiring Diagrams (1 Of 4)
Courtesy of FORD MOTOR COMPANY

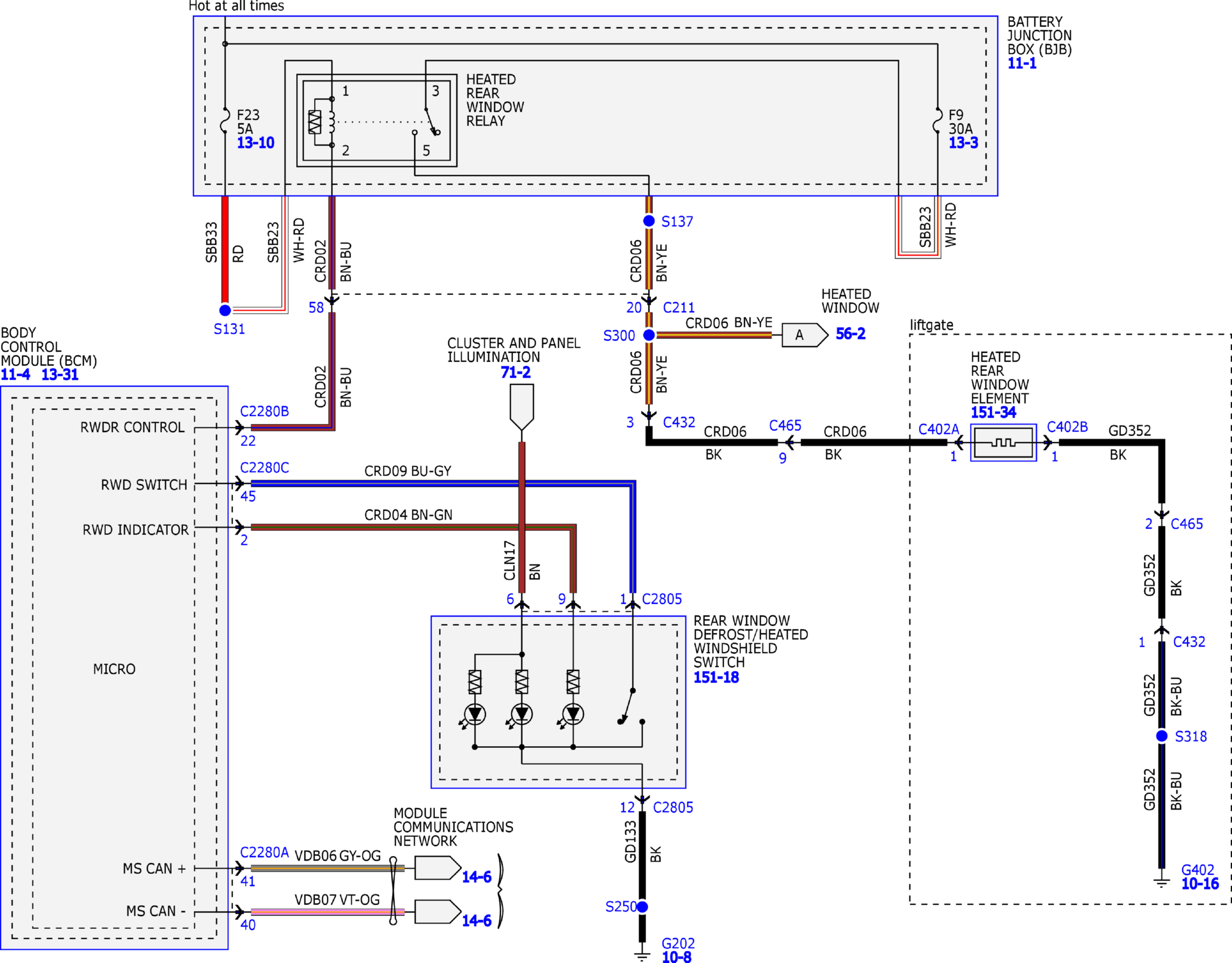

Fig 2: Heated Window System Wiring Diagrams (2 Of 4)
Courtesy of FORD MOTOR COMPANY

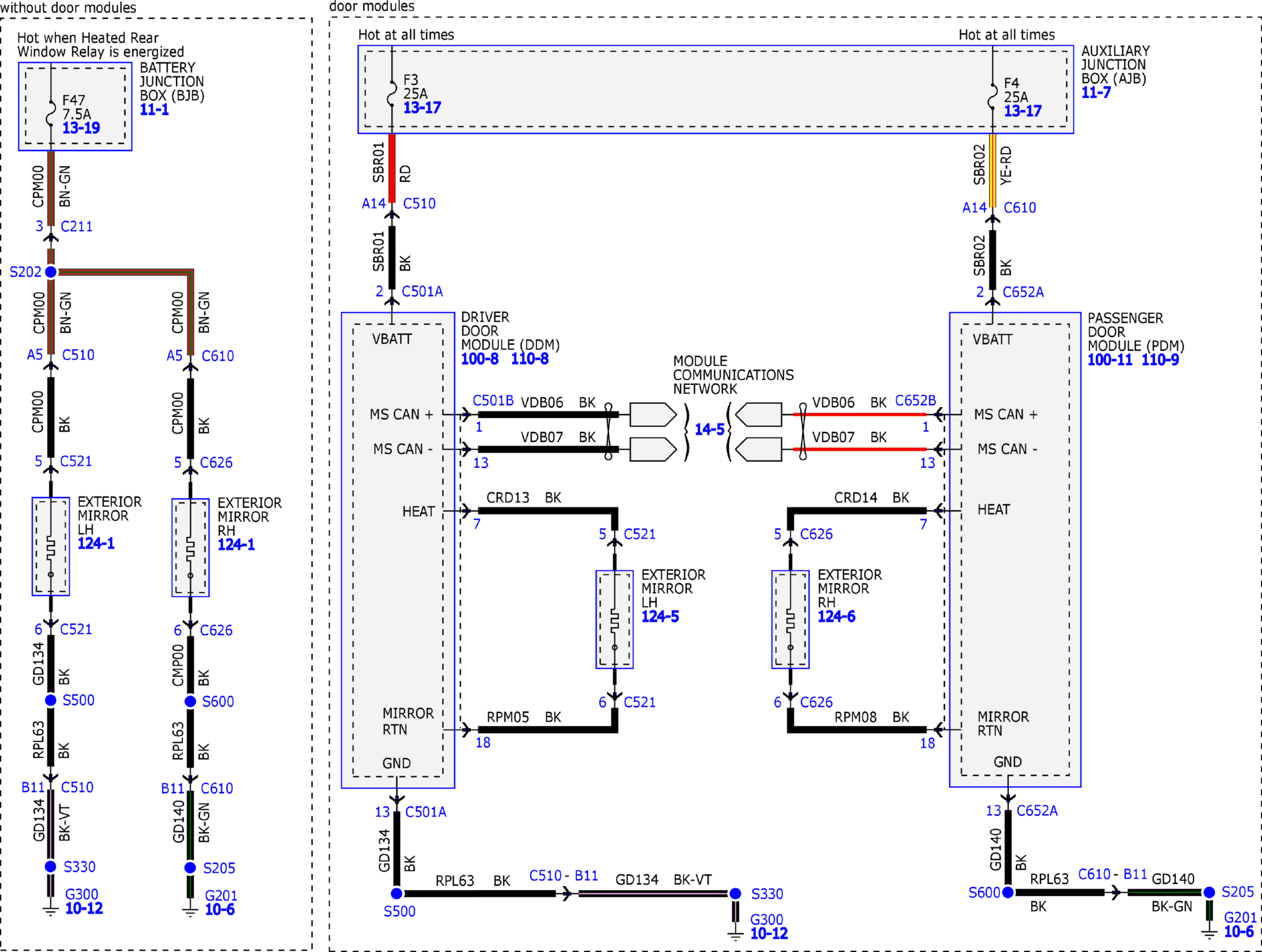

Fig 3: Heated Window System Wiring Diagrams (3 Of 4)
Courtesy of FORD MOTOR COMPANY

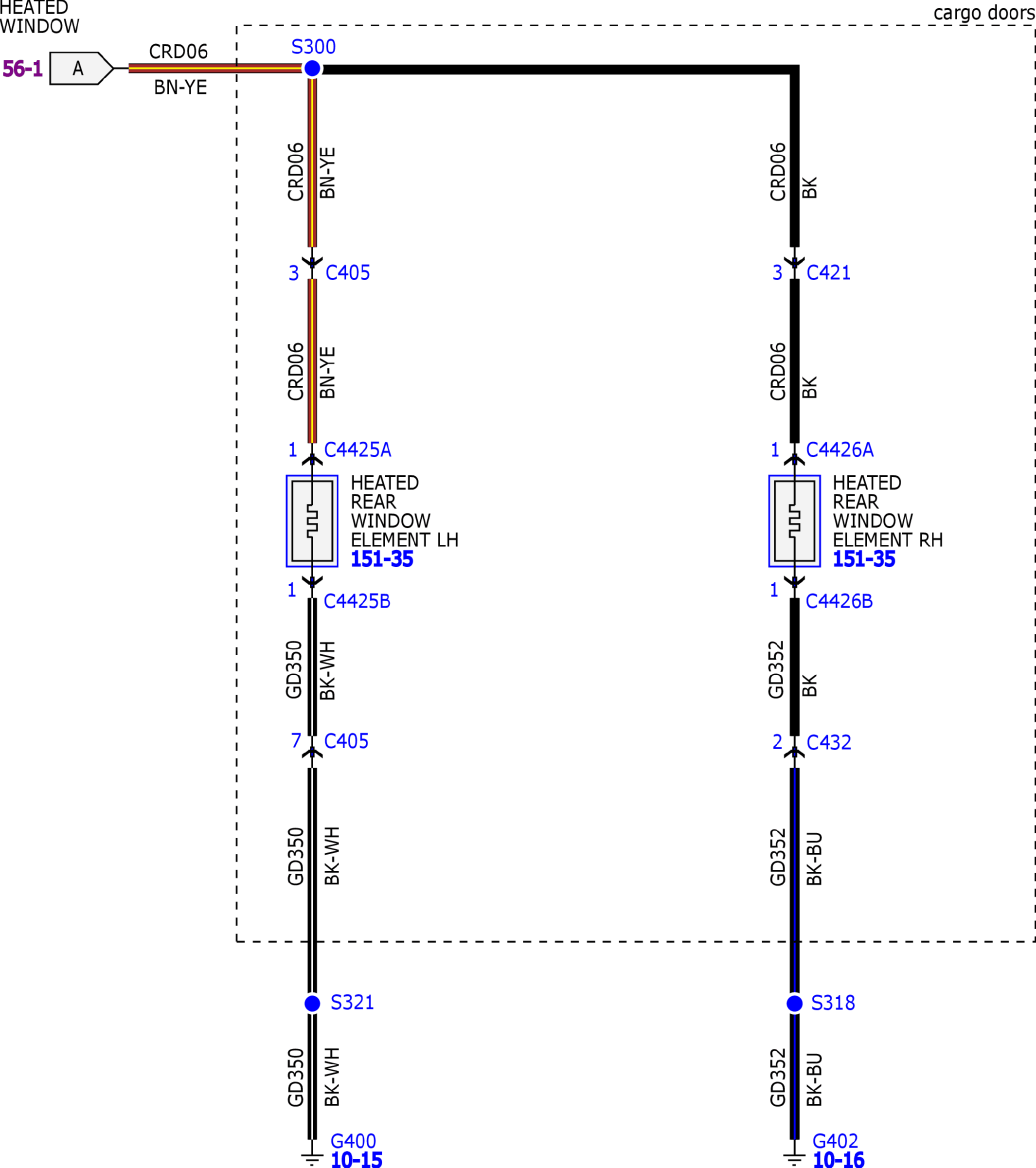

Fig 4: Heated Window System Wiring Diagrams (4 Of 4)
Courtesy of FORD MOTOR COMPANY
