Power Distribution/BCM

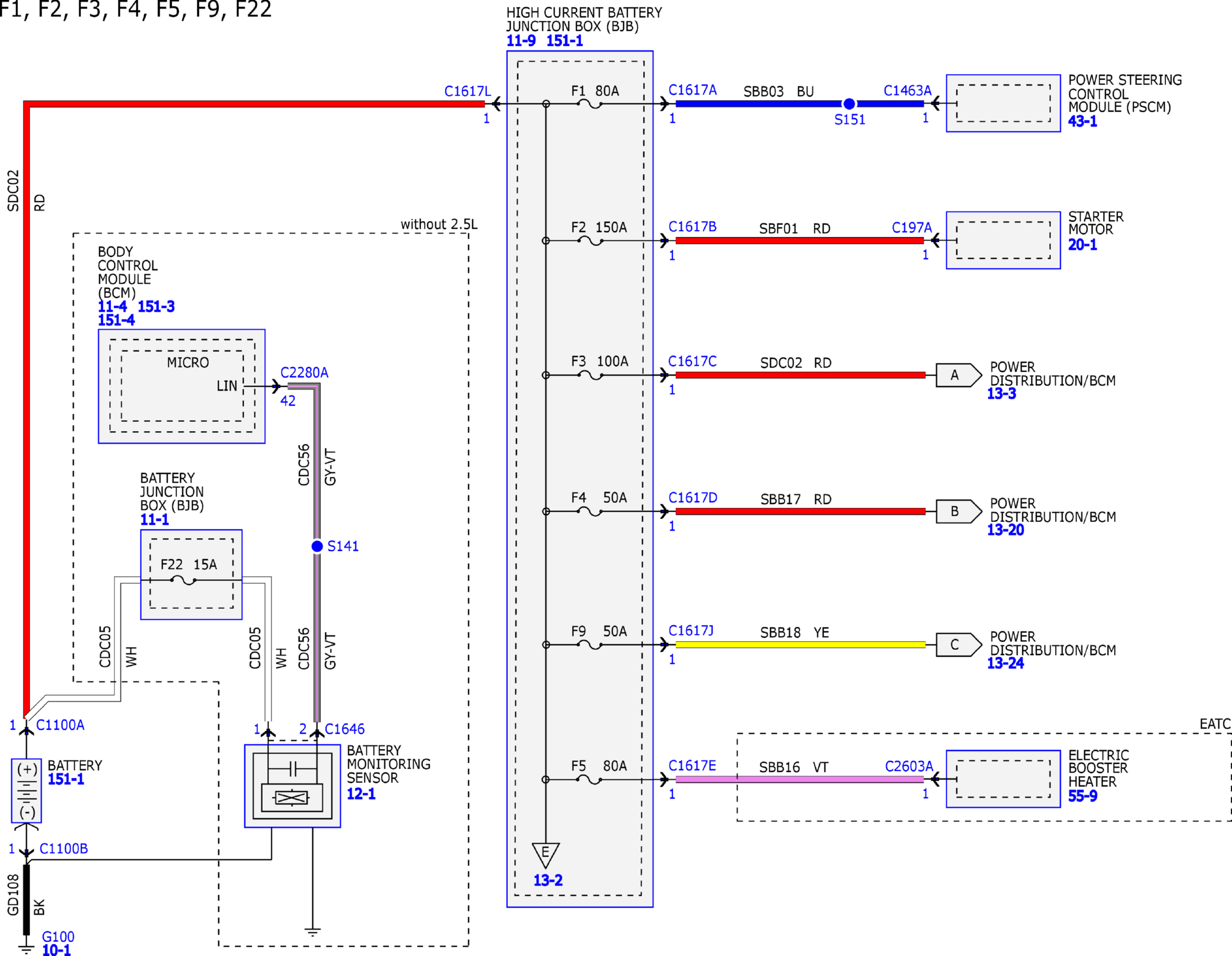

Fig 1: Power Distribution/BCM System Wiring Diagrams (1 Of 34)

GFDW17139

Courtesy of FORD MOTOR COMPANY

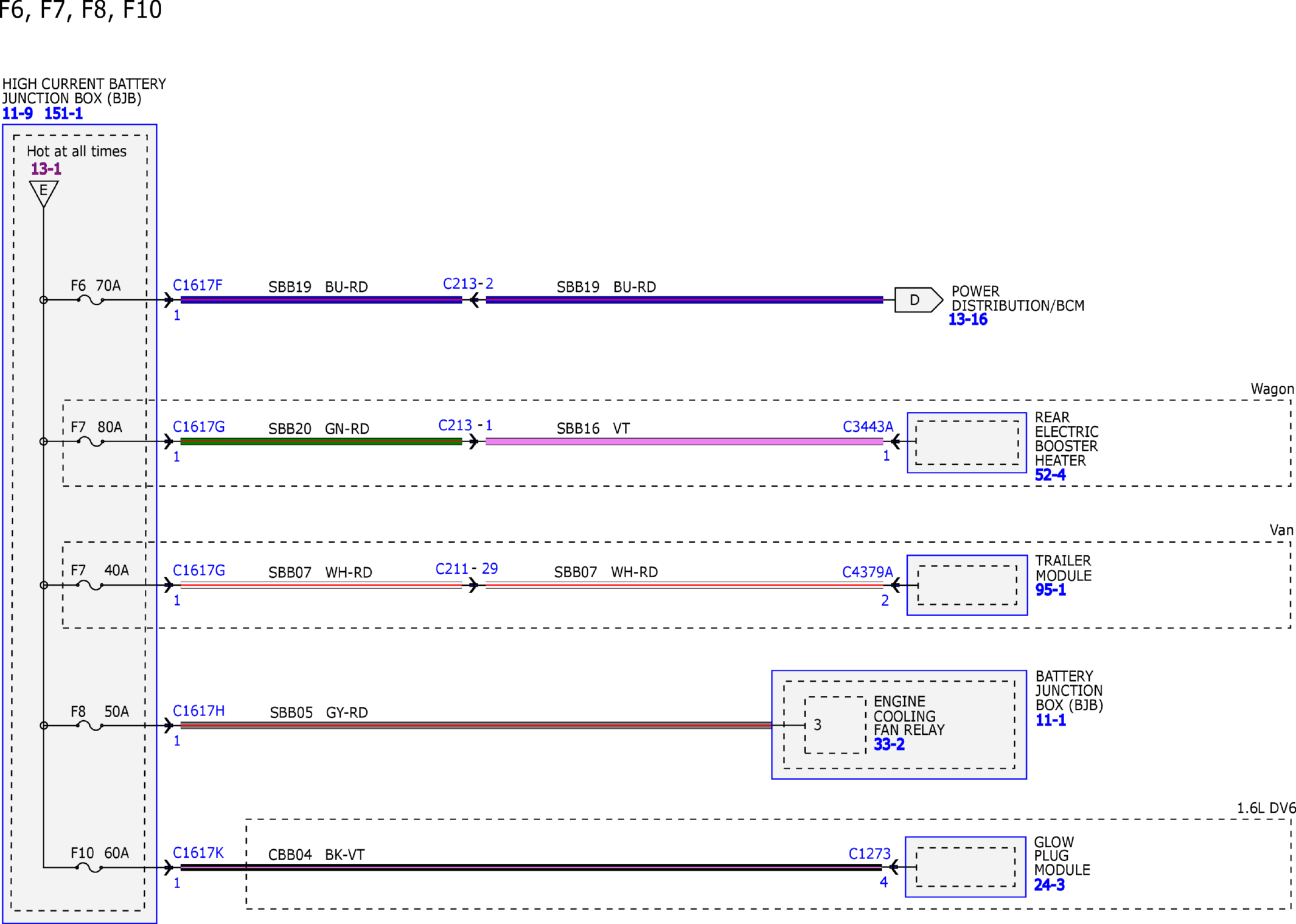

Fig 2: Power Distribution/BCM System Wiring Diagrams (2 Of 34)

GFDW17140

Courtesy of FORD MOTOR COMPANY

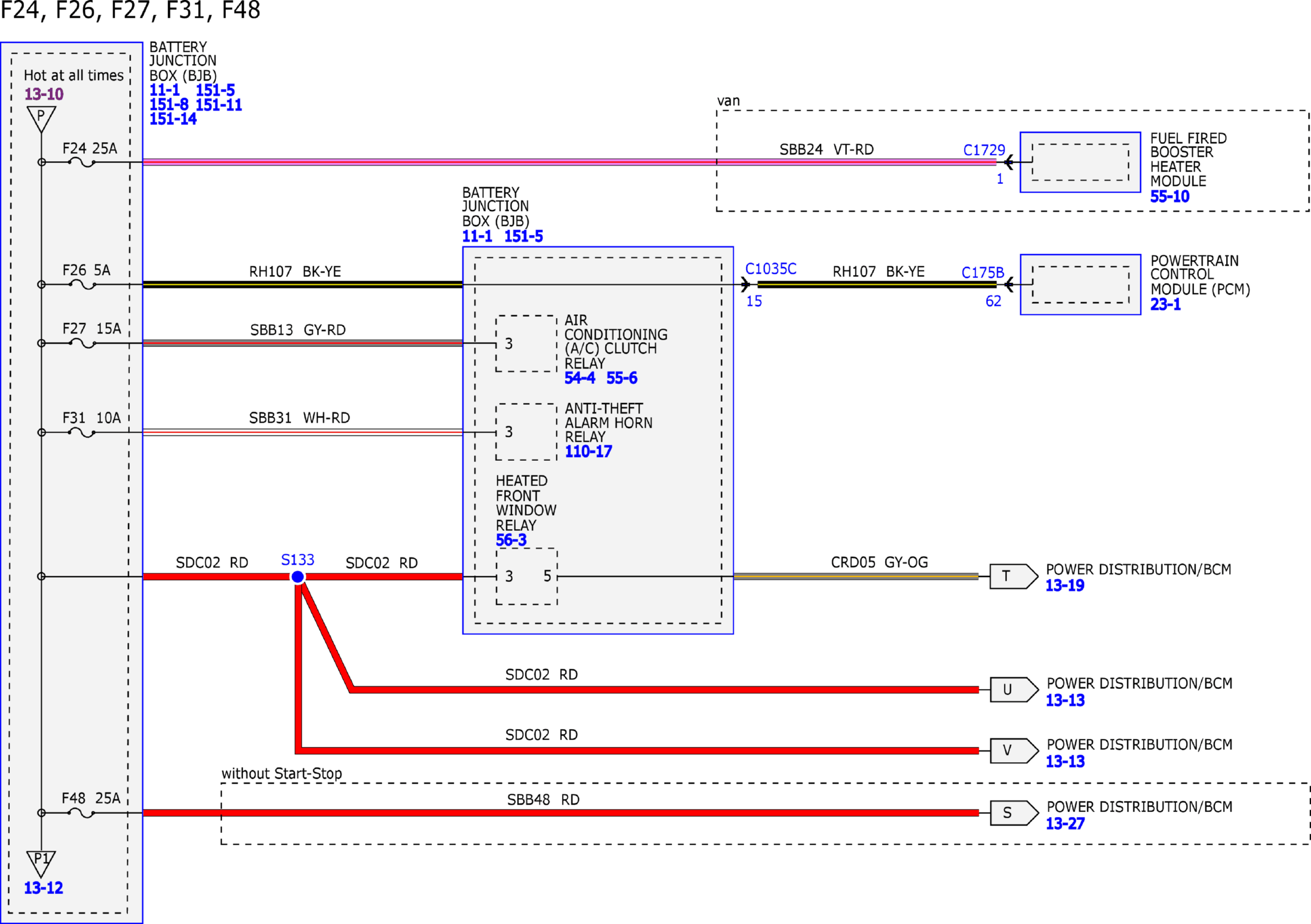

Fig 3: Power Distribution/BCM System Wiring Diagrams (3 Of 34)

GFDW17141

Courtesy of FORD MOTOR COMPANY

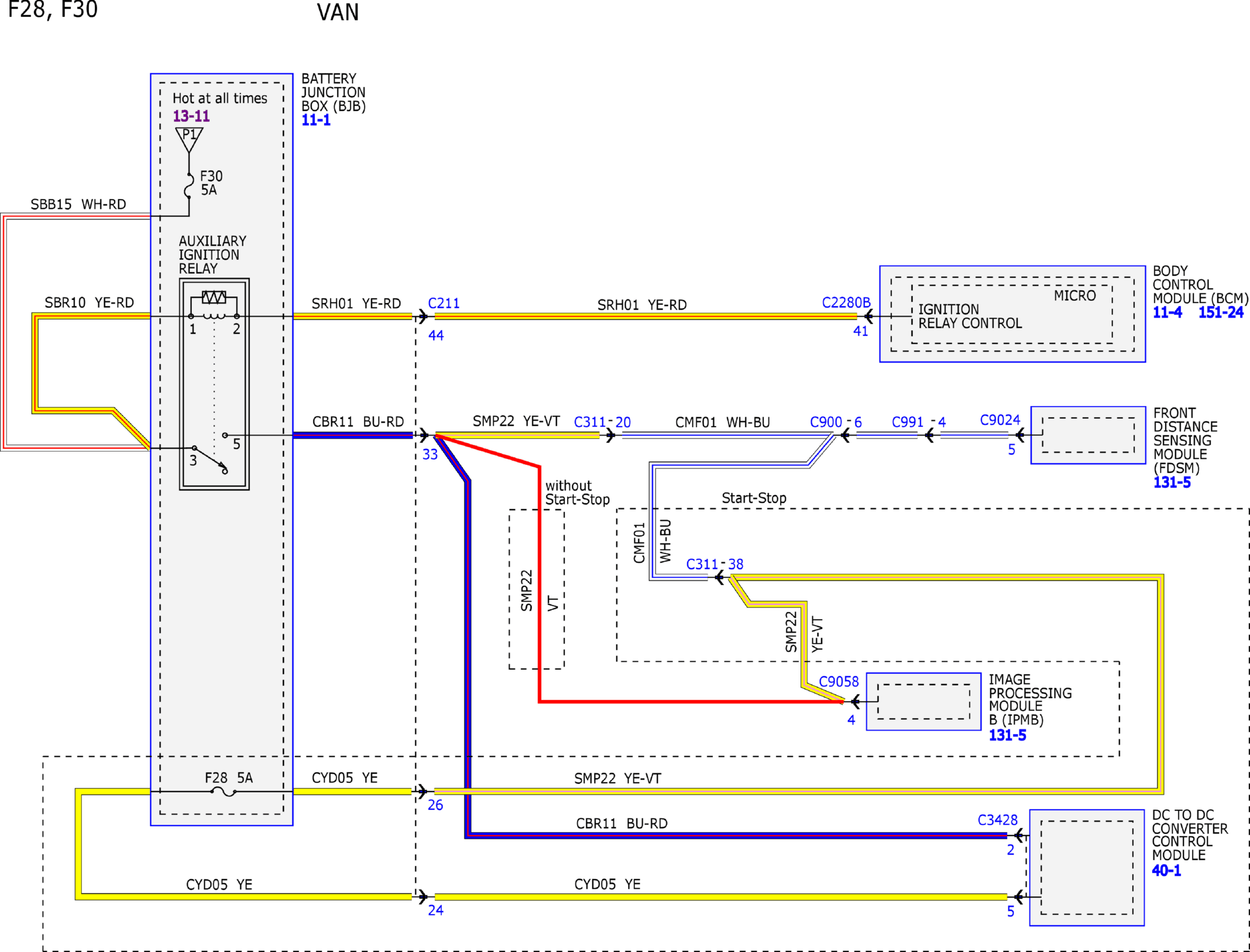

Fig 4: Power Distribution/BCM System Wiring Diagrams (4 Of 34)

GFDW17142

Courtesy of FORD MOTOR COMPANY

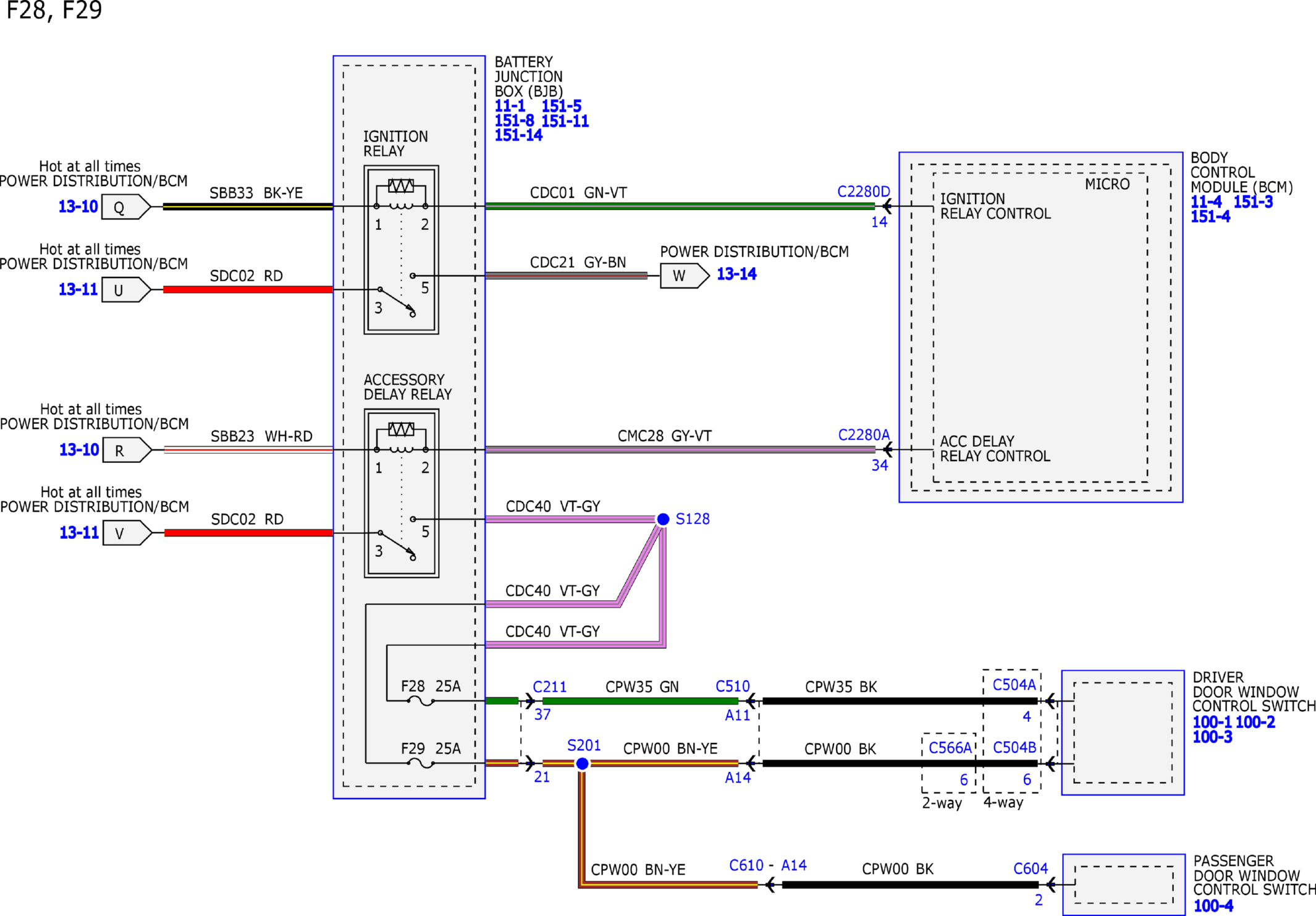

Fig 5: Power Distribution/BCM System Wiring Diagrams (5 Of 34)

GFDW17143

Courtesy of FORD MOTOR COMPANY

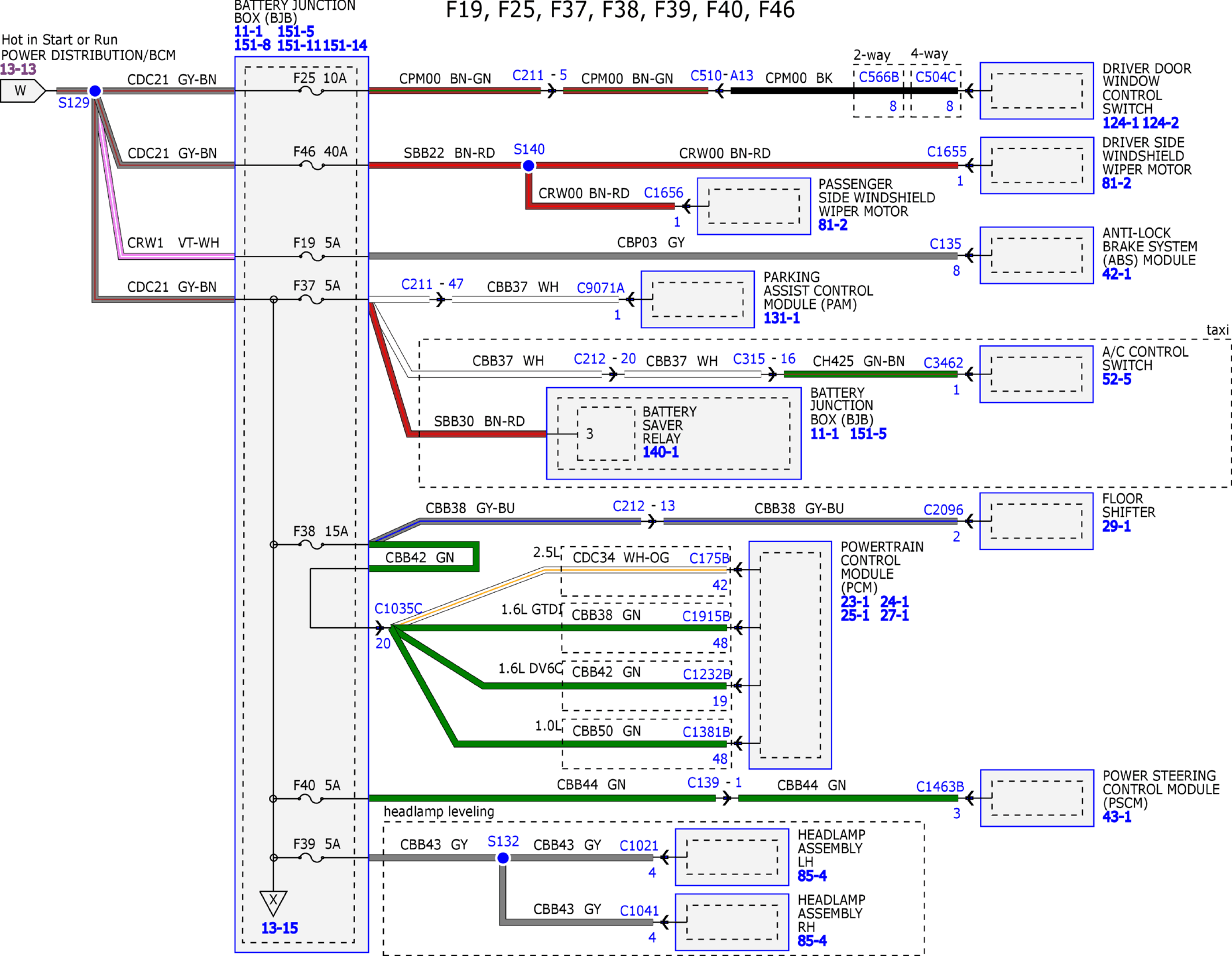

Fig 6: Power Distribution/BCM System Wiring Diagrams (6 Of 34)

GFDW17144

Courtesy of FORD MOTOR COMPANY

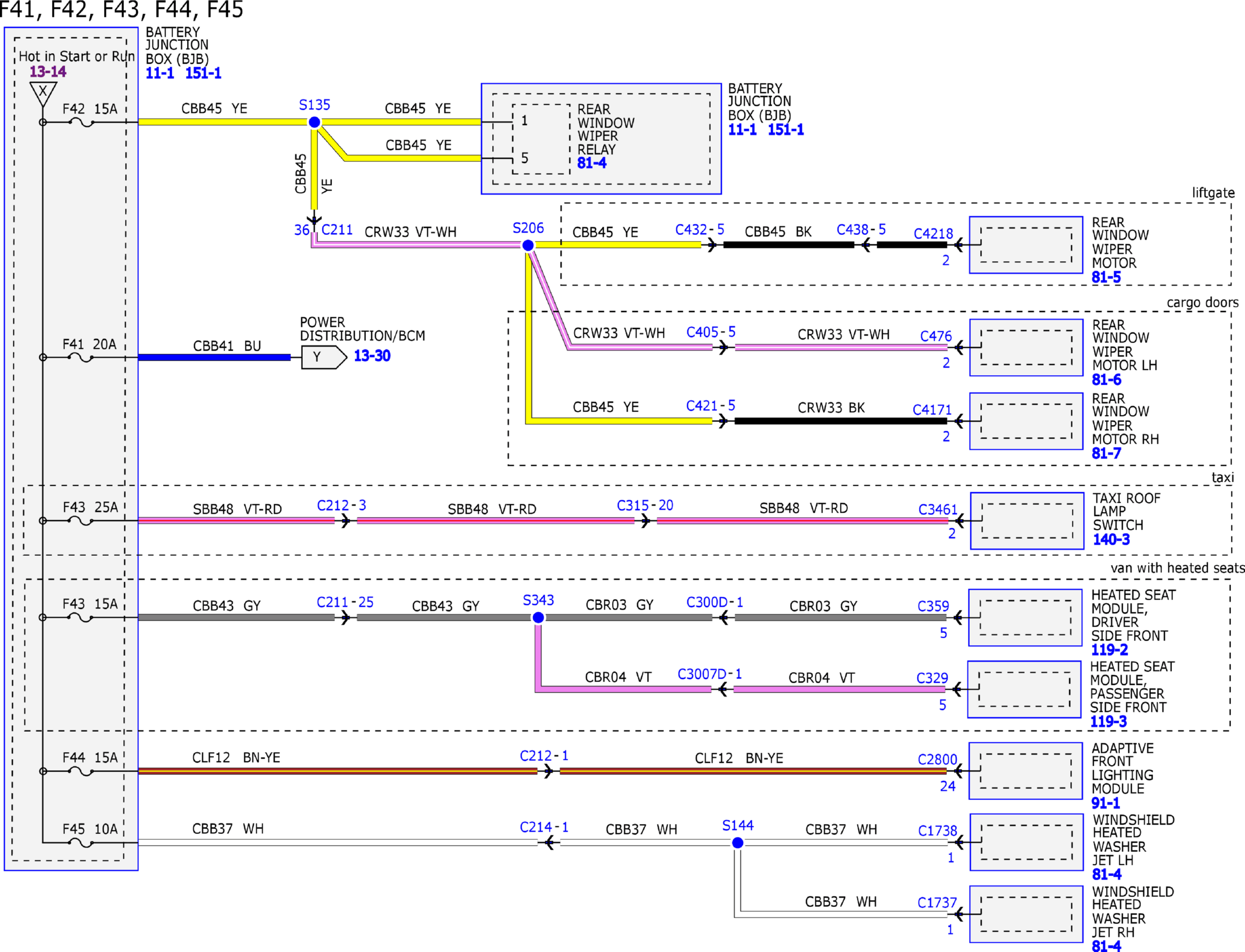

Fig 7: Power Distribution/BCM System Wiring Diagrams (7 Of 34)

GFDW17145

Courtesy of FORD MOTOR COMPANY

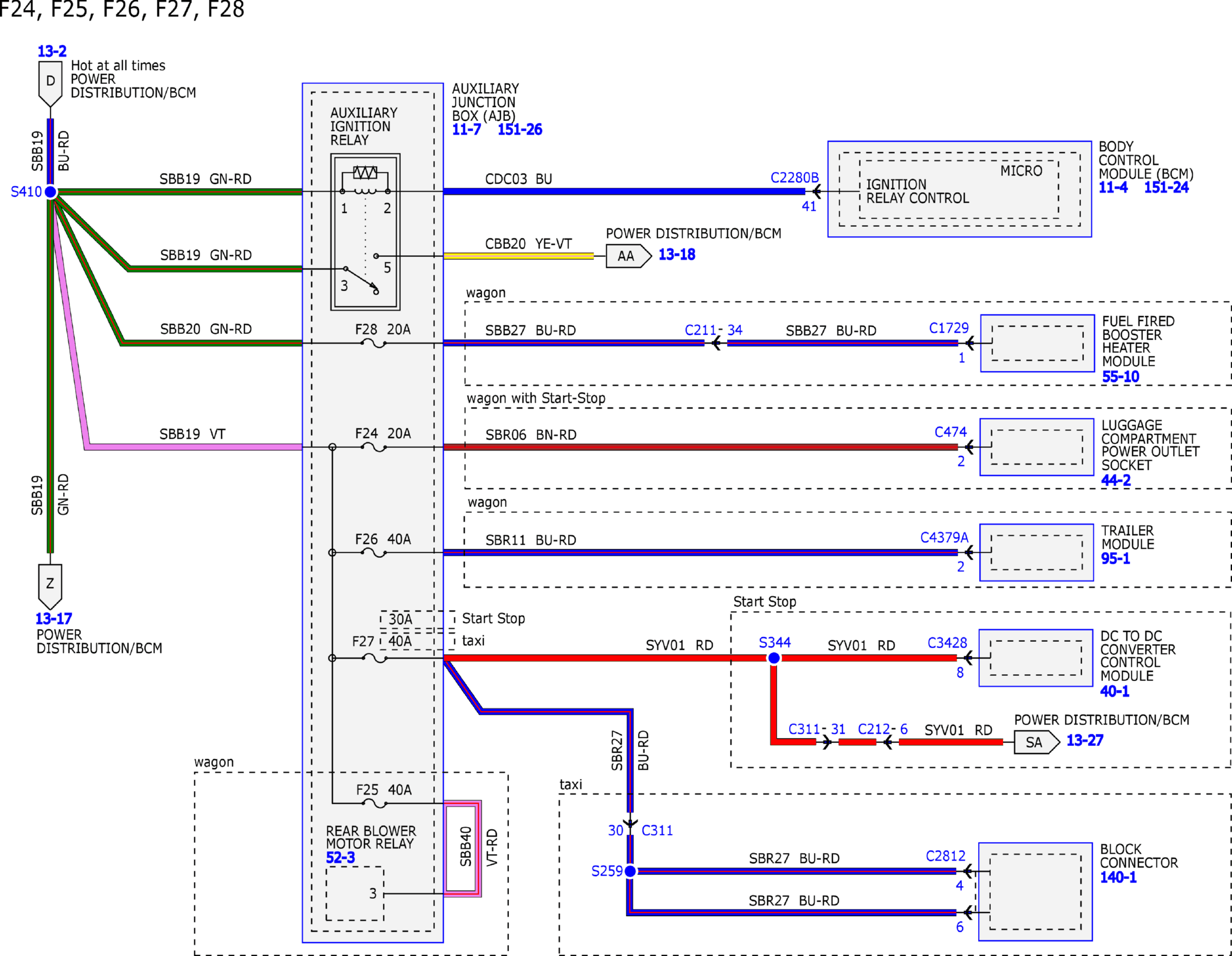

Fig 8: Power Distribution/BCM System Wiring Diagrams (8 Of 34)

GFDW17146

Courtesy of FORD MOTOR COMPANY

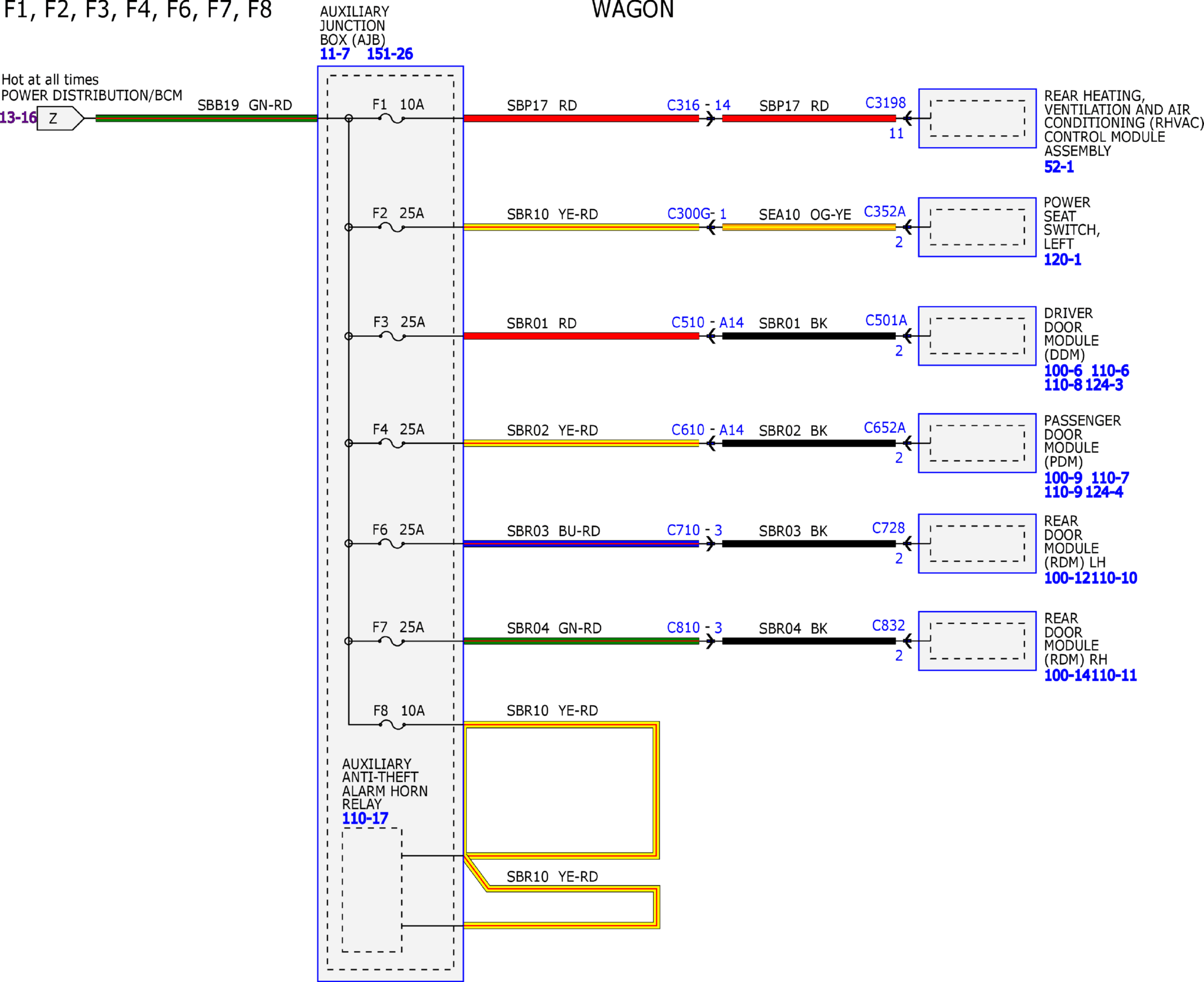

Fig 9: Power Distribution/BCM System Wiring Diagrams (9 Of 34)

GFDW17147

Courtesy of FORD MOTOR COMPANY

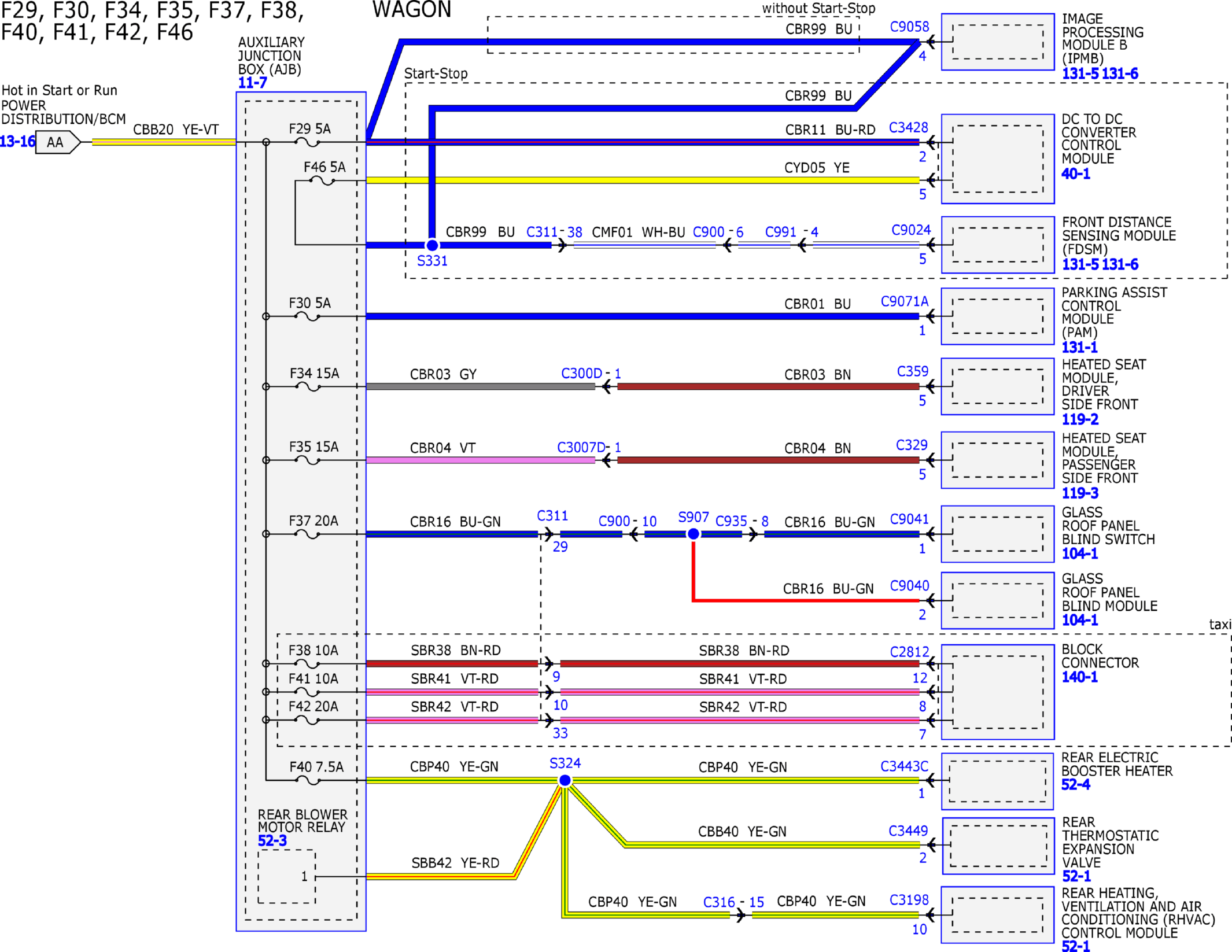

Fig 10: Power Distribution/BCM System Wiring Diagrams (10 Of 34)

GFDW17148

Courtesy of FORD MOTOR COMPANY

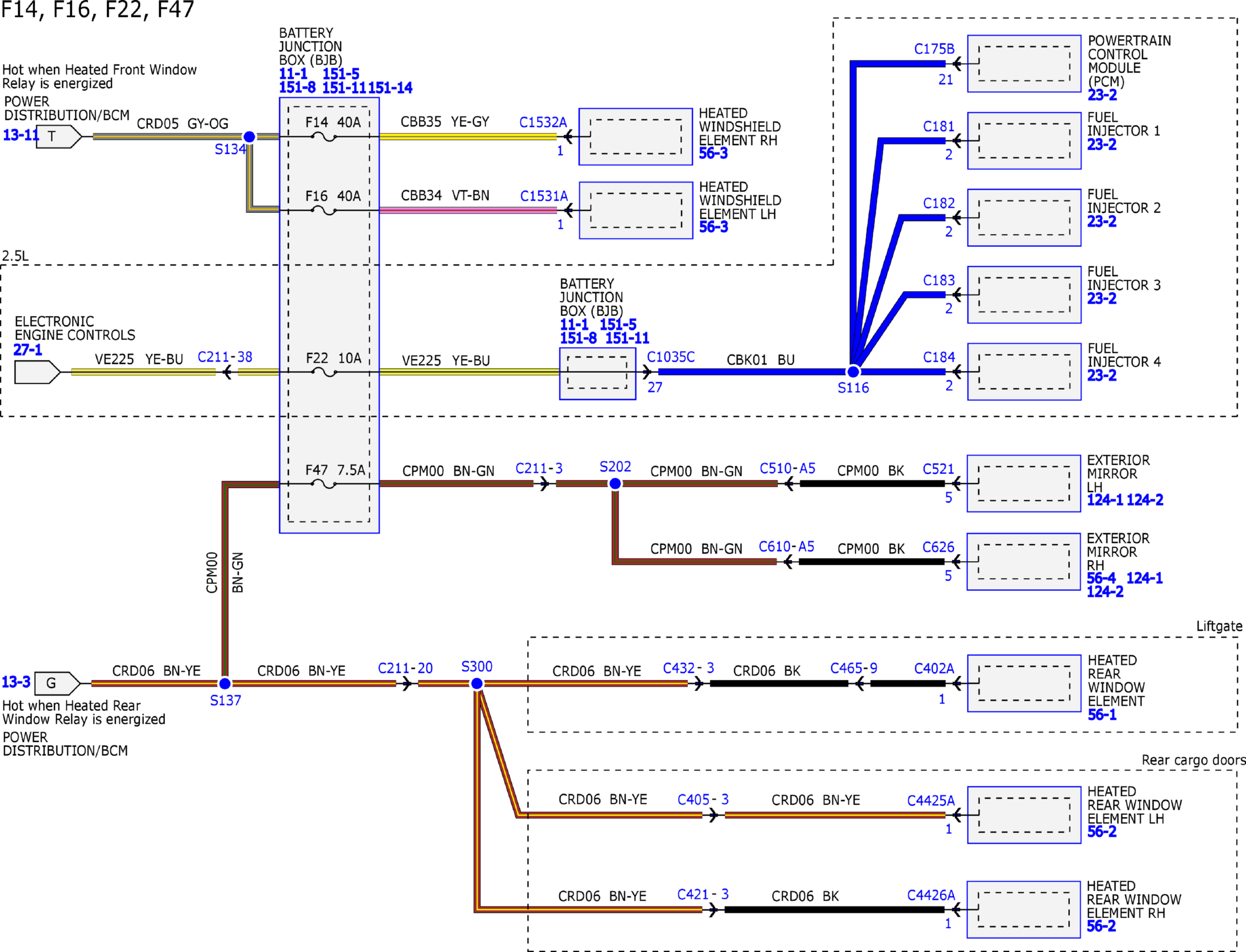

Fig 11: Power Distribution/BCM System Wiring Diagrams (11 Of 34)

GFDW17149

Courtesy of FORD MOTOR COMPANY

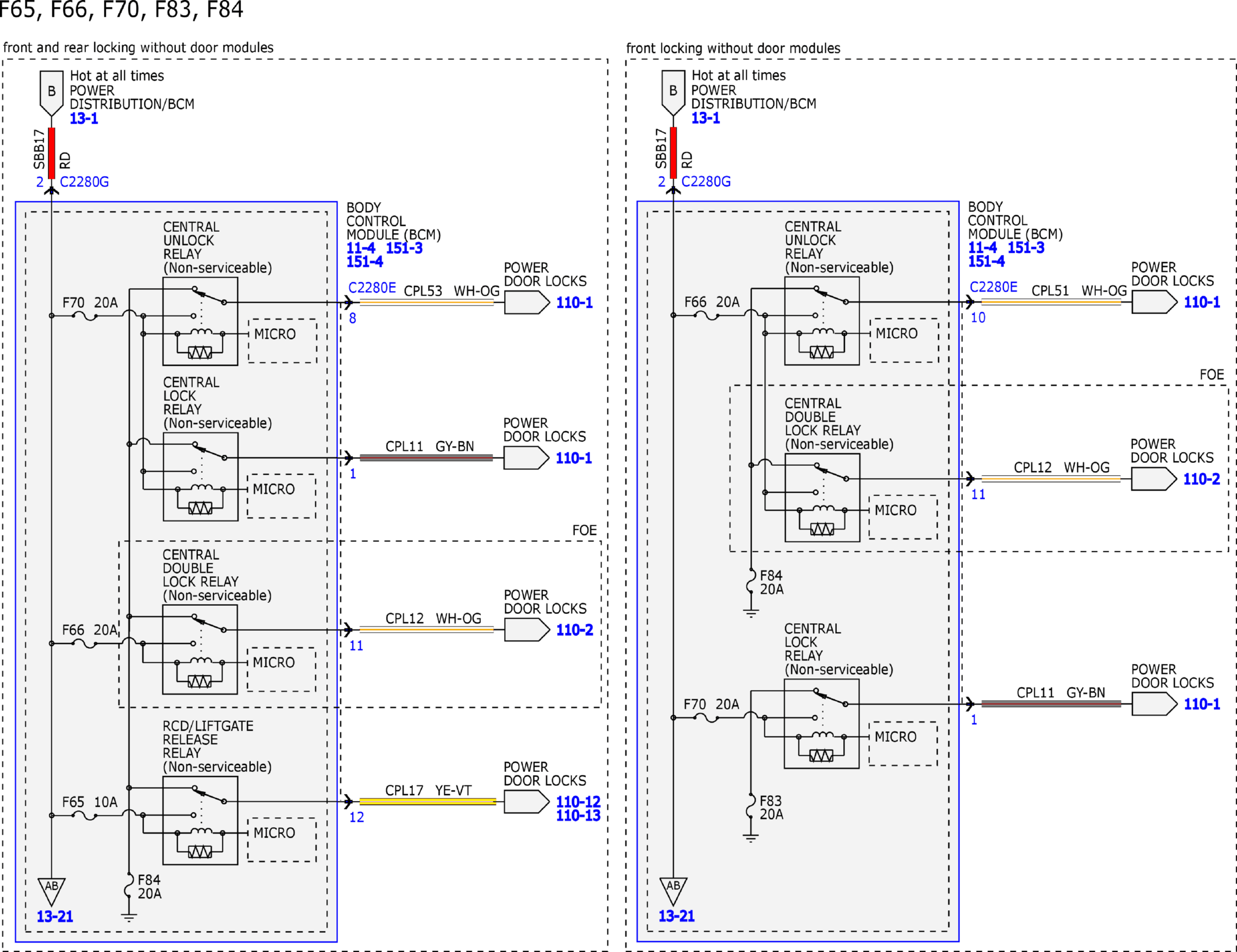

Fig 12: Power Distribution/BCM System Wiring Diagrams (12 Of 34)

GFDW17150

Courtesy of FORD MOTOR COMPANY

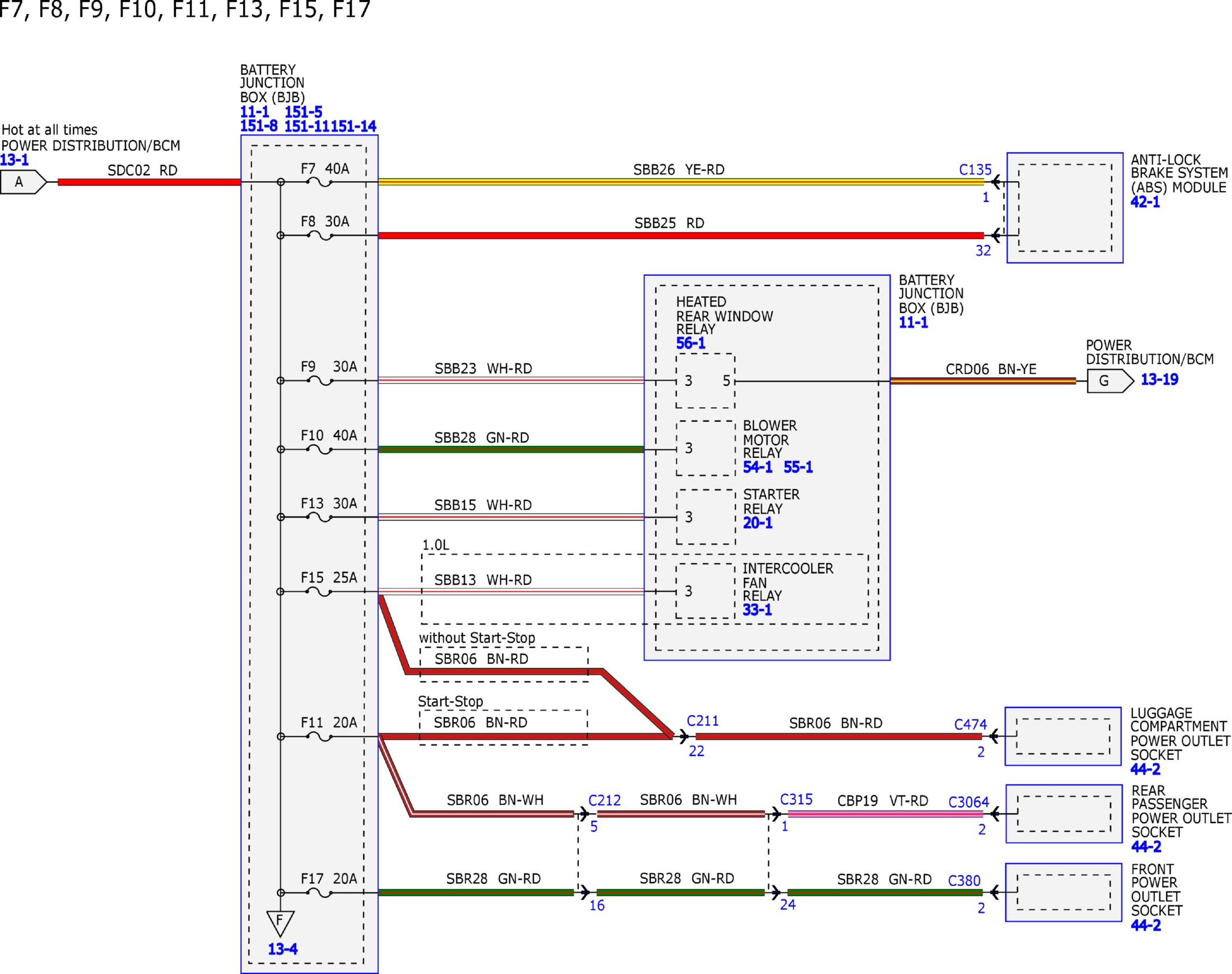

Fig 13: Power Distribution/BCM System Wiring Diagrams (13 Of 34)

GFDW17151

Courtesy of FORD MOTOR COMPANY

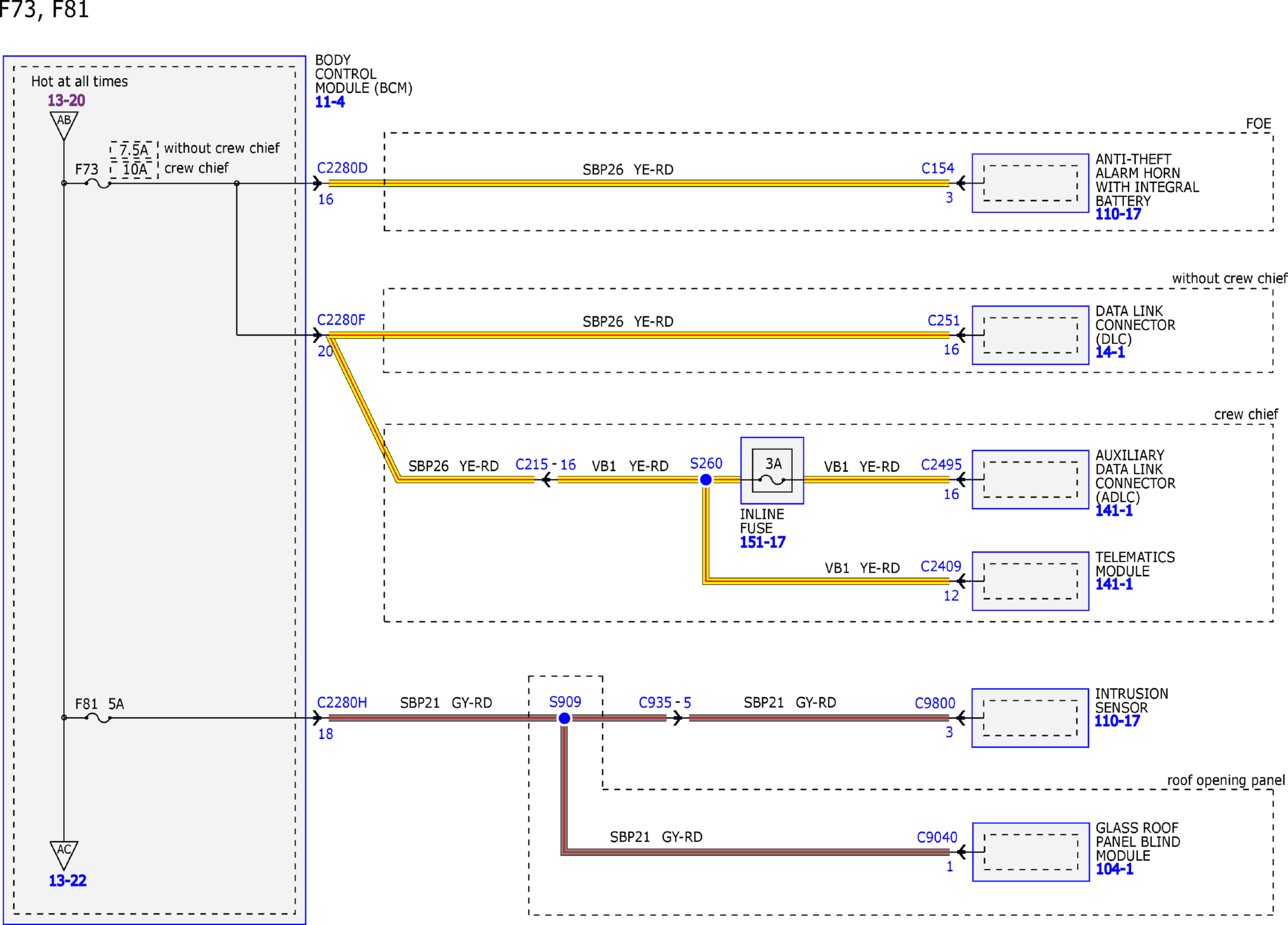

Fig 14: Power Distribution/BCM System Wiring Diagrams (14 Of 34)

GFDW17152

Courtesy of FORD MOTOR COMPANY

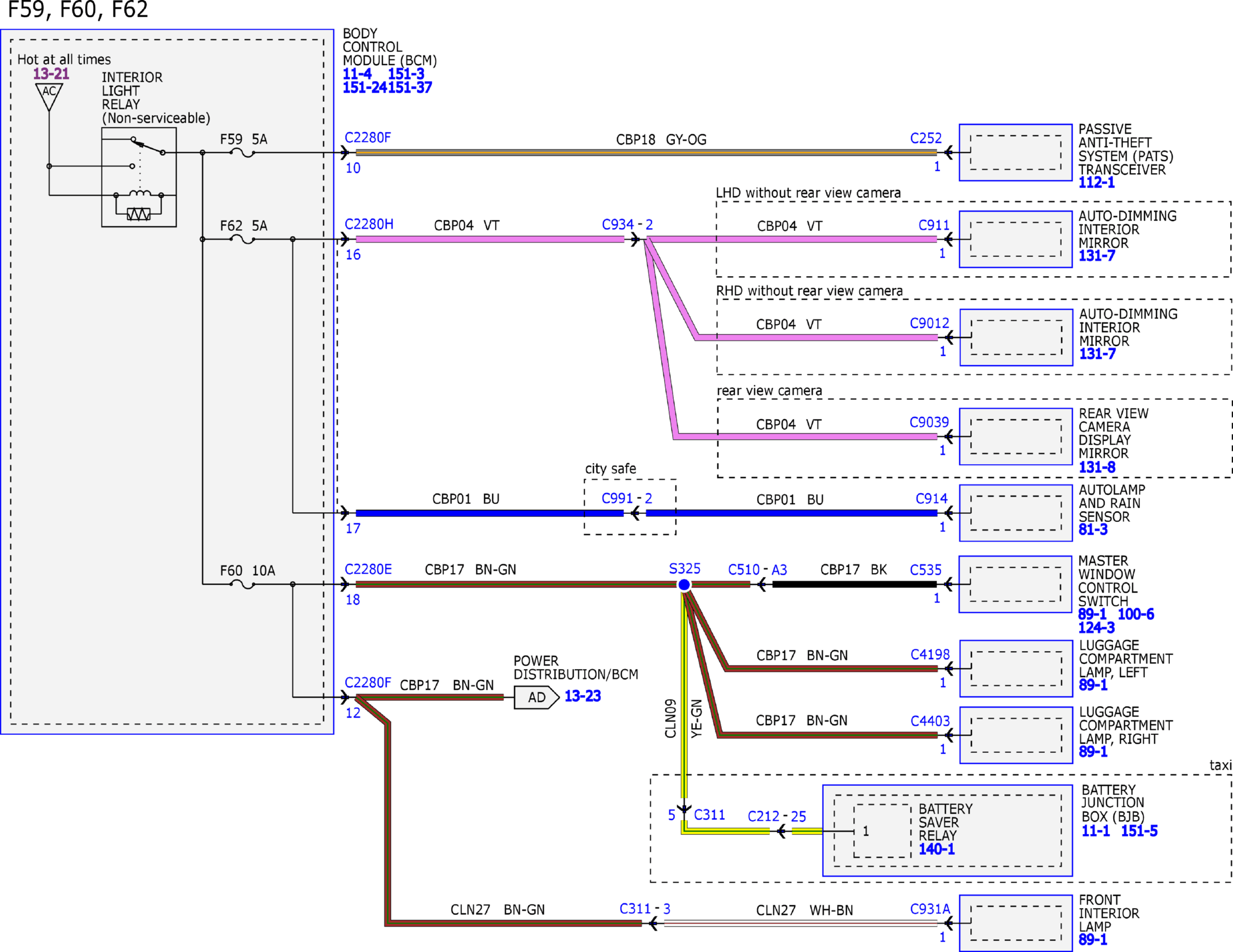

Fig 15: Power Distribution/BCM System Wiring Diagrams (15 Of 34)

GFDW17153

Courtesy of FORD MOTOR COMPANY

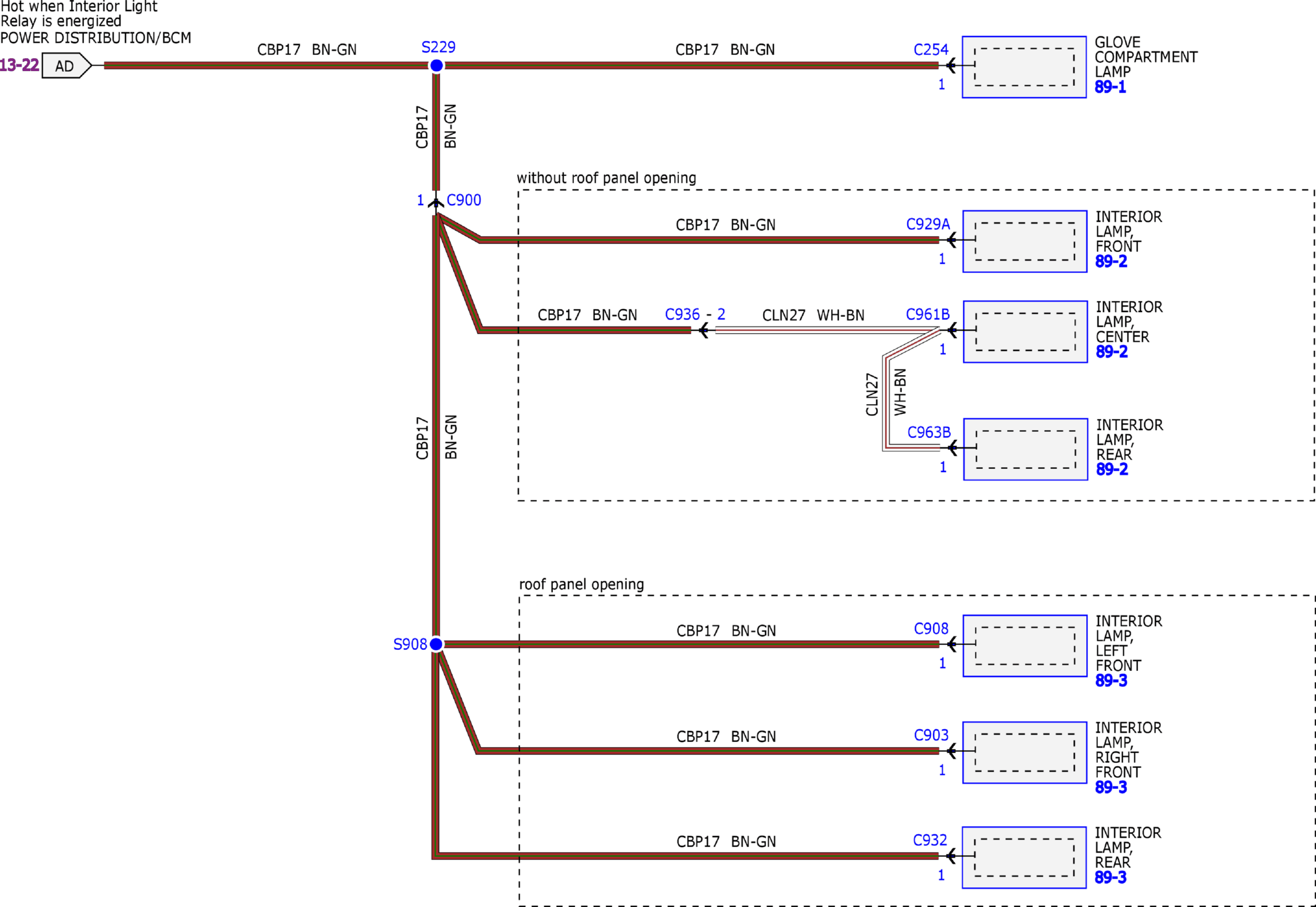

Fig 16: Power Distribution/BCM System Wiring Diagrams (16 Of 34)

GFDW17154

Courtesy of FORD MOTOR COMPANY

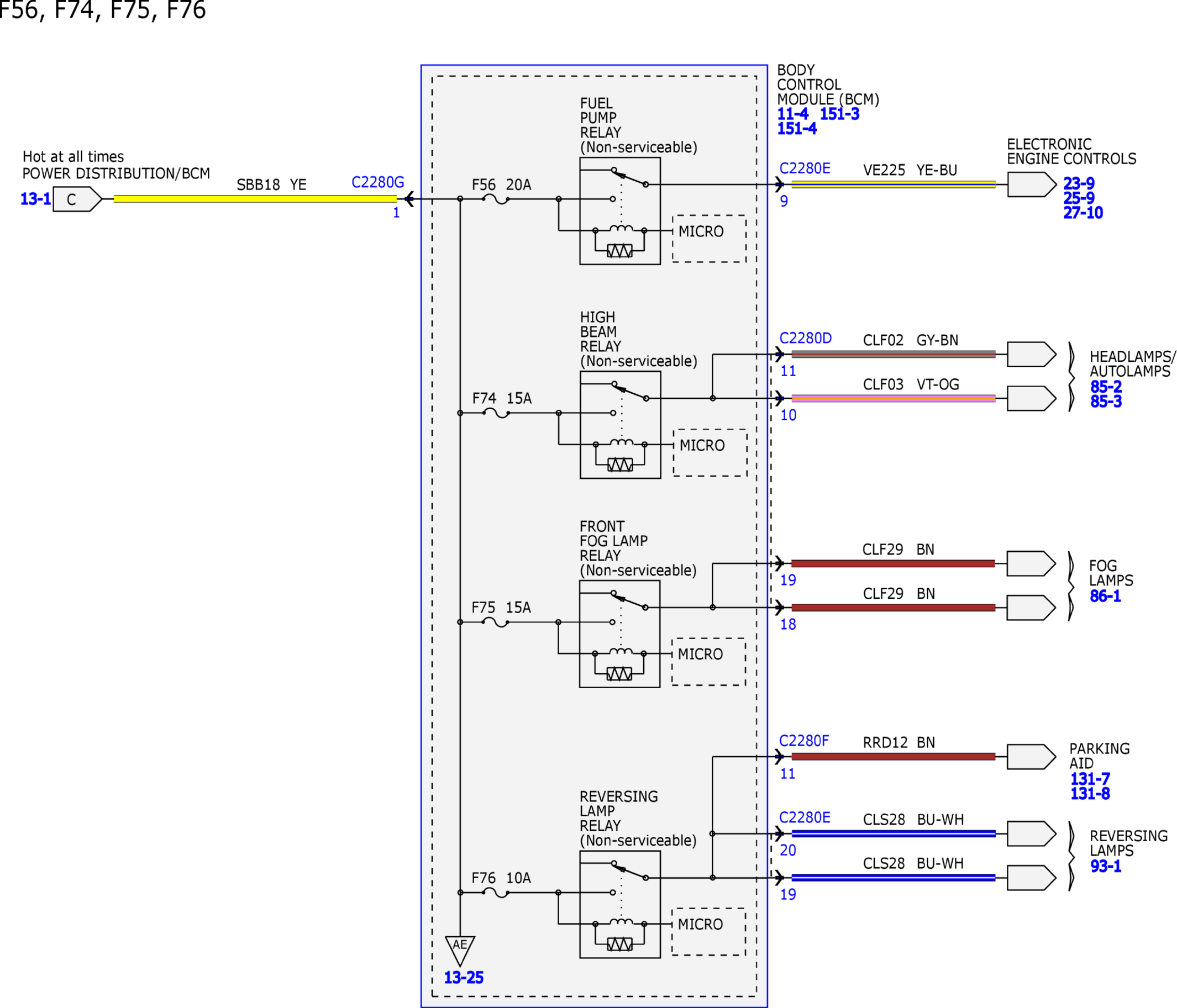

Fig 17: Power Distribution/BCM System Wiring Diagrams (17 Of 34)

GFDW17155

Courtesy of FORD MOTOR COMPANY

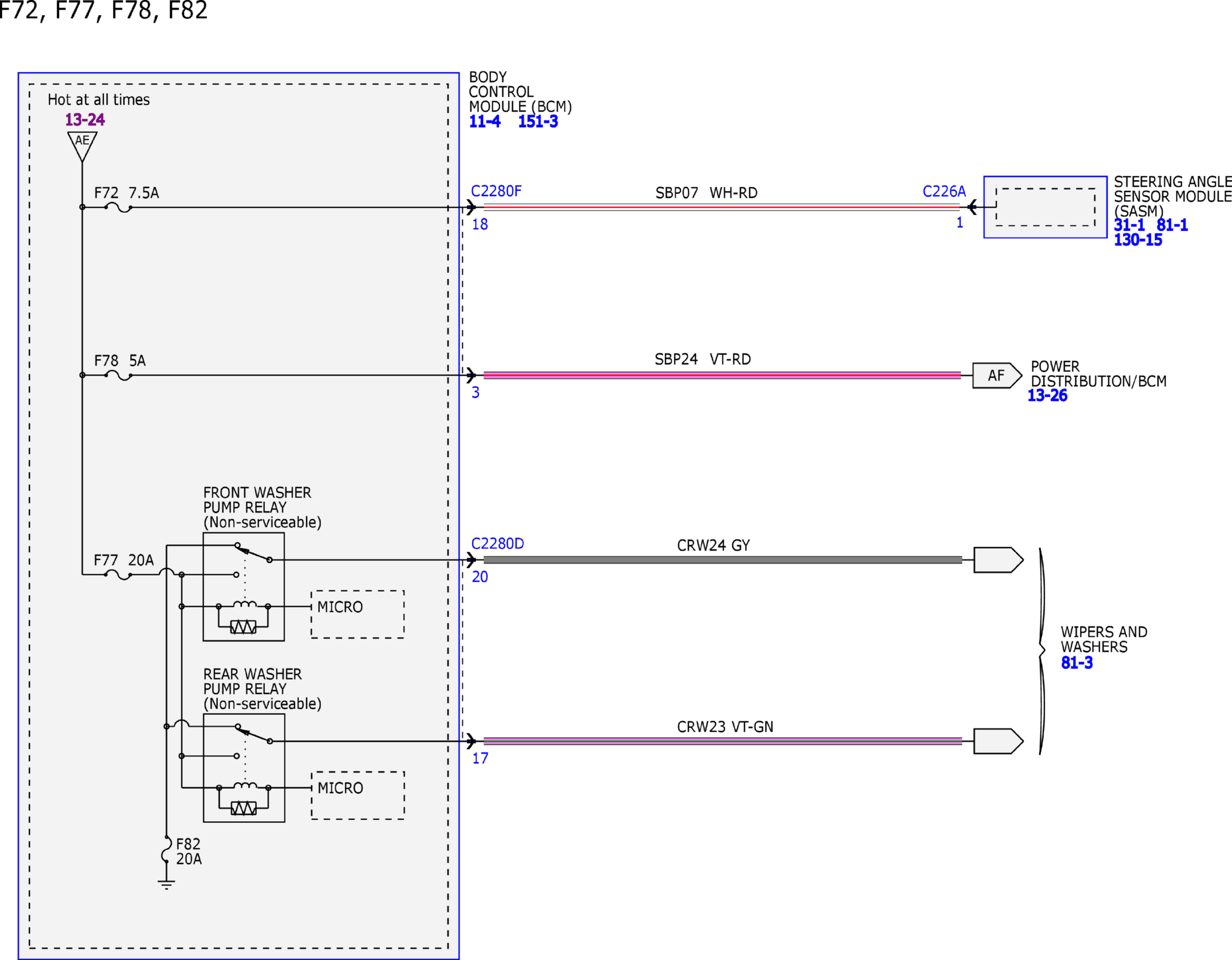

Fig 18: Power Distribution/BCM System Wiring Diagrams (18 Of 34)

GFDW17156

Courtesy of FORD MOTOR COMPANY

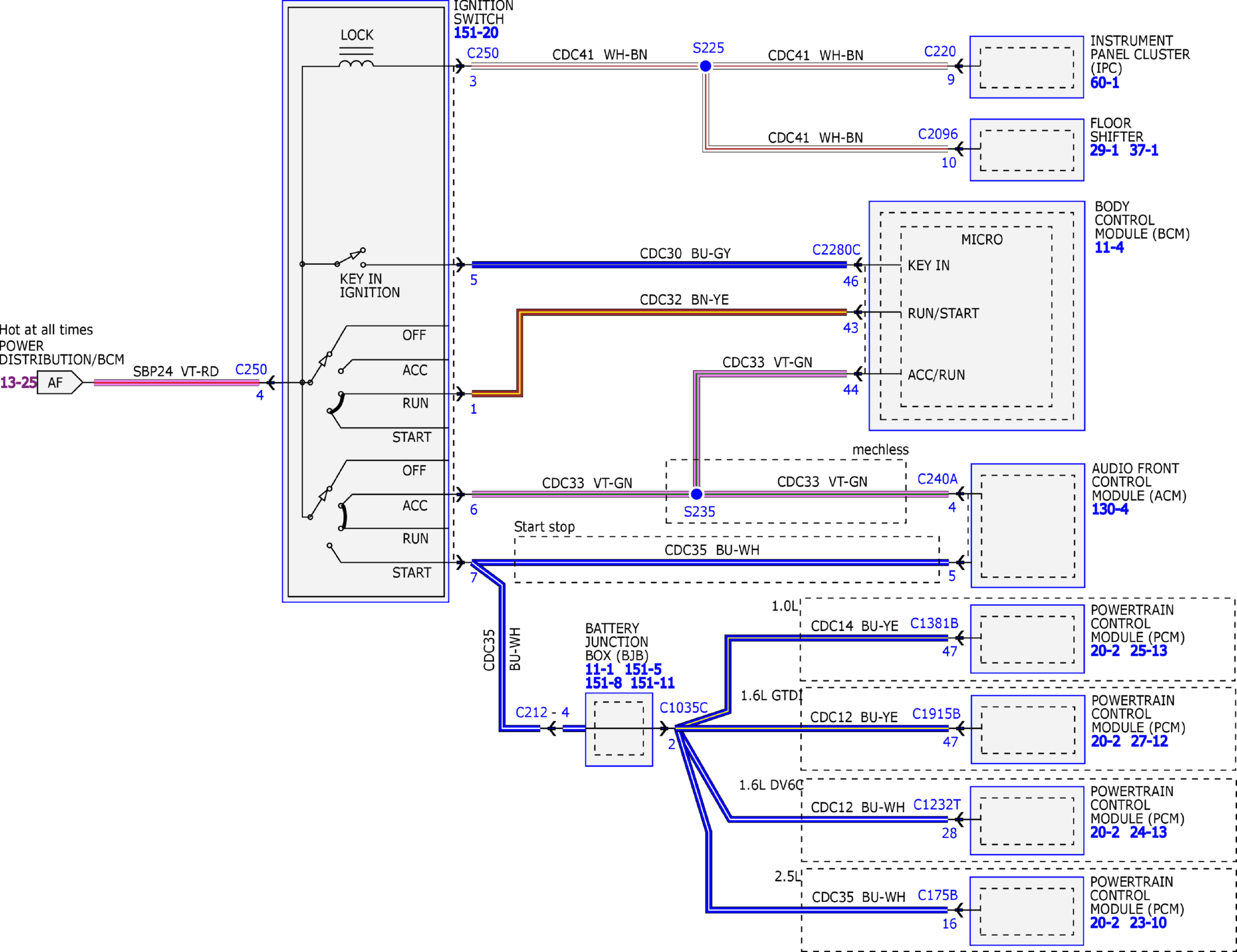

Fig 19: Power Distribution/BCM System Wiring Diagrams (19 Of 34)

GFDW17157

Courtesy of FORD MOTOR COMPANY

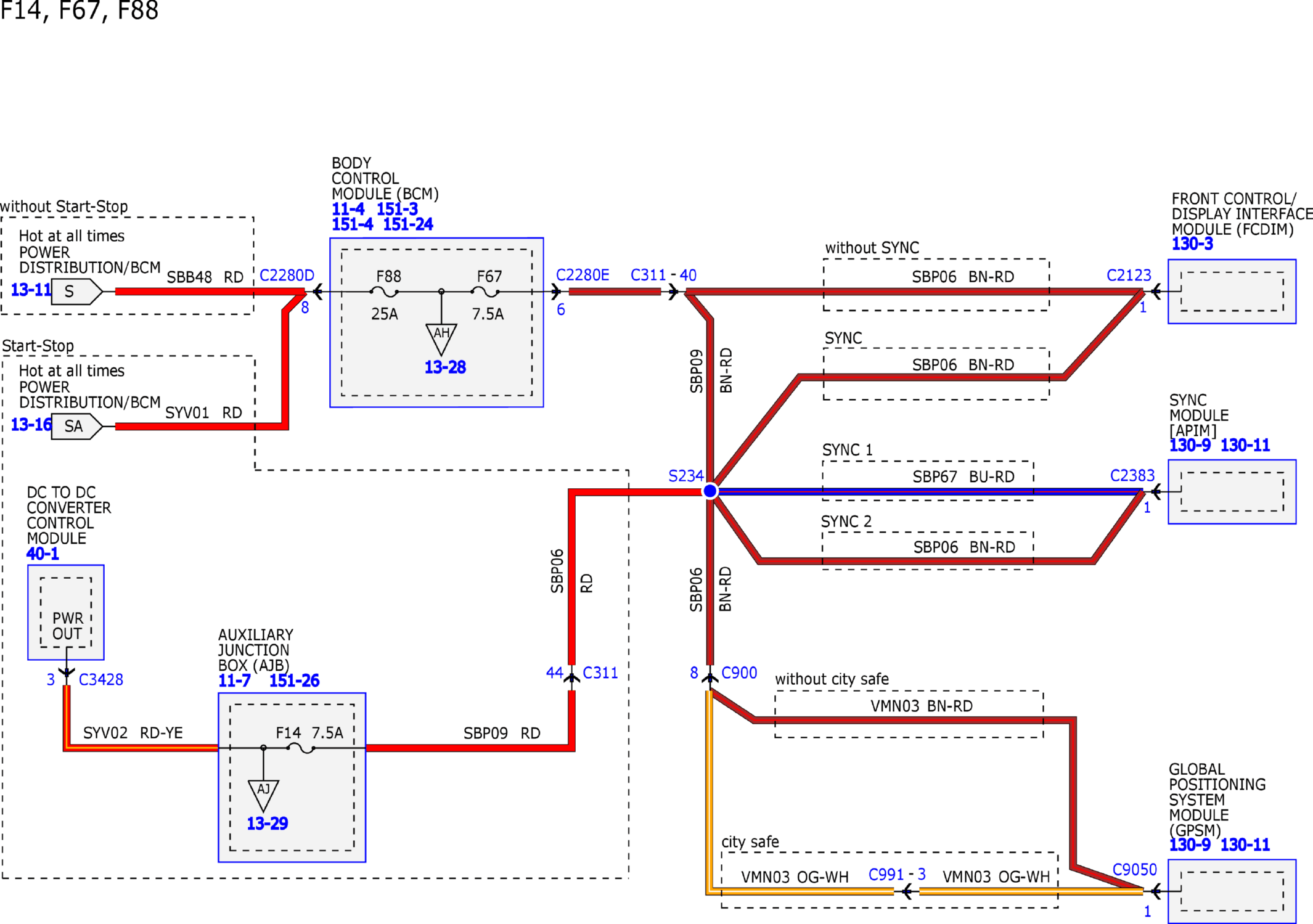

Fig 20: Power Distribution/BCM System Wiring Diagrams (20 Of 34)

GFDW17158

Courtesy of FORD MOTOR COMPANY

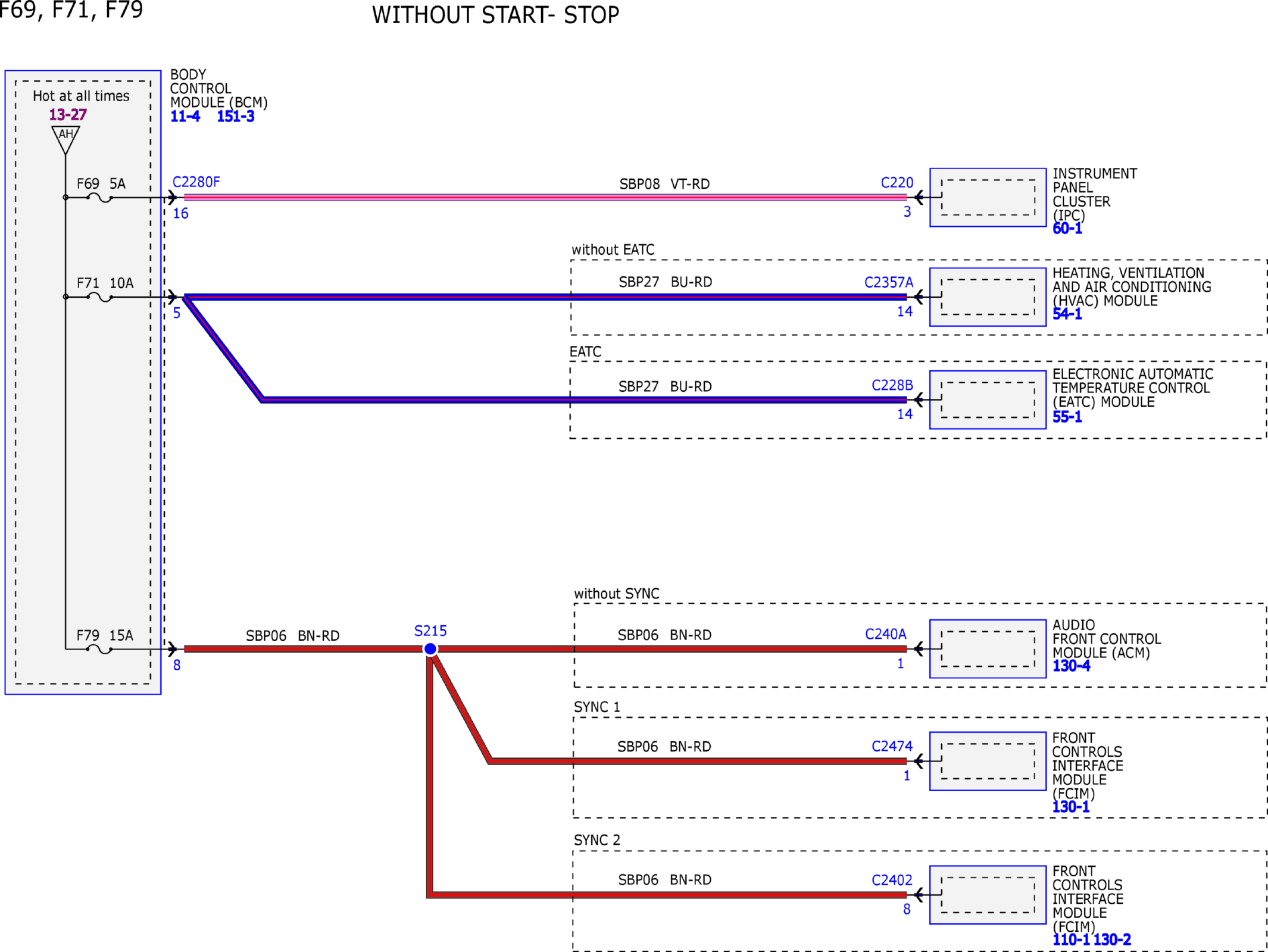

Fig 21: Power Distribution/BCM System Wiring Diagrams (21 Of 34)

GFDW17159

Courtesy of FORD MOTOR COMPANY

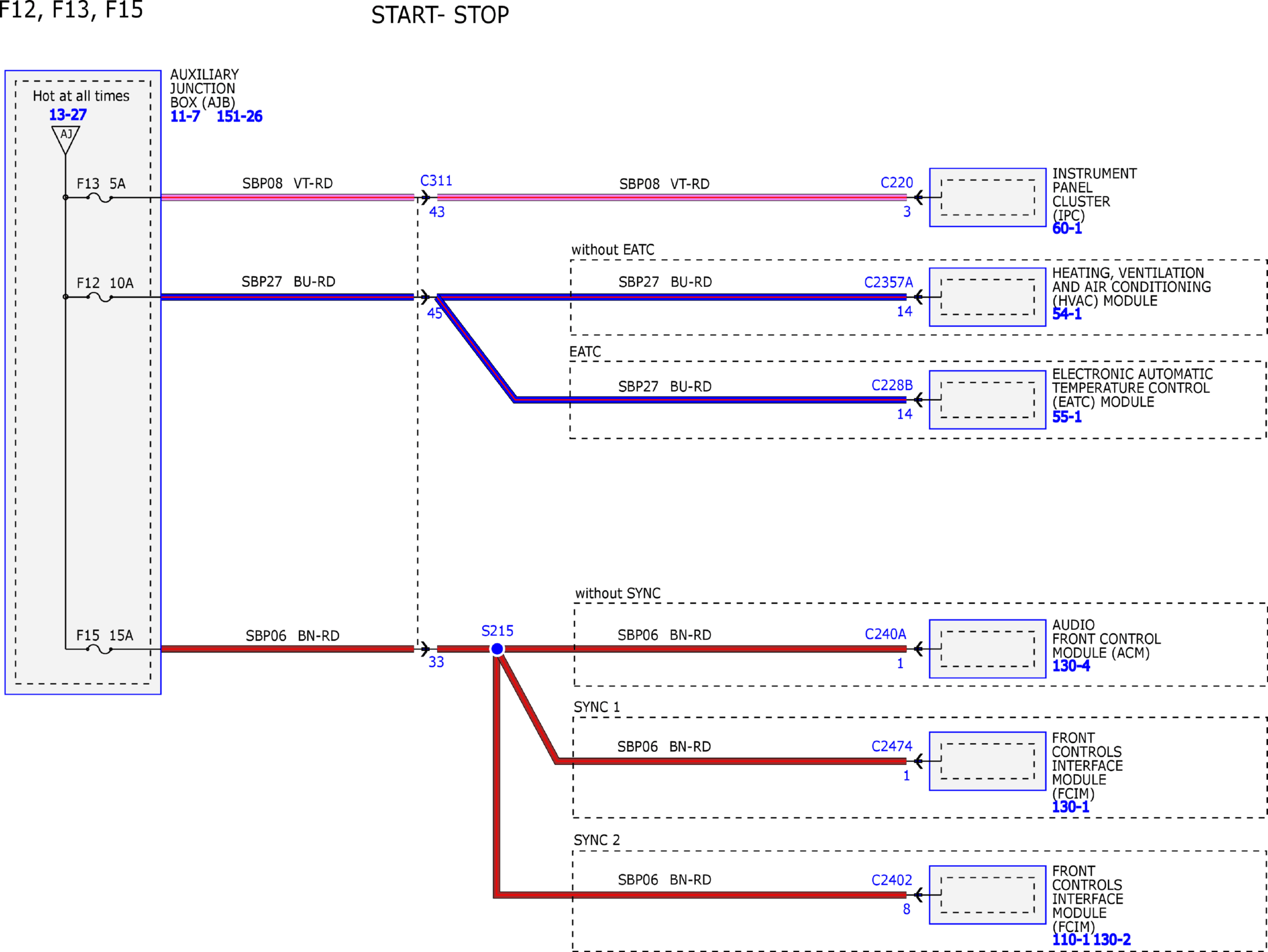

Fig 22: Power Distribution/BCM System Wiring Diagrams (22 Of 34)

GFDW17160

Courtesy of FORD MOTOR COMPANY

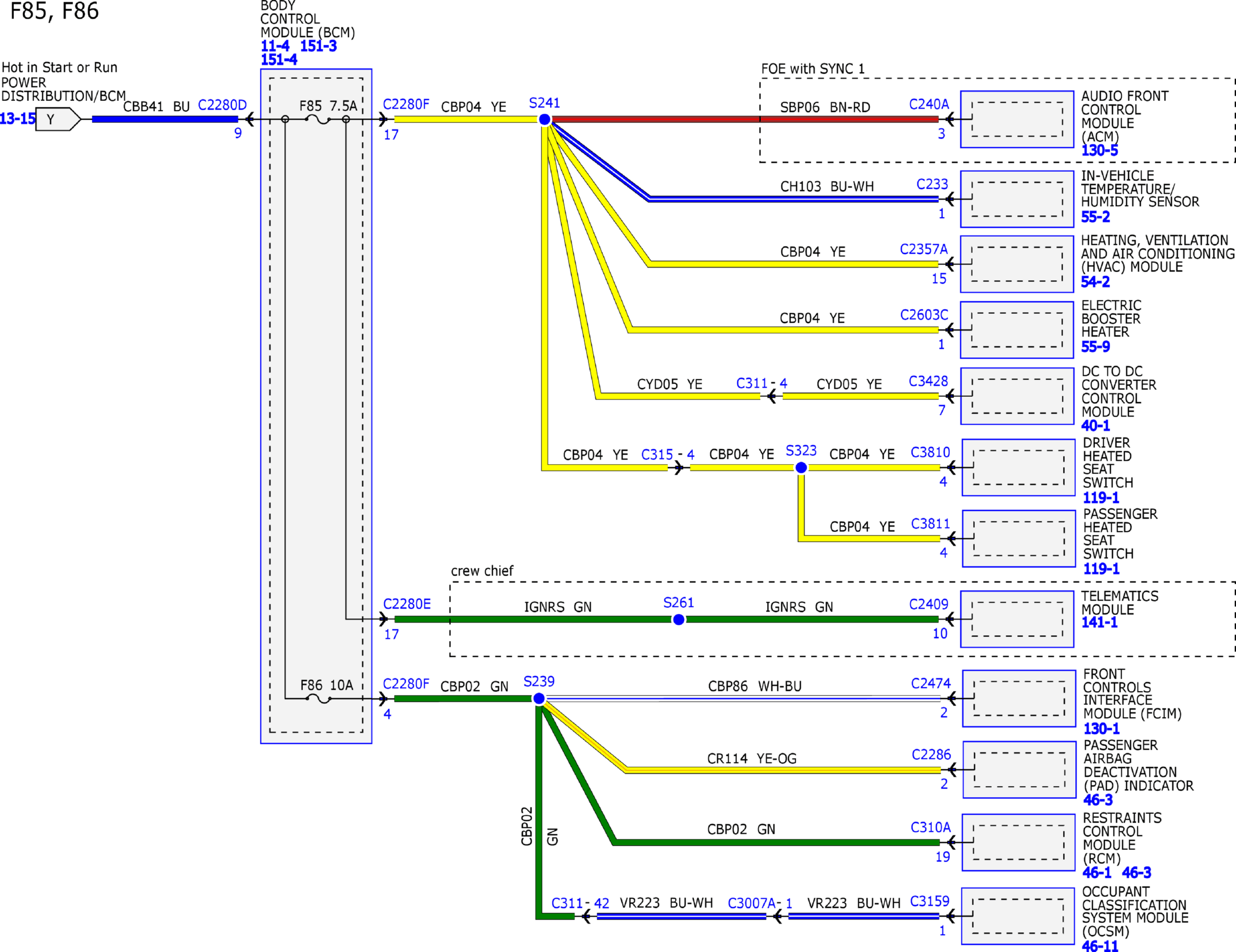

Fig 23: Power Distribution/BCM System Wiring Diagrams (23 Of 34)

GFDW17161

Courtesy of FORD MOTOR COMPANY

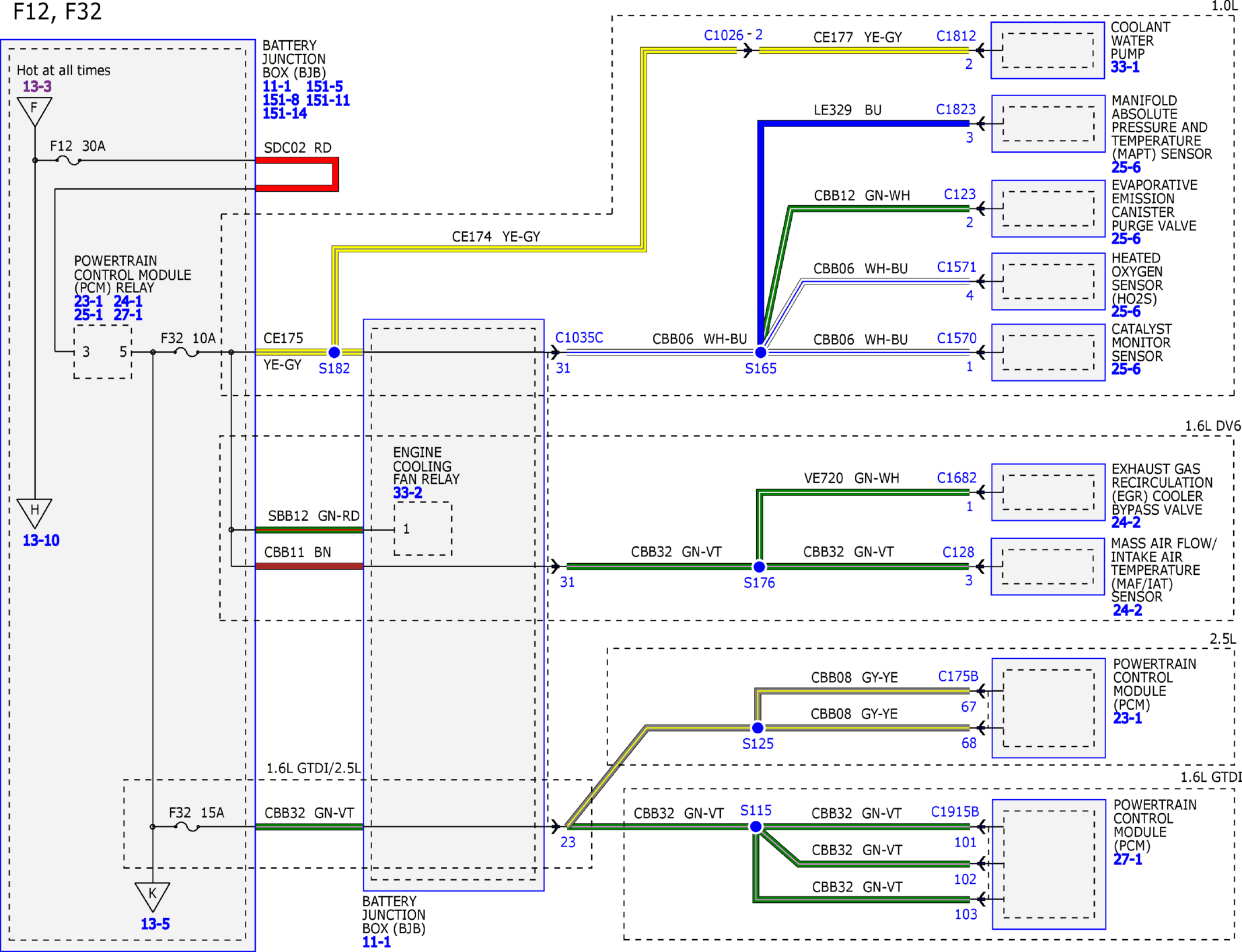

Fig 24: Power Distribution/BCM System Wiring Diagrams (24 Of 34)

GFDW17162

Courtesy of FORD MOTOR COMPANY

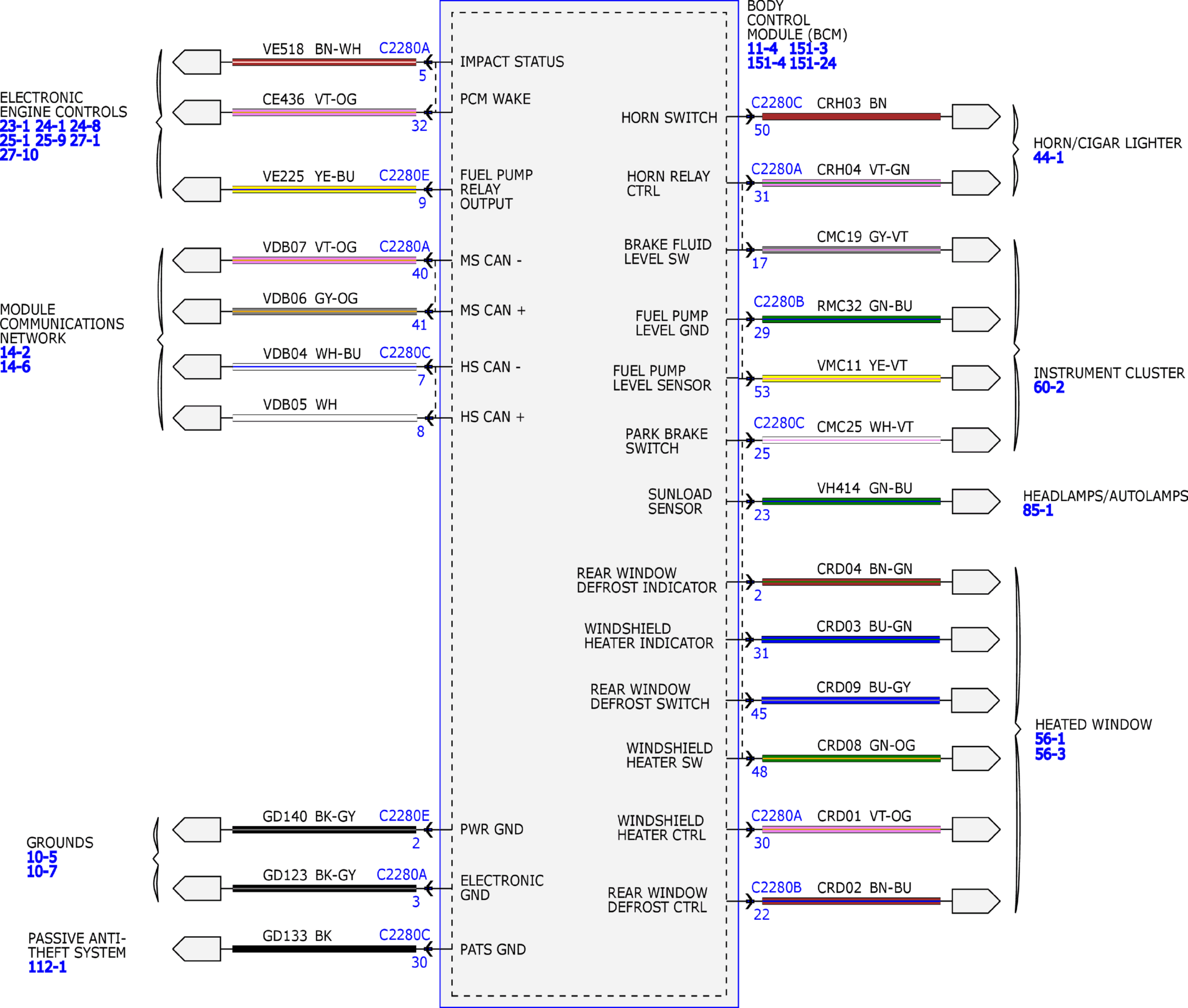

Fig 25: Power Distribution/BCM System Wiring Diagrams (25 Of 34)

GFDW17163

Courtesy of FORD MOTOR COMPANY

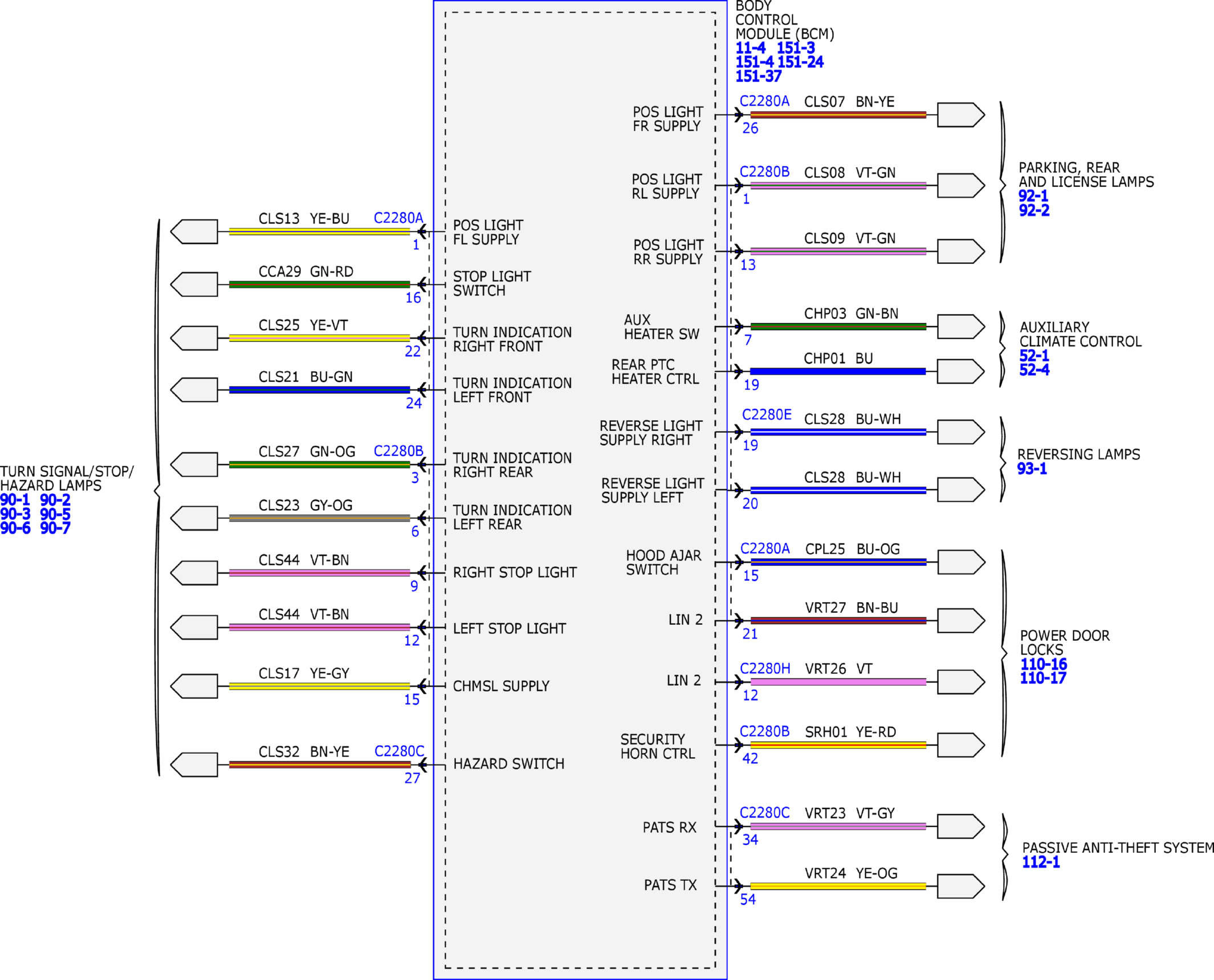

Fig 26: Power Distribution/BCM System Wiring Diagrams (26 Of 34)

GFDW17164

Courtesy of FORD MOTOR COMPANY

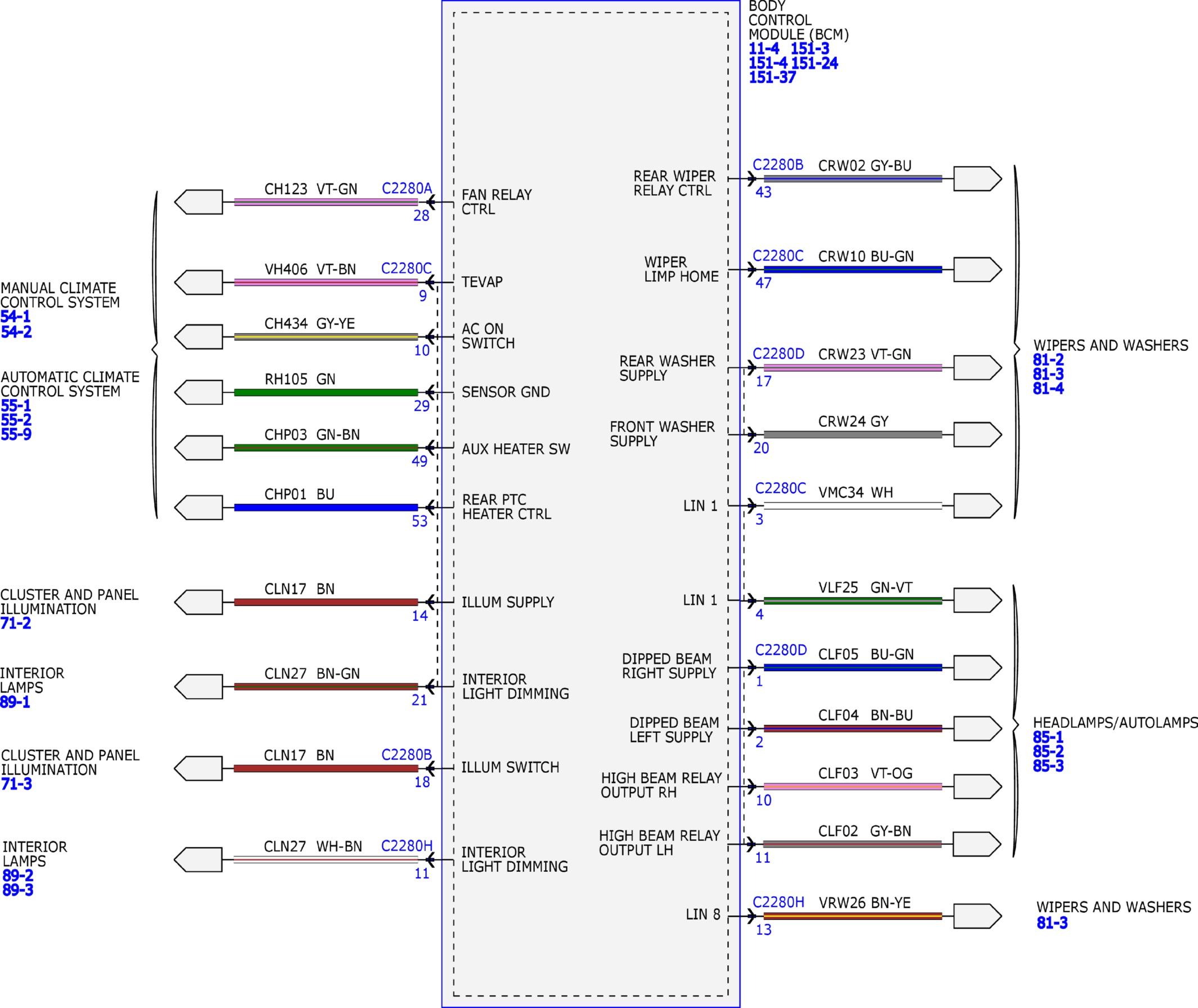

Fig 27: Power Distribution/BCM System Wiring Diagrams (27 Of 34)

GFDW17165

Courtesy of FORD MOTOR COMPANY

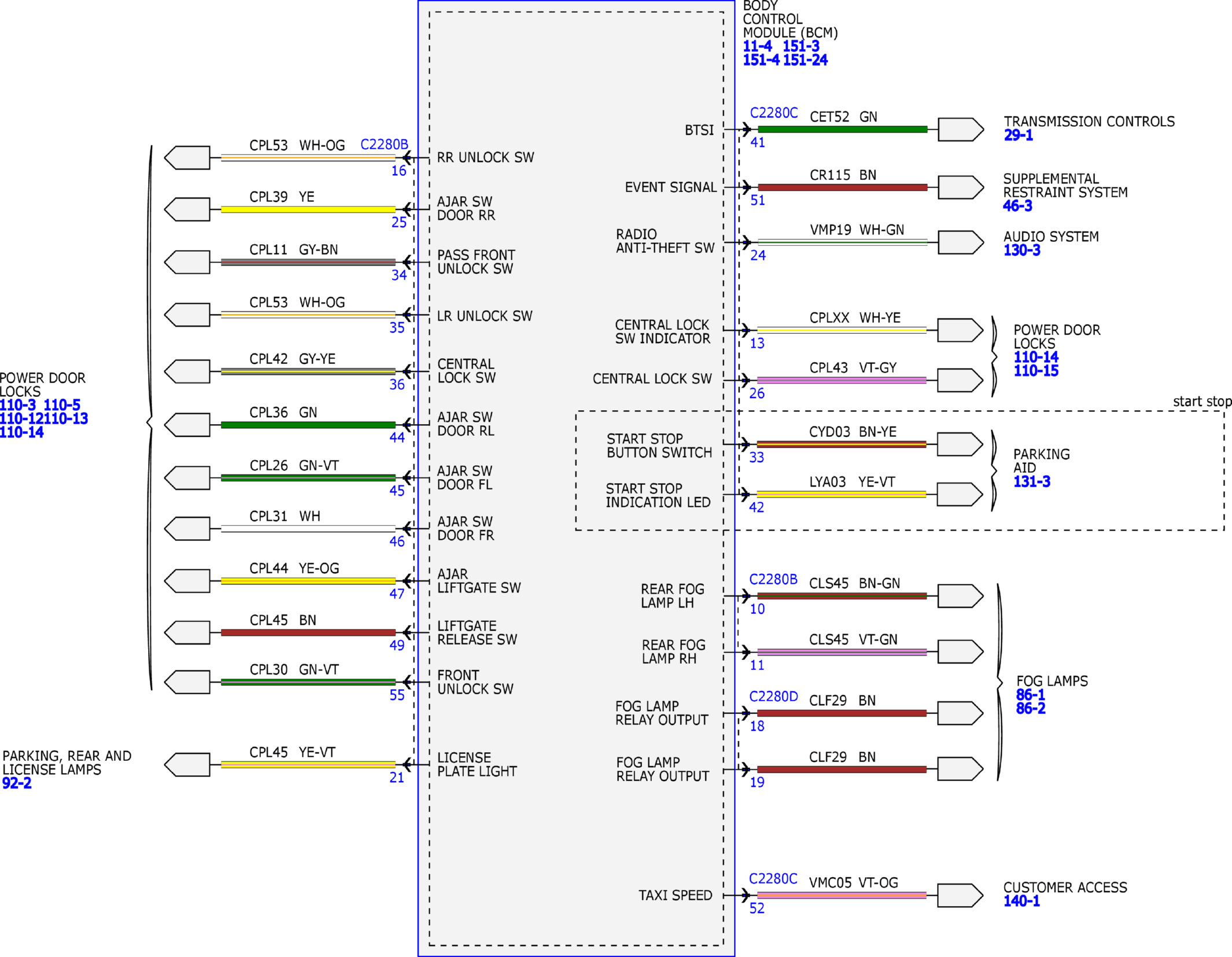

Fig 28: Power Distribution/BCM System Wiring Diagrams (28 Of 34)

GFDW17166

Courtesy of FORD MOTOR COMPANY

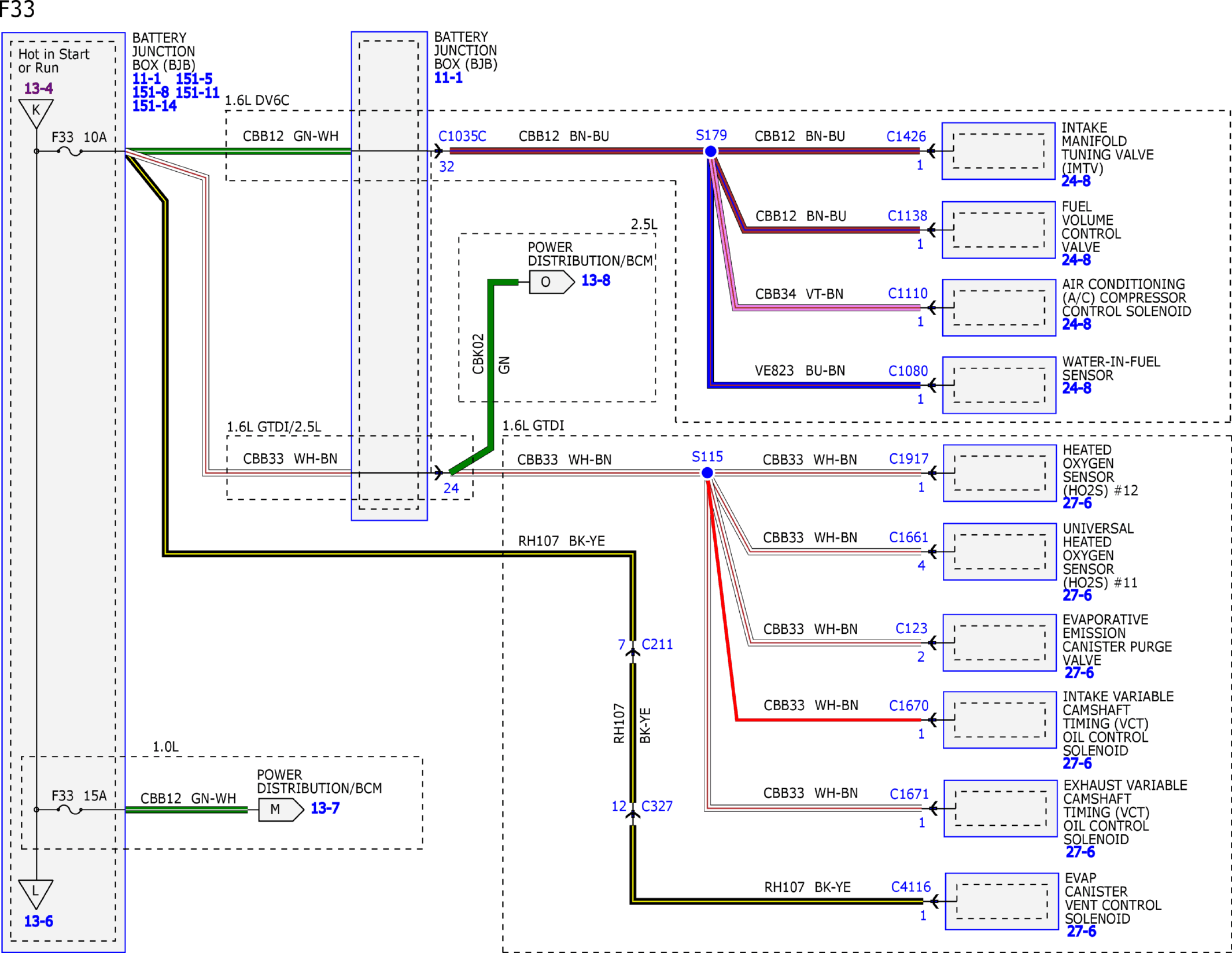

Fig 29: Power Distribution/BCM System Wiring Diagrams (29 Of 34)

GFDW17167

Courtesy of FORD MOTOR COMPANY

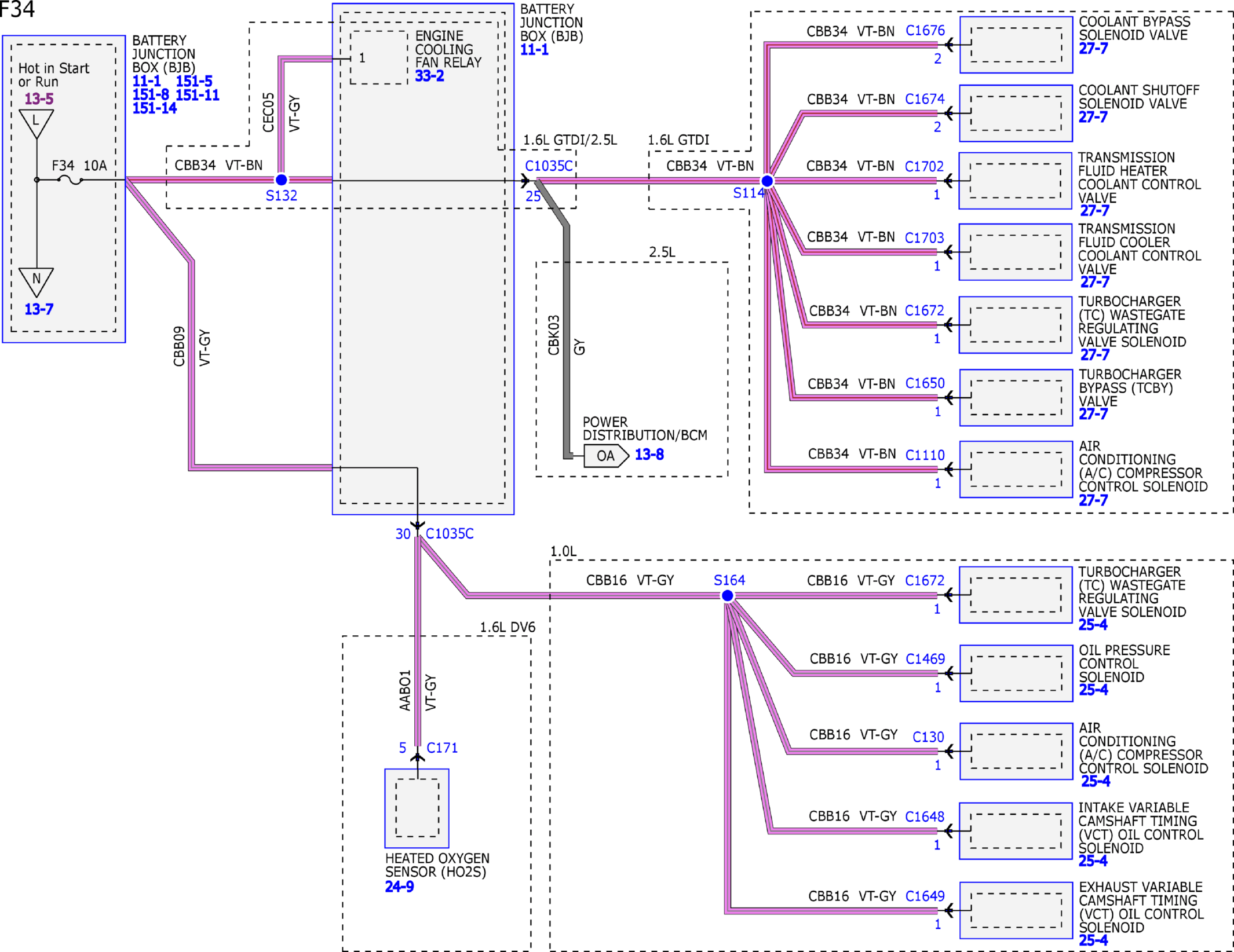

Fig 30: Power Distribution/BCM System Wiring Diagrams (30 Of 34)

GFDW17168

Courtesy of FORD MOTOR COMPANY

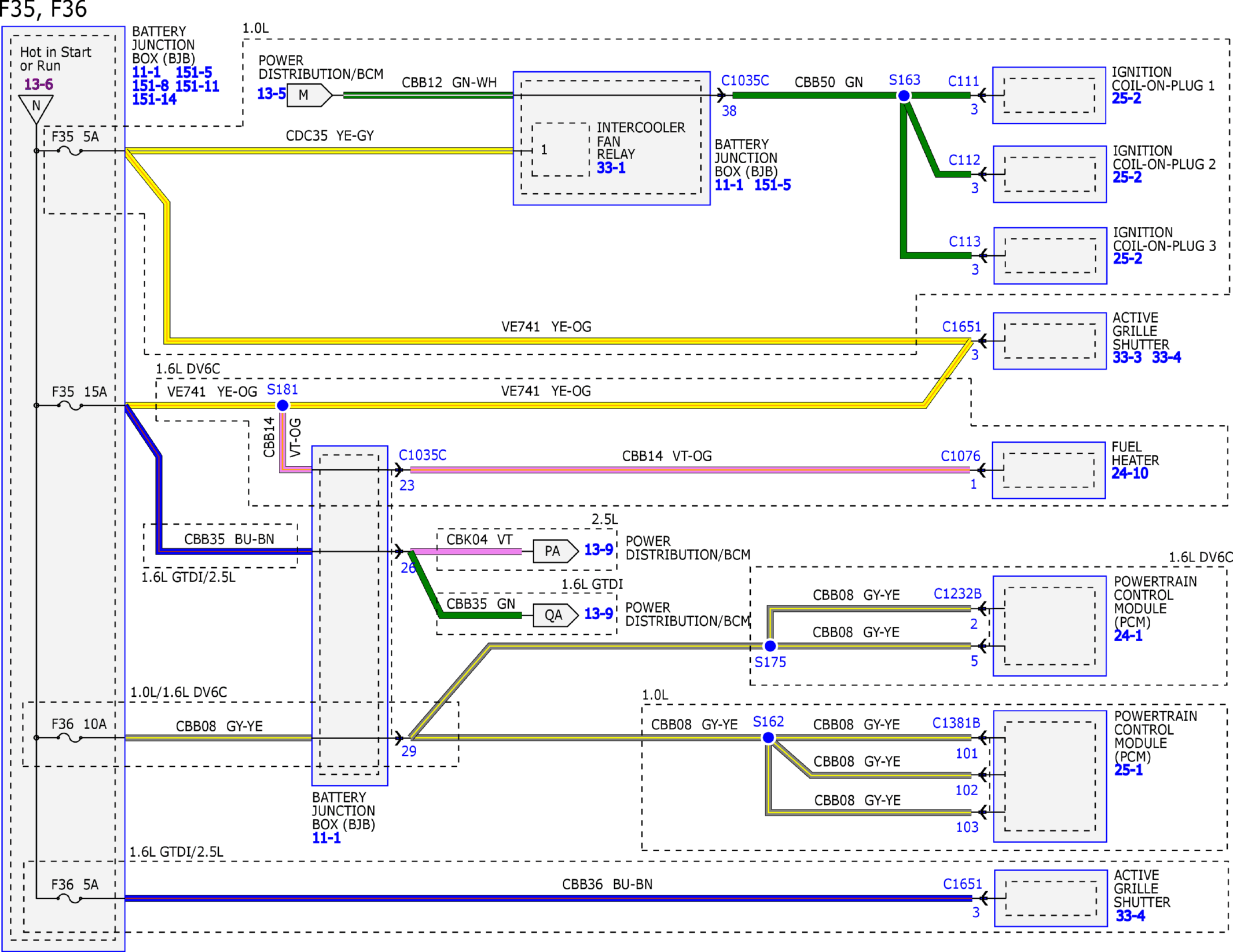

Fig 31: Power Distribution/BCM System Wiring Diagrams (31 Of 34)

GFDW17169

Courtesy of FORD MOTOR COMPANY

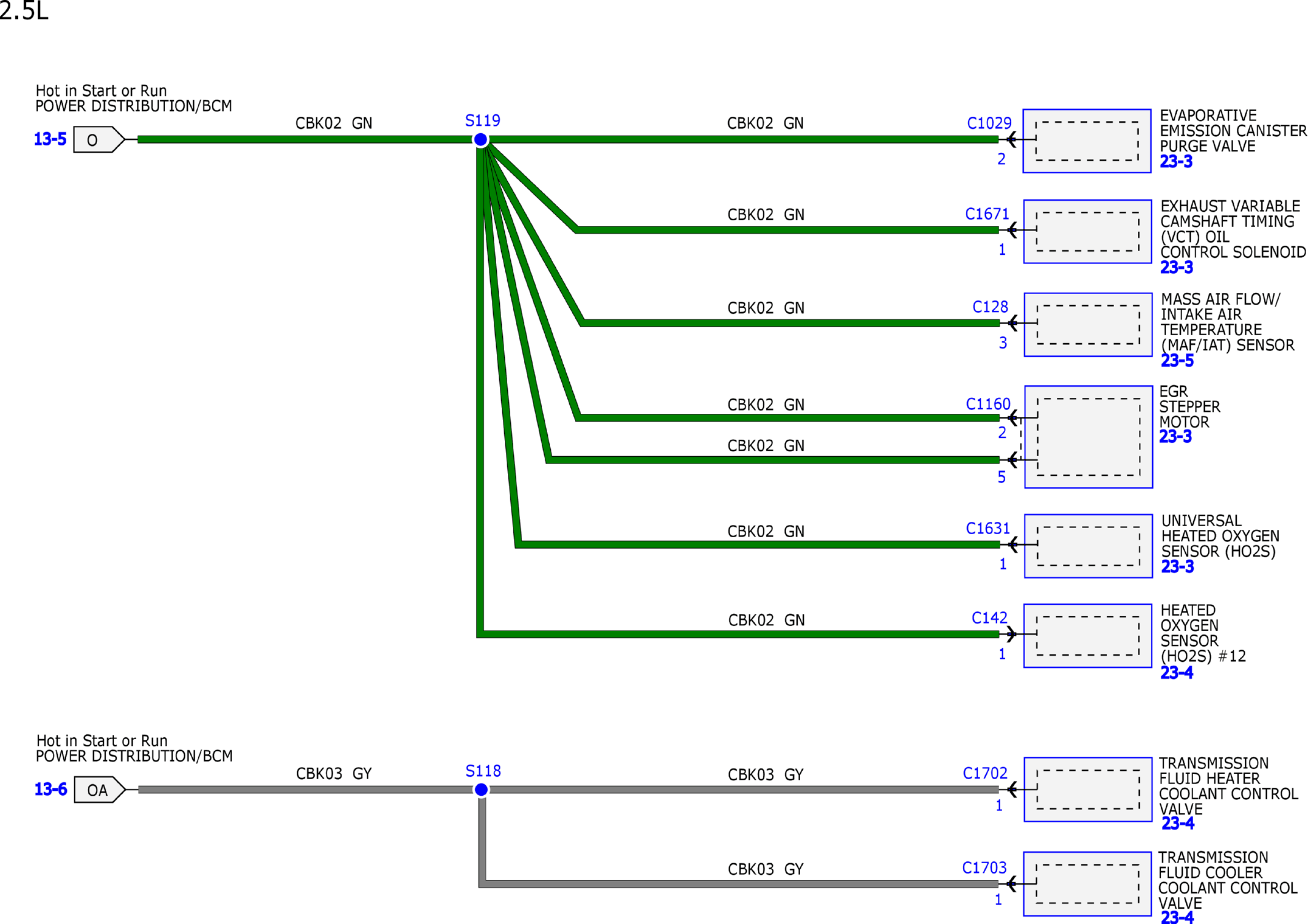

Fig 32: Power Distribution/BCM System Wiring Diagrams (32 Of 34)

GFDW17170

Courtesy of FORD MOTOR COMPANY

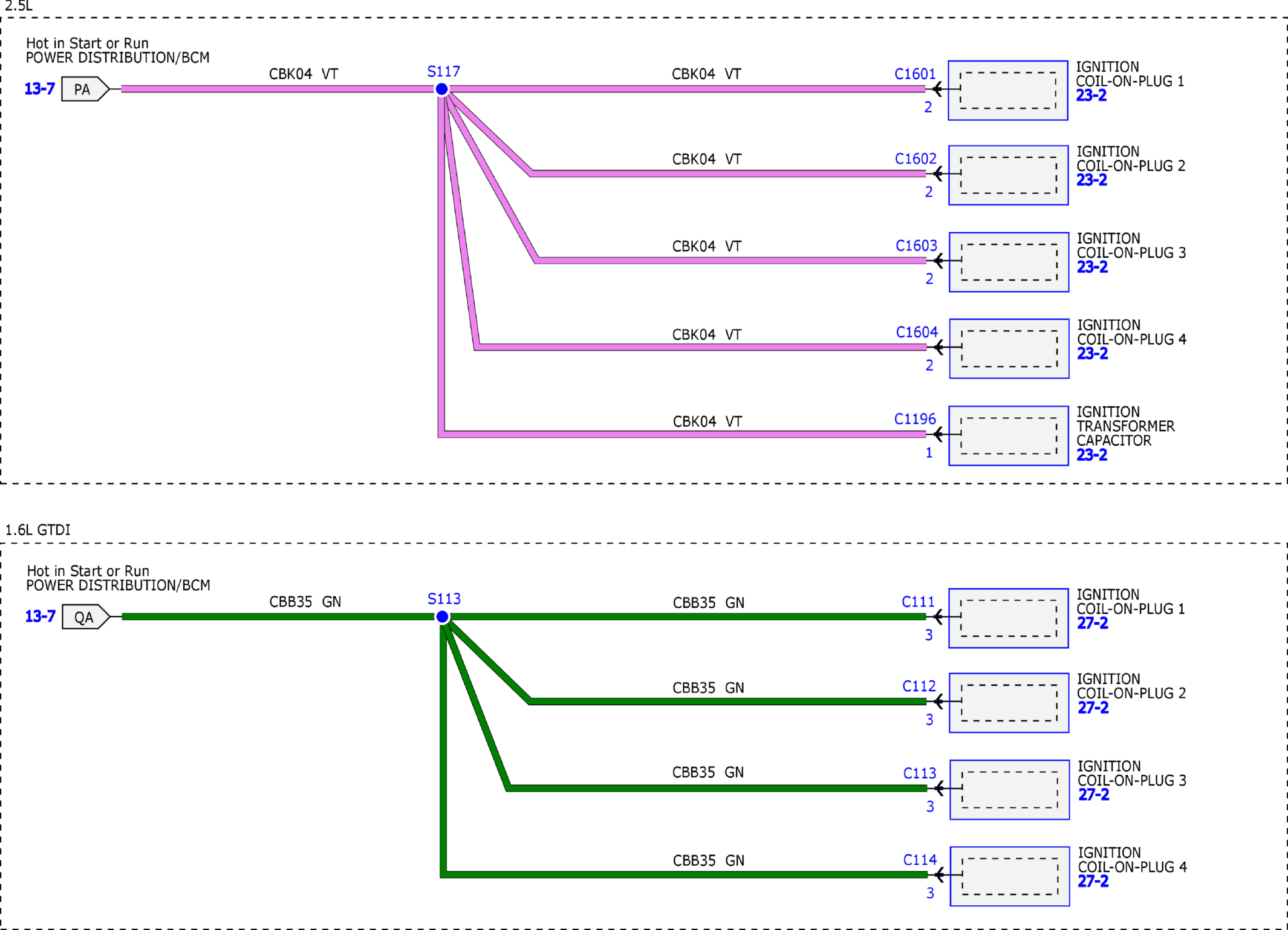

Fig 33: Power Distribution/BCM System Wiring Diagrams (33 Of 34)

GFDW17171

Courtesy of FORD MOTOR COMPANY

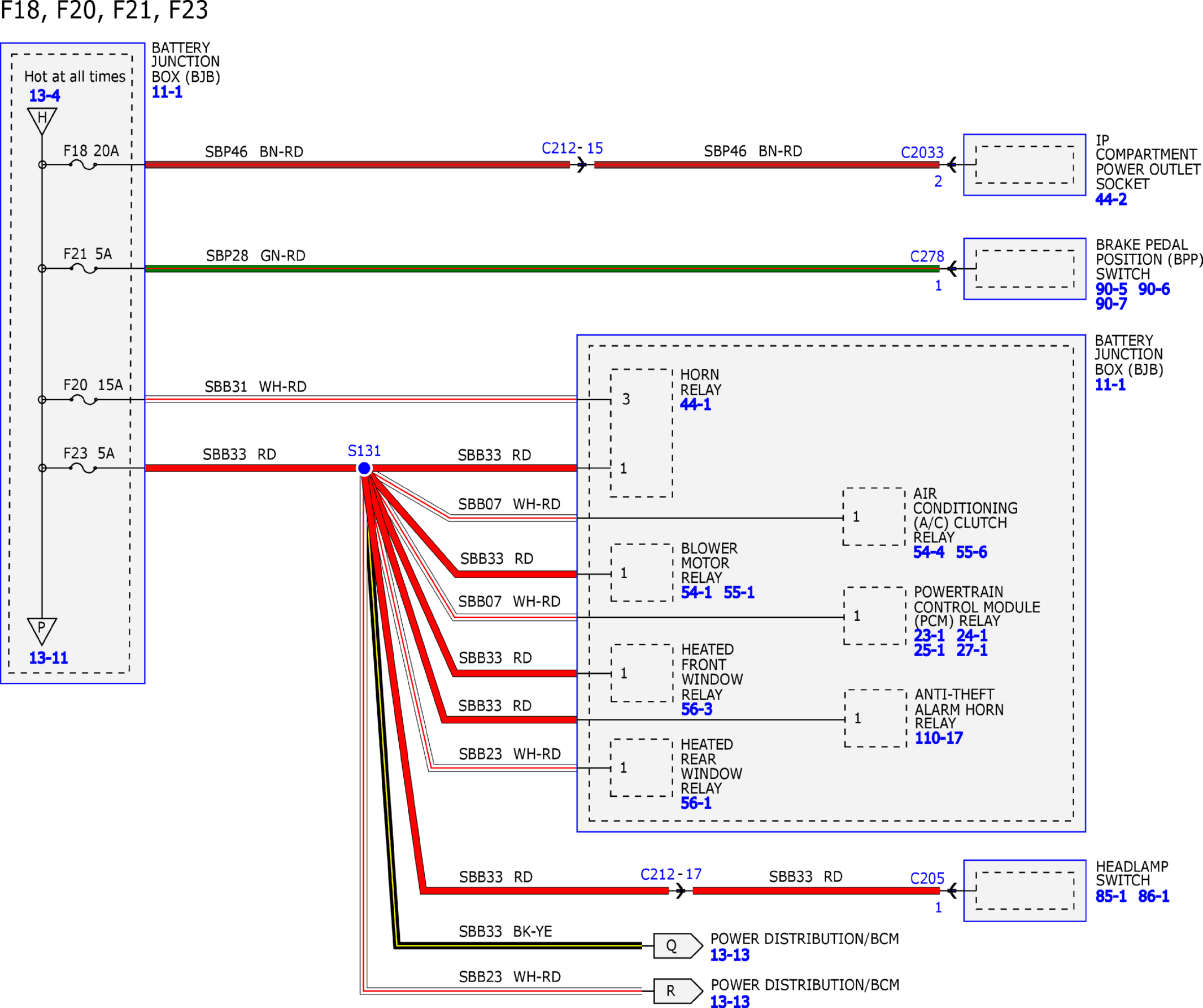

Fig 34: Power Distribution/BCM System Wiring Diagrams (34 Of 34)

GFDW17172

Courtesy of FORD MOTOR COMPANY
