Power Steering Controls System
Power Steering Controls System

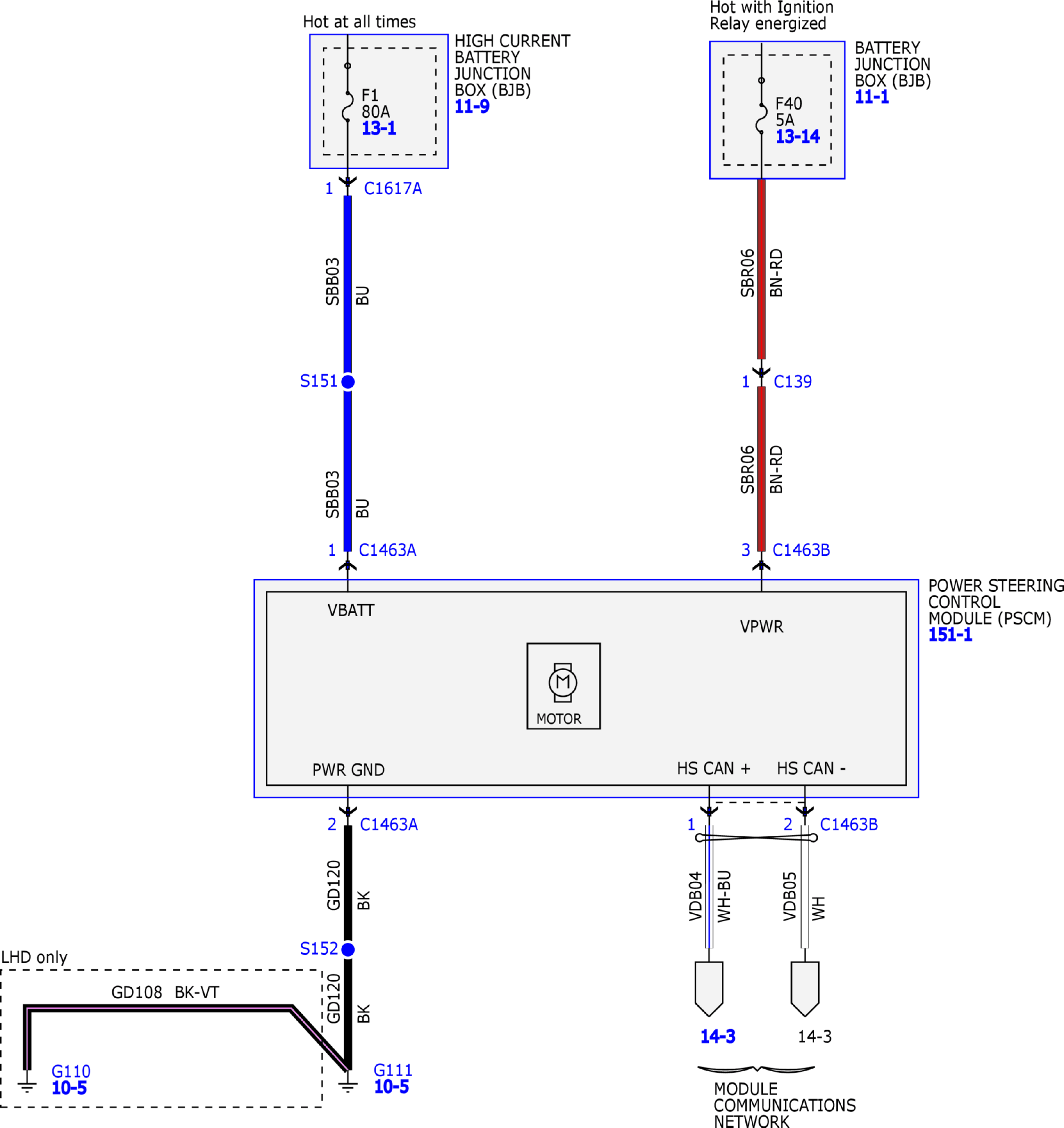

Fig 1: Power Steering Controls System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
