Shift Interlock System
Shift Interlock System

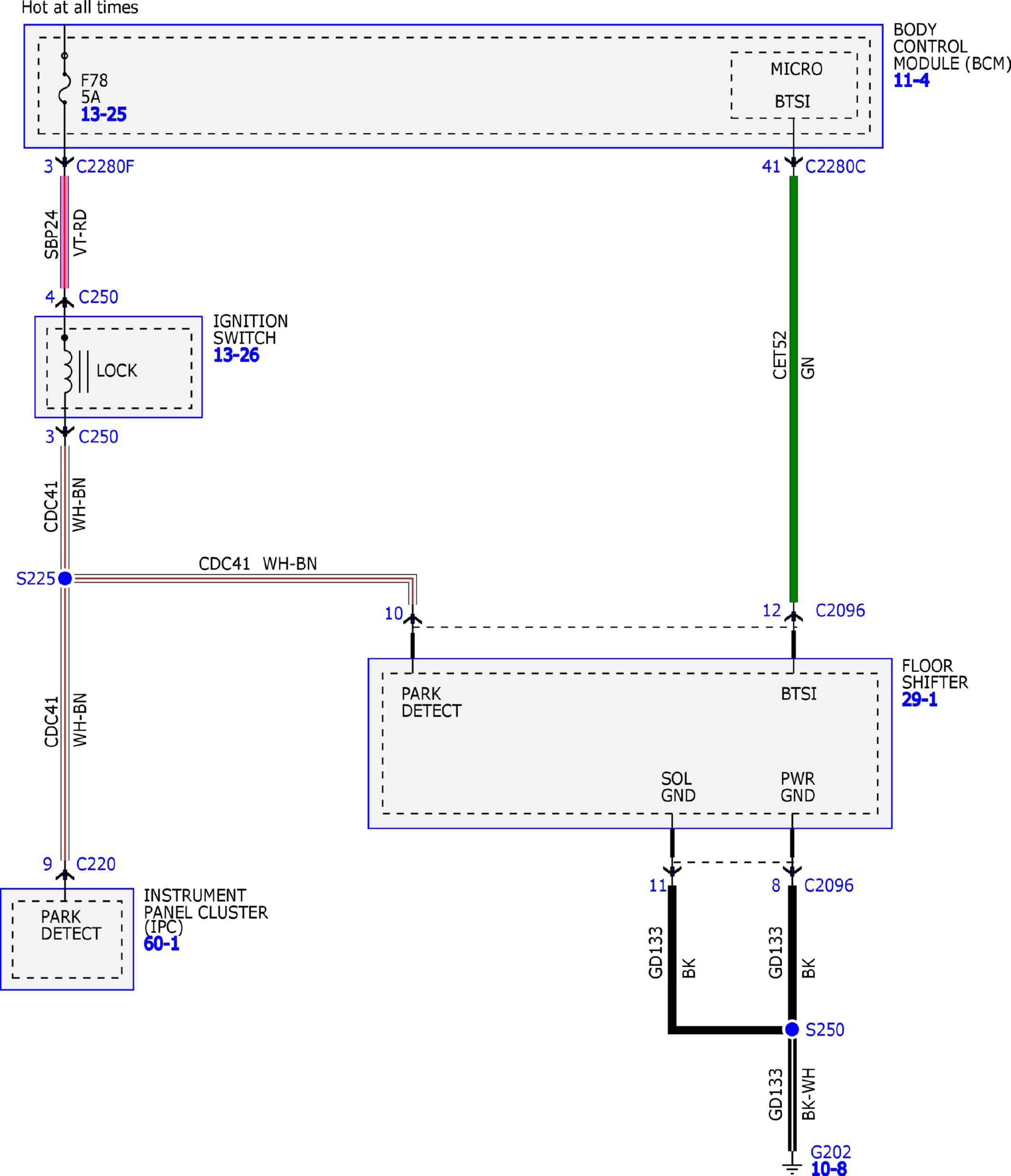

Fig 1: Shift Interlock System Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
