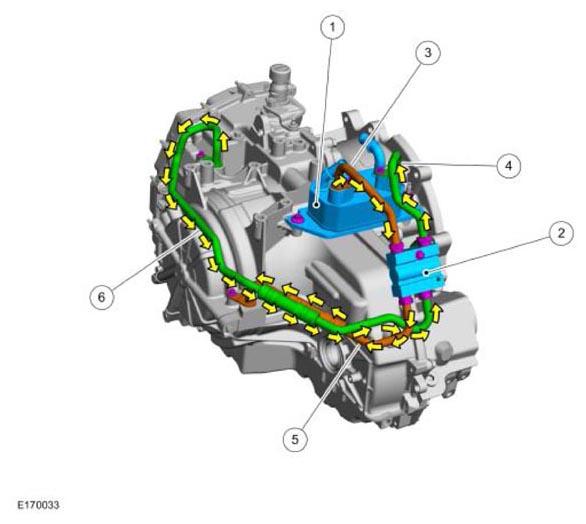

Transmission Cooling - Overview
| Item | Description |
|---|---|
| 1 | Transmission fluid heat exchanger |
| 2 | Transmission fluid cooler bypass valve |
| 3 | Cooler tube - Fluid heat exchanger to cooler bypass valve |
| 4 | Cooler tube - Cooler bypass valve to fluid heat exchanger |
| 5 | Cooler tube - Cooler bypass valve to transmission |
| 6 | Cooler tube - Transmission to cooler bypass valve |
