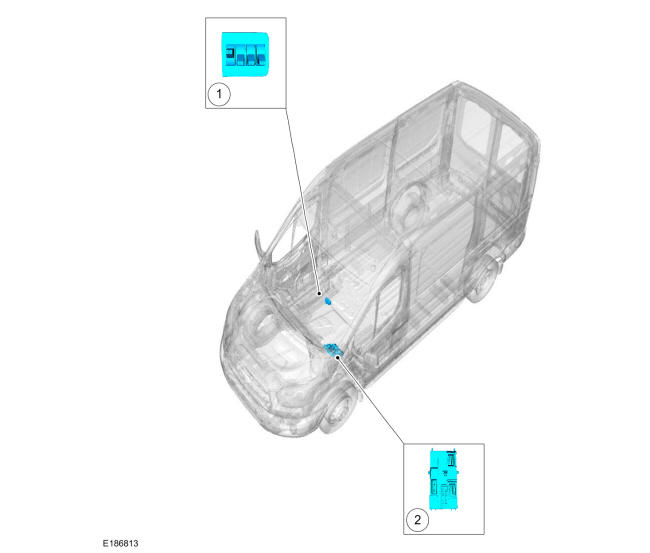

Module Controlled Functions - Component Location
Module Controlled Functions - Component Location
Module Controlled Functions - Component Location
Courtesy of FORD MOTOR COMPANY
Item
Description
1
Auxiliary Switches
2
BCM
Courtesy of FORD MOTOR COMPANY
