Audio System/Navigation - Am/Fm/Cd/Sync

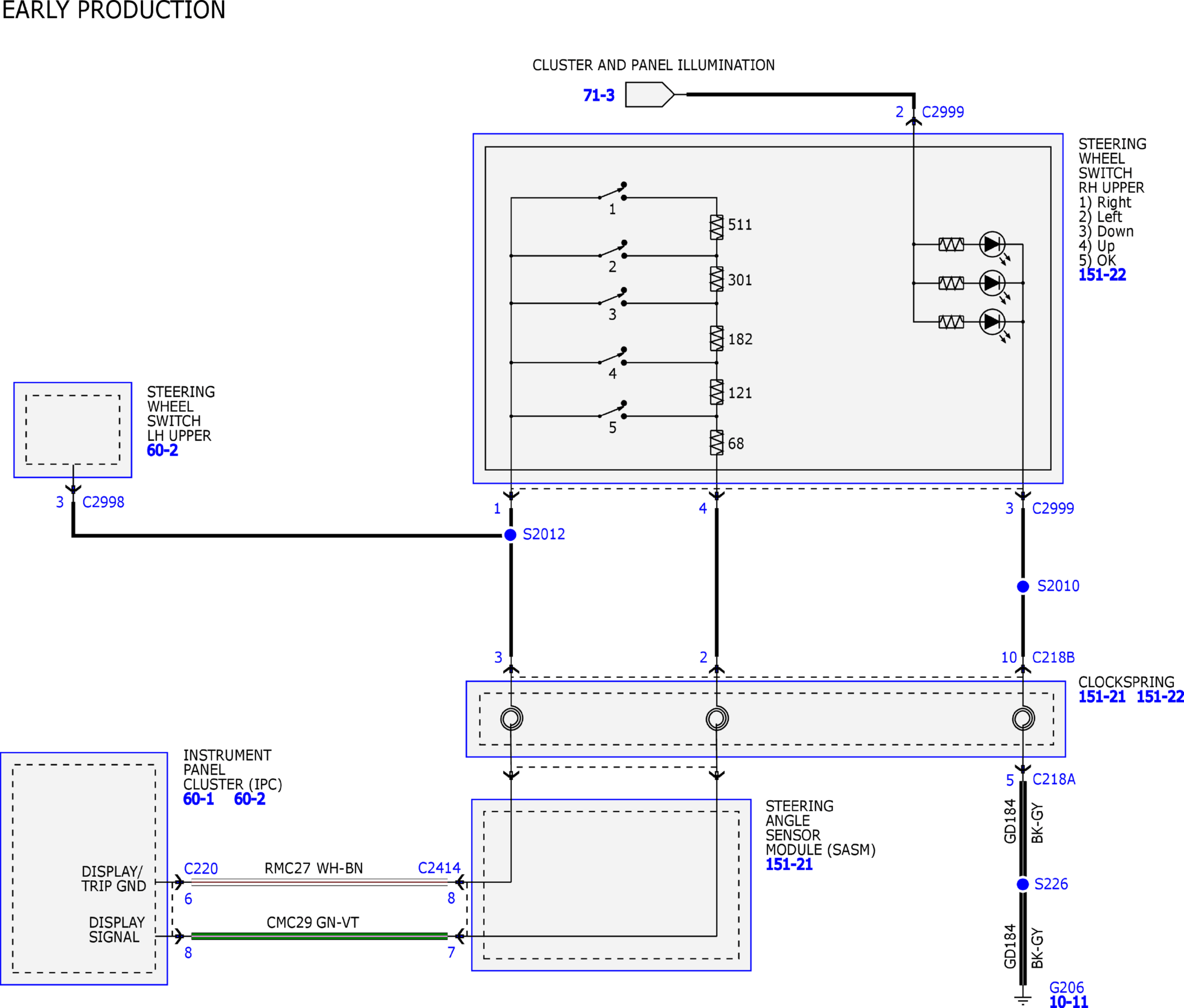

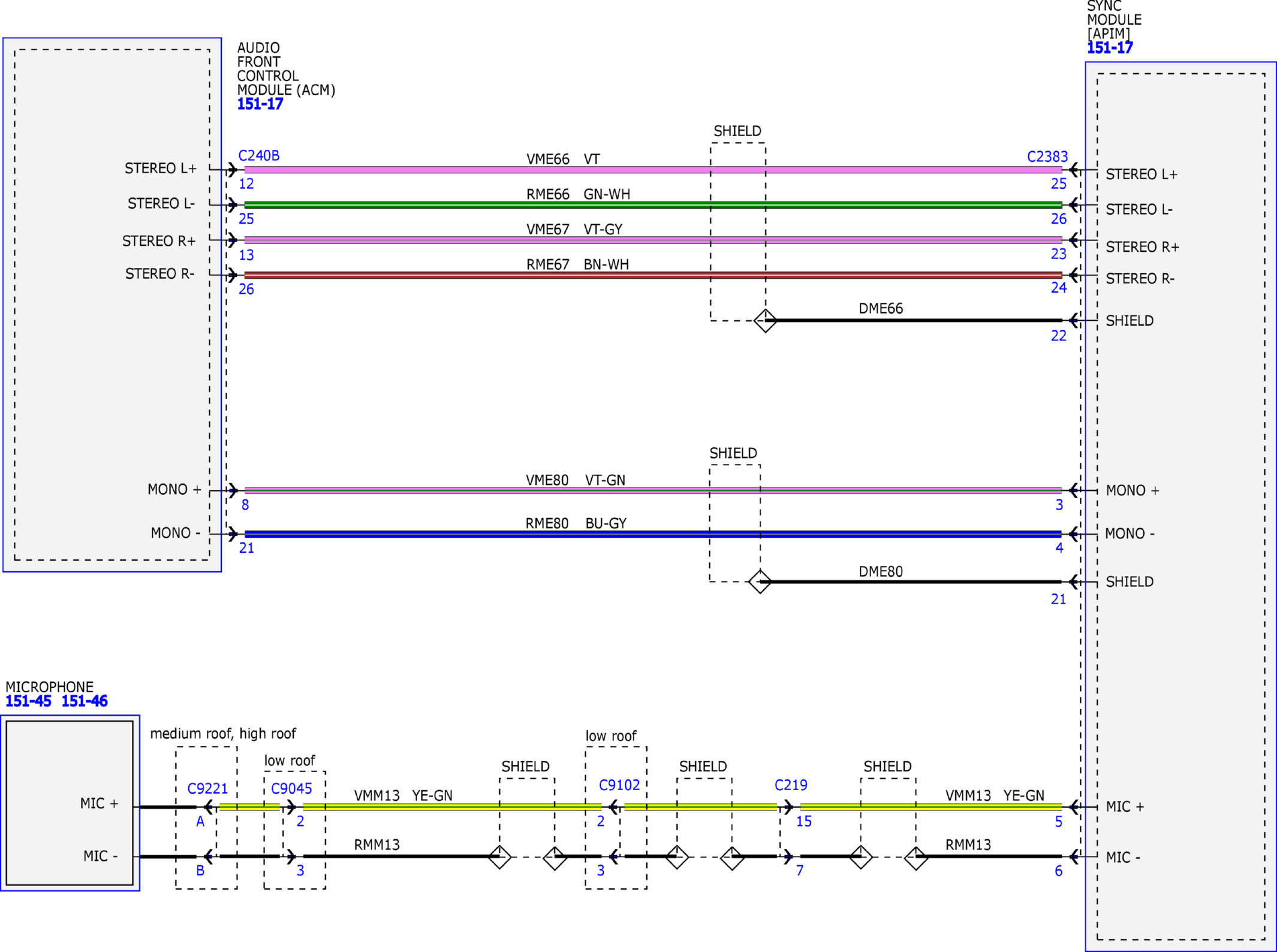

Fig 1: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (1 of 11)

Courtesy of FORD MOTOR COMPANY

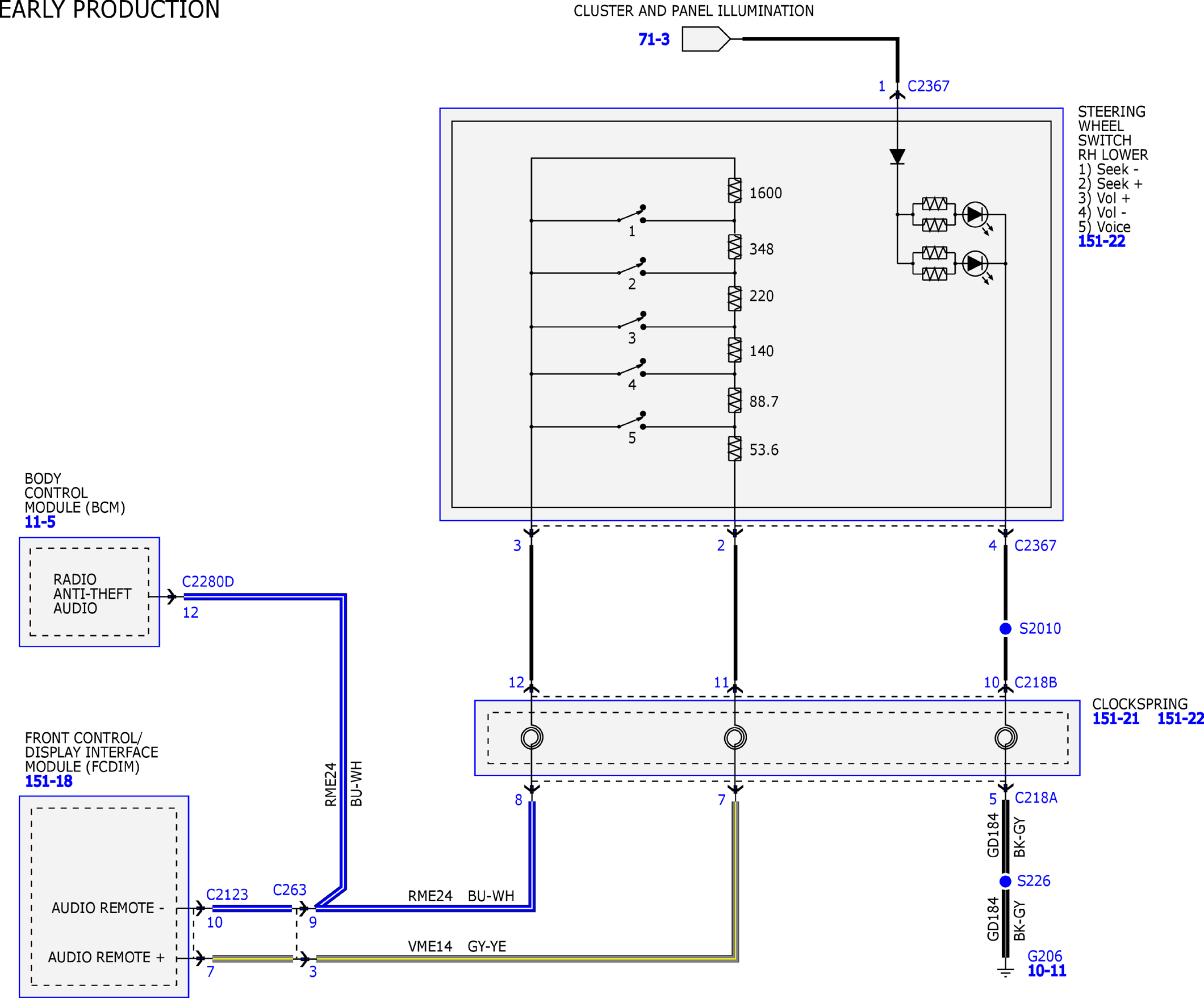

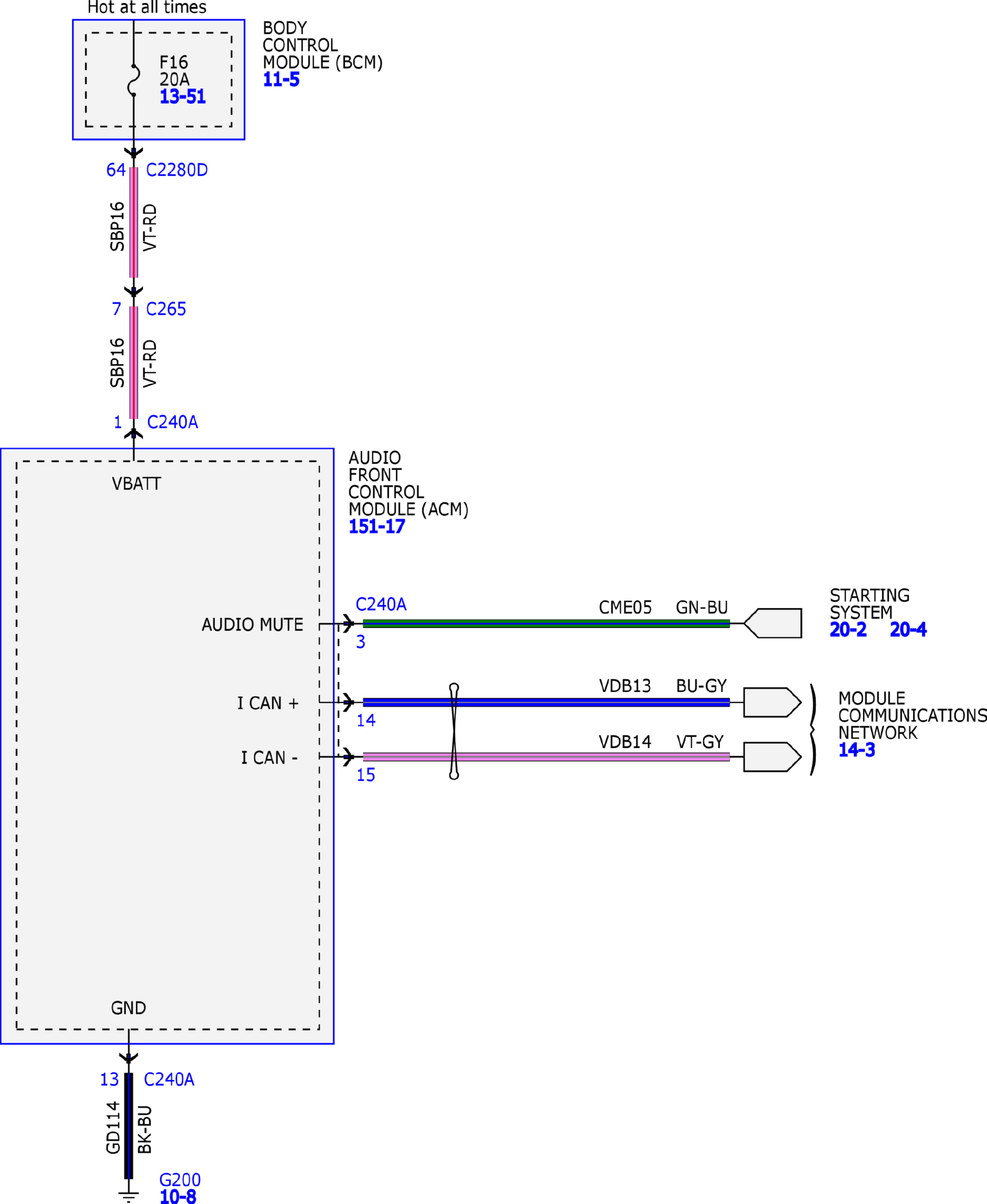

Fig 2: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (2 of 11)

Courtesy of FORD MOTOR COMPANY

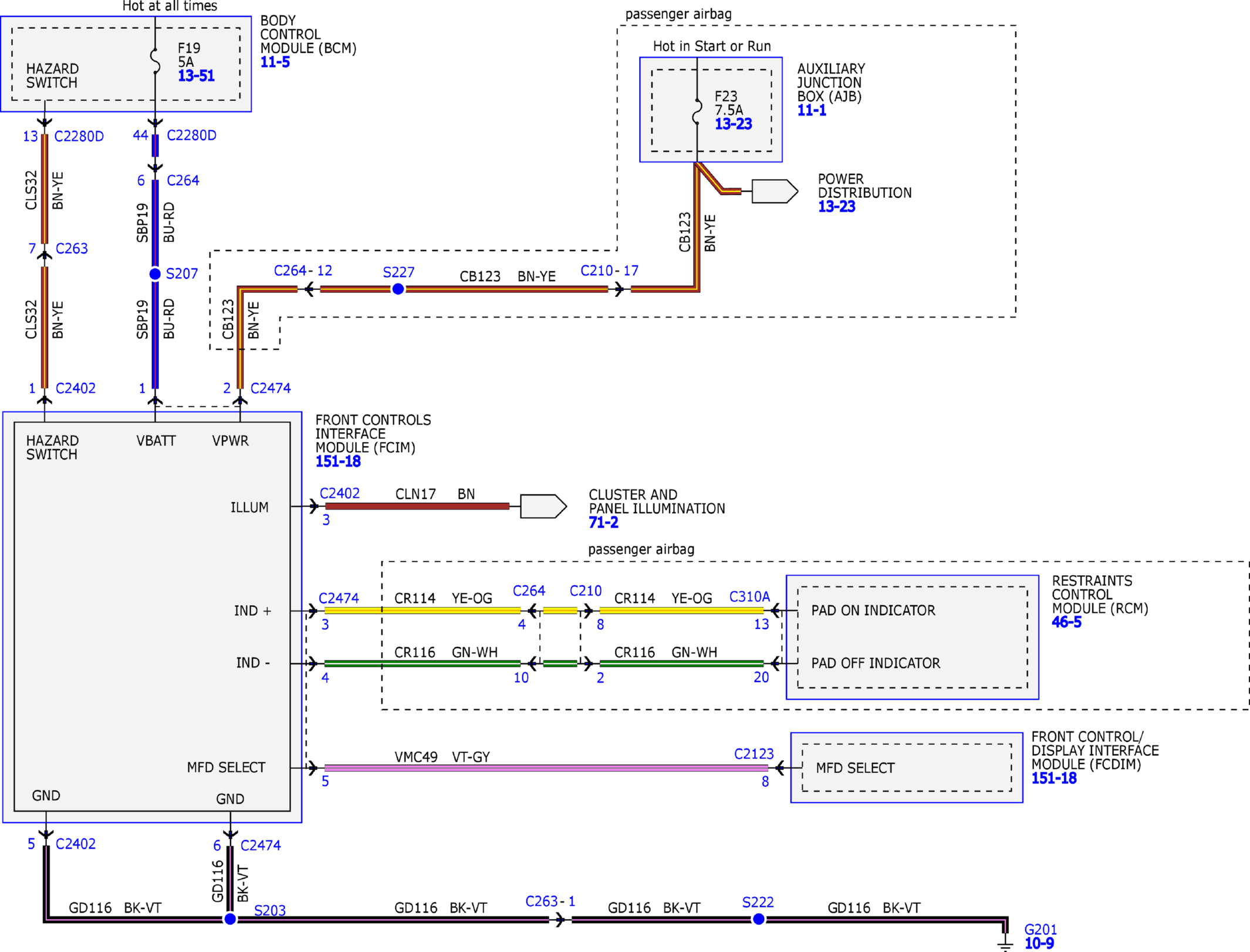

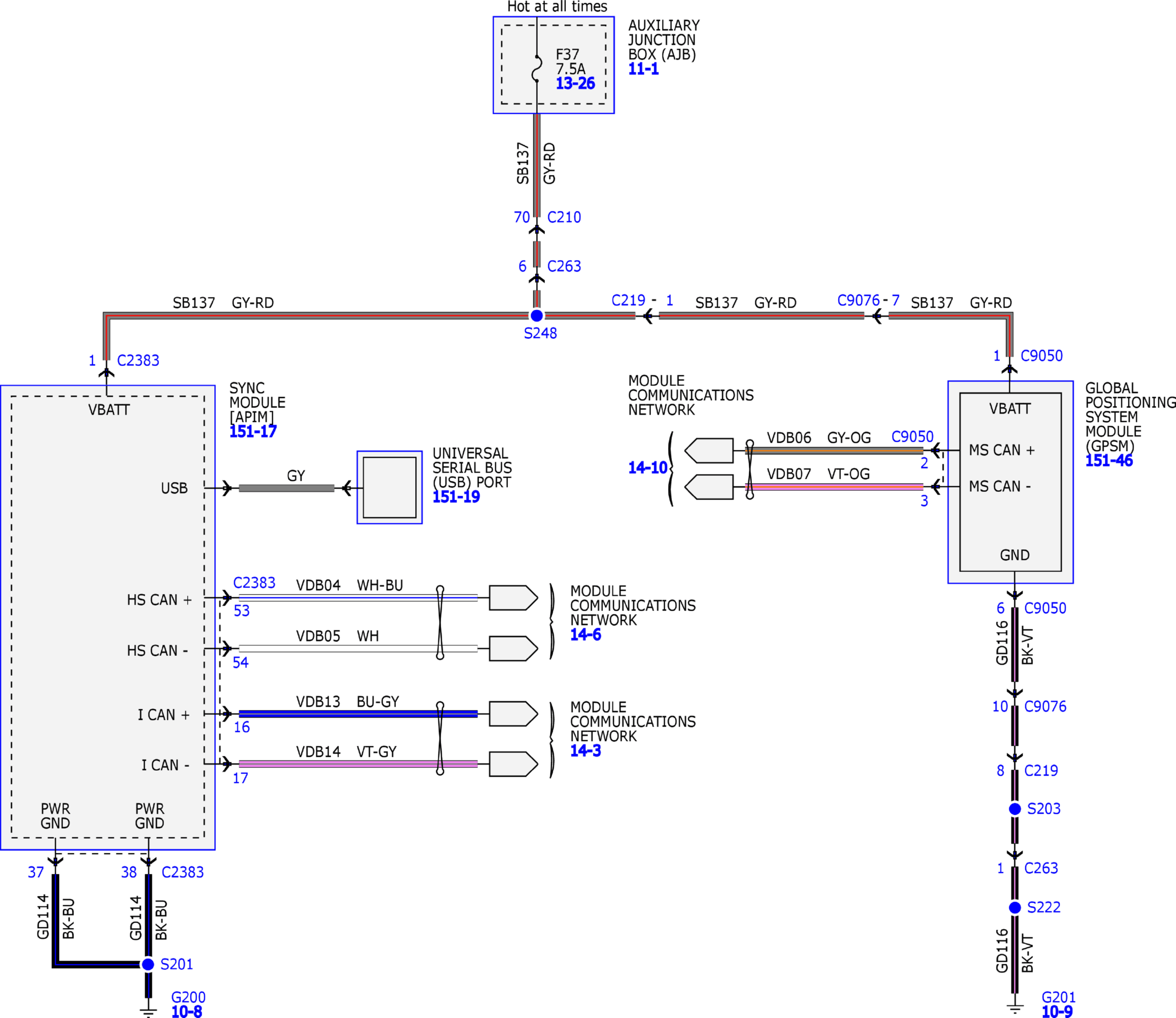

Fig 3: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (3 of 11)

Courtesy of FORD MOTOR COMPANY

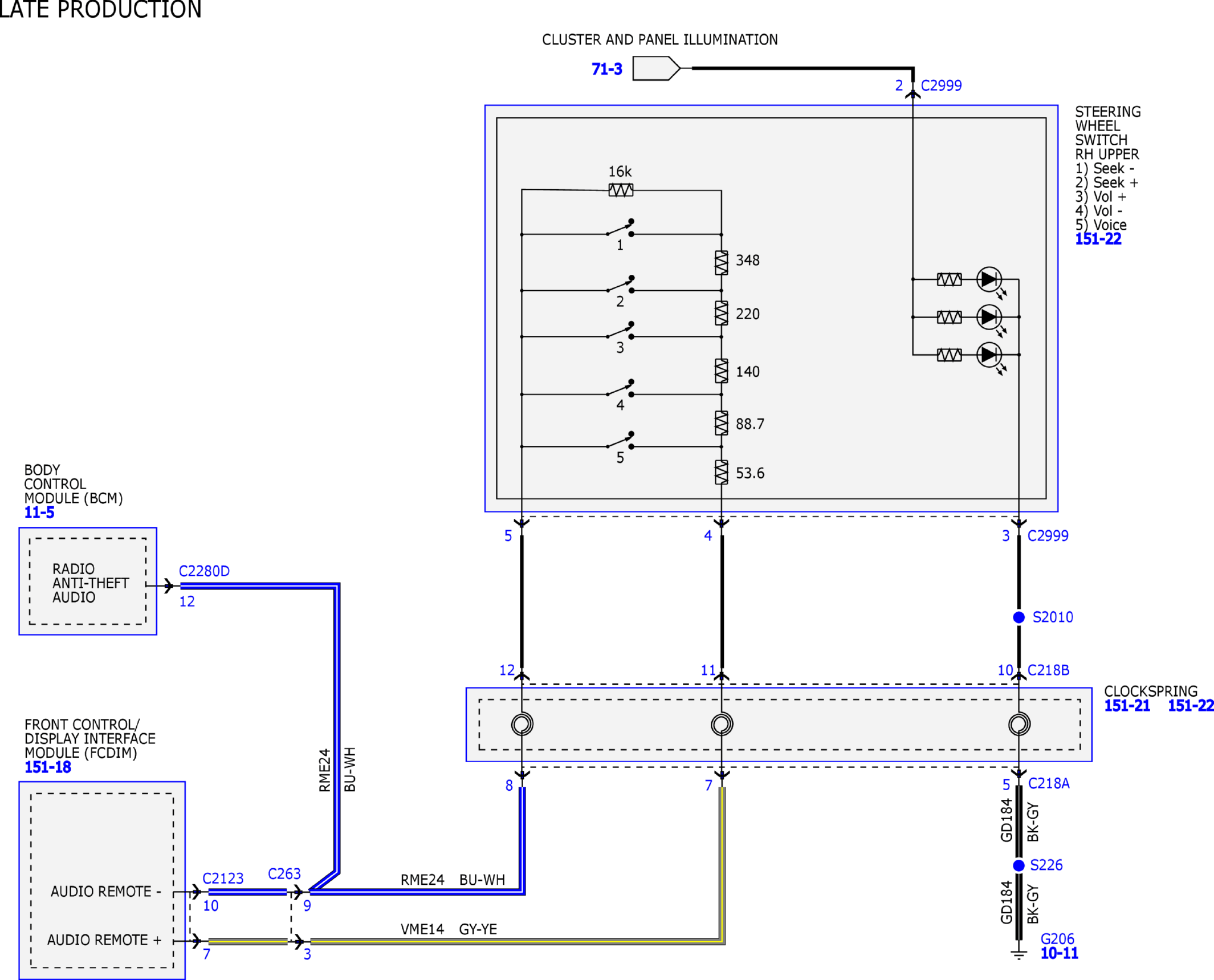

Fig 4: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (4 of 11)

Courtesy of FORD MOTOR COMPANY

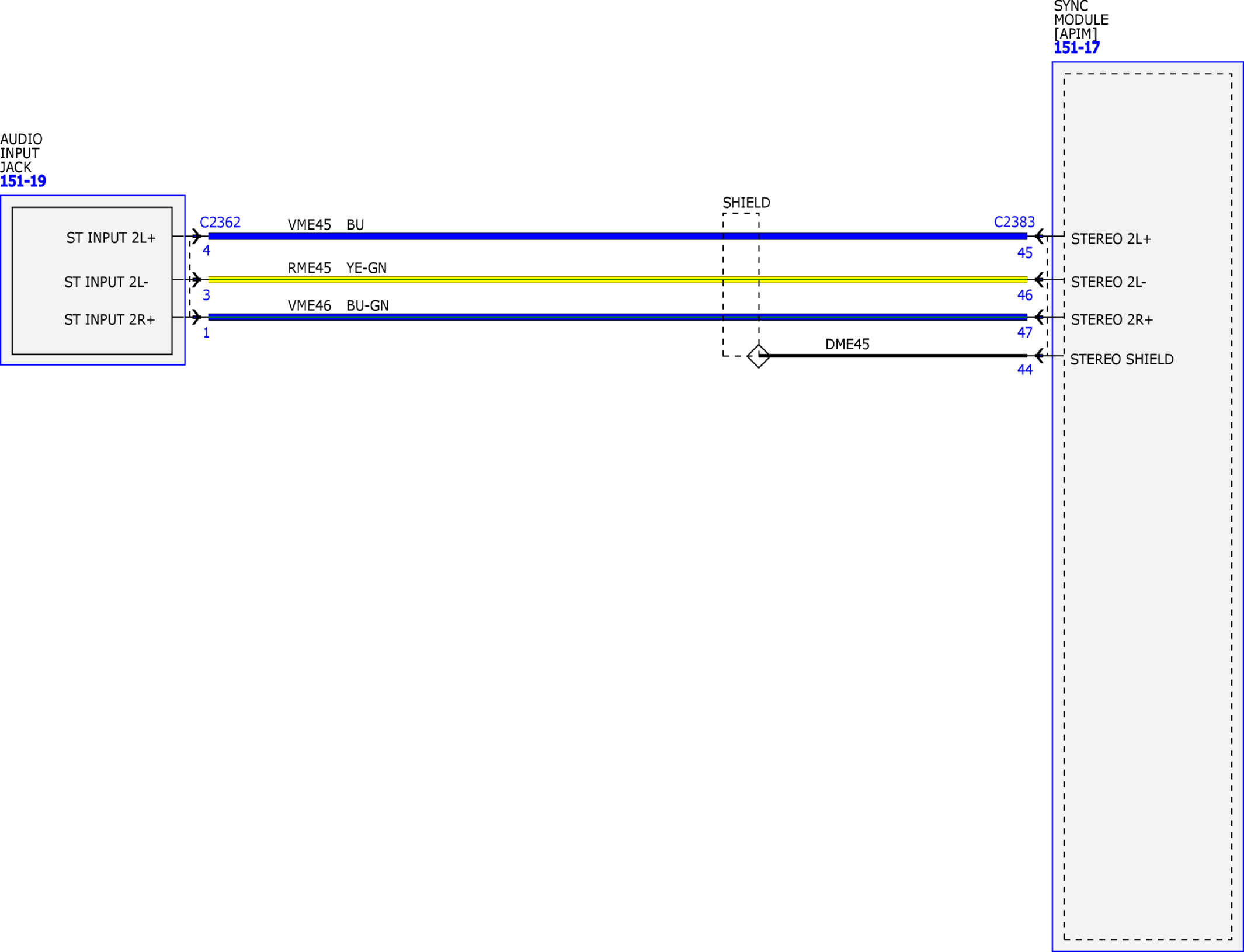

Fig 5: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (5 of 11)

Courtesy of FORD MOTOR COMPANY

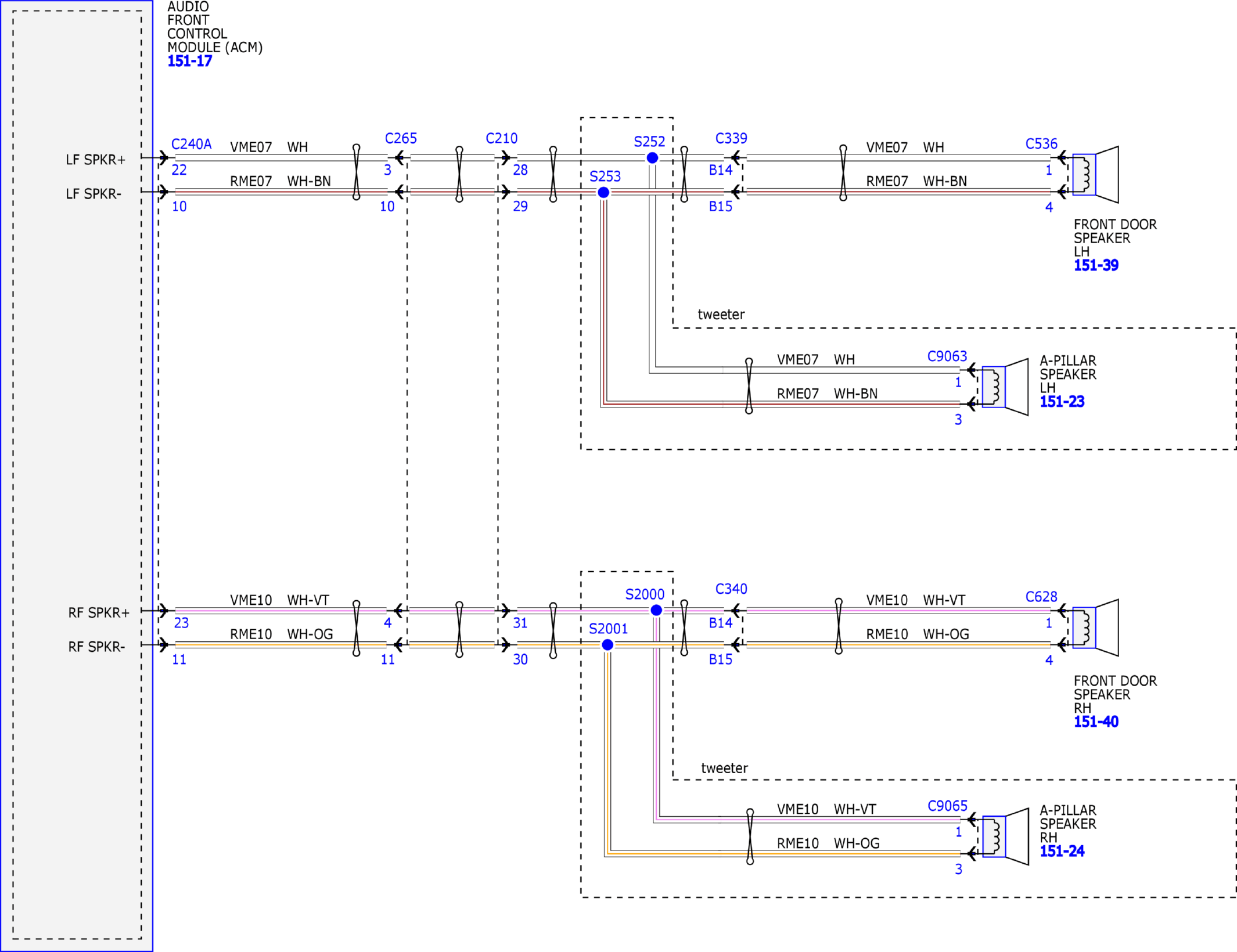

Fig 6: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (6 of 11)

Courtesy of FORD MOTOR COMPANY

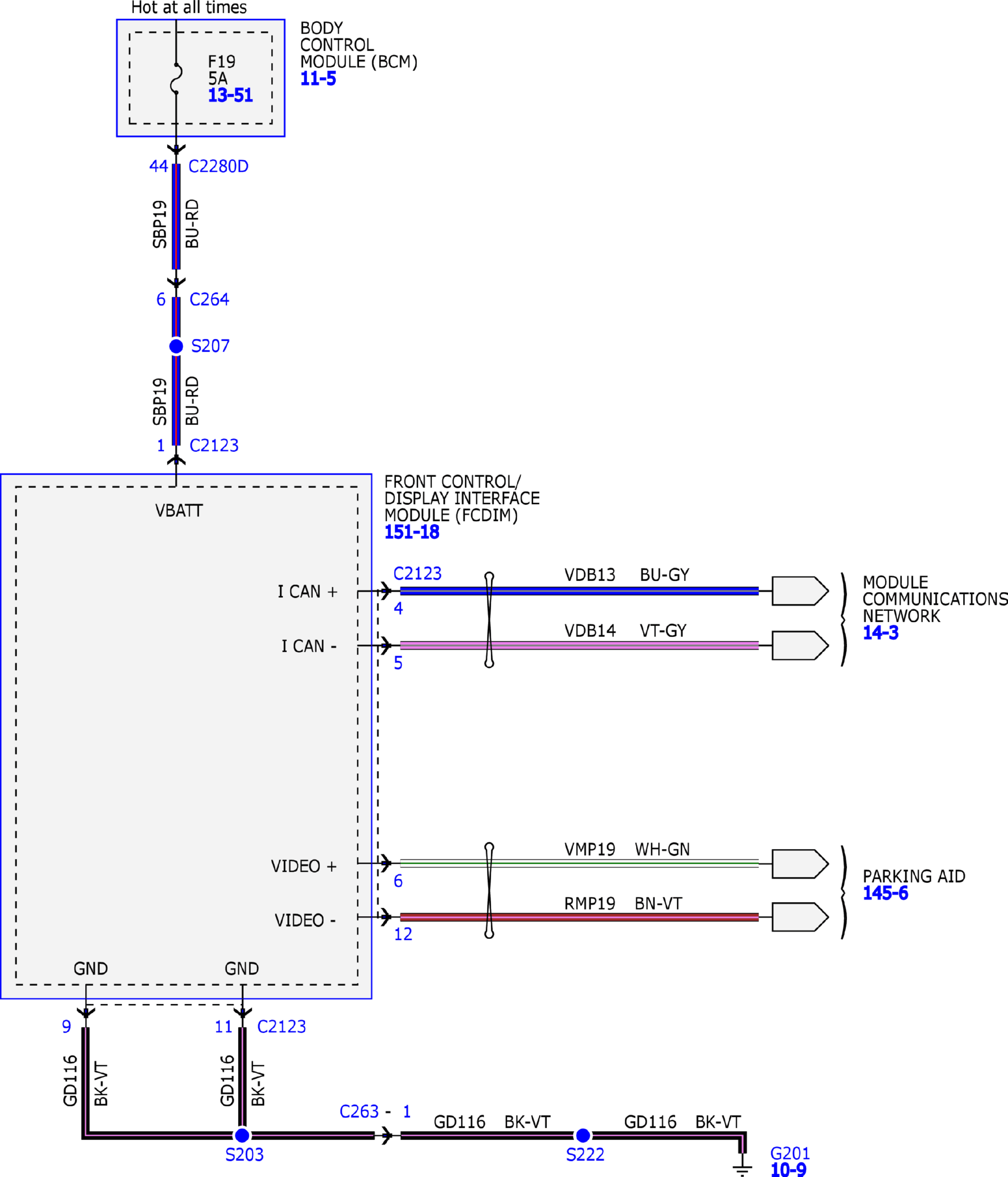

Fig 7: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (7 of 11)

Courtesy of FORD MOTOR COMPANY

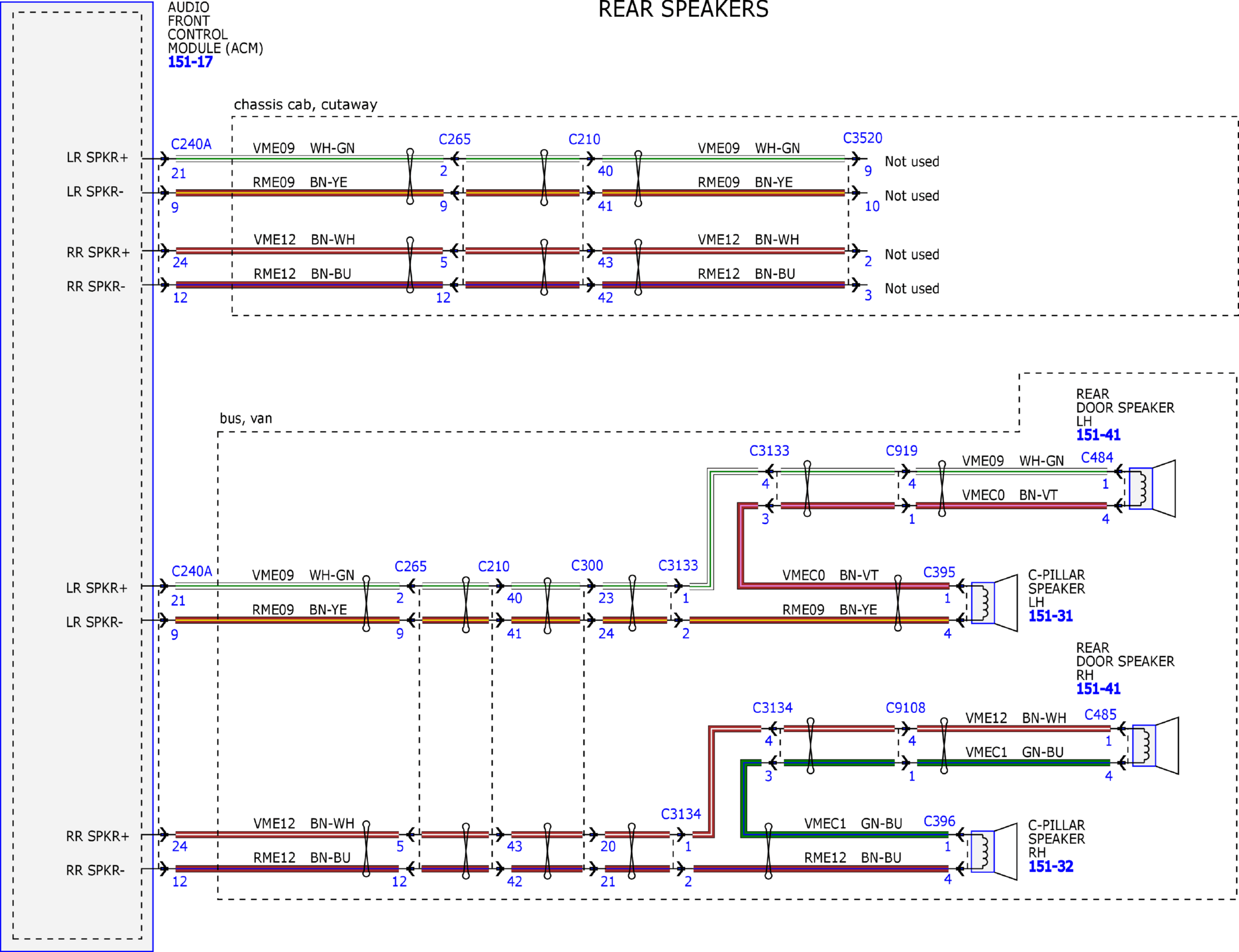

Fig 8: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (8 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (9 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (10 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Audio System/Navigation - AM/FM/CD/SYNC Wiring Diagram (11 of 11)

Courtesy of FORD MOTOR COMPANY
