Body Control Module (BCM): Removal

1.

NOTE: This step is only necessary if the BCM is being replaced.

NOTE: If installing a new BCM, verify at least 2 of the vehicle keys are available prior to carrying out this procedure (some vehicles may require 4 keys depending on configuration).

NOTE: Not all vehicles have PATS. IKT type of keys for non- PATS and PATS equipped vehicles look identical. On the OASIStab, click on the Additional Information link and use the search function (Ctrl+F) to find IMMOBILIZER. Vehicles with "LESS ENG IMMOBILIZER THEFT SYS" are not equipped with a PATS.

NOTE: If the BCM did not respond to the diagnostic scan tool, As-Built Data may need to be entered as part of the repair.

Using a diagnostic scan tool, begin the PMI process for the BCM following the on-screen instructions.

2.

Remove the instrument panel console. REFER to: Instrument Panel Console

3.

Release the 2 clips and remove the LH side access panel.

GFD73171

Courtesy of FORD MOTOR COMPANY

4.

Release the 3 clips and remove the LH cup holder.

GFD73172

Courtesy of FORD MOTOR COMPANY

5.
- 1.

  Remove the 5 screws.
  Torque

  : 18 lb.in (2 Nm)
- 2.

  Release the 6 clips and position the LH instrument panel finish panel.
- 3.

  Disconnect the 2 electrical connectors and remove the LH instrument panel finish panel.

GFD73173

Courtesy of FORD MOTOR COMPANY

6.

Remove the 6 screws and the lower RH instrument panel close out panel.

GFD73174

Courtesy of FORD MOTOR COMPANY

7.
- 1.

  Disconnect the 4 electrical connectors.
- 2.

  Release the retaining clip.
- 3.

  Lift the BCM out of the mounting bracket.

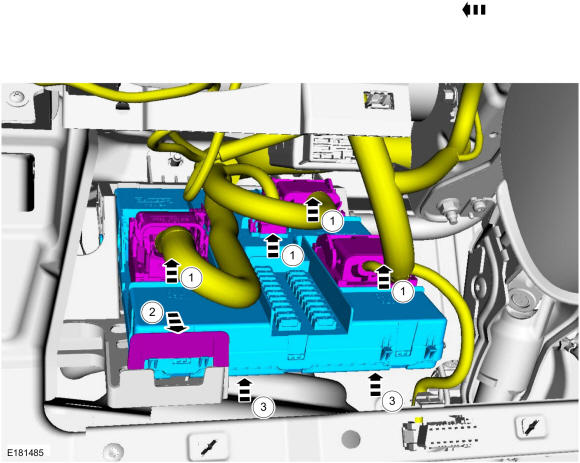

GFD76518
