Front Head Restraint Guide Sleeve: Removal

• 1.

  Press the head restraint primary and secondary buttons to release the head restraint. Remove the head restraint.

Courtesy of FORD MOTOR COMPANY

• 2.


  NOTE: Follow the unique instructions or graphic for this step in the installation.

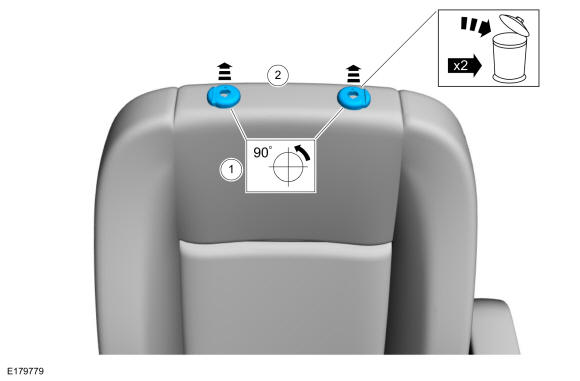

  • 1.

    Rotate the head restraint guide sleeves counter clockwise 90 degrees.

  • 2.

    Remove the head restraint guide sleeves and discard.

Courtesy of FORD MOTOR COMPANY
