Front Seat Control Switch: Removal

• 1.

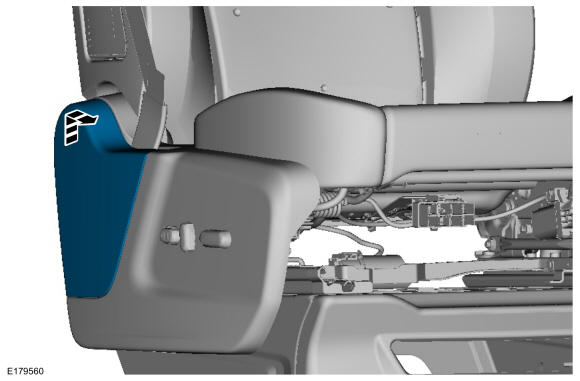

  Lift and slide the safety belt cover forward to remove.

Courtesy of FORD MOTOR COMPANY

• 2.



  • 1.

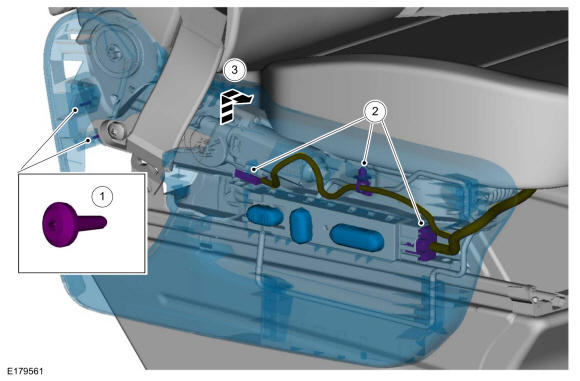

    Remove the side shield fasteners.

  • 2.

    Disconnect the electrical connectors. Release the wire harness fastener and position the harness aside.

  • 3.

    Lift and slide the side shield forward to remove.

Courtesy of FORD MOTOR COMPANY

• 3.



  • 1.

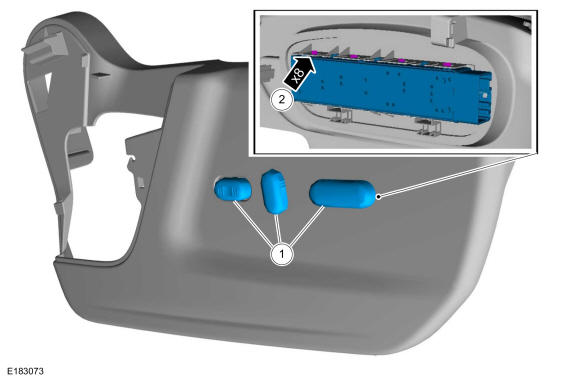

    Remove the seat control switch knobs.

  • 2.

    Release the seat control switch locking tabs. Remove the control switch.

Courtesy of FORD MOTOR COMPANY
