Front Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  Remove the wheel and tire. Refer to: Wheel and Tire .

• 2.

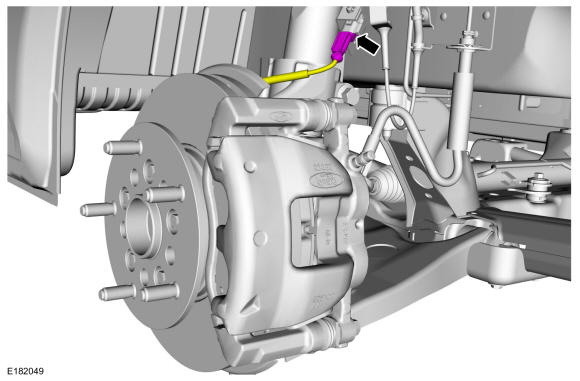

  Disconnect the front wheel speed sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

• 3.

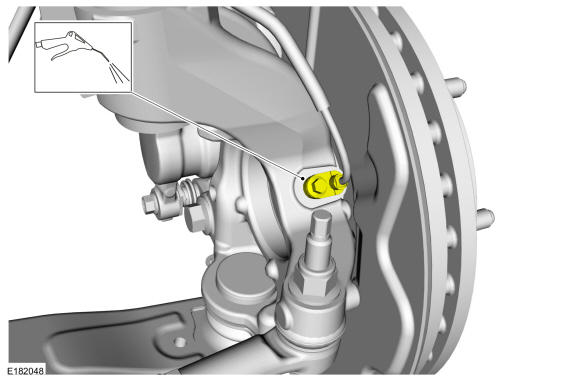

  Using compressed air, clean the area surrounding the front wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

• 4.

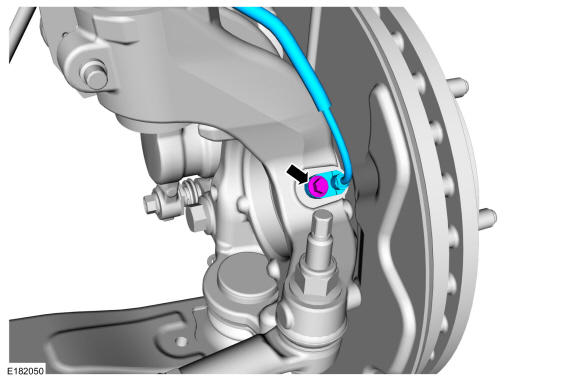

  Remove the bolt and the front wheel speed sensor.

  Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
