Hydraulic Control Unit (HCU): Removal
NOTE:
Removal steps in this procedure may contain installation details.
- 1.NOTE: This step is necessary when installing a new HCU or ABS module.NOTE: The PMI process must begin with the current ABS module installed. If the current ABS module does not respond to the diagnostic scan tool, the tool may prompt for As-Built Data as part of the repair.
Using a diagnostic scan tool, begin the PMI process for the ABS module following the on-screen instructions.
- 2.
Remove the LH headlamp assembly. Refer to: Headlamp Assembly .
- 4.NOTE: Make sure that all openings are sealed.

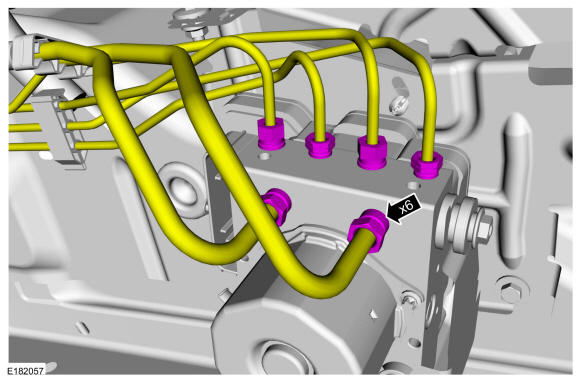

Disconnect the 6 brake tube fittings.
Torque: 159 lb.in (18 Nm)
