Rear Wheel Speed Sensor: Removal

NOTE: Removal steps in this procedure may contain installation details.

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

• 2.

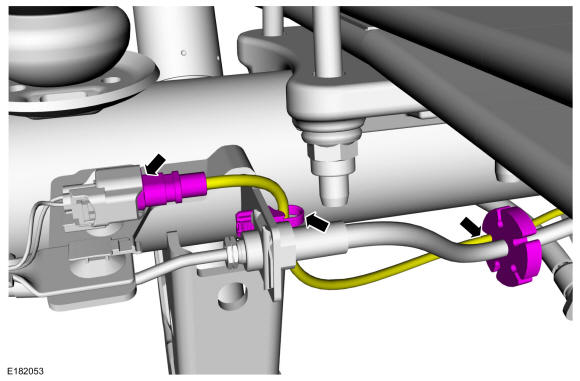

  Disconnect the rear wheel speed sensor electrical connector and detach the 2 sensor harness retainers.

Courtesy of FORD MOTOR COMPANY

• 3.

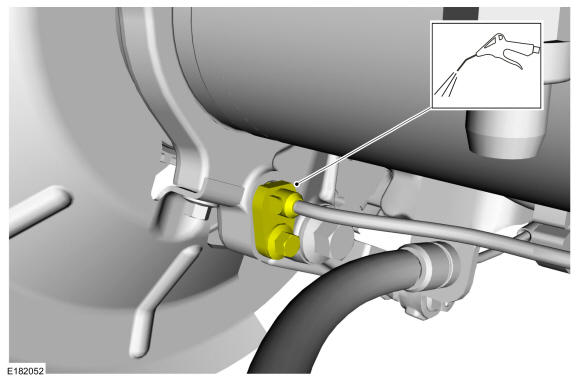

  Using compressed air, clean the area surrounding the rear wheel speed sensor.

Courtesy of FORD MOTOR COMPANY

• 4.

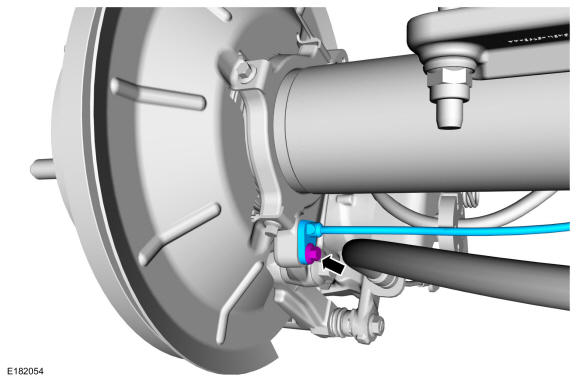

  Remove the bolt and the rear wheel speed sensor.

  Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
