Front Door Alignment

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

1.

Check front door to body dimensions. Refer to: Body and Frame .

Adjustment

All alignments

NOTE: Removal steps in this procedure may contain installation details.

NOTE: RH shown, LH similar.

1.

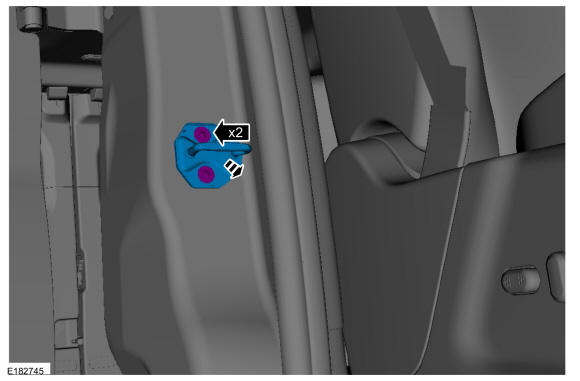

Remove the bolts and the striker assembly.
Torque: 18 lb.ft (25 Nm)

GFD146498

Courtesy of FORD MOTOR COMPANY

2.

Remove the fender splash shield. Refer to: Fender Splash Shield .

Front door in and out, up and down alignment

3.

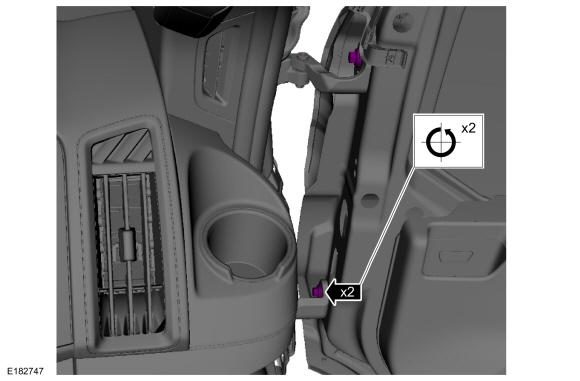

Loosen the bolts enough to permit movement of the door.
Torque: 46 lb.ft (62.5 Nm)

GFD146499

Courtesy of FORD MOTOR COMPANY

4.

Adjust door to specification. Refer to: Body and Frame .

GFD146500

Courtesy of FORD MOTOR COMPANY

Front door fore, aft and tilt alignment

5.

NOTE: LH shown, RH similar.

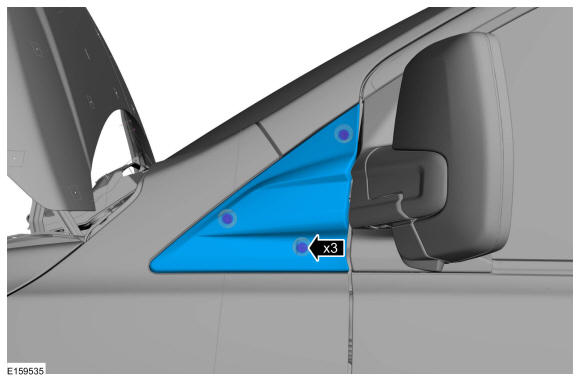

Remove trim panel.

GFD146501

Courtesy of FORD MOTOR COMPANY

6.

NOTE: RH shown, LH similar.

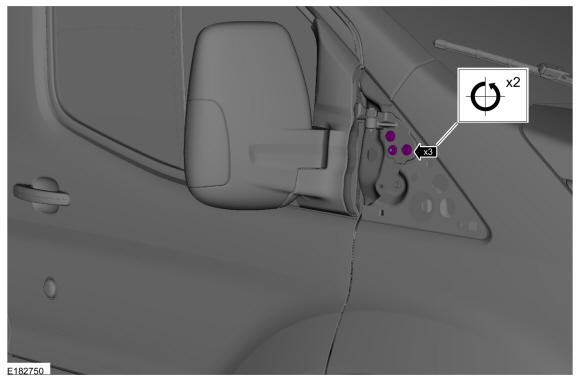

Loosen the bolts and nut enough to permit movement of the door.

Torque:

Bolts : 26 lb.ft (35 Nm)

Nut : 93 lb.in (10.5 Nm)

GFD146502

Courtesy of FORD MOTOR COMPANY

7.

NOTE: RH shown, LH similar.

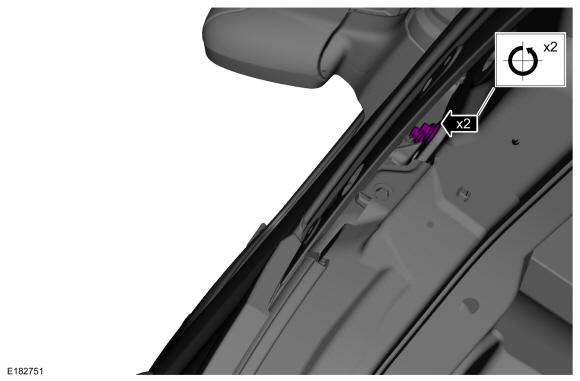

Loosen the bolts enough to permit movement of the door.

Torque: 26 lb.ft (35 Nm)

GFD146503

Courtesy of FORD MOTOR COMPANY

8.

NOTE: RH shown, LH similar.

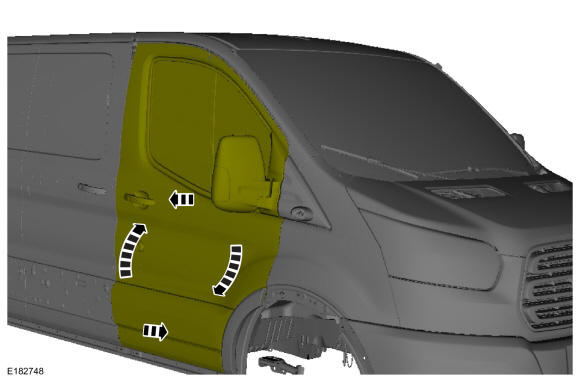

Adjust door to specification. Refer to: Body and Frame .

GFD146504

Courtesy of FORD MOTOR COMPANY

All alignments

9.

Check body to front door dimensions. Refer to: Body and Frame .

10.

Install the removed components.
