Hood Alignment
WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.
Inspection
- 1.
Check hood to body dimensions. Refer to: Body and Frame .
All alignments
- 2.
Remove the hood latch. Refer to: Hood Latch .
Hood fore and aft, left and right alignments
- 3.

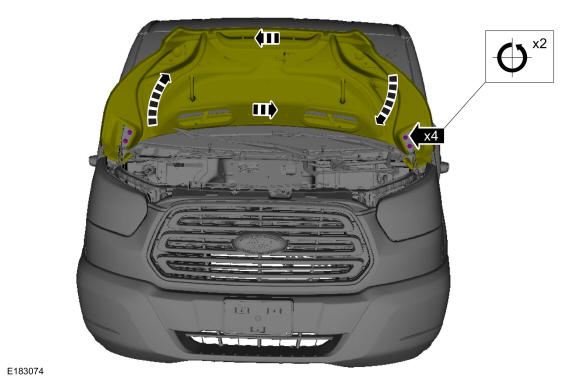

Loosen the bolts enough to permit movement of the hood and adjust to specification. Refer to: Body and Frame .Torque: 18 lb.ft (25 Nm)
Hood front up and down alignments
- 5.

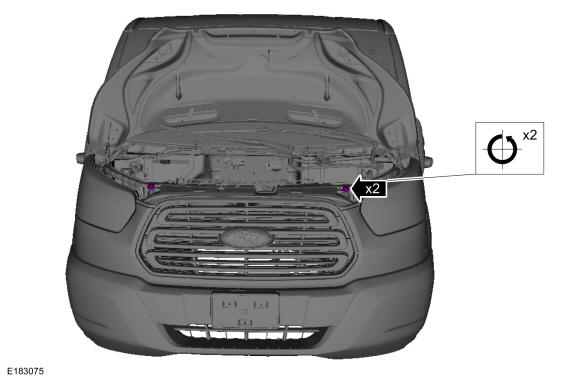

Remove the hood latch. Refer to: Hood Latch .
- 6.

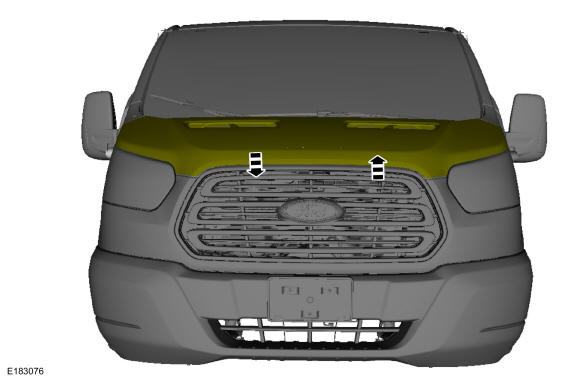

Adjust the hood to specification. Refer to: Body and Frame .
All alignments
- 7.
Check the body to hood dimensions. Refer to: Body and Frame .
