Sliding Door Alignment

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

1.

NOTE: RH shown, LH similar.

Check sliding door to body dimensions. Refer to: Body and Frame .

All alignments

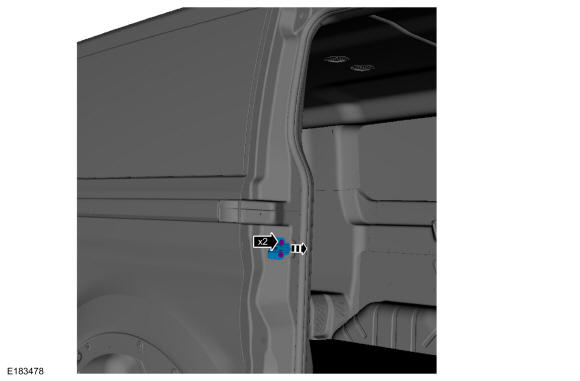

2.

Remove the bolts and the striker assembly.
Torque: 18 lb.ft (25 Nm)

GFD146518

Courtesy of FORD MOTOR COMPANY

Sliding door, upper roller alignments.

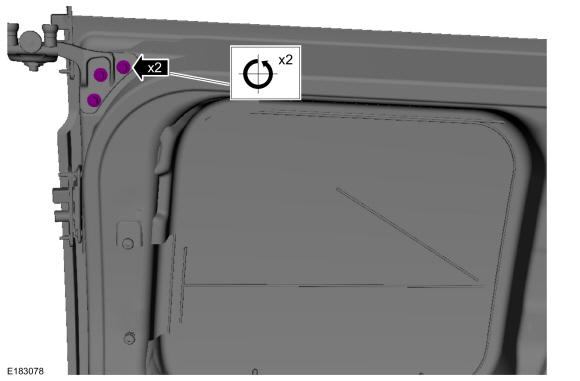

3.

Loosen the bolts enough to permit movement of the sliding door.
Torque: 26 lb.ft (35 Nm)

GFD146519

Courtesy of FORD MOTOR COMPANY

4.

Adjust the sliding door to specification. Refer to: Body and Frame .

GFD146520

Courtesy of FORD MOTOR COMPANY

Sliding door, center roller alignments.

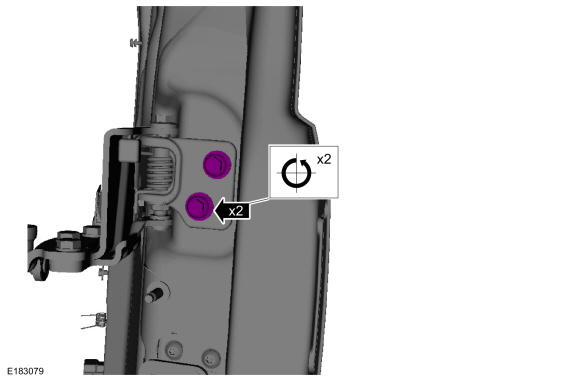

5.

Loosen the bolts enough to permit movement of the sliding door.
Torque: 26 lb.ft (35 Nm)

GFD146521

Courtesy of FORD MOTOR COMPANY

6.

Adjust the sliding door to specification. Refer to: Body and Frame .

GFD146520

Courtesy of FORD MOTOR COMPANY

Sliding door, lower roller alignments.

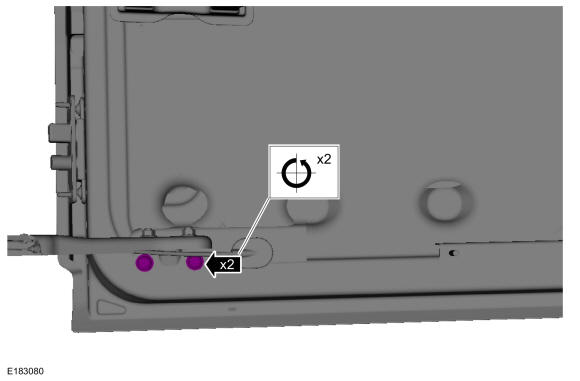

7.

Loosen the bolts enough to permit movement of the sliding door.
Torque: 26 lb.ft (35 Nm)

GFD146522

Courtesy of FORD MOTOR COMPANY

8.

Adjust the sliding door to specification. Refer to: Body and Frame .

GFD146520

Courtesy of FORD MOTOR COMPANY

All alignments

9.

Remove the bolts and the striker assembly.
Torque: 18 lb.ft (25 Nm)

GFD146518

Courtesy of FORD MOTOR COMPANY

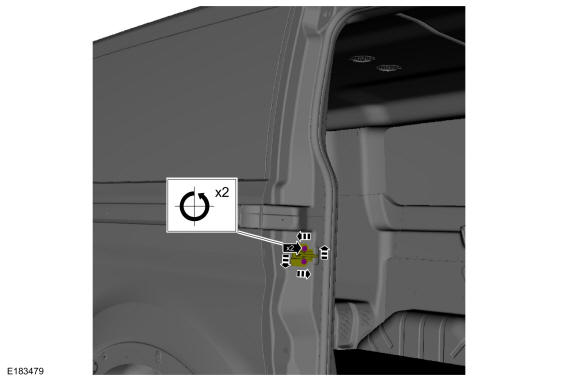

10.

Loosen the bolts enough to permit movement of the striker assembly.
Torque: 18 lb.ft (25 Nm)

GFD146523

Courtesy of FORD MOTOR COMPANY

11.

Check the body to sliding door dimensions. Refer to: Body and Frame .

12.

Install the removed components. Refer to: Body and Frame .
